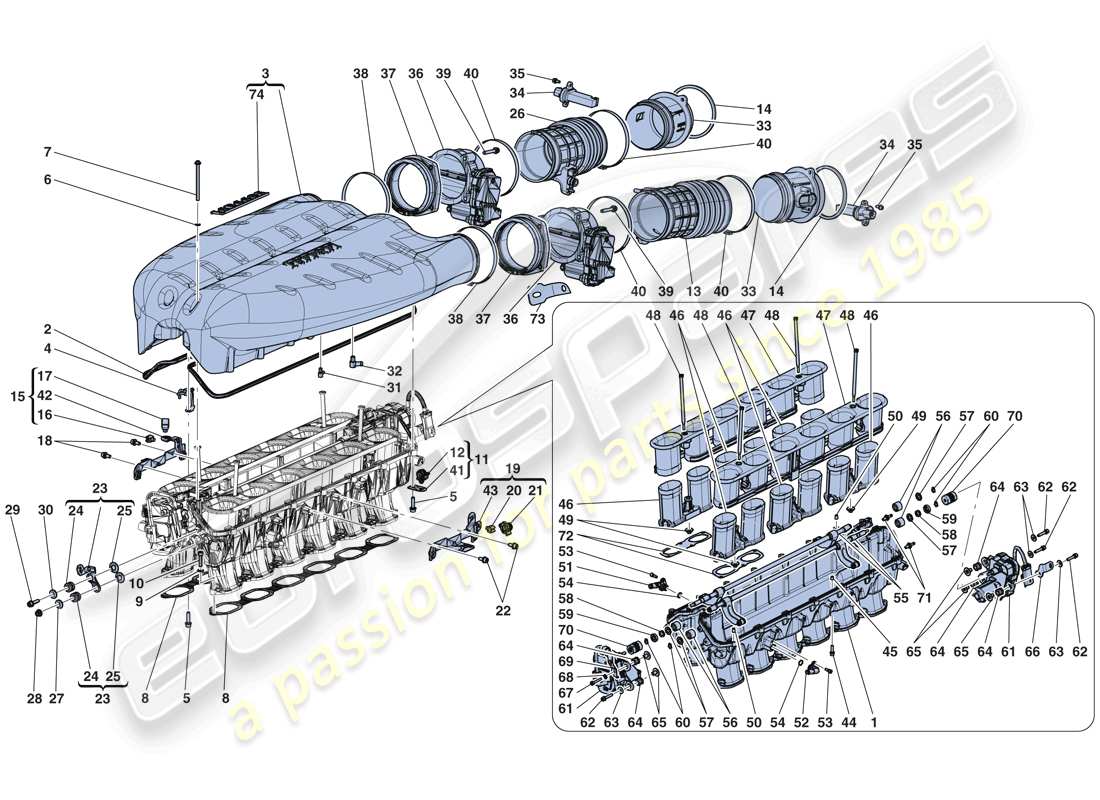

0011 - INTAKE MANIFOLD

Ferrari LaFerrari Aperta (Europe) INTAKE MANIFOLD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                            #
                                                                                                                            Part number
                                                                                                                            Description
                                                                                                                            Key
                                                                                                                            Price
                                                                                                                            # 001
                                                                                                                            MPN: 307033
                                                                                                                            INTAKE MANIFOLD
                                                                                                                            from £6,907.08
                                                                                                                            from £6,907.08
                                                                                                                            INTAKE MANIFOLD Genuine Ferrari Part - New (to order)
                                                                                                                            # 002
                                                                                                                            MPN: 275578
                                                                                                                            GASKET
                                                                                                                            from £45.98
                                                                                                                            from £45.98
                                                                                                                            GASKET Genuine Ferrari Part - New (to order)
                                                                                                                            # 003
                                                                                                                            MPN: 300585
                                                                                                                            COMPL. INTAKE PLENUM IN CARBON
                                                                                                                            -Gloss carbon-
                                                                                                                            from £23,410.18
                                                                                                                            from £23,410.18
                                                                                                                            COMPLETE INTAKE PLENUM IN CARB Genuine Ferrari Part - New (to order)
                                                                                                                            # 003
                                                                                                                            MPN: 317066
                                                                                                                            COMPL. INTAKE PLENUM IN CARBON
                                                                                                                            -Matte Carbon-
                                                                                                                            from £22,175.72
                                                                                                                            from £22,175.72
                                                                                                                            COMPLETE INTAKE PLENUM IN CARB Genuine Ferrari Part - New (to order)
                                                                                                                            # 004
                                                                                                                            MPN: 303147
                                                                                                                            3-WAY CONNECTOR
                                                                                                                            -Not for USA, CDN, USA LIGHT-
                                                                                                                            from £88.70
                                                                                                                            from £88.70
                                                                                                                            3-WAY CONNECTOR Genuine Ferrari Part - New (to order)
                                                                                                                            # 005
                                                                                                                            MPN: 231620
                                                                                                                            SCREW
                                                                                                                            -M6 X 25-
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                                                                            SOCKET HEAD SCREW WITH WASHE (231620) Genuine Maserati Part - New (to order)
                                                                                                                            # 006
                                                                                                                            MPN: 216292
                                                                                                                            GASKET
                                                                                                                            from £2.22
                                                                                                                            from £2.22
                                                                                                                            GASKET Genuine Ferrari Part - New (to order)
                                                                                                                            GASKET (216292) Genuine Maserati Part - New (to order)
                                                                                                                            # 007
                                                                                                                            MPN: 305712
                                                                                                                            SCREW
                                                                                                                            from £20.47
                                                                                                                            from £20.47
                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                            # 008
                                                                                                                            MPN: 316503
                                                                                                                            GASKET
                                                                                                                            from £10.86
                                                                                                                            from £10.86
                                                                                                                            This part replaces part number 289568
                                                                                                                            GASKET Genuine Ferrari Part - New (to order)
                                                                                                                            # 009
                                                                                                                            MPN: 11197774
                                                                                                                            WASHER
                                                                                                                            from £0.51
                                                                                                                            from £0.51
                                                                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                                                                            WASHER (11197774) Genuine Maserati Part - New In stock
                                                                                                                            # 010
                                                                                                                            MPN: 14305474
                                                                                                                            SCREW
                                                                                                                            from £0.48
                                                                                                                            from £0.48
                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                            SCREW (14305474) Genuine Maserati Part - New (to order)
                                                                                                                            # 011
                                                                                                                            MPN: 285191
                                                                                                                            COMPL. BRACKET
                                                                                                                            from £7.39
                                                                                                                            from £7.39
                                                                                                                            This part replaces part number 285190
                                                                                                                            BRACKET Genuine Ferrari Part - New (to order)
                                                                                                                            # 012
                                                                                                                            MPN: 191904
                                                                                                                            CLIP
                                                                                                                            from £0.54
                                                                                                                            from £0.54
                                                                                                                            CLIP Genuine Ferrari Part - New In stock
                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                            # 013
                                                                                                                            MPN: 300414
                                                                                                                            LH SLEEVE
                                                                                                                            from £129.35
                                                                                                                            from £129.35
                                                                                                                            LH SLEEVE Genuine Ferrari Part - New (to order)
                                                                                                                            # 014
                                                                                                                            MPN: 312172
                                                                                                                            ADHESIVE FOAM
                                                                                                                            from £14.04
                                                                                                                            from £14.04
                                                                                                                            This part replaces part number 307742
                                                                                                                            ADHESIVE FOAM Genuine Ferrari Part - New (to order)
                                                                                                                            # 015
                                                                                                                            MPN: 299274
                                                                                                                            COMPL. BRACKET
                                                                                                                            from £46.56
                                                                                                                            from £46.56
                                                                                                                            This part replaces part number 299275
                                                                                                                            BRACKET Genuine Ferrari Part - New (to order)
                                                                                                                            # 016
                                                                                                                            MPN: 248674
                                                                                                                            CLIP
                                                                                                                            from £1.03
                                                                                                                            from £1.03
                                                                                                                            CLIP Genuine Ferrari Part - New (to order)
                                                                                                                            # 017
                                                                                                                            MPN: 198253
                                                                                                                            CLIP
                                                                                                                            from £1.95
                                                                                                                            from £1.95
                                                                                                                            CLIP Genuine Ferrari Part - New In stock
                                                                                                                            1 SECT. CLIP D.16 WITH CORD (198253) Genuine Maserati Part - New In stock
                                                                                                                            # 018
                                                                                                                            MPN: 248334
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                                                                            SCREW (248334) Genuine Maserati Part - New (to order)
                                                                                                                            # 019
                                                                                                                            MPN: 299276
                                                                                                                            COMPL. BRACKET
                                                                                                                            from £46.56
                                                                                                                            from £46.56
                                                                                                                            This part replaces part number 299277
                                                                                                                            BRACKET Genuine Ferrari Part - New (to order)
                                                                                                                            # 020
                                                                                                                            MPN: 248674
                                                                                                                            CLIP
                                                                                                                            from £1.03
                                                                                                                            from £1.03
                                                                                                                            CLIP Genuine Ferrari Part - New (to order)
                                                                                                                            # 021
                                                                                                                            MPN: 191904
                                                                                                                            CLIP
                                                                                                                            from £0.54
                                                                                                                            from £0.54
                                                                                                                            CLIP Genuine Ferrari Part - New In stock
                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                            # 022
                                                                                                                            MPN: 248334
                                                                                                                            SCREW
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                                                                            SCREW (248334) Genuine Maserati Part - New (to order)
                                                                                                                            # 023
                                                                                                                            MPN: 305730
                                                                                                                            COMPL. BRACKET
                                                                                                                            from £14.79
                                                                                                                            from £14.79
                                                                                                                            This part replaces part number 301319
                                                                                                                            COMPLETE BRACKET Genuine Ferrari Part - New (to order)
                                                                                                                            # 024
                                                                                                                            MPN: 259653
                                                                                                                            GROMMET
                                                                                                                            from £1.23
                                                                                                                            from £1.23
                                                                                                                            GROMMET Genuine Ferrari Part - New (to order)
                                                                                                                            # 025
                                                                                                                            MPN: 259654
                                                                                                                            SHIM
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                                            # 026
                                                                                                                            MPN: 300413
                                                                                                                            RH SLEEVE
                                                                                                                            from £129.35
                                                                                                                            from £129.35
                                                                                                                            RH SLEEVE Genuine Ferrari Part - New (to order)
                                                                                                                            # 027
                                                                                                                            MPN: 12643701
                                                                                                                            WASHER
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                            # 028
                                                                                                                            MPN: 14058421
                                                                                                                            NUT
                                                                                                                            from £0.59
                                                                                                                            from £0.59
                                                                                                                            This part replaces part number 14075721
                                                                                                                            NUT. Genuine Ferrari Part - New In stock
                                                                                                                            NUT (14058421) Genuine Maserati Part - New (to order)
                                                                                                                            # 029
                                                                                                                            MPN: 231620
                                                                                                                            SCREW
                                                                                                                            -M6 X 25-
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                                                                            SOCKET HEAD SCREW WITH WASHE (231620) Genuine Maserati Part - New (to order)
                                                                                                                            # 030
                                                                                                                            MPN: 12643701
                                                                                                                            WASHER
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            This part replaces part number 12643704 - and 1 more. Click to view details
                                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                                            # 031
                                                                                                                            MPN: 128016
                                                                                                                            CONNECTOR
                                                                                                                            -Not for USA, CDN, USA LIGHT-
                                                                                                                            from £5.52
                                                                                                                            from £5.52
                                                                                                                            UNION Genuine Ferrari Part - New (to order)
                                                                                                                            RACCORDO 90 FILETT/CALZ. M6X (128016) Genuine Maserati Part - New (to order)
                                                                                                                            # 031
                                                                                                                            MPN: 219786
                                                                                                                            THREADED PLUG
                                                                                                                            -Applicable for USA, CDN, USA LIGHT-
                                                                                                                            from £8.24
                                                                                                                            from £8.24
                                                                                                                            THREADED PLUG Genuine Ferrari Part - New (to order)
                                                                                                                            # 032
                                                                                                                            MPN: 174818
                                                                                                                            CONNECTOR
                                                                                                                            from £8.99
                                                                                                                            from £8.99
                                                                                                                            UNION Genuine Ferrari Part - New (to order)
                                                                                                                            THREADED UNION FOR WASH V (174818) Genuine Maserati Part - New (to order)
                                                                                                                            # 033
                                                                                                                            MPN: 303381
                                                                                                                            FLOW METER
                                                                                                                            from £26.63
                                                                                                                            from £26.63
                                                                                                                            FLOW METER Genuine Ferrari Part - New (to order)
                                                                                                                            # 034
                                                                                                                            MPN: 297280
                                                                                                                            AIR FLOW SENSOR
                                                                                                                            from £44.09
                                                                                                                            from £44.09
                                                                                                                            AIR FLOW SENSOR Genuine Ferrari Part - New (to order)
                                                                                                                            AIR FLOW SENSOR Genuine Ferrari Part - Used In stock
                                                                                                                            # 035
                                                                                                                            MPN: 169814
                                                                                                                            SCREW
                                                                                                                            -M5 X 14-
                                                                                                                            from £0.71
                                                                                                                            from £0.71
                                                                                                                            This part replaces part number 13288119 - and 1 more. Click to view details
                                                                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                                                                            # 036
                                                                                                                            MPN: 317212
                                                                                                                            MOTORISED THROTTLE BODY
                                                                                                                            from £706.67
                                                                                                                            from £706.67
                                                                                                                            This part replaces part number 306470
                                                                                                                            MOTORISED THROTTLE BODY Genuine Ferrari Part - New (to order)
                                                                                                                            # 037
                                                                                                                            MPN: 297627
                                                                                                                            SPACER
                                                                                                                            from £299.38
                                                                                                                            from £299.38
                                                                                                                            SPACER Genuine Ferrari Part - New (to order)
                                                                                                                            # 038
                                                                                                                            MPN: 260582
                                                                                                                            RING CLAMP
                                                                                                                            from £2.12
                                                                                                                            from £2.12
                                                                                                                            This part replaces part number 297908
                                                                                                                            COLLAR Genuine Ferrari Part - New In stock
                                                                                                                            # 039
                                                                                                                            MPN: 231623
                                                                                                                            SCREW
                                                                                                                            -M6 X 40-
                                                                                                                            from £0.51
                                                                                                                            from £0.51
                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                            SOCKET HEAD SCREW WITH WASHER M6X (231623) Genuine Maserati Part - New In stock
                                                                                                                            # 040
                                                                                                                            MPN: 260582
                                                                                                                            RING CLAMP
                                                                                                                            from £2.12
                                                                                                                            from £2.12
                                                                                                                            This part replaces part number 297908
                                                                                                                            COLLAR Genuine Ferrari Part - New In stock
                                                                                                                            # 041
                                                                                                                            MPN: 285190
                                                                                                                            BRACKET
                                                                                                                            -After depletion, order compl.- -Applicable until depletion-
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                                            # 042
                                                                                                                            MPN: 299275
                                                                                                                            BRACKET
                                                                                                                            -After depletion, order compl.- -Applicable until depletion-
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                                            # 043
                                                                                                                            MPN: 299277
                                                                                                                            BRACKET
                                                                                                                            -After depletion, order compl.- -Applicable until depletion-
                                                                                                                            Supersession
                                                                                                                            Supersession
                                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                                            # 044
                                                                                                                            MPN: 231620
                                                                                                                            SCREW
                                                                                                                            -M6 X 25-
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                                                                            SOCKET HEAD SCREW WITH WASHE (231620) Genuine Maserati Part - New (to order)
                                                                                                                            # 045
                                                                                                                            MPN: 102725
                                                                                                                            ALIGNMENT DOWEL
                                                                                                                            from £0.61
                                                                                                                            from £0.61
                                                                                                                            DOWEL BOLT Genuine Ferrari Part - New (to order)
                                                                                                                            CENTRING DOWEL D.8X8 (102725) Genuine Maserati Part - New (to order)
                                                                                                                            # 046
                                                                                                                            MPN: 272580
                                                                                                                            INTAKE DUCT BRANCH
                                                                                                                            from £743.85
                                                                                                                            from £743.85
                                                                                                                            INTAKE DUCT BRANCH Genuine Ferrari Part - New (to order)
                                                                                                                            # 047
                                                                                                                            MPN: 318711
                                                                                                                            INTAKE TRUMPET BODY
                                                                                                                            from £6,652.72
                                                                                                                            from £6,652.72
                                                                                                                            This part replaces part number 305937
                                                                                                                            INTAKE TRUMPET BODY Genuine Ferrari Part - New (to order)
                                                                                                                            # 048
                                                                                                                            MPN: 272584
                                                                                                                            INTAKE TRUMPET GUIDE ROD
                                                                                                                            from £141.97
                                                                                                                            from £141.97
                                                                                                                            INTAKE TRUMPET GUIDE ROD Genuine Ferrari Part - New (to order)
                                                                                                                            # 049
                                                                                                                            MPN: 273084
                                                                                                                            ENDSTOP BUSH
                                                                                                                            from £63.24
                                                                                                                            from £63.24
                                                                                                                            ENDSTOP BUSH Genuine Ferrari Part - New (to order)
                                                                                                                            # 050
                                                                                                                            MPN: 277190
                                                                                                                            ALIGNMENT DOWEL
                                                                                                                            from £2.66
                                                                                                                            from £2.66
                                                                                                                            ALIGNMENT DOWEL Genuine Ferrari Part - New (to order)
                                                                                                                            # 051
                                                                                                                            MPN: 243207
                                                                                                                            RH UNION
                                                                                                                            from £11.09
                                                                                                                            from £11.09
                                                                                                                            RH UNION Genuine Ferrari Part - New (to order)
                                                                                                                            # 052
                                                                                                                            MPN: 243208
                                                                                                                            LH UNION
                                                                                                                            from £13.30
                                                                                                                            from £13.30
                                                                                                                            LH UNION Genuine Ferrari Part - New (to order)
                                                                                                                            # 053
                                                                                                                            MPN: 231616
                                                                                                                            SCREW
                                                                                                                            -M6 X 14-
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 14305724 which we have in stock
                                                                                                                            Genuine Ferrari Part (no longer available to order)
                                                                                                                            SCREW (231616) Genuine Maserati Part - New (to order)
                                                                                                                            # 054
                                                                                                                            MPN: 123475
                                                                                                                            GASKET
                                                                                                                            from £1.90
                                                                                                                            from £1.90
                                                                                                                            GASKET Genuine Ferrari Part - New (to order)
                                                                                                                            # 055
                                                                                                                            MPN: 307270
                                                                                                                            INTAKE TRUMPET ACTUATOR ROD
                                                                                                                            from £1,095.09
                                                                                                                            from £1,095.09
                                                                                                                            INTAKE TRUMPET ACTUATOR ROD Genuine Ferrari Part - New (to order)
                                                                                                                            # 056
                                                                                                                            MPN: 274418
                                                                                                                            BEARING
                                                                                                                            from £14.79
                                                                                                                            from £14.79
                                                                                                                            BEARING Genuine Ferrari Part - New (to order)
                                                                                                                            # 057
                                                                                                                            MPN: 273129
                                                                                                                            WASHER
                                                                                                                            from £30.55
                                                                                                                            from £30.55
                                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                                            # 058
                                                                                                                            MPN: 274419
                                                                                                                            SPRING
                                                                                                                            from £9.10
                                                                                                                            from £9.10
                                                                                                                            SPRING Genuine Ferrari Part - New (to order)
                                                                                                                            # 059
                                                                                                                            MPN: 273089
                                                                                                                            SPRING COVER CUP
                                                                                                                            from £32.07
                                                                                                                            from £32.07
                                                                                                                            SPRING COVER CUP Genuine Ferrari Part - New (to order)
                                                                                                                            # 060
                                                                                                                            MPN: 11065874
                                                                                                                            SEEGER RING
                                                                                                                            from £0.74
                                                                                                                            from £0.74
                                                                                                                            SEEGER RING Genuine Ferrari Part - New (to order)
                                                                                                                            # 061
                                                                                                                            MPN: 309282
                                                                                                                            INTAKE TRUMPET LIFT ACTUATOR
                                                                                                                            from £1,775.16
                                                                                                                            from £1,775.16
                                                                                                                            This part replaces part number 303974
                                                                                                                            INTAKE TRUMPET LIFT ACTUATOR Genuine Ferrari Part - New (to order)
                                                                                                                            # 062
                                                                                                                            MPN: 231621
                                                                                                                            SCREW
                                                                                                                            -M6 X 30-
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 216568
                                                                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                                                                            SCREW (231621) Genuine Maserati Part - New (to order)
                                                                                                                            # 063
                                                                                                                            MPN: 12643724
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                                                                            WASHER (12643724) Genuine Maserati Part - New In stock
                                                                                                                            # 064
                                                                                                                            MPN: 298430
                                                                                                                            GROMMET
                                                                                                                            from £7.27
                                                                                                                            from £7.27
                                                                                                                            GROMMET Genuine Ferrari Part - New (to order)
                                                                                                                            # 065
                                                                                                                            MPN: 298429
                                                                                                                            SPACER
                                                                                                                            from £1.91
                                                                                                                            from £1.91
                                                                                                                            SPACER Genuine Ferrari Part - New (to order)
                                                                                                                            # 066
                                                                                                                            MPN: 303988
                                                                                                                            REAR CONNECTOR BRACKET
                                                                                                                            from £14.79
                                                                                                                            from £14.79
                                                                                                                            REAR CONNECTOR BRACKET Genuine Ferrari Part - New (to order)
                                                                                                                            # 067
                                                                                                                            MPN: 286172
                                                                                                                            SCREW
                                                                                                                            from £10.06
                                                                                                                            from £10.06
                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                            # 068
                                                                                                                            MPN: 13550221
                                                                                                                            WASHER
                                                                                                                            from £0.47
                                                                                                                            from £0.47
                                                                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                                                                            WASHER (13550221) Genuine Maserati Part - New (to order)
                                                                                                                            # 069
                                                                                                                            MPN: 306312
                                                                                                                            BRAKE SERVO PIPE MOUNTING BRACKET
                                                                                                                            from £11.83
                                                                                                                            from £11.83
                                                                                                                            BRAKE SERVO PIPE MOUNTING BR Genuine Ferrari Part - New (to order)
                                                                                                                            # 070
                                                                                                                            MPN: 298678
                                                                                                                            FLEXIBLE JOINT
                                                                                                                            from £650.50
                                                                                                                            from £650.50
                                                                                                                            FLEXIBLE JOINT Genuine Ferrari Part - New (to order)
                                                                                                                            # 071
                                                                                                                            MPN: 299302
                                                                                                                            THREADED CONNECTOR
                                                                                                                            from £16.04
                                                                                                                            from £16.04
                                                                                                                            THREADED CONNECTOR Genuine Ferrari Part - New (to order)
                                                                                                                            # 072
                                                                                                                            MPN: 284824
                                                                                                                            GASKET
                                                                                                                            from £11.84
                                                                                                                            from £11.84
                                                                                                                            GASKET Genuine Ferrari Part - New (to order)
                                                                                                                            # 073
                                                                                                                            MPN: 249878
                                                                                                                            BRACKET
                                                                                                                            from £3.77
                                                                                                                            from £3.77
                                                                                                                            BRACKET Genuine Ferrari Part - New (to order)
                                                                                                                            # 074
                                                                                                                            MPN: 275650
                                                                                                                            PLENUM CHROME BADGE
                                                                                                                            from £125.65
                                                                                                                            from £125.65
                                                                                                                            PLENUM CHROME BADGE Genuine Ferrari Part - New (to order)
                                                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
