0016 - HEADER TANK AND PIPES

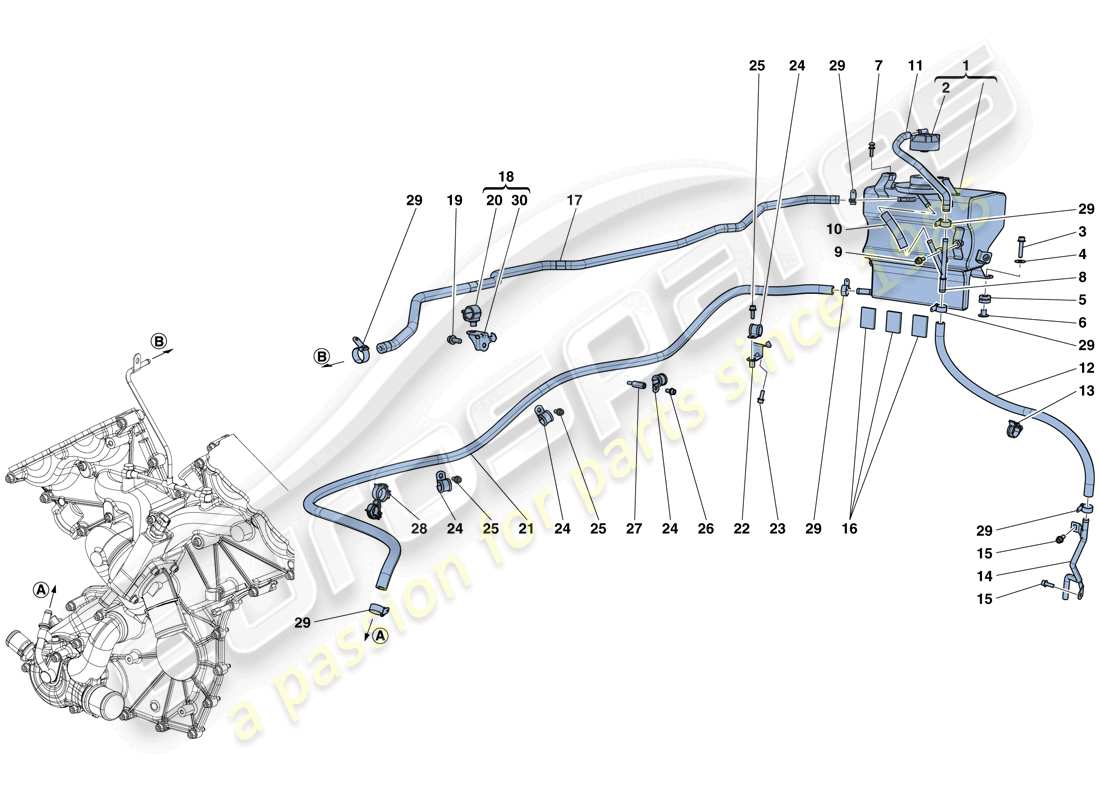

Ferrari LaFerrari Aperta (Europe) HEADER TANK AND PIPES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 001
                                                MPN: 294014
                                                COMPL. HEADER TANK
                                                from £1,108.79
                                                from £1,108.79
                                                COMPLETE HEADER TANK Genuine Ferrari Part - New (to order)
                                                # 003
                                                MPN: 231621
                                                SCREW
                                                -M6 X 30-
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 216568
                                                SCREW Genuine Ferrari Part - New In stock
                                                SCREW (231621) Genuine Maserati Part - New (to order)
                                                # 004
                                                MPN: 12643724
                                                WASHER
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 109684 - and 4 more. Click to view details
                                                WASHER Genuine Ferrari Part - New In stock
                                                WASHER (12643724) Genuine Maserati Part - New In stock
                                                # 005
                                                MPN: 103549
                                                GROMMET
                                                from £0.70
                                                from £0.70
                                                RING Genuine Ferrari Part - New In stock
                                                CABLE GROMMET (103549) Genuine Maserati Part - New (to order)
                                                # 006
                                                MPN: 149707
                                                SHIM
                                                from £0.64
                                                from £0.64
                                                SPACER Genuine Ferrari Part - New In stock
                                                SPACER (149707) Genuine Maserati Part - New (to order)
                                                # 007
                                                MPN: 85797600
                                                SPECIAL SCREW
                                                from £15.21
                                                from £15.21
                                                SPECIAL SCREW Genuine Ferrari Part - New (to order)
                                                # 008
                                                MPN: 295432
                                                3-WAY CONNECTOR
                                                from £127.88
                                                from £127.88
                                                THREE WAY Genuine Ferrari Part - New (to order)
                                                # 009
                                                MPN: 231617
                                                SCREW
                                                -M6 X 18-
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 14433124
                                                SCREW Genuine Ferrari Part - New In stock
                                                SOCKET HEAD SCREW WITH WASHER M6X (231617) Genuine Maserati Part - New (to order)
                                                # 010
                                                MPN: 295434
                                                RUBBER PIPE
                                                from £69.47
                                                from £69.47
                                                RUBBER PIPE Genuine Ferrari Part - New (to order)
                                                # 011
                                                MPN: 300603
                                                RUBBER PIPE
                                                from £121.56
                                                from £121.56
                                                RUBBER PIPE Genuine Ferrari Part - New (to order)
                                                # 012
                                                MPN: 295431
                                                RUBBER PIPE
                                                from £236.54
                                                from £236.54
                                                RUBBER PIPE Genuine Ferrari Part - New (to order)
                                                # 013
                                                MPN: 222072
                                                CLIP
                                                from £1.80
                                                from £1.80
                                                CLIP Genuine Ferrari Part - New In stock
                                                CLIP (222072) Genuine Maserati Part - New In stock
                                                # 014
                                                MPN: 300396
                                                HEADER TANK RIGID PIPE
                                                from £124.18
                                                from £124.18
                                                HEADER TANK RIGID PIPE Genuine Ferrari Part - New (to order)
                                                # 015
                                                MPN: 231617
                                                SCREW
                                                -M6 X 18-
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 14433124
                                                SCREW Genuine Ferrari Part - New In stock
                                                SOCKET HEAD SCREW WITH WASHER M6X (231617) Genuine Maserati Part - New (to order)
                                                # 016
                                                MPN: 295423
                                                ADHESIVE FOAM
                                                from £0.47
                                                from £0.47
                                                ADHESIVE FOAM Genuine Ferrari Part - New (to order)
                                                # 017
                                                MPN: 300700
                                                RUBBER PIPE
                                                from £218.06
                                                from £218.06
                                                RUBBER PIPE Genuine Ferrari Part - New (to order)
                                                # 018
                                                MPN: 301328
                                                COMPL. PIPE MOUNTING BRACKET
                                                from £18.48
                                                from £18.48
                                                This part replaces part number 301327
                                                COMPLETE PIPE MOUNTING BRACK Genuine Ferrari Part - New (to order)
                                                # 019
                                                MPN: 248334
                                                SCREW
                                                from £0.47
                                                from £0.47
                                                SCREW Genuine Ferrari Part - New In stock
                                                SCREW (248334) Genuine Maserati Part - New (to order)
                                                # 020
                                                MPN: 198253
                                                CLIP
                                                from £1.95
                                                from £1.95
                                                CLIP Genuine Ferrari Part - New In stock
                                                1 SECT. CLIP D.16 WITH CORD (198253) Genuine Maserati Part - New In stock
                                                # 021
                                                MPN: 294248
                                                RUBBER PIPE
                                                from £232.85
                                                from £232.85
                                                RUBBER PIPE Genuine Ferrari Part - New (to order)
                                                # 022
                                                MPN: 295419
                                                BRACKET
                                                from £36.96
                                                from £36.96
                                                BRACKET Genuine Ferrari Part - New (to order)
                                                # 023
                                                MPN: 231617
                                                SCREW
                                                -M6 X 18-
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 14433124
                                                SCREW Genuine Ferrari Part - New In stock
                                                SOCKET HEAD SCREW WITH WASHER M6X (231617) Genuine Maserati Part - New (to order)
                                                # 024
                                                MPN: 10441690
                                                BRACKET WITH SHEATH
                                                from £1.08
                                                from £1.08
                                                This part replaces part number 1044690
                                                BRACKET Genuine Ferrari Part - New In stock
                                                STAFFETTA CON GUAINA PER 1 T (10441690) Genuine Maserati Part - New (to order)
                                                # 025
                                                MPN: 231617
                                                SCREW
                                                -M6 X 18-
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 14433124
                                                SCREW Genuine Ferrari Part - New In stock
                                                SOCKET HEAD SCREW WITH WASHER M6X (231617) Genuine Maserati Part - New (to order)
                                                # 026
                                                MPN: 231616
                                                SCREW
                                                -M6 X 14-
                                                from £0.47
                                                from £0.47
                                                This part replaces part number 14305724 which we have in stock
                                                Genuine Ferrari Part (no longer available to order)
                                                SCREW (231616) Genuine Maserati Part - New (to order)
                                                # 027
                                                MPN: 287818
                                                STUD BOLT
                                                from £11.02
                                                from £11.02
                                                STUD BOLT Genuine Ferrari Part - New (to order)
                                                # 028
                                                MPN: 306692
                                                CLIP SET
                                                from £0.54
                                                from £0.54
                                                CLIP SET Genuine Ferrari Part - New (to order)
                                                # 029
                                                MPN: 262107
                                                SCREW COLLAR
                                                from £0.90
                                                from £0.90
                                                SCREW COLLAR Genuine Ferrari Part - New (to order)
                                                # 030
                                                MPN: 301327
                                                PIPE MOUNTING BRACKET
                                                -After depletion, order compl.- -Applicable until depletion-
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
