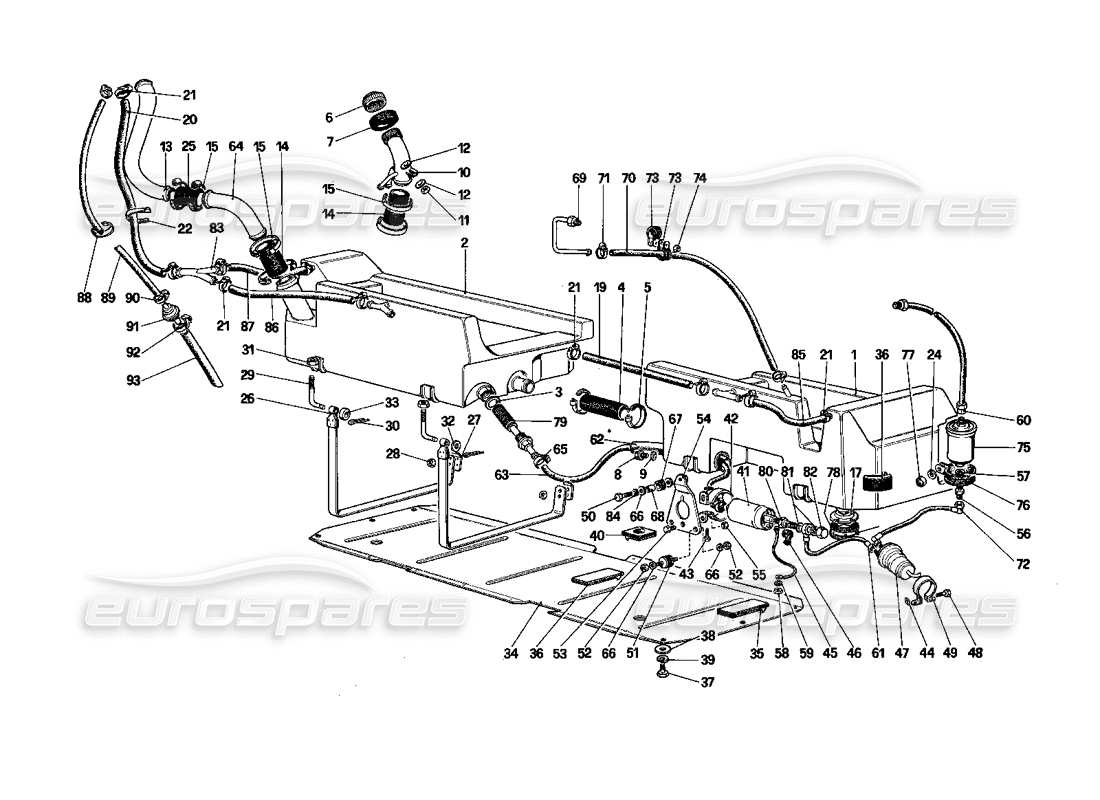

010 - Fuel Pump and Pipes (Cabriolet)
Ferrari Mondial 3.0 QV (1984) Fuel Pump and Pipes (Cabriolet) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 123366

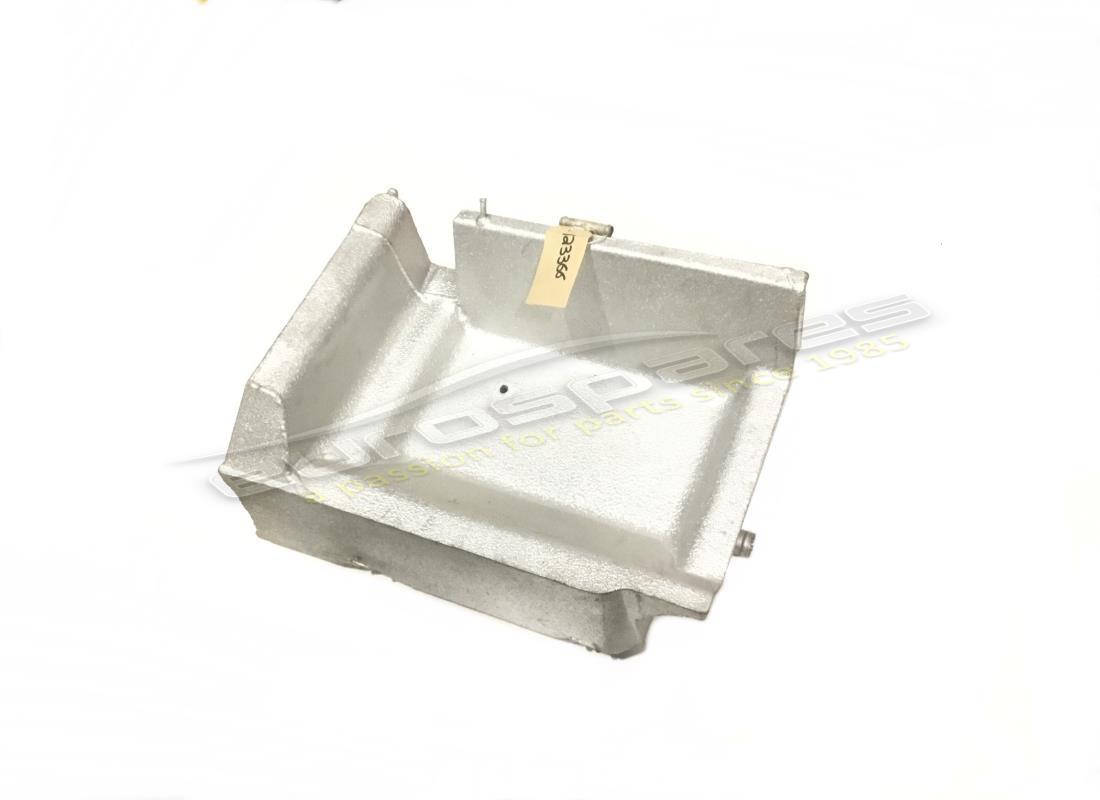

RIGHT FUEL TANK
from £1,485.83
from £1,485.83
# 002
MPN: 123367
LEFT FUEL TANK
Supersession
Supersession
# 003
MPN: 117884
GASKET FOR FUEL FILTER
from £18.67
from £18.67
# 004
MPN: 116270
TANK CONNECTING SLEEVE
from £53.09
from £53.09
This part replaces part number 121487
# 005
MPN: 13000590
SLEEVE CLAMP
from £0.47
from £0.47
This part replaces part number 105622 - and 2 more. Click to view details
# 006
MPN: 113401
FUEL FILLER CAP
from £65.57
from £65.57
This part replaces part number 101453 - and 3 more. Click to view details
# 007
MPN: 101465
GASKET FOR FILLER
from £45.30
from £45.30
This part replaces part number 821287 - and 3 more. Click to view details
# 008
MPN: 10300771
FUEL DRAIN PLUG
from £0.57
from £0.57
# 009
MPN: 10278650
GASKET FOR DRAIN PLUG
from £0.47
from £0.47
# 010
MPN: 123368
TANK FILLER
from £213.22
from £213.22
# 011
MPN: 12574221
SELF LOCKING NUT
Supersession
Supersession
This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
# 012
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 013
MPN: 121485
PIPE
from £80.96
from £80.96
# 014
MPN: 114278
SLEEVE
from £56.28
from £56.28
# 015
MPN: 12174790
CLAMP
from £1.08
from £1.08
This part replaces part number 50188200
# 016
MPN: 116758
FUEL RECOVERY PIPE
Supersession
Supersession
This part replaces part number 105527 - and 5 more. Click to view details
# 017
MPN: 121934
CONTROL FOR FUEL LEVEL GUAGE
Supersession
Supersession
# 018
MPN: 121435
RING NUT FIXING CONTROL OF FUEL LEVEL
from £44.76
from £44.76
This part replaces part number 116012 - and 5 more. Click to view details
# 019
MPN: 120457
TANK BREATHER PIPE
Supersession
Supersession
This part replaces part number 125032
# 020
MPN: 120457
TANK BREATHER PIPE
Supersession
Supersession
This part replaces part number 125032
# 021
MPN: 13000390
CLAMP
from £0.47
from £0.47
This part replaces part number 12179590 - and 1 more. Click to view details
# 022
MPN: 103755
CLAMP
from £0.71
from £0.71
This part replaces part number 680994
# 023
MPN: 10168590
JUBILEE CLIP
Supersession
Supersession
# 024
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 025
MPN: 117618
SLEEVE
from £32.62
from £32.62
This part replaces part number 114282 - and 2 more. Click to view details
# 026
MPN: 115732
STRAP SECURING FUEL TANK
from £105.00
from £105.00
# 027
MPN: 115734
PLATE, SECURING STRAP
from £2.00
from £2.00
# 028
MPN: 12575411
SELF LOCKING NUT
Supersession
Supersession
# 029
MPN: 213177
TIE ROD FOR STRAP
Supersession
Supersession
# 030
MPN: 10796440
SPLIT PIN
Supersession
Supersession
This part replaces part number 264555
# 031
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 032
MPN: 10519624
WASHER
from £0.47
from £0.47
This part replaces part number 10519601 - and 3 more. Click to view details
# 033
MPN: 13605911
SPACER
from £2.81
from £2.81
# 034
MPN: 119182
PROTECTIVE PLATE FOR TANKS
from £235.45
from £235.45
# 035
MPN: 116566
OUTER SHIM
Supersession
Supersession
# 036
MPN: 115330
INNER SHIM AND ON TANKS
from £8.54
from £8.54
# 037
MPN: 10902121
SCREW
from £0.71
from £0.71
This part replaces part number 20146601
# 038
MPN: 12643724
SHEARED WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 039
MPN: 127494
SPRING WASHER
from £0.49
from £0.49
This part replaces part number 10516470 - and 4 more. Click to view details
# 040
MPN: 116585
GASKET
from £4.61
from £4.61
# 041
MPN: 121727
fuel pump
from £96.49
from £96.49
This part replaces part number 113976 - and 3 more. Click to view details
# 042
MPN: 113673
SEAL CLAMP FOR FUEL PUMP
Supersession
Supersession
# 043
MPN: 10377311
ADJUST SCREW FOR CLAMP TENSION
from £0.47
from £0.47
# 044
MPN: 14089311
SQUARE NUT
from £0.47
from £0.47
# 045
MPN: 115153
EARTH CABLE
from £3.16
from £3.16
# 046
MPN: 107003
PROTECTIVE CAP FOR TERMINALS
from £5.79
from £5.79
# 047
MPN: 113978
ACCUMULATOR
from £225.00
from £225.00
# 048
MPN: 10376111
ADJUSTING SCREW FOR CLAMP TENSION
from £0.47
from £0.47
# 049
MPN: 113674
SEAL CLAMP FOR ACCUMULATOR
from £17.54
from £17.54
# 050
MPN: 10902621
SCREW
Supersession
Supersession
This part replaces part number 10902611
# 051
MPN: 102947
SMALL BLOCK
from £6.17
from £6.17
This part replaces part number 102007 - and 14 more. Click to view details
# 052
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 053
MPN: 10902221
FIXING SCREW FOR CLAMPS
from £0.52
from £0.52
# 054
MPN: 119178
SUPPORT
from £25.21
from £25.21
# 055
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 056
MPN: 109797
UNION PIECE
from £10.16
from £10.16
# 057
MPN: 11270160
GASKET
from £0.93
from £0.93
# 058
MPN: 15896214
FIXING NUT FOR EARTH
from £0.54
from £0.54
This part replaces part number 15896211
# 059
MPN: 10571570
SPRING WASHER
from £0.87
from £0.87
# 060
MPN: 121158
PIPE FROM FILTER TO METERING DEVICE
from £80.70
from £80.70
# 061
MPN: 123028
PIPE FROM PUMP TO ACCUMULATOR
from £20.40
from £20.40
# 062
MPN: 119183
PROTECTION PIPE
from £9.90
from £9.90
# 063
MPN: 119184
SLEEVE, PUMP SIDE
from £25.22
from £25.22
# 064
MPN: 121486
PIPE
from £52.04
from £52.04
# 065
MPN: 13000390
CLAMP
from £0.47
from £0.47
This part replaces part number 12179590 - and 1 more. Click to view details
# 066
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 067
MPN: 103549
RUBBER BUSH
from £0.71
from £0.71
# 068
MPN: 103550
SPACER
from £1.96
from £1.96
This part replaces part number 4130913
# 069
MPN: 121159
FUEL REFLUX PIPE
from £62.74
from £62.74
# 070
MPN: 118283
FUEL REFLUX PIPE
from £22.98
from £22.98
# 071
MPN: 13000190
CLAMP
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
# 072
MPN: 121156
PIPE FROM ACCUMULATOR TO FILTER
from £19.62
from £19.62
# 073
MPN: 10441190
CLAMP
from £0.47
from £0.47
# 074
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 075
MPN: 178647
FUEL FILTER
from £12.55
from £12.55
This part replaces part number 115738
# 076
MPN: 115140
SHEATHED BRACKET FOR FILTER
from £10.37
from £10.37
# 077
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 078
MPN: 154802
GASKET
from £17.11
from £17.11
This part replaces part number 116792 - and 2 more. Click to view details
# 079
MPN: 116404
FILTER ON TANK
Supersession
Supersession
# 080
MPN: 120098
CHECK VALVE
from £48.27
from £48.27
# 081
MPN: 11270160
GASKET
from £0.92
from £0.92
# 082
MPN: 10183217
CAP
Supersession
Supersession
# 083
MPN: 123373
2 WAY -UNION
from £14.49
from £14.49
# 084
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 085
MPN: 119281
PIPE
from £55.50
from £55.50
This part replaces part number 115137
# 086
MPN: 115137
PIPE
Supersession
Supersession
# 087
MPN: 117873
PIPE
Supersession
Supersession
This part replaces part number 150462
# 088
MPN: 40135402
CLAMP
from £2.45
from £2.45
This part replaces part number 111193
# 089
MPN: 119376
PIPE
from £40.37
from £40.37
# 090
MPN: 13000190
CLAMP
from £0.53
from £0.53
This part replaces part number 12178990 - and 1 more. Click to view details
# 091
MPN: 120444
VALVE
from £11.64
from £11.64
# 092
MPN: 12179090
CLAMP
Supersession
Supersession
This part replaces part number 102721
# 093
MPN: 116770
PIPE
from £7.05
from £7.05
This part replaces part number 114882
-part-diagram-011.webp "FERRARI MONDIAL 3.0 QV (1984) FUEL INJECTION SYSTEM - FUEL DISTRIBUTORS, LINES PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.0 QV (1984) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.0 QV (1984) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI MONDIAL 3.0 QV (1984) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI MONDIAL 3.0 QV (1984) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.0 QV (1984) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.0 QV (1984) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.0 QV (1984) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.0 QV (1984) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.0 QV (1984) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.0 QV (1984) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.0 QV (1984) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.0 QV (1984) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.0 QV (1984) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI MONDIAL 3.0 QV (1984) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI MONDIAL 3.0 QV (1984) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.0 QV (1984) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.0 QV (1984) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.0 QV (1984) BRAKE SYSTEM (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011) PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.0 QV (1984) BRAKE SYSTEM (VALID FOR RHD - FOR LHD FROM CHASSIS NO. 43013) PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.0 QV (1984) CALIPERS FOR FRONT AND REAR BRAKES (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011) PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.0 QV (1984) CALIPERS FOR FRONT AND REAR BRAKES (VALID FOR RHD-FOR LHD FROM CHASSIS NO. 43013) PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.0 QV (1984) HAND - BRAKE CONTROL (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011) PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.0 QV (1984) HAND - BRAKE CONTROL (VALID FOR RHD - FOR LHD FROM CHASSIS NO. 43013) PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.0 QV (1984) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.0 QV (1984) STEERING CULUMN PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.0 QV (1984) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.0 QV (1984) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI MONDIAL 3.0 QV (1984) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI MONDIAL 3.0 QV (1984) REAR SUSPENSION - WISHBBNES PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI MONDIAL 3.0 QV (1984) WHEELS PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE IGNITION - (QUATTROVALVOLE) PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE IGNITION - (CABRIOLET) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI MONDIAL 3.0 QV (1984) ELECTRIC GENERATING SYSTEM - (ENGINE WITH SINGLE BELT) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI MONDIAL 3.0 QV (1984) ELECTRIC GENERATING SYSTEM - (ENGINE WITH 2 INDIVIDUAL BELT) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI MONDIAL 3.0 QV (1984) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.0 QV (1984) TOOL KIT PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.0 QV (1984) PEDAL BOARD - CLUTCH CONTROL (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.0 QV (1984) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - INNER ELEMENTS - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - INNER ELEMENTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI MONDIAL 3.0 QV (1984) LUGGAGE AND PASSENGER COMPARTMENT INSULATION PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI MONDIAL 3.0 QV (1984) QUATTROVALVOLE LUGGAGE AND PASSENGER COMPARTMENTE INSULATIOR - CABRIOLET PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.0 QV (1984) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE COMPARTMENT LID AND CARPETING PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.0 QV (1984) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.0 QV (1984) DOORS - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.0 QV (1984) DOORS - CABRIOLET PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.0 QV (1984) BUMPERS, LIGHTS AND FRONT GLASSES PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.0 QV (1984) BUMPERS, LIGHTS AND REAR GLASSES PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.0 QV (1984) SEATS - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI MONDIAL 3.0 QV (1984) SEATS - CABRIOLET PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI MONDIAL 3.0 QV (1984) ROOF, TUNNEL AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.0 QV (1984) INSTRUMENT PANEL PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI MONDIAL 3.0 QV (1984) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI MONDIAL 3.0 QV (1984) LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI MONDIAL 3.0 QV (1984) ELECTRICAL BOARD PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI MONDIAL 3.0 QV (1984) WINDSHIELD WIPER - WASHER AND HORN PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI MONDIAL 3.0 QV (1984) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI MONDIAL 3.0 QV (1984) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.0 QV (1984) SUN ROOF - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.0 QV (1984) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-a.webp "FERRARI MONDIAL 3.0 QV (1984) SPARE ASSEMBLY UNITS - MECHANICAL PARTS DIAGRAM")
-part-diagram-b.webp "FERRARI MONDIAL 3.0 QV (1984) SPARE ASSEMBLY UNITS - COACHWORK PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.0 QV (1984) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.0 QV (1984) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.0 QV (1984) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.0 QV (1984) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.0 QV (1984) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.0 QV (1984) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.0 QV (1984) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.0 QV (1984) FUEL PUMP AND PIPES (QUATTROVALVOLE) PARTS DIAGRAM")
