107 - Front Compartment Lid

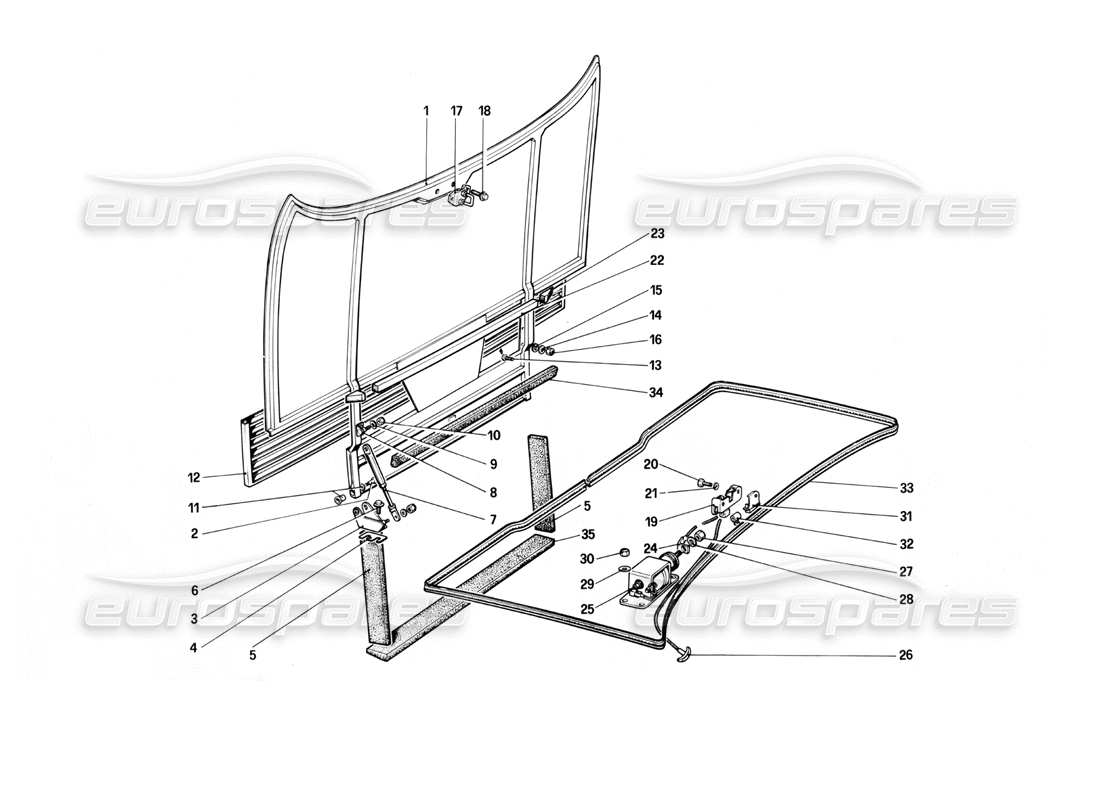

Ferrari Mondial 3.0 QV (1984) Front Compartment Lid Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60952800
FRONT BONNET
from £1,365.00
from £1,365.00
This part replaces part number 60544000 - and 5 more. Click to view details
# 002
MPN: 60919100
PIN FOR HINGE
from £14.71
from £14.71
# 003
MPN: 60559000
RIGHT HINGE
from £26.68
from £26.68
# 003
MPN: 60918700
LEFT HINGE
from £23.50
from £23.50
# 004
MPN: 60644700
SHIM FOR HINGE
from £3.35
from £3.35
# 005
MPN: 60773500
RADIATOR SIDE GASKET
from £31.26
from £31.26
This part replaces part number 60250701
# 006
MPN: 13838071
SCREW, HEXAGONAL - HEAD
from £0.47
from £0.47
# 007
MPN: 60559500
FRONT COVER/ENGINE COVER STRUT
from £74.17
from £74.17
# 008
MPN: 60558800
BRACKET
from £22.01
from £22.01
# 009
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 010
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 011
MPN: 60919400
BUSH
from £5.44
from £5.44
# 012
MPN: 60559600
GRILL
from £168.00
from £168.00
# 013
MPN: 20297602
FIXING SCREW FOR GRILL
Only for dark colour cars
from £5.75
from £5.75
# 013
MPN: 61349600
FIXING SCREW FOR GRILL
Only for light colour cars
from £0.77
from £0.77
# 014
MPN: 12638108
WASHER FOR GRILL
Supersession
Supersession
This part replaces part number 61276300
# 015
MPN: 12604178
SPRING WASHER FOR GRILL
Supersession
Supersession
# 016
MPN: 14054048
FIXING NUT FOR GRILL
Supersession
Supersession
This part replaces part number 14054042
# 017
MPN: 60536900
CATCH
from £14.38
from £14.38
# 018
MPN: 13836301
SCREW
from £0.47
from £0.47
# 019
MPN: 60277407
LOCK FOR FRONT BONNET
from £278.31
from £278.31
This part replaces part number 60023405 - and 11 more. Click to view details
# 020
MPN: 20297503
SCREW
from £0.70
from £0.70
# 021
MPN: 10519501
WASHER
from £0.47
from £0.47
# 022
MPN: 60641400
REAR GASKET FOR GRILL
from £7.00
from £7.00
# 023
MPN: 60703000
RUBBER PIECE
from £0.60
from £0.60
# 024
MPN: 60559700
CABLE
from £6.93
from £6.93
# 025
MPN: 60536500
ELECTRIC BONNET OPENER
Supersession
Supersession
# 026
MPN: 60706200
EMERGENCY CABLE, OPENING BONNET
from £4.72
from £4.72
# 027
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 028
MPN: 11195471
SPRING WASHER
Supersession
Supersession
# 029
MPN: 10519301
WASHER
from £13.02
from £13.02
This part replaces part number 10517377 - and 2 more. Click to view details
# 030
MPN: 169180
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 12574121
# 031
MPN: 61164400
WARNING LIGHT CONTROL
Bonnet open
from £51.10
from £51.10
This part replaces part number 60528700
# 032
MPN: 60276607
CABLE CLAMP
from £11.92
from £11.92
This part replaces part number 60276707 - and 4 more. Click to view details
# 033
MPN: 60949300
BONNET GASKET
from £312.80
from £312.80
# 034
MPN: 60773300
RADIATOR UPPER GASKET
Supersession
Supersession
# 035
MPN: 60773400
RADIATOR LOWER GASKET
from £192.41
from £192.41
This part replaces part number 40231805 - and 1 more. Click to view details
