122 - Heating System

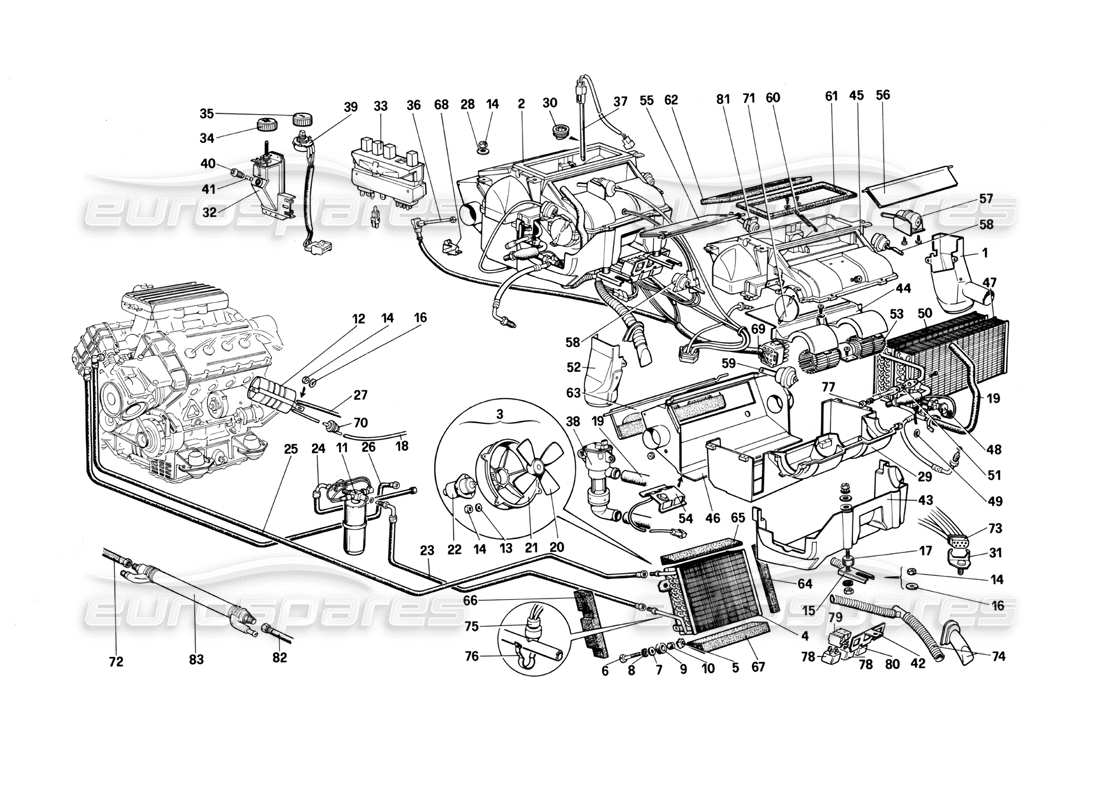

Ferrari Mondial 3.0 QV (1984) Heating System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 61425900
LH CONVEYOR (LHD)
from £70.77
from £70.77
# 001
MPN: 61426300
LH CONVEYOR (RHD)
from £67.40
from £67.40
# 002
MPN: 61039900
AIR CONDITIONING, COMPLETE (LHD)
from £849.35
from £849.35
# 002
MPN: 61129600
AIR CONDITIONING, COMPLETE (RHD)
from £564.13
from £564.13
# 003
MPN: 61432000
FAN ASSEMBLY A.C.
See also 65519200
from £138.11
from £138.11
This part replaces part number 60646700 - and 1 more. Click to view details
# 003
MPN: 61432000
FAN ASSEMBLY A.C.
See also 65519200
from £138.11
from £138.11
This part replaces part number 60646700 - and 1 more. Click to view details
# 003
MPN: 65519200
FAN ASSEMBLY A.C.
from £219.14
from £219.14
This part replaces part number 61432000 which we have in stock
# 004
MPN: 60649100
CONDENSER A.C.
from £298.57
from £298.57
# 005
MPN: 60659100
NUT
from £0.47
from £0.47
This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
# 006
MPN: 10902611
SCREW
Supersession
Supersession
# 007
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 008
MPN: 10615471
WASHER
Supersession
Supersession
# 009
MPN: 103549
RUBBER BUSH
from £0.70
from £0.70
# 010
MPN: 103550
SPACER
from £1.89
from £1.89
This part replaces part number 4130913
# 011
MPN: 129101/A
DRYER FILTER
from £96.71
from £96.71
This part replaces part number 129101 which we have in stock - and 7 more. Click to view details
# 012
MPN: 60662500
VACUUM RESERVOIR
To exhaustion
Supersession
Supersession
# 012
MPN: 61642700
VACUUM RESERVOIR WITH VALVE
On exhaustion 60662500
from £191.49
from £191.49
This part replaces part number 60662500 - and 3 more. Click to view details
# 013
MPN: 12644401
WASHER
from £0.47
from £0.47
# 014
MPN: 12574211
NUT
from £0.71
from £0.71
# 015
MPN: 60726800
BRACKET
from £8.06
from £8.06
# 016
MPN: 10519401
WASHER
from £0.71
from £0.71
# 017
MPN: 102947
ANTI VIBRATION SUPPORT
from £6.17
from £6.17
This part replaces part number 102007 - and 14 more. Click to view details
# 018
MPN: 61132000
PIPE
from £57.79
from £57.79
# 019
MPN: 61084700
PIPE (LHD)
from £14.49
from £14.49
# 019
MPN: 61150000
PIPE (RHD)
from £75.11
from £75.11
# 020
MPN: 122953
FAN
from £42.27
from £42.27
# 021
MPN: 60870300
CONVEYOR
from £159.46
from £159.46
# 022
MPN: 123136
ELECTRIC FAN MOTOR
from £692.24
from £692.24
# 023
MPN: 61369300
PIPE CONDENSER - DRYER (LHD)
from £83.13
from £83.13
This part replaces part number 60724500 - and 1 more. Click to view details
# 023
MPN: 61369800
PIPE CONDENSER - DRYER (RHD)
from £36.81
from £36.81
This part replaces part number 60839500
# 024
MPN: 61369400
PIPE, DRYER - EVAPORATOR
from £226.38
from £226.38
This part replaces part number 60724600
# 025
MPN: 61369500
PIPE, ASPERA COMPRESSOR - CONDENSOR (4V.)
from £101.43
from £101.43
This part replaces part number 60724700 - and 1 more. Click to view details
# 025
MPN: 61370100
PIPE, COMPRESSOR - CONDENSOR (CAB.)
from £195.09
from £195.09
# 025
MPN: 61607900
PIPE, SANKYO COMPRESSOR - CONDENSOR (4V.)
from £124.18
from £124.18
This part replaces part number 61345000 - and 1 more. Click to view details

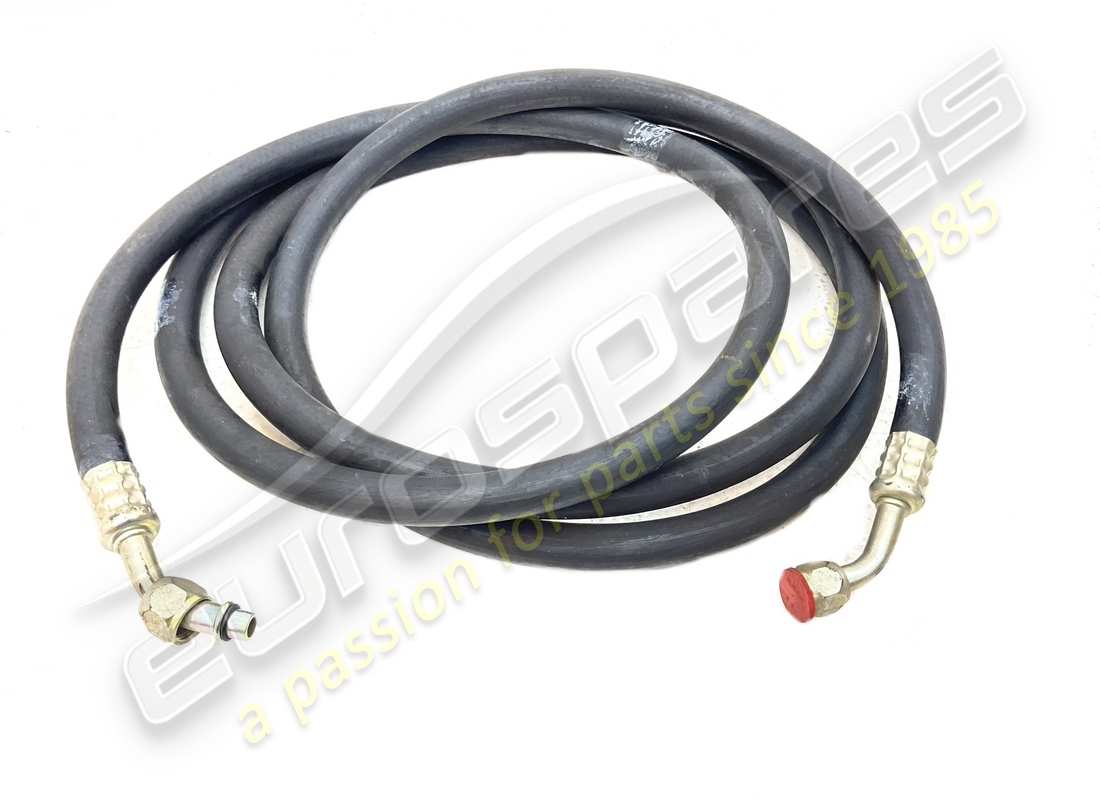

# 026
MPN: 118625
PIPE, EVAPORATOR - COMPRESSOR (4V.)
See also 60724800
from £324.33
from £324.33
This part replaces part number 109868
# 026
MPN: 60724800
PIPE, EVAPORATOR - COMPRESSOR (4V.)
LHD - to 30 - 10 - 82
Supersession
Supersession
# 026
MPN: 61179800
PIPE, EVAPORATOR - COMPRESSOR (4V.)
RHD to 30 - 10 - 82
from £202.28
from £202.28
# 026
MPN: 61369600
PIPE, EVAPORATOR - ASPERA COMPRESSOR (4V.)
LHD from 1 - 11 - 82
from £237.08
from £237.08
This part replaces part number 61194000
# 026
MPN: 61369900
PIPE, EVAPORATOR - ASPERA COMPRESSOR (4V.)
RHD from 1 - 11 - 82
from £279.87
from £279.87
This part replaces part number 61194100
# 026
MPN: 61370200
PIPE, EVAPORATOR - ASPERA COMPRESSOR
LHD - Cab.
from £239.55
from £239.55
This part replaces part number 61345100
# 026
MPN: 61601100
PIPE, EVAPORATOR - ASPERA - COMPRESSOR
RHD - Cabriolet
Supersession
Supersession
# 026
MPN: 61607700
PIPE, EVAPORATOR - SANKYO COMPRESSOR (4V.)
LHD
from £83.91
from £83.91
# 026
MPN: 61607800
PIPE, EVAPORATOR - SANKYO COMPRESSOR (4V.)
RHD
from £225.79
from £225.79
# 026
MPN: 61608000
PIPE, EVAPORATOR - SANKYO COMPRESSOR
LHD - Cab.
from £170.10
from £170.10
# 026
MPN: 61608100
PIPE, EVAPORATOR - SANKYO - COMPRESSOR
RHD - Cabriolet
from £200.54
from £200.54
This part replaces part number 61601100
# 027
MPN: 118502
PIPE, UNION TO EMPTY RESERVOIR
For Cab. Use no. 124791
from £18.37
from £18.37
This part replaces part number 115148 - and 3 more. Click to view details
# 028
MPN: 12640624
WASHER
from £0.47
from £0.47
This part replaces part number 12640601 - and 1 more. Click to view details
# 029
MPN: 60929100
CASE LOWER SECTION (LHD)
from £76.91
from £76.91
# 029
MPN: 60941800
CASE LOWER SECTION (RHD)
# 030
MPN: 61086200
FAIR LEAD
from £1.49
from £1.49
# 031
MPN: 61079900
BRACKET
from £7.89
from £7.89
# 032
MPN: 61112300
SPEED CONTROL UNIT
from £5,236.92
from £5,236.92

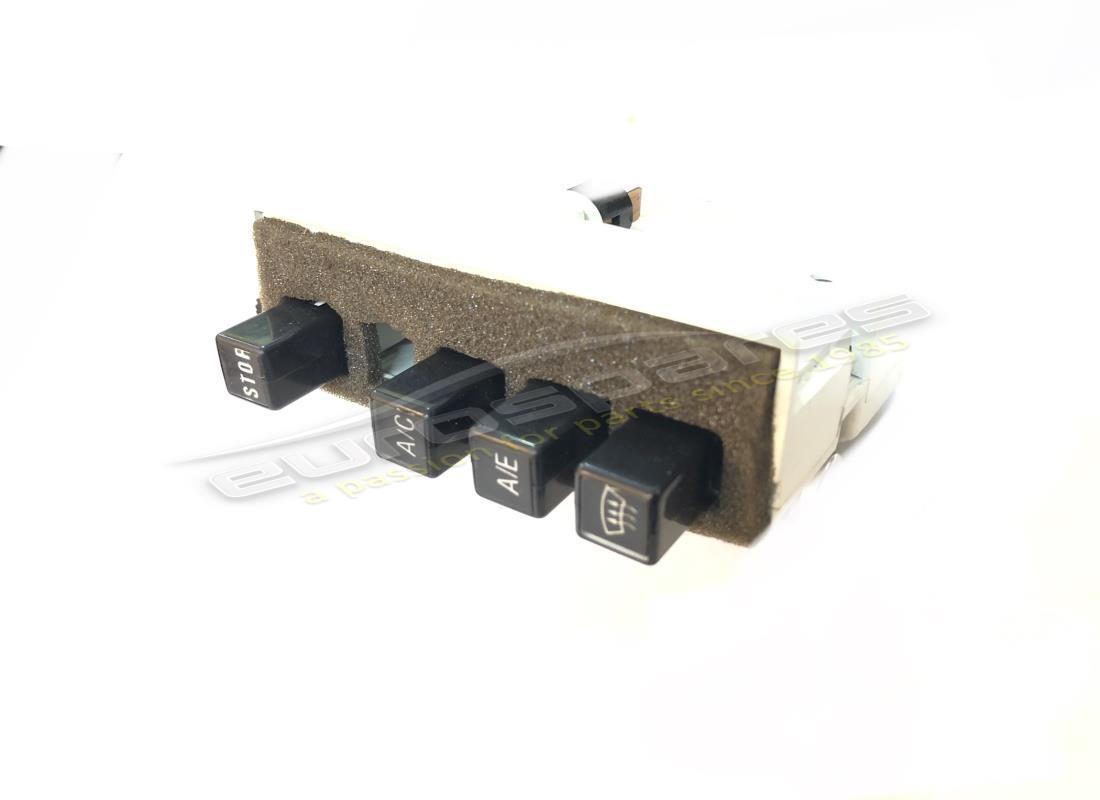

# 033
MPN: 61078600
PUSH BOTTON UNIT (LHD)
from £215.90
from £215.90
# 033
MPN: 61131300
PUSH BOTTON UNIT (RHD)
from £174.58
from £174.58
# 034
MPN: 61112400
KNO FOR SPEED CONTROL
from £52.54
from £52.54
# 035
MPN: 61112500
POTENTIOMETER KNOB
from £53.06
from £53.06
# 036
MPN: 61079600
SENSOR
from £105.37
from £105.37
# 037
MPN: 61079500
SENSOR
Supersession
Supersession
# 038
MPN: 61079000
ELECTROMAGNETIC VALVE
from £906.02
from £906.02
This part replaces part number 63241600
# 039
MPN: 61078700
POTENTIOMETER
from £523.46
from £523.46
# 040
MPN: 60928800
FUSE HOLDER
from £12.36
from £12.36
# 041
MPN: 60928900
FUSE
from £2.99
from £2.99
# 042
MPN: 61430800
BRACKET
# 043
MPN: 61136700
LOW BOX (LHD)
from £349.03
from £349.03
# 044
MPN: 60929200
CASE INTERMEDIATE SECTION (LHD)
from £37.71
from £37.71
# 044
MPN: 60941900
CASE INTERMEDIATE SECTION (RHD)
from £66.64
from £66.64
# 045
MPN: 60929300
CASE UPPER SECTION
from £98.14
from £98.14
# 046
MPN: 60929400
CASE FRONT SECTION
from £45.49
from £45.49
# 047
MPN: 60929500
EVAPORATOR UNIT (LHD)
from £287.28
from £287.28
# 047
MPN: 60942000
EVAPORATOR UNIT (RHD)
from £287.28
from £287.28
# 048
MPN: 60929600
EXPANSION VALVE
from £240.29
from £240.29
This part replaces part number 106644 - and 1 more. Click to view details

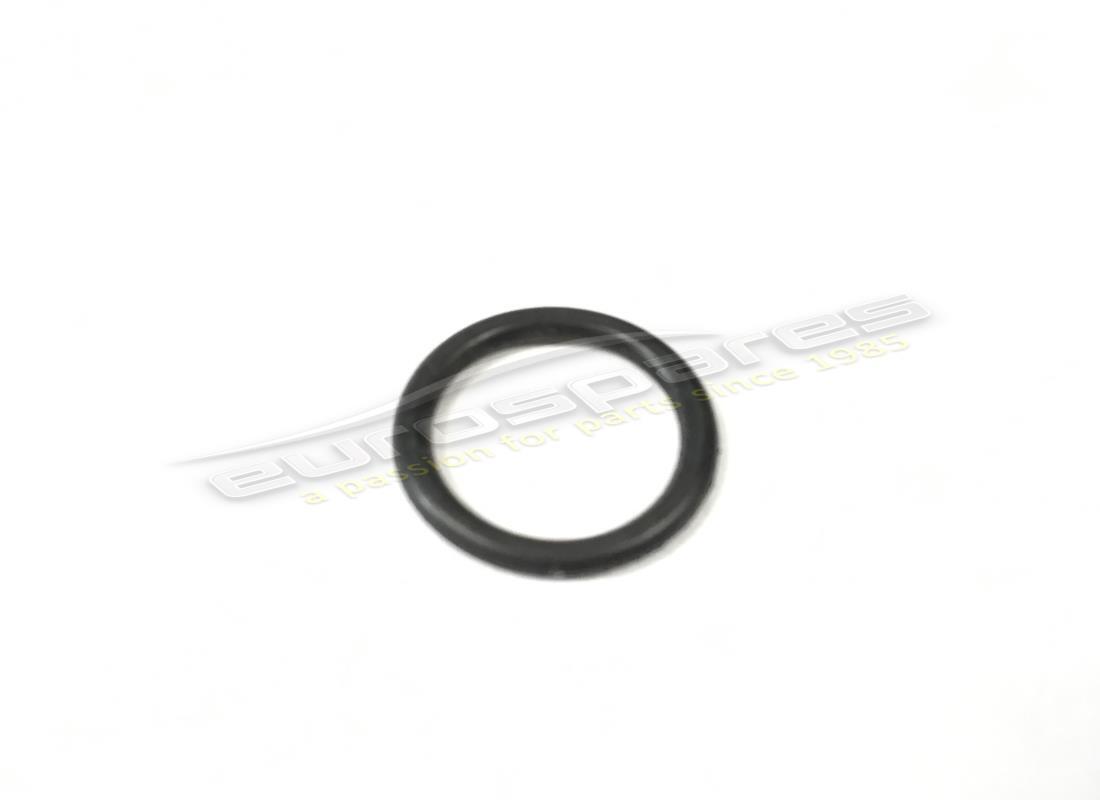

# 049
MPN: 60929700
SEALING RING
from £3.35
from £3.35
# 050
MPN: 60929800
HEATER (LHD)
from £273.60
from £273.60
# 050
MPN: 60942100
HEATER (RHD)
from £301.65
from £301.65
# 051
MPN: 60930000
GASKET
Supersession
Supersession
# 052
MPN: 61425800
RH CONVEYOR
Supersession
Supersession
# 053
MPN: 60930100
VENTILATOR UNIT
from £284.46
from £284.46
# 054
MPN: 127014
POWER TRANSISTOR
from £103.22
from £103.22
This part replaces part number 60930200 which we have in stock
# 055
MPN: 60930300
UPPER COVER
from £22.60
from £22.60
# 056
MPN: 60930400
REAR COVER
from £20.23
from £20.23
# 057
MPN: 60930500
ACTUATOR
from £35.43
from £35.43
# 058
MPN: 60930600
SIDE ACTUATOR
from £17.12
from £17.12
# 059
MPN: 60930700
ACTUATOR FOR DEFROSTER COVER
from £25.71
from £25.71
# 060
MPN: 60930800
RETURN SPRING FOR REAR COVER
from £3.30
from £3.30
# 061
MPN: 60930900
GASKET
from £6.28
from £6.28
# 062
MPN: 60931000
GASKET
from £5.44
from £5.44

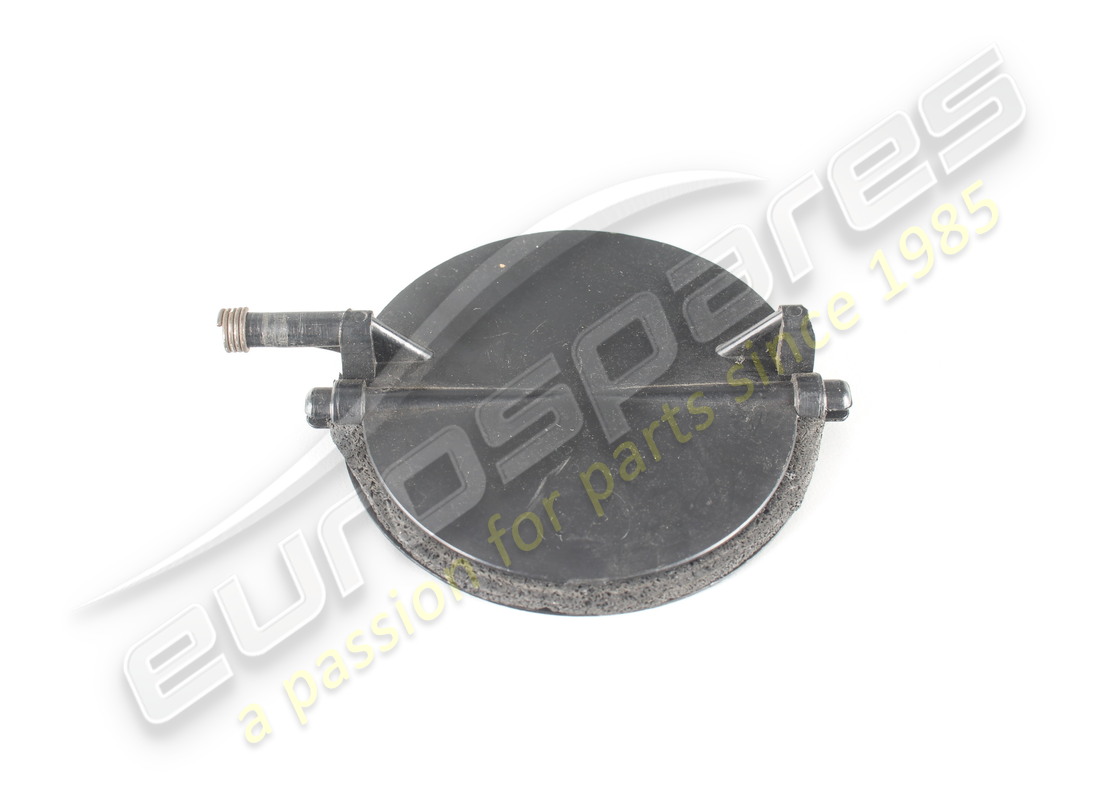

# 063
MPN: 60931100
FRONT COVER WITH GASKET
from £30.48
from £30.48
# 064
MPN: 60729400
LH GASKET FOR CONDENSER
from £1.85
from £1.85
# 065
MPN: 60729200
UPPER GASKET FOR CONDENSER
from £13.01
from £13.01
# 066
MPN: 60729300
RH GASKET FOR CONDENSER
from £33.18
from £33.18
# 067
MPN: 60729100
LOWER GASKET FOR CONDENSER
from £19.52
from £19.52
# 068
MPN: 60931200
MICROSWITCH
from £30.52
from £30.52
# 069
MPN: 931300
CABLE ASSEMBLY
# 070
MPN: 61653800
UNIDIRECTIONAL VALVE
Supersession
Supersession
# 071
MPN: 60931500
SIDE COVER
from £1.76
from £1.76
# 072
MPN: 61317200
PIPE, HEAT EXCHANGER -COMPRESSOR
Tropic only
from £166.31
from £166.31
# 073
MPN: 61112200
CONNECTION FOR VACUUM PIPES
from £47.94
from £47.94
# 074
MPN: 61136600
CONDENSATE DRAIN PIPE
from £40.66
from £40.66
# 075
MPN: 61047900
BIMETAL THERMAL CONTACT
Supersession
Supersession
# 076
MPN: 60815000
CLIP FOR THERMAL CONTACT
from £2.00
from £2.00
# 077
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210
# 078
MPN: 40130007
RELAY
0332209151
from £15.93
from £15.93
This part replaces part number 110356 - and 1 more. Click to view details
# 079
MPN: 61430700
BLOCK FOR RELAY
from £3.89
from £3.89
# 080
MPN: 40130106
RELAY
from £10.40
from £10.40
This part replaces part number 110355
# 081
MPN: 61268000
INTERIOR ACTUATOR
from £14.42
from £14.42
# 082
MPN: 61261500
PIPE, EVAPORATOR - HEAT EXCHANGER
Tropic only - to 30 - 10 -82
from £119.82
from £119.82
# 082
MPN: 61370000
PIPE, EVAPORATOR - HEAT EXCHANGER
Tropic only - from 1 - 11 - 82
from £125.82
from £125.82
# 083
MPN: 120648
HEAT EXCHANGE
Tropic only to chassis……….
from £1,099.12
from £1,099.12
# 083
MPN: 120920
HEAT EXCHANGE
Tropic only from chassis……….
from £1,157.22
from £1,157.22
-part-diagram-123.webp "FERRARI MONDIAL 3.0 QV (1984) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.0 QV (1984) SUN ROOF - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.0 QV (1984) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-a.webp "FERRARI MONDIAL 3.0 QV (1984) SPARE ASSEMBLY UNITS - MECHANICAL PARTS DIAGRAM")
-part-diagram-b.webp "FERRARI MONDIAL 3.0 QV (1984) SPARE ASSEMBLY UNITS - COACHWORK PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.0 QV (1984) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.0 QV (1984) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.0 QV (1984) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.0 QV (1984) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.0 QV (1984) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.0 QV (1984) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.0 QV (1984) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.0 QV (1984) FUEL PUMP AND PIPES (QUATTROVALVOLE) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI MONDIAL 3.0 QV (1984) FUEL PUMP AND PIPES (CABRIOLET) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI MONDIAL 3.0 QV (1984) FUEL INJECTION SYSTEM - FUEL DISTRIBUTORS, LINES PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.0 QV (1984) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.0 QV (1984) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI MONDIAL 3.0 QV (1984) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI MONDIAL 3.0 QV (1984) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.0 QV (1984) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.0 QV (1984) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.0 QV (1984) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.0 QV (1984) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.0 QV (1984) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.0 QV (1984) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.0 QV (1984) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.0 QV (1984) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.0 QV (1984) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI MONDIAL 3.0 QV (1984) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI MONDIAL 3.0 QV (1984) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.0 QV (1984) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.0 QV (1984) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.0 QV (1984) BRAKE SYSTEM (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011) PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.0 QV (1984) BRAKE SYSTEM (VALID FOR RHD - FOR LHD FROM CHASSIS NO. 43013) PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.0 QV (1984) CALIPERS FOR FRONT AND REAR BRAKES (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011) PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.0 QV (1984) CALIPERS FOR FRONT AND REAR BRAKES (VALID FOR RHD-FOR LHD FROM CHASSIS NO. 43013) PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.0 QV (1984) HAND - BRAKE CONTROL (VALID ONLY FOR LHD UP TO CHASSIS NO. 43011) PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.0 QV (1984) HAND - BRAKE CONTROL (VALID FOR RHD - FOR LHD FROM CHASSIS NO. 43013) PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.0 QV (1984) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.0 QV (1984) STEERING CULUMN PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.0 QV (1984) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.0 QV (1984) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI MONDIAL 3.0 QV (1984) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI MONDIAL 3.0 QV (1984) REAR SUSPENSION - WISHBBNES PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI MONDIAL 3.0 QV (1984) WHEELS PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE IGNITION - (QUATTROVALVOLE) PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE IGNITION - (CABRIOLET) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI MONDIAL 3.0 QV (1984) ELECTRIC GENERATING SYSTEM - (ENGINE WITH SINGLE BELT) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI MONDIAL 3.0 QV (1984) ELECTRIC GENERATING SYSTEM - (ENGINE WITH 2 INDIVIDUAL BELT) PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI MONDIAL 3.0 QV (1984) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.0 QV (1984) TOOL KIT PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.0 QV (1984) PEDAL BOARD - CLUTCH CONTROL (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.0 QV (1984) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - INNER ELEMENTS - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI MONDIAL 3.0 QV (1984) BODY SHELL - INNER ELEMENTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI MONDIAL 3.0 QV (1984) LUGGAGE AND PASSENGER COMPARTMENT INSULATION PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI MONDIAL 3.0 QV (1984) QUATTROVALVOLE LUGGAGE AND PASSENGER COMPARTMENTE INSULATIOR - CABRIOLET PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.0 QV (1984) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.0 QV (1984) ENGINE COMPARTMENT LID AND CARPETING PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.0 QV (1984) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.0 QV (1984) DOORS - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.0 QV (1984) DOORS - CABRIOLET PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.0 QV (1984) BUMPERS, LIGHTS AND FRONT GLASSES PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.0 QV (1984) BUMPERS, LIGHTS AND REAR GLASSES PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.0 QV (1984) SEATS - QUATTROVALVOLE PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI MONDIAL 3.0 QV (1984) SEATS - CABRIOLET PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI MONDIAL 3.0 QV (1984) ROOF, TUNNEL AND SAFETY BELTS PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.0 QV (1984) INSTRUMENT PANEL PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI MONDIAL 3.0 QV (1984) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI MONDIAL 3.0 QV (1984) LIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI MONDIAL 3.0 QV (1984) ELECTRICAL BOARD PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI MONDIAL 3.0 QV (1984) WINDSHIELD WIPER - WASHER AND HORN PARTS DIAGRAM")
