118 - Seats - Cabriolet

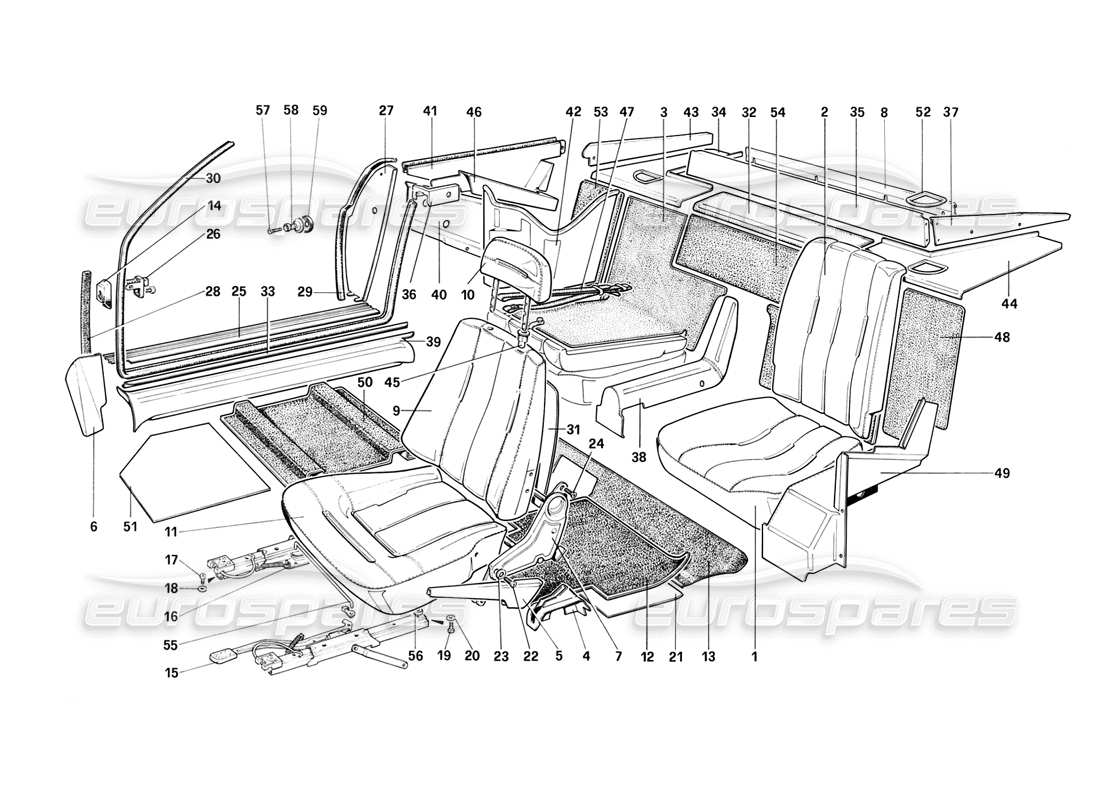

Ferrari Mondial 3.2 QV (1987) Seats - Cabriolet Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 61222600
CUSHION RH WITH COVERING
Not for US
from £880.87
from £880.87
# 001
MPN: 61222700
CUSHION LH WITH COVERING
Not for US
from £880.87
from £880.87
# 001
MPN: 61225000
COVERING
from £482.94
from £482.94
# 001
MPN: 61763900
CUSHION RH WITH COVERING - US
from £939.21
from £939.21
# 001
MPN: 61764000
CUSHION LH WITH COVERING - US
from £939.21
from £939.21
# 002
MPN: 61222800
REAR RH SEAT SQUAB WITH COVERING
from £1,587.55
from £1,587.55
# 002
MPN: 61222900
REAR LH SEAT SQUAB WITH COVERING
from £1,254.36
from £1,254.36
# 002
MPN: 61225200
COVERING
from £642.09
from £642.09
# 003
MPN: 61702200
REAR CARPET FOR LH SEAT
from £33.40
from £33.40
This part replaces part number 61413600 - and 2 more. Click to view details
# 003
MPN: 61702300
REAR CARPET FOR RH SEAT
from £44.24
from £44.24
This part replaces part number 61413500 - and 1 more. Click to view details
# 004
MPN: 61231800
FRAMEWORK WITH COVERING - LHD
from £234.63
from £234.63
# 004
MPN: 61232000
COVERING - LHD
from £95.03
from £95.03
# 004
MPN: 61451000
FRAMEWORK WITH COVERING - RHD
from £212.40
from £212.40
# 004
MPN: 61451200
COVERING - RHD
from £80.45
from £80.45
# 005
MPN: 60727000
COVERING
from £56.49
from £56.49
# 006
MPN: 61332500
RH SHIELD PANEL COVERING TUBES
from £28.02
from £28.02
# 006
MPN: 61332600
LH SHIELD PANEL COVERING TUBES
from £34.43
from £34.43
# 007
MPN: 61437900
ADJUSTERFOR LH SEAT
from £412.43
from £412.43
# 007
MPN: 61438200
ADJUSTER FOR RH SEAT
from £309.75
from £309.75
# 008
MPN: 61251900
PANEL FIXING CAPOTE
# 009
MPN: 61221600
FRONT SQUAB WITH COVERING
from £1,100.70
from £1,100.70
# 009
MPN: 61221900
COVERING
from £548.00
from £548.00
# 010
MPN: 61222300
headrest
from £204.75
from £204.75
# 010
MPN: 61438300
FRONT RH SEAT COMPLETE - UNTIL CAR 71879
from £2,837.19
from £2,837.19
# 010
MPN: 61438400
FRONT LH SEAT COMPLETE - UNTIL CAR 71879
from £2,837.19
from £2,837.19
# 010
MPN: 62364300
FRONT RH SEAT COMPLETE - FROM CAR 71881
from £1,818.83
from £1,818.83
# 010
MPN: 62364400
FRONT LH SEAT COMPLETE - FROM CAR 71881
from £1,818.83
from £1,818.83
# 011
MPN: 60905200
COVERING
Until car 71879
# 011
MPN: 61221500
FRONT CUSHION WITH COVERING
Until car 71879
from £1,100.70
from £1,100.70
# 011
MPN: 62363700
COVERING
From car 71881
from £873.35
from £873.35
# 011
MPN: 62364500
FRONT CUSHION WITH COVERING
From car 71881
from £1,111.67
from £1,111.67
# 012
MPN: 61229100
REAR CARPET SIDE DRIVER - LHD
from £51.59
from £51.59
# 012
MPN: 61230300
REAR CARPET FOR PASSENGER - LHD
from £61.00
from £61.00
# 012
MPN: 61441000
REAR CARPET SIDE DRIVER - RHD
from £45.79
from £45.79
# 012
MPN: 61441700
REAR CARPET FOR PASSENGER - RHD
from £76.23
from £76.23
# 013
MPN: 61441200
CARPET - RHD
from £67.27
from £67.27
# 013
MPN: 61765200
CARPET - LHD
from £67.27
from £67.27
# 014
MPN: 50313303
GASKET
from £0.66
from £0.66
This part replaces part number 50313305
# 015
MPN: 61436700
LH GUIDE FOR SEAT
from £170.41
from £170.41
# 016
MPN: 61436900
RH GUIDE FOR SEAT
from £170.41
from £170.41
# 017
MPN: 20293306
SCREW
Supersession
Supersession
# 018
MPN: 11193870
WASHER
from £1.11
from £1.11
# 019
MPN: 14305320
SCREW
from £0.47
from £0.47
# 020
MPN: 11197770
WASHER
Supersession
Supersession
# 021
MPN: 61602100
REAR UNDER CARPET
from £15.32
from £15.32
# 022
MPN: 60719800
SCREW
from £0.76
from £0.76
# 023
MPN: 12520302
WASHER
from £1.46
from £1.46
# 024
MPN: 50206507
SCREW
from £1.18
from £1.18
# 025
MPN: 60674900
LH MOULDING UNDERDOOR
from £191.86
from £191.86
# 025
MPN: 60675000
RH MOULDING
from £191.86
from £191.86
# 026
MPN: 50313204
SWITCH
from £8.86
from £8.86
This part replaces part number 50313200
# 027
MPN: 61351900
RH PILLAR
from £60.13
from £60.13
# 027
MPN: 61352000
LH PILLAR
from £60.13
from £60.13
# 028
MPN: 61859000
GASKET
from £4.69
from £4.69
# 029
MPN: 60726300
GASKET
Supersession
Supersession
# 030
MPN: 60924000
LH DOOR GASKET
Supersession
Supersession
This part replaces part number 60673000
# 030
MPN: 60924100
RH DOOR GASKET
Supersession
Supersession
This part replaces part number 60673100
# 031
MPN: 61330500
PANEL WITH COVERING
from £229.68
from £229.68
# 032
MPN: 61331000
COVERING
# 032
MPN: 61977000
COVERING
from £103.23
from £103.23
# 033
MPN: 61682000
LH MOULDING
from £48.82
from £48.82
This part replaces part number 61351300
# 033
MPN: 61682100
RH MOULDING
from £25.77
from £25.77
This part replaces part number 61351400
# 034
MPN: 61312500
RH MOULDING WITH COVERING
from £173.70
from £173.70
# 035
MPN: 61237100
MOULDING WITH COVERING
from £103.63
from £103.63
# 036
MPN: 61240900
RH PROTECTION
from £26.82
from £26.82
# 036
MPN: 61241000
LH PROTECTION
from £50.38
from £50.38
# 037
MPN: 61239100
RH MOULDING WITH COVERING
Supersession
Supersession
# 037
MPN: 61239600
LH MOULDING WITH COVERING
Supersession
Supersession
# 038
MPN: 61236000
SPACER WITH COVERING
Not for US
from £240.38
from £240.38
# 038
MPN: 61765300
SPACER WITH COVERING - US
from £209.34
from £209.34
# 039
MPN: 61234600
RH PANEL WITH COVERING - LHD
Not for US
from £429.63
from £429.63
# 039
MPN: 61234700
LH PANEL WITH COVERING - LHD
Not for US
from £429.63
from £429.63
# 039
MPN: 61605000
LH PANEL WITH COVERING - RHD
from £387.73
from £387.73
# 039
MPN: 61765500
RH PANEL WITH COVERING - US
from £325.34
from £325.34
# 039
MPN: 61765600
LH PANEL WITH COVERING - US
from £451.12
from £451.12
# 039
MPN: 61976200
RH PANEL WITH COVERING - RHD
# 040
MPN: 61233400
RH PROTECTION WITH COVERING
from £133.98
from £133.98
This part replaces part number 612334..
# 040
MPN: 61233500
LH PROTECTION WITH COVERING
from £133.98
from £133.98
This part replaces part number 612335..
# 041
MPN: 61948600
GASKET
from £8.25
from £8.25
# 041
MPN: 61949100
RH PANEL WITH COVERING + GASKET
from £109.41
from £109.41
This part replaces part number 61411900 - and 1 more. Click to view details
# 041
MPN: 61949200
LH PANEL WITH COVERING + GASKET
from £109.41
from £109.41
This part replaces part number 61412000 - and 1 more. Click to view details
# 042
MPN: 61232800
RH PANEL WITH COVERING
Supersession
Supersession
# 042
MPN: 61232900
LH PANEL WITH COVERING
Supersession
Supersession
# 043
MPN: 61239900
RH MOULDING WITH COVERING
Supersession
Supersession
# 043
MPN: 61240400
LH MOULDING WITH COVERING
Supersession
Supersession
# 044
MPN: 61312600
LH MOULDING WITH COVERING
from £173.70
from £173.70
# 045
MPN: 20058905
HEADREST PLASTIC INSERT
from £25.71
from £25.71
# 046
MPN: 61336700
RH FRAMEWORK WITH COVERING
from £43.13
from £43.13
This part replaces part number 613367..
# 046
MPN: 61336800
LH FRAMEWORK WITH COVERING
from £56.33
from £56.33
This part replaces part number 613368..
# 047
MPN: 61359100
BELT
from £23.48
from £23.48
This part replaces part number 613591..
# 048
MPN: 61413200
CARPET
from £77.75
from £77.75
This part replaces part number 614132..
# 049
MPN: 61232200
RH ARMREST WITH COVERING
Not for US
from £372.92
from £372.92
# 049
MPN: 61232300
LH ARMREST WITH COVERING
Not for US
from £355.16
from £355.16
# 049
MPN: 61764900
RH ARMREST WITH COVERING - US
from £325.34
from £325.34
# 049
MPN: 61766000
LH ARMREST WITH COVERING - US
from £402.18
from £402.18
# 050
MPN: 61412700
RH CARPET - LHD
from £65.87
from £65.87
# 050
MPN: 61412700
LH CARPET - RHD
from £65.87
from £65.87
# 050
MPN: 61413000
L.H . CARPET - LHD
from £73.24
from £73.24
# 050
MPN: 61978000
RH CARPET - RHD
from £90.57
from £90.57
# 051
MPN: 61601900
RH FRONT UNDERCARPET
from £42.32
from £42.32
# 051
MPN: 61602000
LH FRONT UNDERCARPET
from £47.85
from £47.85
# 052
MPN: 61425300
MOULDING
from £71.90
from £71.90
# 053
MPN: 61413100
CARPET
from £77.75
from £77.75
This part replaces part number 614131..
# 054
MPN: 61455700
CARPET
from £61.64
from £61.64
# 055
MPN: 61607100
ROD FOR GUIDES
from £5.94
from £5.94
# 056
MPN: 61607000
BUSH
from £11.38
from £11.38
# 057
MPN: 60673700
SCREW
from £45.45
from £45.45
# 058
MPN: 60670100
PIN FOR LOCK STRICKER
from £4.05
from £4.05
# 059
MPN: 60775900
GASKET
from £8.67
from £8.67
-part-diagram-119.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI MONDIAL 3.2 QV (1987) ROOF, TUNNEL AND SAFETY BELTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PANEL PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI MONDIAL 3.2 QV (1987) INSTRUMENTS PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI MONDIAL 3.2 QV (1987) HEADLIGHTS LIFTING DEVICE AND HEADLIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI MONDIAL 3.2 QV (1987) WINDSHIELD WIPER AND HORNS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-126.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRICAL BOARDS PARTS DIAGRAM")
-part-diagram-127.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-128.webp "FERRARI MONDIAL 3.2 QV (1987) SECONDARY ELECTRICAL BOARDS - FOR CH88 PARTS DIAGRAM")
-part-diagram-129.webp "FERRARI MONDIAL 3.2 QV (1987) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-130.webp "FERRARI MONDIAL 3.2 QV (1987) SUN ROOF - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-131.webp "FERRARI MONDIAL 3.2 QV (1987) TOP - CABRIOLET PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI MONDIAL 3.2 QV (1987) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI MONDIAL 3.2 QV (1987) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI MONDIAL 3.2 QV (1987) CYLINDER HEAD (LEFT) PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI MONDIAL 3.2 QV (1987) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INJECTION (FOR CH VERSION) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI MONDIAL 3.2 QV (1987) ANTIEVAPORATIVE EMISSION CONTROL SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (NOT FOR US VERSION) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL PUMP AND PIPES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (NOT FOR US AND CH87 VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR US VERSION) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI MONDIAL 3.2 QV (1987) FUEL DISTRIBUTORS LINES (FOR CH87 VERSION) PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI MONDIAL 3.2 QV (1987) AIR INTAKE AND MANIFOLDS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE HOUSING AND LINKAGE PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (NOT FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI MONDIAL 3.2 QV (1987) EXHAUST SYSTEM (FOR US AND SA VERSION) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI MONDIAL 3.2 QV (1987) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI MONDIAL 3.2 QV (1987) LUBRICATION SYSTEM PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI MONDIAL 3.2 QV (1987) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI MONDIAL 3.2 QV (1987) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI MONDIAL 3.2 QV (1987) CLUTCH RELEASE CONTROL (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI MONDIAL 3.2 QV (1987) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI MONDIAL 3.2 QV (1987) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI MONDIAL 3.2 QV (1987) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI MONDIAL 3.2 QV (1987) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI MONDIAL 3.2 QV (1987) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI MONDIAL 3.2 QV (1987) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI MONDIAL 3.2 QV (1987) HYDRAULIC SYSTEM FOR ANTISKID PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI MONDIAL 3.2 QV (1987) BRAKE SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM) PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI MONDIAL 3.2 QV (1987) ANTI SKID SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI MONDIAL 3.2 QV (1987) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI MONDIAL 3.2 QV (1987) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI MONDIAL 3.2 QV (1987) STEERING COLUMM PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI MONDIAL 3.2 QV (1987) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI MONDIAL 3.2 QV (1987) WHEELS PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI MONDIAL 3.2 QV (1987) ELECTRIC GENERATION SYSTEM PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI MONDIAL 3.2 QV (1987) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI MONDIAL 3.2 QV (1987) TOOL - KIT PARTS DIAGRAM")
-part-diagram-053.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-054.webp "FERRARI MONDIAL 3.2 QV (1987) PEDAL BOARD - CLUTCH CONTROL (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-055.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITHOUT ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-056.webp "FERRARI MONDIAL 3.2 QV (1987) THROTTLE CONTROL AND BRAKE HYDRAULIC SYSTEM (FOR CAR WITH ANTISKID SYSTEM - VARIANTS FOR RH D VERSION) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITHOUT ANTISKID PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS WITH ANTISKID PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI MONDIAL 3.2 QV (1987) BODY SHELL - INNER ELEMENTS - CABRIOLET PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE - USA - SA - AUS - CH87 - CH88 EXCLUDED PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - 3.2 MONDIAL COUPE USA - SA - AUS - CH87 - CH88 PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET-USA - SA EXCLUDED PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE AND PASSENGER COMPART, INSULATION - CABRIOLET PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI MONDIAL 3.2 QV (1987) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI MONDIAL 3.2 QV (1987) ENGINE COMPARTMENT AND CARPETING PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI MONDIAL 3.2 QV (1987) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI MONDIAL 3.2 QV (1987) DOORS - CABRIOLET PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI MONDIAL 3.2 QV (1987) BUMPERS, MOULDINGS & LIGHTS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI MONDIAL 3.2 QV (1987) GLASSES PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI MONDIAL 3.2 QV (1987) SEATS - 3.2 MONDIAL COUPE PARTS DIAGRAM")
