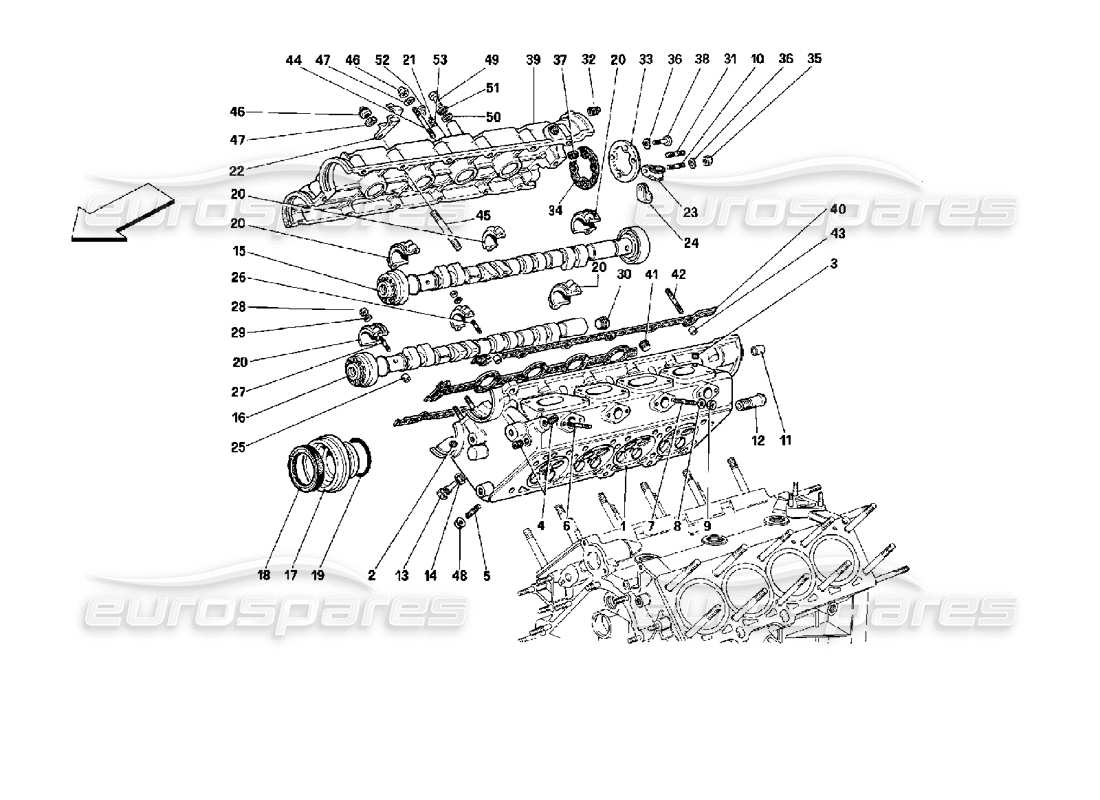

Ferrari Mondial 3.4 t Coupe/Cabrio R.H. Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 143273
                                                                                              right cylinder head
                                                                                              from £5,808.52
                                                                                              from £5,808.52
                                                                                              This part replaces part number 70000585
                                                                                              # 002
                                                                                              MPN: 13525870
                                                                                              HELI-COIL
                                                                                              from £1.40
                                                                                              from £1.40
                                                                                              This part replaces part number 105510
                                                                                              # 003
                                                                                              MPN: 13525870
                                                                                              HELI-COIL
                                                                                              from £1.40
                                                                                              from £1.40
                                                                                              This part replaces part number 105510
                                                                                              # 004
                                                                                              MPN: 14326150
                                                                                              PLUG
                                                                                              from £0.50
                                                                                              from £0.50
                                                                                              This part replaces part number 12326150
                                                                                              # 005
                                                                                              MPN: 12354524
                                                                                              STUD SECURING EXHAUST MANIFOLD
                                                                                              from £15.48
                                                                                              from £15.48
                                                                                              This part replaces part number 12354521
                                                                                              # 006
                                                                                              MPN: 13541621
                                                                                              STUD SECURING WATER MANIFOLD (CYL. 1,4)
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 007
                                                                                              MPN: 13541721
                                                                                              STUD SECURING WATER MANIFOLD (CYL. 2,3)
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 008
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                              # 009
                                                                                              MPN: 15896211
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 15896210
                                                                                              # 010
                                                                                              MPN: 11500521
                                                                                              STUD
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 011
                                                                                              MPN: 102725
                                                                                              DOWEL
                                                                                              from £0.66
                                                                                              from £0.66
                                                                                              # 012
                                                                                              MPN: 106227
                                                                                              UNION
                                                                                              from £3.33
                                                                                              from £3.33
                                                                                              # 013
                                                                                              MPN: 139489
                                                                                              PLUG CATALYST
                                                                                              - Not for cars with
                                                                                              from £7.93
                                                                                              from £7.93
                                                                                              # 014
                                                                                              MPN: 10257060
                                                                                              GASKET CATALYST
                                                                                              - Not for cars with
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                              # 015
                                                                                              MPN: 139334
                                                                                              RIGHT INTAKE CAMSHAFT COMPLETE
                                                                                              from £563.34
                                                                                              from £563.34
                                                                                              # 016
                                                                                              MPN: 139337
                                                                                              RIGHT EXHAUST CAMSHAFT COMPLETE
                                                                                              from £1,241.11
                                                                                              from £1,241.11
                                                                                              # 017
                                                                                              MPN: 144973
                                                                                              FRONT HEAD
                                                                                              from £370.72
                                                                                              from £370.72
                                                                                              This part replaces part number 117257 - and 2 more. Click to view details
                                                                                              # 018
                                                                                              MPN: 134714
                                                                                              SEAL RING
                                                                                              from £10.35
                                                                                              from £10.35
                                                                                              This part replaces part number 110314
                                                                                              # 019
                                                                                              MPN: 117275
                                                                                              O.R. RING
                                                                                              from £2.93
                                                                                              from £2.93
                                                                                              # 020
                                                                                              -
                                                                                              CAMSHAFT CAPS
                                                                                              # 021
                                                                                              MPN: 149951
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 10615301 - and 4 more. Click to view details
                                                                                              # 022
                                                                                              MPN: 129544
                                                                                              SPRING
                                                                                              from £0.96
                                                                                              from £0.96
                                                                                              # 023
                                                                                              MPN: 10440990
                                                                                              BRACKET
                                                                                              - Not for cars with catalyst
                                                                                              from £0.77
                                                                                              from £0.77
                                                                                              # 024
                                                                                              MPN: 10418401
                                                                                              BRACKET
                                                                                              from £1.55
                                                                                              from £1.55
                                                                                              # 025
                                                                                              MPN: 102725
                                                                                              DOWEL
                                                                                              from £0.58
                                                                                              from £0.58
                                                                                              # 026
                                                                                              MPN: 102735
                                                                                              STUD
                                                                                              from £11.07
                                                                                              from £11.07
                                                                                              This part replaces part number 4146561
                                                                                              # 027
                                                                                              MPN: 102754
                                                                                              STUD
                                                                                              from £5.00
                                                                                              from £5.00
                                                                                              # 028
                                                                                              MPN: 15896211
                                                                                              NUT
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 15896210
                                                                                              # 029
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                              # 030
                                                                                              MPN: 10269750
                                                                                              PLUG
                                                                                              from £0.92
                                                                                              from £0.92
                                                                                              This part replaces part number 95184
                                                                                              # 031
                                                                                              MPN: 11500321
                                                                                              STUD
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 032
                                                                                              MPN: 13525470
                                                                                              HELI-COIL
                                                                                              from £0.50
                                                                                              from £0.50
                                                                                              This part replaces part number 107333
                                                                                              # 033
                                                                                              MPN: 103796
                                                                                              REAR PLUG
                                                                                              from £167.71
                                                                                              from £167.71
                                                                                              # 034
                                                                                              MPN: 150075
                                                                                              GASKET
                                                                                              from £16.34
                                                                                              from £16.34
                                                                                              This part replaces part number 104694 - and 3 more. Click to view details
                                                                                              # 036
                                                                                              MPN: 12601274
                                                                                              WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                              # 037
                                                                                              MPN: 13525470
                                                                                              HELI-COIL
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              This part replaces part number 107333
                                                                                              # 038
                                                                                              MPN: 10902221
                                                                                              SCREW
                                                                                              from £0.52
                                                                                              from £0.52
                                                                                              # 039
                                                                                              -
                                                                                              RIGHT HEAD COVER
                                                                                              # 040
                                                                                              MPN: 150078
                                                                                              RH GASKET
                                                                                              from £28.84
                                                                                              from £28.84
                                                                                              This part replaces part number 117263 - and 3 more. Click to view details
                                                                                              # 040
                                                                                              MPN: FCCG001/B
                                                                                              Cam Cover Gasket Set & Seal kit
                                                                                              Includes FCCG001 & seals - x4 134714 / x4 117275.
                                                                                              # 041
                                                                                              MPN: 127635
                                                                                              PLUG
                                                                                              from £1.48
                                                                                              from £1.48
                                                                                              This part replaces part number 183447
                                                                                              # 042
                                                                                              MPN: 13541721
                                                                                              STUD
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 043
                                                                                              MPN: 102725
                                                                                              DOWEL
                                                                                              from £0.66
                                                                                              from £0.66
                                                                                              # 044
                                                                                              MPN: 13541621
                                                                                              STUD
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 045
                                                                                              MPN: 13541721
                                                                                              STUD
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 046
                                                                                              MPN: 100044
                                                                                              NUT
                                                                                              from £0.26
                                                                                              from £0.26
                                                                                              This part replaces part number 151230 - and 1 more. Click to view details
                                                                                              # 047
                                                                                              MPN: 11197774
                                                                                              WASHER
                                                                                              from £0.52
                                                                                              from £0.52
                                                                                              This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                              # 048
                                                                                              MPN: 138392
                                                                                              NUT
                                                                                              (minimum order quantity = 25)
                                                                                              from £0.58
                                                                                              from £0.58
                                                                                              # 049
                                                                                              MPN: 10977524
                                                                                              SCREW
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 050
                                                                                              MPN: 12648201
                                                                                              WASHER
                                                                                              from £1.40
                                                                                              from £1.40
                                                                                              # 052
                                                                                              MPN: 10977624
                                                                                              SCREW
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                              # 053
                                                                                              MPN: 10519377
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 10519305 - and 1 more. Click to view details
