Ferrari Mondial 3.4 t Coupe/Cabrio Timing - Controls Parts Diagram

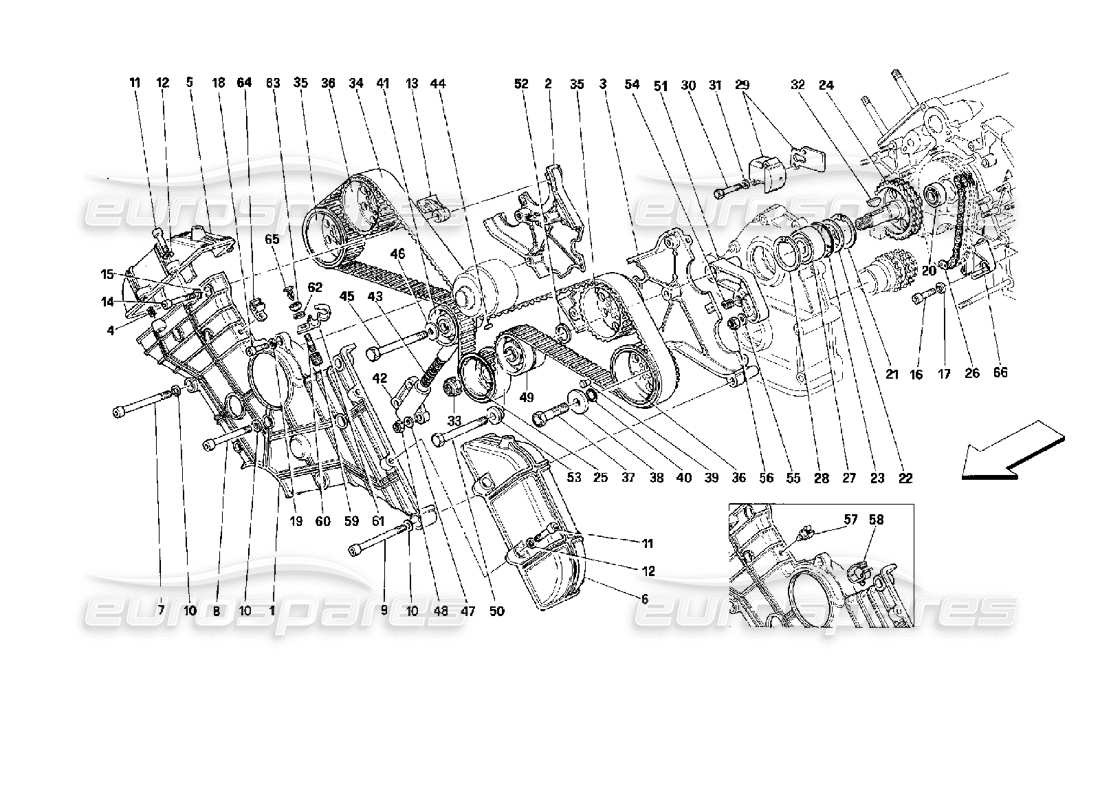

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Price
                                                                                                # 001
                                                                                                MPN: 134216
                                                                                                FRONT SHIELD
                                                                                                Black rubber - Alternative use - 134216/A
                                                                                                from £361.76
                                                                                                from £361.76
                                                                                                # 001
                                                                                                MPN: 134216/A
                                                                                                TIMING BELT COVER KIT
                                                                                                Black Plastic Timing belt cover kit.Consisting of parts - 134216 / 134219 / 134220 / 134217 / 134218
                                                                                                from £624.75
                                                                                                from £624.75
                                                                                                # 001
                                                                                                MPN: 143118
                                                                                                FRONT SHIELD
                                                                                                - Zinc sheet
                                                                                                from £204.75
                                                                                                from £204.75
                                                                                                This part replaces part number 133819 - and 1 more. Click to view details
                                                                                                # 002
                                                                                                MPN: 133820
                                                                                                RH REAR SHIELD
                                                                                                - Zinc sheet
                                                                                                from £270.32
                                                                                                from £270.32
                                                                                                # 002
                                                                                                MPN: 134217
                                                                                                RH REAR SHIELD
                                                                                                - Black rubber
                                                                                                from £291.12
                                                                                                from £291.12
                                                                                                # 003
                                                                                                MPN: 133821
                                                                                                LH REAR SHIELD
                                                                                                - Zinc sheet
                                                                                                from £147.33
                                                                                                from £147.33
                                                                                                # 003
                                                                                                MPN: 134218
                                                                                                LH REAR SHIELD
                                                                                                - Black rubber
                                                                                                from £284.57
                                                                                                from £284.57
                                                                                                # 004
                                                                                                MPN: 13525570
                                                                                                HELI-COIL
                                                                                                - Valid only for zinc sheet shield
                                                                                                from £3.26
                                                                                                from £3.26
                                                                                                This part replaces part number 109668
                                                                                                # 005
                                                                                                MPN: 133822
                                                                                                RH CAP -ZINC SHEET-
                                                                                                - Zinc sheet
                                                                                                from £84.00
                                                                                                from £84.00
                                                                                                # 005
                                                                                                MPN: 134219
                                                                                                RH CAP
                                                                                                - Black rubber
                                                                                                from £141.10
                                                                                                from £141.10
                                                                                                # 006
                                                                                                MPN: 133823
                                                                                                LH CAP -ZINC SHEET-
                                                                                                - Zinc sheet
                                                                                                from £84.00
                                                                                                from £84.00
                                                                                                # 006
                                                                                                MPN: 134220
                                                                                                LH CAP
                                                                                                - Black rubber
                                                                                                from £141.10
                                                                                                from £141.10
                                                                                                # 007
                                                                                                MPN: 14309021
                                                                                                SCREW
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 008
                                                                                                MPN: 14308921
                                                                                                SCREW
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                # 009
                                                                                                MPN: 14359521
                                                                                                SCREW
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 010
                                                                                                MPN: 12601374
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                # 011
                                                                                                MPN: 14305321
                                                                                                SCREW
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 012
                                                                                                MPN: 12601274
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                # 013
                                                                                                MPN: 133824
                                                                                                PAD
                                                                                                from £200.64
                                                                                                from £200.64
                                                                                                # 014
                                                                                                MPN: 14305821
                                                                                                SCREW
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                # 015
                                                                                                MPN: 12601274
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                # 016
                                                                                                MPN: 14305724
                                                                                                SCREW
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 11567624 - and 2 more. Click to view details
                                                                                                # 017
                                                                                                MPN: 12604279
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 018
                                                                                                MPN: 14305321
                                                                                                SCREW
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 019
                                                                                                MPN: 12601274
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                # 020
                                                                                                MPN: 171177
                                                                                                BEARING
                                                                                                - Valid from motor No. 24720
                                                                                                from £9.72
                                                                                                from £9.72
                                                                                                This part replaces part number 144713
                                                                                                # 020
                                                                                                MPN: 185343
                                                                                                BEARING
                                                                                                - Valid till motor No. 24719
                                                                                                from £7.92
                                                                                                from £7.92
                                                                                                This part replaces part number 149241
                                                                                                # 021
                                                                                                MPN: 11060576
                                                                                                SNAP RING
                                                                                                from £1.08
                                                                                                from £1.08
                                                                                                This part replaces part number 11060575
                                                                                                # 022
                                                                                                MPN: 133377
                                                                                                WASHER
                                                                                                from £8.35
                                                                                                from £8.35
                                                                                                # 023
                                                                                                MPN: 136140
                                                                                                GASKET
                                                                                                from £0.72
                                                                                                from £0.72
                                                                                                # 024
                                                                                                MPN: 132808
                                                                                                GEAR
                                                                                                - Valid till motor No. 24719
                                                                                                from £775.10
                                                                                                from £775.10
                                                                                                # 024
                                                                                                MPN: 144489
                                                                                                GEAR
                                                                                                - Valid from motor No. 24720
                                                                                                from £565.53
                                                                                                from £565.53
                                                                                                # 025
                                                                                                MPN: 132909
                                                                                                GEAR
                                                                                                - Valid till motor No. 24719
                                                                                                from £671.61
                                                                                                from £671.61
                                                                                                # 025
                                                                                                MPN: 144488
                                                                                                GEAR
                                                                                                - Valid from motor No. 24720
                                                                                                from £290.72
                                                                                                from £290.72
                                                                                                # 026

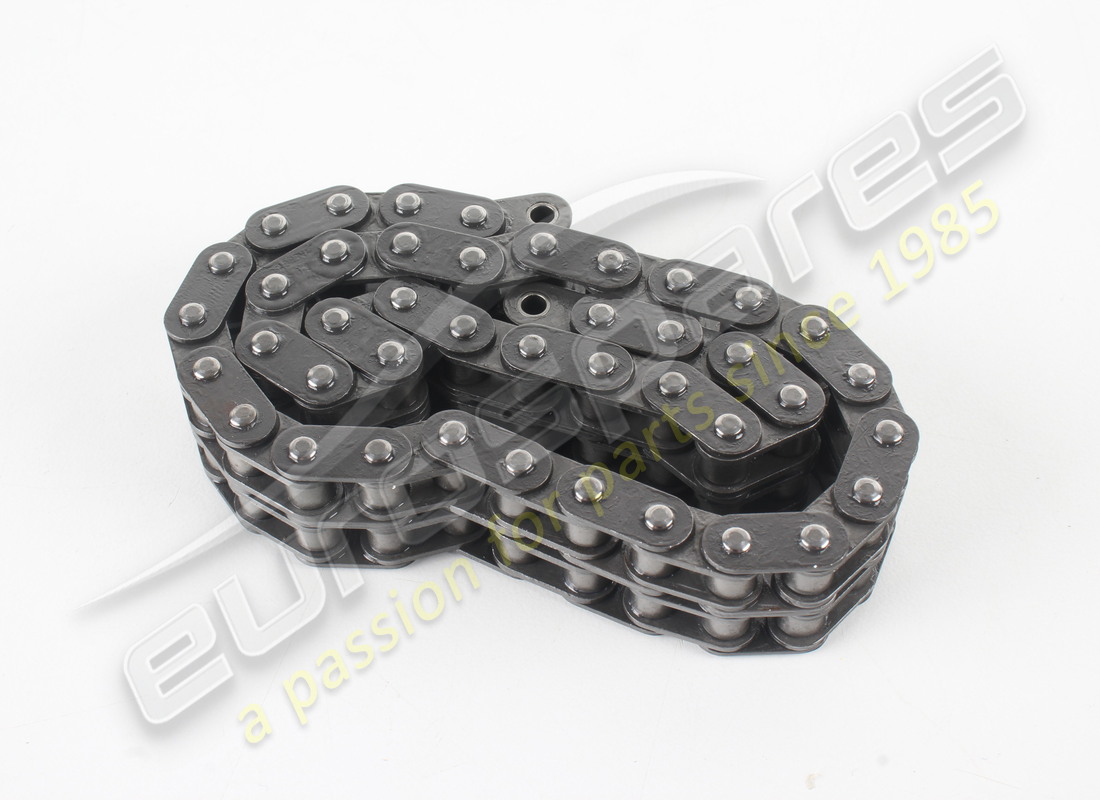

                                                                                                MPN: 132968
                                                                                                CHAIN
                                                                                                from £103.47
                                                                                                from £103.47
                                                                                                # 027
                                                                                                MPN: 170787
                                                                                                BEARING
                                                                                                from £34.23
                                                                                                from £34.23
                                                                                                This part replaces part number 144690 - and 2 more. Click to view details
                                                                                                # 028
                                                                                                MPN: 11060576
                                                                                                SNAP RING
                                                                                                from £1.08
                                                                                                from £1.08
                                                                                                This part replaces part number 11060575
                                                                                                # 029
                                                                                                MPN: 147338/A
                                                                                                CHAIN PAD ONLY
                                                                                                from £80.34
                                                                                                from £80.34
                                                                                                This part replaces part number 147338
                                                                                                # 030
                                                                                                MPN: 10903021
                                                                                                SCREW
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 031
                                                                                                MPN: 11197774
                                                                                                WASHER
                                                                                                from £0.54
                                                                                                from £0.54
                                                                                                This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                # 032
                                                                                                MPN: 10206320
                                                                                                Key
                                                                                                from £0.77
                                                                                                from £0.77
                                                                                                # 033
                                                                                                MPN: 104919
                                                                                                RING
                                                                                                from £3.17
                                                                                                from £3.17
                                                                                                # 034
                                                                                                MPN: 132843
                                                                                                TIMING CONTROL BELT
                                                                                                from £23.26
                                                                                                from £23.26
                                                                                                # 035
                                                                                                MPN: 136229
                                                                                                GEAR
                                                                                                from £264.50
                                                                                                from £264.50
                                                                                                # 036
                                                                                                MPN: 136230
                                                                                                GEAR
                                                                                                from £506.58
                                                                                                from £506.58
                                                                                                # 037
                                                                                                MPN: 146540
                                                                                                SCREW
                                                                                                from £9.06
                                                                                                from £9.06
                                                                                                This part replaces part number 16326431 - and 3 more. Click to view details
                                                                                                # 038
                                                                                                MPN: 117274
                                                                                                WASHER
                                                                                                from £1.74
                                                                                                from £1.74
                                                                                                # 039
                                                                                                MPN: 106203
                                                                                                DOWEL
                                                                                                from £3.53
                                                                                                from £3.53
                                                                                                # 040
                                                                                                MPN: 114808
                                                                                                SEAL RING
                                                                                                from £2.25
                                                                                                from £2.25
                                                                                                # 041
                                                                                                MPN: 149791
                                                                                                RH PULLEY
                                                                                                from £263.28
                                                                                                from £263.28
                                                                                                This part replaces part number 144557
                                                                                                # 042
                                                                                                MPN: 137632
                                                                                                BRAKET
                                                                                                from £100.30
                                                                                                from £100.30
                                                                                                # 043
                                                                                                MPN: 148356
                                                                                                SPRING
                                                                                                from £56.67
                                                                                                from £56.67
                                                                                                This part replaces part number 133867
                                                                                                # 044
                                                                                                MPN: 10486110
                                                                                                PIN
                                                                                                from £10.40
                                                                                                from £10.40
                                                                                                # 045
                                                                                                MPN: 134665
                                                                                                SCREW
                                                                                                from £0.75
                                                                                                from £0.75
                                                                                                # 047
                                                                                                MPN: 12601374
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                # 048
                                                                                                MPN: 104030
                                                                                                NUT
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 16104125
                                                                                                # 049
                                                                                                MPN: 145807
                                                                                                LH PULLEY
                                                                                                from £220.76
                                                                                                from £220.76
                                                                                                This part replaces part number 144555
                                                                                                # 050
                                                                                                MPN: 134663
                                                                                                SCREW
                                                                                                from £1.16
                                                                                                from £1.16
                                                                                                # 051
                                                                                                MPN: 137473
                                                                                                BRACKET
                                                                                                - Valid till stock exhaustion
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 051
                                                                                                MPN: 147132
                                                                                                BRACKET
                                                                                                - Valid after stock exhaustion of 137473
                                                                                                from £256.42
                                                                                                from £256.42
                                                                                                This part replaces part number 137473
                                                                                                # 052
                                                                                                MPN: 137481
                                                                                                WASHER
                                                                                                from £1.19
                                                                                                from £1.19
                                                                                                # 053
                                                                                                MPN: 133385
                                                                                                BUSHING
                                                                                                from £34.44
                                                                                                from £34.44
                                                                                                # 054
                                                                                                MPN: 13525770
                                                                                                HELI-COIL
                                                                                                from £1.55
                                                                                                from £1.55
                                                                                                This part replaces part number 103830
                                                                                                # 055
                                                                                                MPN: 12601374
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                # 057
                                                                                                MPN: 139964
                                                                                                SPRING
                                                                                                - For shield 143118
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 058
                                                                                                MPN: 61681500
                                                                                                SPRING - FOR SHIELD 143118
                                                                                                - For shield 143118
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 059
                                                                                                MPN: 120711
                                                                                                BUSH - FOR SHIELD 143118
                                                                                                - For shield 143118
                                                                                                from £9.66
                                                                                                from £9.66
                                                                                                # 060
                                                                                                MPN: 11500521
                                                                                                STUD BOLT -FOR SHIELD 143118
                                                                                                - For shield 143118 - Not for Cabriolet
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 061
                                                                                                MPN: 143120
                                                                                                SPRING
                                                                                                - For shield 143118 - Not for Cabriolet
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 062
                                                                                                MPN: 12604279
                                                                                                WASHER
                                                                                                - For shield 143118 - Not for Cabriolet
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 063
                                                                                                MPN: 12574211
                                                                                                NUT
                                                                                                - For shield 143118 - Not for Cabriolet
                                                                                                from £0.71
                                                                                                from £0.71
                                                                                                # 064
                                                                                                MPN: 143121
                                                                                                SPRING
                                                                                                - For shield 143118 - Not for Cabriolet
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 065
                                                                                                MPN: 14590087
                                                                                                button
                                                                                                - For shield 143118 - Not for Coupe
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                # 066
                                                                                                MPN: 143782
                                                                                                GUIDE SHOE
                                                                                                from £85.46
                                                                                                from £85.46
