025 - Main Shaft Gears

Ferrari Mondial 3.4 t Coupe/Cabrio Main Shaft Gears Parts Diagram

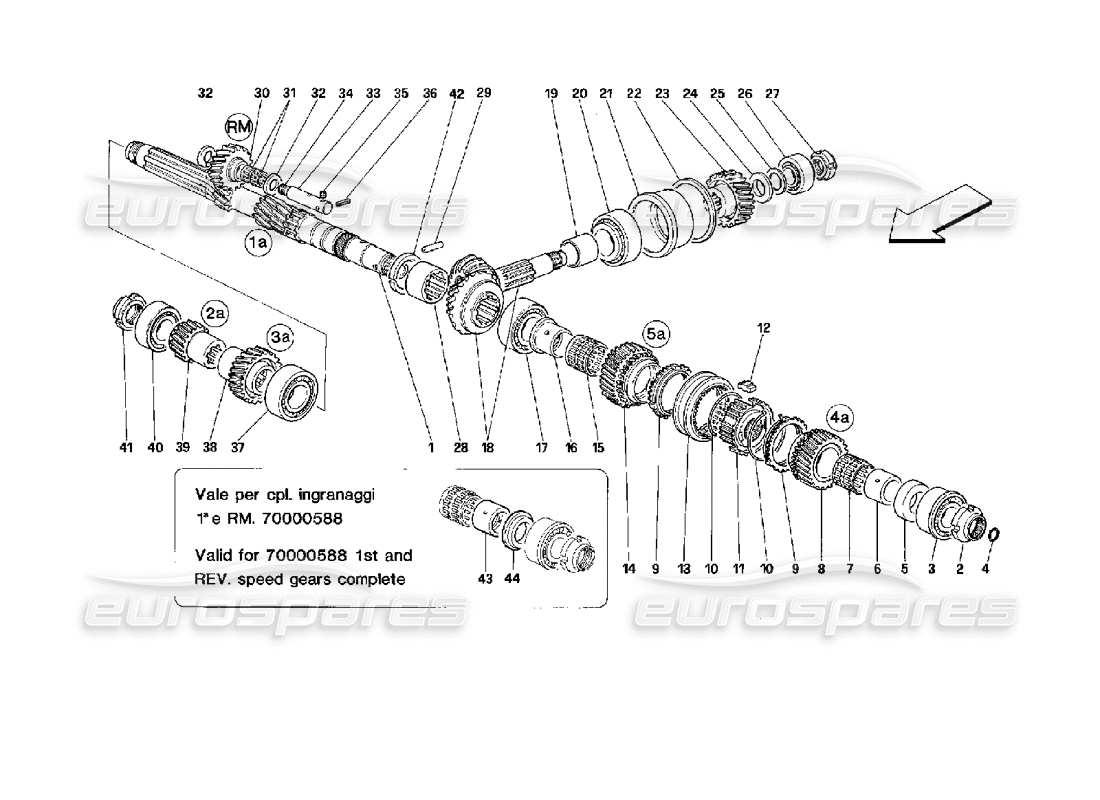

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 000
                                                                MPN: 70000588

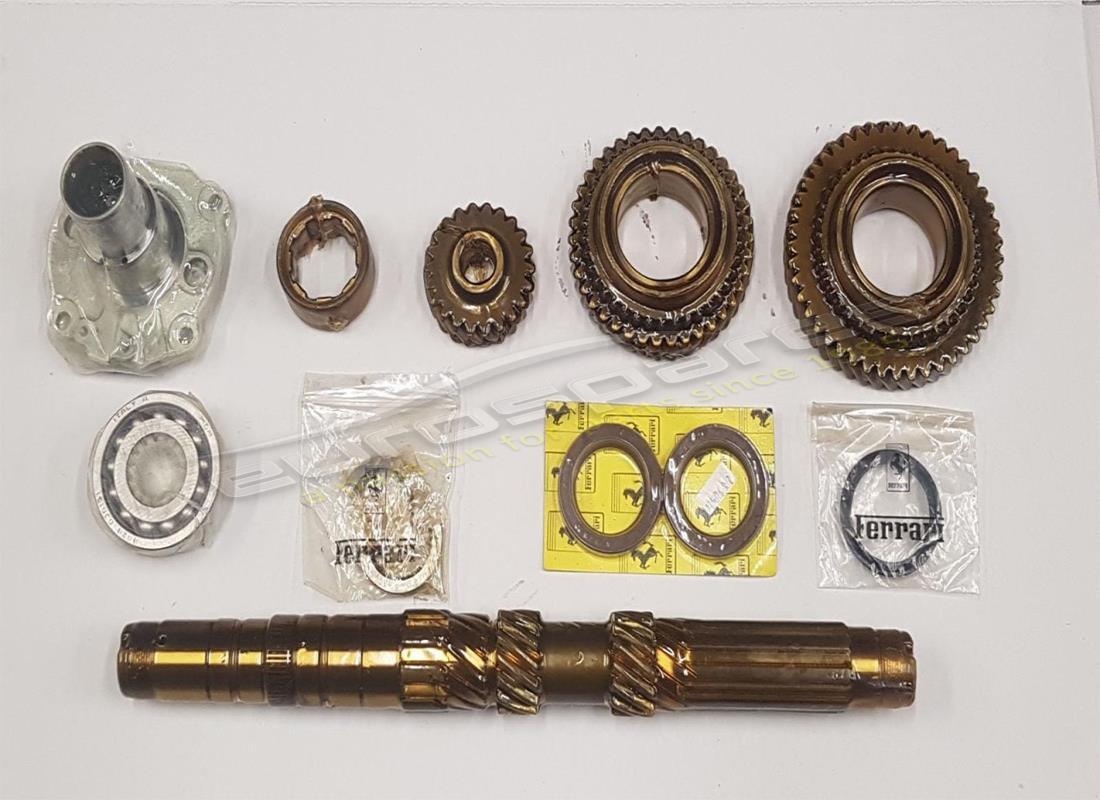

                                                                COMPLETE SERIES OF 1ST AND REVERSE GEARS
                                                                - Valid to groved roller race to pos. 43 and spacer pos. 44 - Valid till stock exhaustion
                                                                Supersession
                                                                Supersession
                                                                # 000
                                                                MPN: 70000758

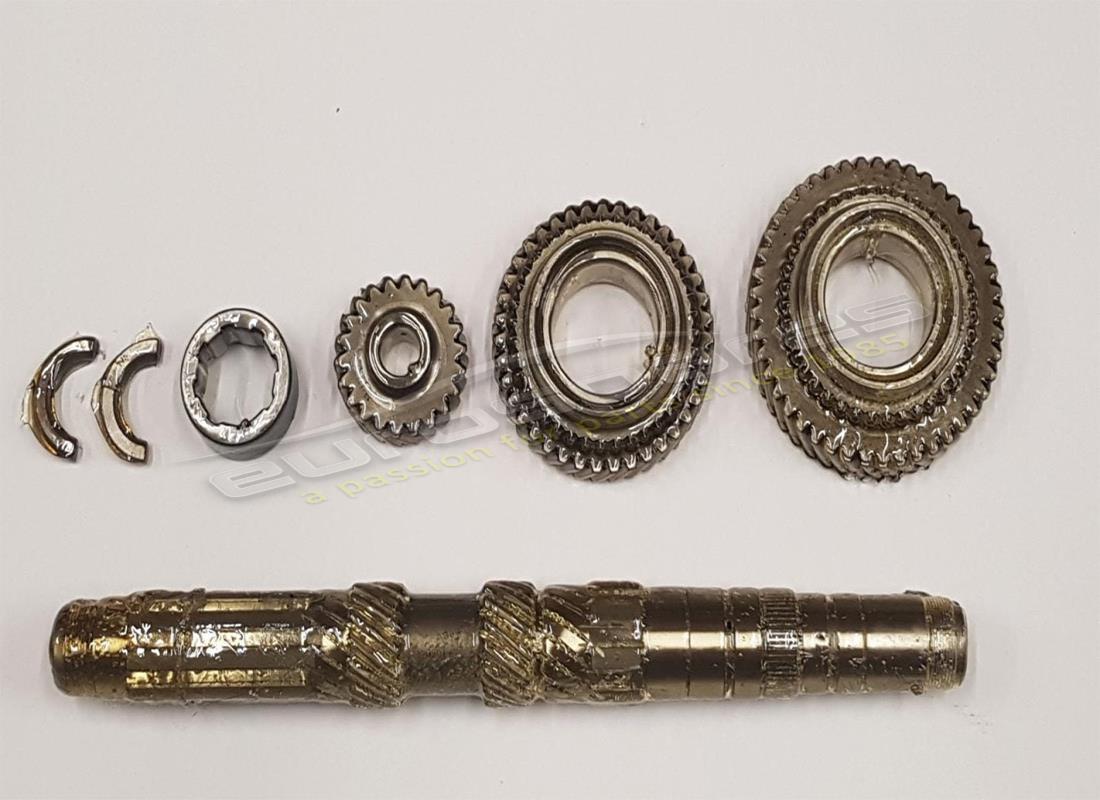

                                                                COMPLETE SERIES OF 1ST AND REVERSE GEARS
                                                                from £2,373.08
                                                                from £2,373.08
                                                                # 000
                                                                MPN: 70000783
                                                                COMPLETE SERIES OF 1ST AND REVERSE GEARS
                                                                - Valid to ungroved roller race to pos. 6 and spacer pos. 5 - Valid after stock exhaustion of 70000588
                                                                from £3,284.66
                                                                from £3,284.66
                                                                This part replaces part number 132787 - and 2 more. Click to view details
                                                                # 001
                                                                -
                                                                Main Shaft
                                                                # 002
                                                                MPN: 153000
                                                                RING NUT
                                                                from £33.69
                                                                from £33.69
                                                                This part replaces part number 131775 - and 1 more. Click to view details
                                                                # 003
                                                                MPN: 155694
                                                                BEARING
                                                                from £69.05
                                                                from £69.05
                                                                This part replaces part number 149774
                                                                # 004
                                                                MPN: 109724
                                                                SEAL RING
                                                                from £0.65
                                                                from £0.65
                                                                # 005
                                                                MPN: 150892
                                                                SPACER -THICK MM. 5,0
                                                                - Valid for ungrooved roller races pos. 6
                                                                from £58.93
                                                                from £58.93
                                                                # 005
                                                                MPN: 150893
                                                                SPACER -THICK MM. 4,7
                                                                - Valid for ungrooved roller races pos. 6
                                                                from £126.58
                                                                from £126.58
                                                                # 005
                                                                MPN: 150894
                                                                SPACER -THICK MM. 4,8
                                                                - Valid for ungrooved roller races pos. 6
                                                                from £78.68
                                                                from £78.68
                                                                # 005
                                                                MPN: 150895
                                                                SPACER -THICK MM. 4,9
                                                                - Valid for ungrooved roller races pos. 6
                                                                from £59.02
                                                                from £59.02
                                                                # 005
                                                                MPN: 150896
                                                                SPACER -THICK MM. 5,2
                                                                - Valid for ungrooved roller races pos. 6
                                                                from £16.34
                                                                from £16.34
                                                                # 005
                                                                MPN: 150902
                                                                SPACER -THICK MM. 5,1
                                                                - Valid for ungrooved roller races pos. 6
                                                                from £14.71
                                                                from £14.71
                                                                # 005
                                                                MPN: 153885
                                                                SPACER -THICK MM. 5,3
                                                                - Valid for ungrooved roller races pos. 6
                                                                from £33.68
                                                                from £33.68
                                                                # 005
                                                                MPN: 153886
                                                                SPACER -THICK MM. 5,4
                                                                - Valid for ungrooved roller races pos. 6
                                                                from £19.26
                                                                from £19.26
                                                                # 005
                                                                MPN: 154118
                                                                SPACER -THICK MM. 5,5
                                                                - Valid for ungrooved roller races pos. 6
                                                                from £19.78
                                                                from £19.78
                                                                # 006
                                                                MPN: 150899
                                                                TRACK FOR 4TH GEAR ROLLERS
                                                                - Ungrooved
                                                                from £85.61
                                                                from £85.61
                                                                # 007
                                                                MPN: 109002
                                                                4TH GEAR ROLLERS CAGE
                                                                from £16.40
                                                                from £16.40
                                                                This part replaces part number 114059
                                                                # 007
                                                                MPN: 70000591
                                                                4TH GEAR COMPLETE SERIES
                                                                - Valid to grooved race pos. 43 and spacer pos. 44 - Valid till stock exhaustion
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 138508 which we have in stock - and 1 more. Click to view details
                                                                # 007
                                                                MPN: 70000784
                                                                4TH GEAR COMPLETE SERIES
                                                                - Valid to ungrooved race pos. 6 and spacer pos. 5 - Valid after stock exhaustion of 70000591
                                                                from £1,257.00
                                                                from £1,257.00
                                                                This part replaces part number 150900 - and 1 more. Click to view details
                                                                # 008
                                                                -
                                                                4TH GEAR
                                                                # 009
                                                                MPN: 106048

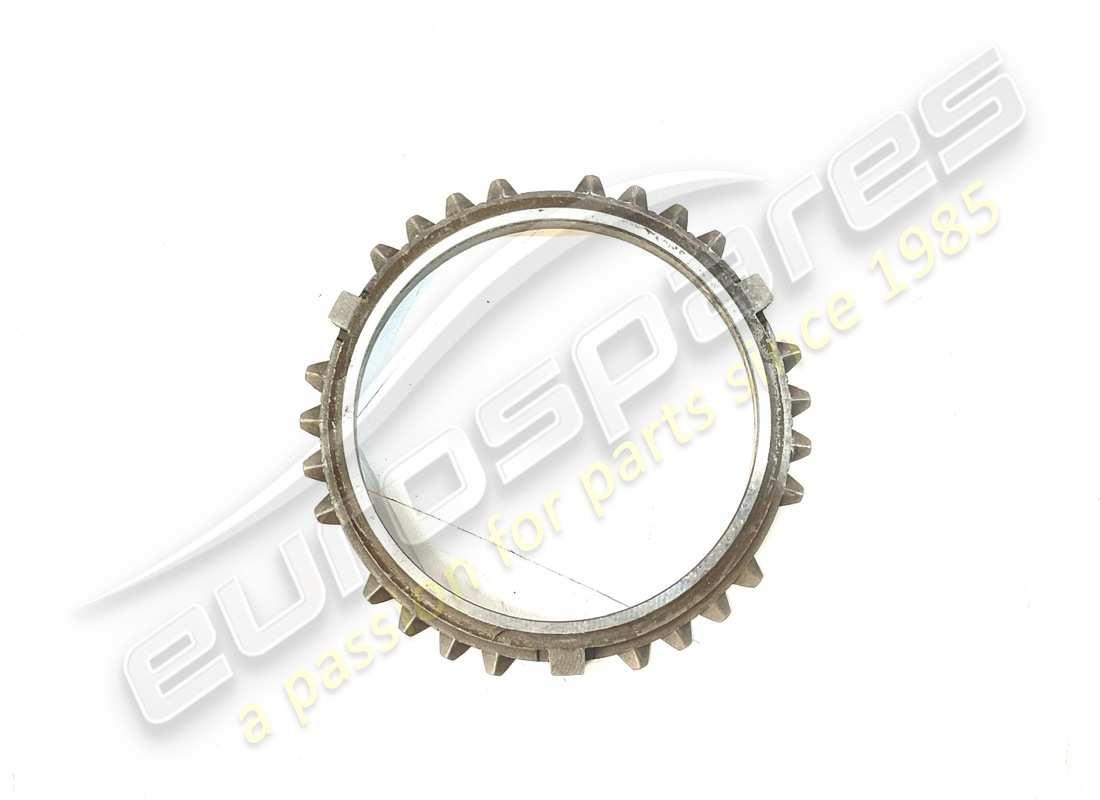

                                                                SYNCHRONIZER FLOATING RING
                                                                from £600.84
                                                                from £600.84
                                                                # 010
                                                                MPN: 145244
                                                                RING SPRING
                                                                from £1.90
                                                                from £1.90
                                                                # 011
                                                                MPN: 106046
                                                                SYNCHRONIZER BODY
                                                                from £674.44
                                                                from £674.44
                                                                # 012
                                                                MPN: 126201
                                                                SMALL BLOCK FOR SYNCHRONIZER
                                                                from £50.58
                                                                from £50.58
                                                                This part replaces part number 106049 - and 1 more. Click to view details
                                                                # 013
                                                                MPN: 131801
                                                                SLEEVE FOR SYNCHRONIZER
                                                                from £349.56
                                                                from £349.56
                                                                # 013
                                                                MPN: 70000592
                                                                5TH GEAR COMPLETE SERIES
                                                                from £593.89
                                                                from £593.89
                                                                This part replaces part number 138510 which we have in stock - and 3 more. Click to view details
                                                                # 014
                                                                -
                                                                5TH GEAR
                                                                # 015
                                                                MPN: 109002
                                                                5TH ROLLER CAGE
                                                                from £16.40
                                                                from £16.40
                                                                This part replaces part number 114059
                                                                # 016
                                                                MPN: 131358
                                                                5TH ROLLER TRACK
                                                                from £215.01
                                                                from £215.01
                                                                # 017
                                                                MPN: 138714
                                                                BEARING
                                                                from £646.29
                                                                from £646.29
                                                                # 018
                                                                MPN: 168047

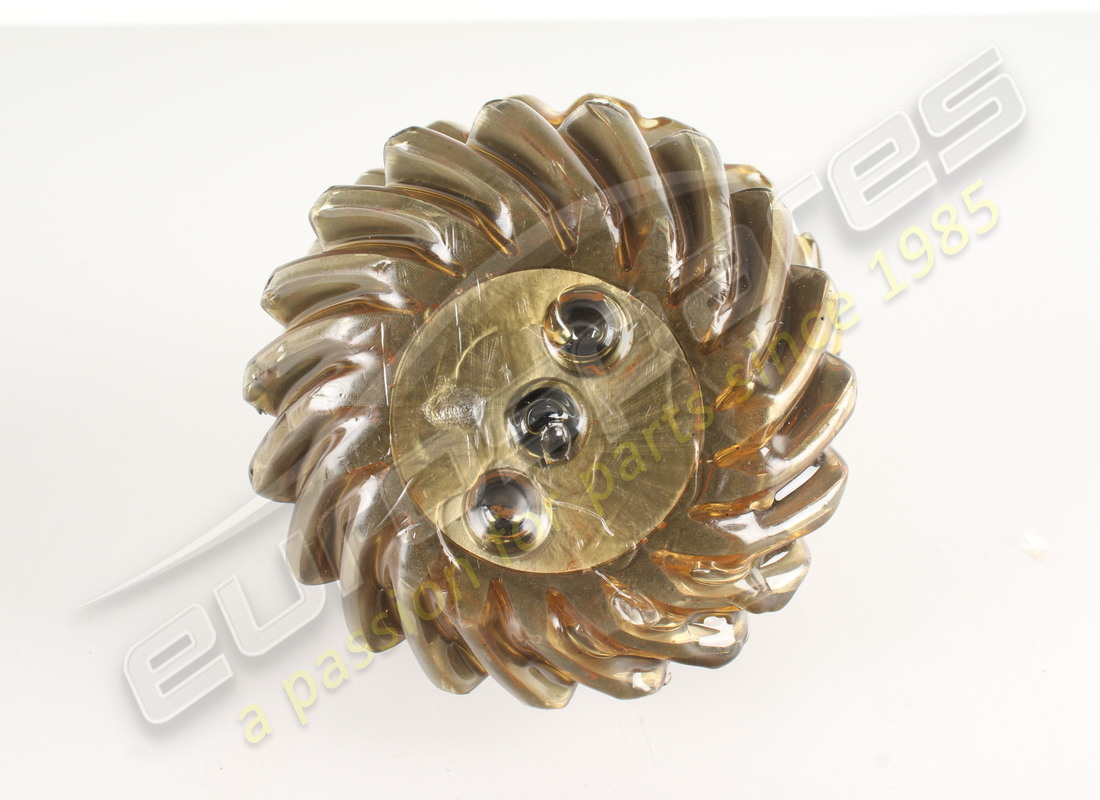

                                                                COMPLETE BEVEL GEAR PAIR
                                                                from £675.99
                                                                from £675.99
                                                                This part replaces part number 163866
                                                                # 019
                                                                MPN: 131335
                                                                BEARING HOLDER ENVELOPE
                                                                from £300.69
                                                                from £300.69
                                                                # 020
                                                                MPN: 131015
                                                                BEARING
                                                                from £232.08
                                                                from £232.08
                                                                # 021
                                                                MPN: 131356
                                                                BEARING HOLDER ENVELOPE
                                                                Supersession
                                                                Supersession
                                                                # 022
                                                                MPN: 131388

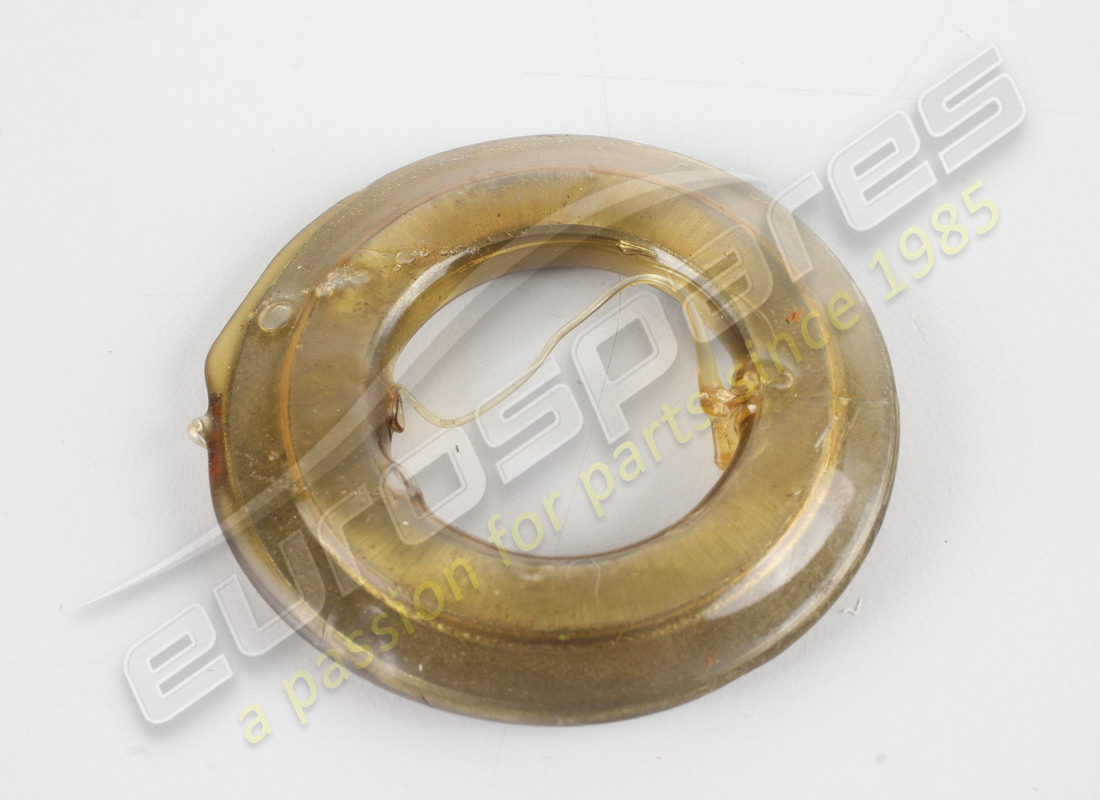

                                                                THRUST - THICK. MM. 1,8-
                                                                from £31.50
                                                                from £31.50
                                                                # 022
                                                                MPN: 131389
                                                                THRUST - THICK. MM. 1,9-
                                                                from £16.21
                                                                from £16.21
                                                                # 022
                                                                MPN: 131390
                                                                THRUST - THICK. MM. 2,0-
                                                                from £31.50
                                                                from £31.50
                                                                # 022
                                                                MPN: 131391
                                                                THRUST - THICK. MM. 2,1-
                                                                from £15.75
                                                                from £15.75
                                                                # 022
                                                                MPN: 131392
                                                                THRUST - THICK. MM. 2,2-
                                                                from £12.60
                                                                from £12.60
                                                                # 022
                                                                MPN: 131393
                                                                THRUST - THICK. MM. 2,3-
                                                                from £3.06
                                                                from £3.06
                                                                # 022
                                                                MPN: 70000595
                                                                CLUTCH SHAFT-PINION TRANSMISSION BEVEL GEAR PAIR
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 131281 which we have in stock
                                                                # 023
                                                                -
                                                                GEAR ON PINION
                                                                # 024
                                                                MPN: 131372

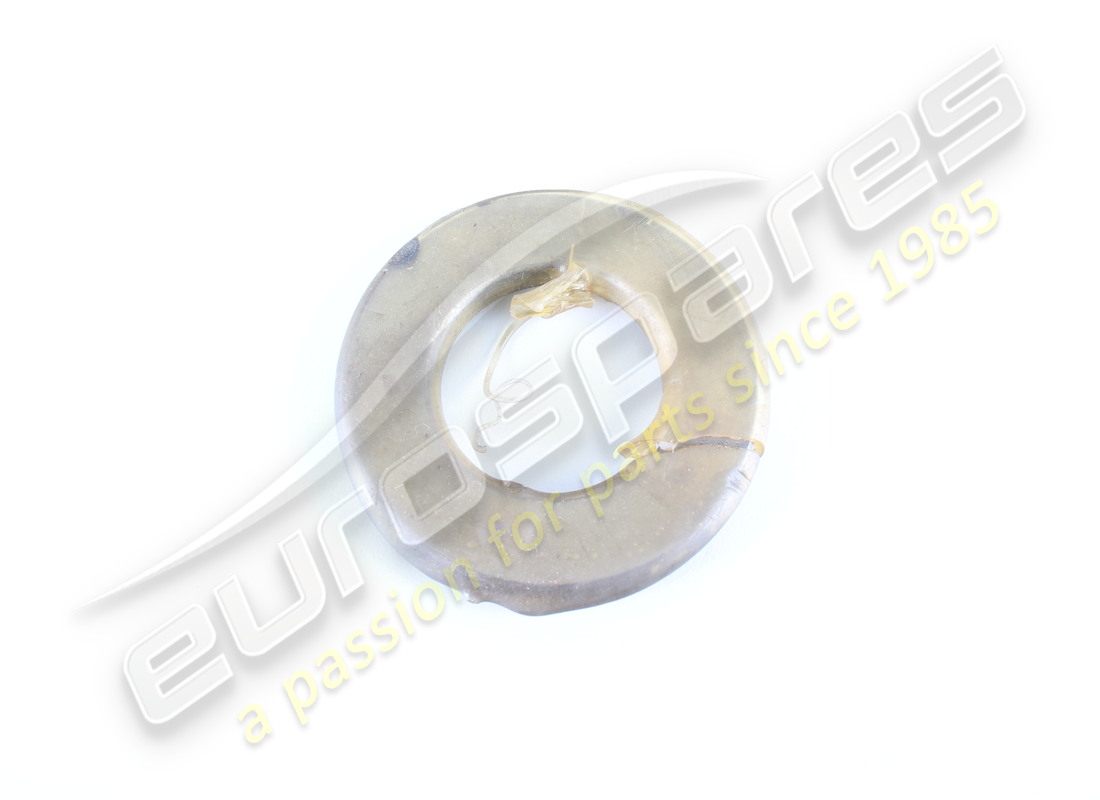

                                                                GEAR THRUST
                                                                from £12.49
                                                                from £12.49
                                                                # 025
                                                                MPN: 131374

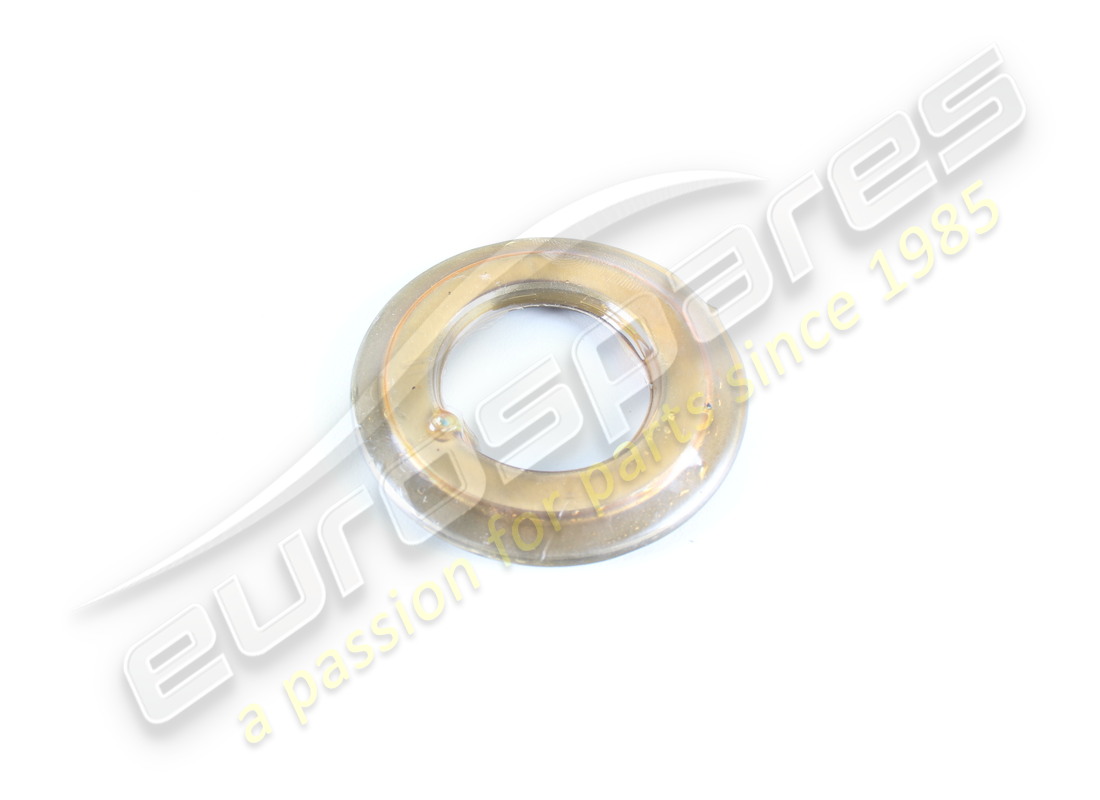

                                                                THRUST - THICK. MM. 1,8-
                                                                from £8.70
                                                                from £8.70
                                                                # 025
                                                                MPN: 131375
                                                                THRUST - THICK. MM. 1,9-
                                                                from £19.57
                                                                from £19.57
                                                                # 025
                                                                MPN: 131376
                                                                THRUST - THICK. MM. 2,0-
                                                                from £8.70
                                                                from £8.70
                                                                # 025
                                                                MPN: 131377
                                                                THRUST - THICK. MM. 2,1-
                                                                from £10.00
                                                                from £10.00
                                                                # 025
                                                                MPN: 131378
                                                                THRUST - THICK. MM. 2,2-
                                                                from £8.70
                                                                from £8.70
                                                                # 025
                                                                MPN: 131379
                                                                THRUST - THICK. MM. 2,3-
                                                                from £35.01
                                                                from £35.01
                                                                # 025
                                                                MPN: 141044
                                                                THRUST - THICK. MM. 1,95-
                                                                from £15.00
                                                                from £15.00
                                                                # 025
                                                                MPN: 141046
                                                                THRUST - THICK. MM. 2,05-
                                                                from £3.61
                                                                from £3.61
                                                                # 025
                                                                MPN: 141048
                                                                THRUST - THICK. MM. 2,15-
                                                                from £3.62
                                                                from £3.62
                                                                # 026
                                                                MPN: 131016
                                                                BEARING
                                                                from £60.31
                                                                from £60.31
                                                                # 027
                                                                MPN: 105137
                                                                RING NUT
                                                                Supersession
                                                                Supersession
                                                                # 028
                                                                MPN: 144616
                                                                SPACER
                                                                from £72.14
                                                                from £72.14
                                                                # 029
                                                                MPN: 14601470

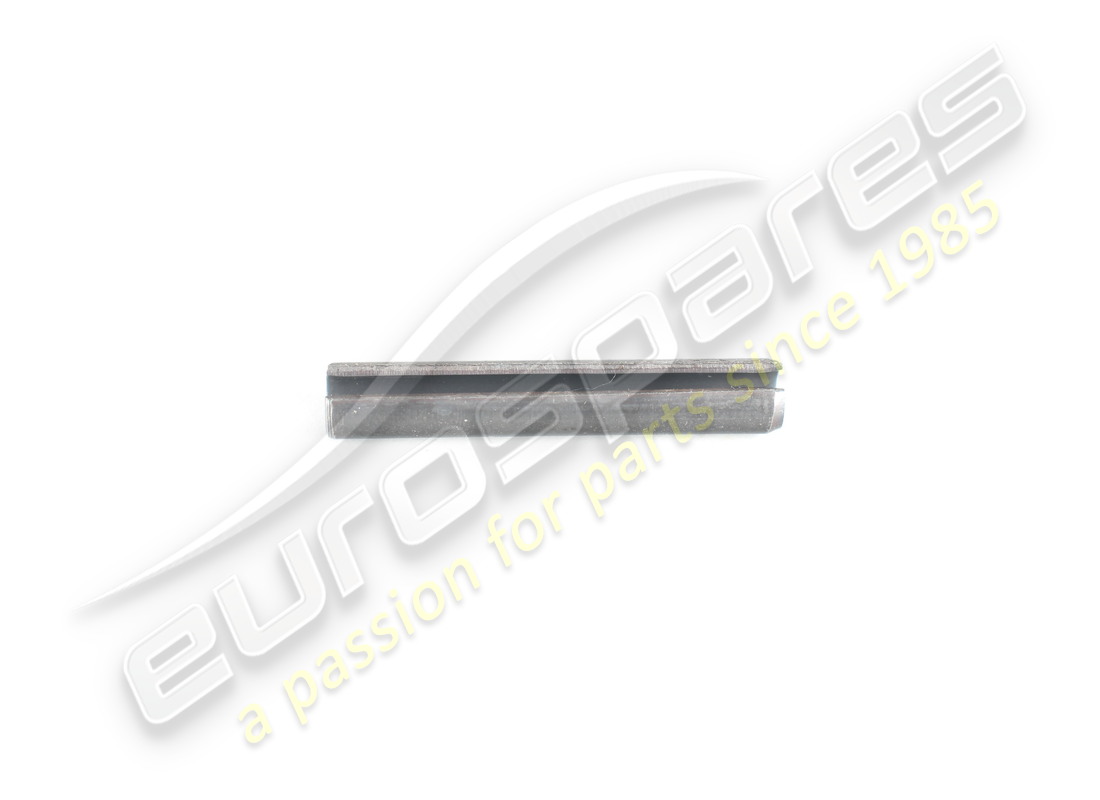

                                                                PIN
                                                                from £0.71
                                                                from £0.71
                                                                # 029
                                                                MPN: 70000588
                                                                1ST AND REVERSE GEAR COMPLETE SERIES
                                                                - Valid to grooved race pos. 43 and spacer pos. 44 - Valid till stock exhaustion
                                                                Supersession
                                                                Supersession
                                                                # 029
                                                                MPN: 70000783
                                                                COMPLETE SERIES OF 1ST AND REVERSE GEARS
                                                                - Valid to ungrooved race pos. 6 and spacer pos. 5 - Valid after stock exhaustion 70000588
                                                                from £3,284.66
                                                                from £3,284.66
                                                                This part replaces part number 132787 - and 2 more. Click to view details
                                                                # 030
                                                                -
                                                                REVERSE IDLE GEAR
                                                                # 031
                                                                MPN: 104734
                                                                ROLLER CAGE FOR REVERSE IDLE GEAR
                                                                from £5.67
                                                                from £5.67
                                                                # 032
                                                                MPN: 131425
                                                                THRUST BEARING
                                                                from £8.17
                                                                from £8.17
                                                                # 033
                                                                MPN: 131798
                                                                REVERSE IDLE GEAR PIN
                                                                from £36.95
                                                                from £36.95
                                                                # 034
                                                                MPN: 10275550
                                                                PLUG
                                                                from £0.79
                                                                from £0.79
                                                                # 035
                                                                MPN: 65928500
                                                                PLUG
                                                                from £24.36
                                                                from £24.36
                                                                This part replaces part number 10267550
                                                                # 036
                                                                MPN: 14601470
                                                                PIN
                                                                from £0.71
                                                                from £0.71
                                                                # 037
                                                                MPN: 228055
                                                                BEARING
                                                                from £45.99
                                                                from £45.99
                                                                This part replaces part number 131056 - and 1 more. Click to view details
                                                                # 038
                                                                -
                                                                3RD GEAR
                                                                # 038
                                                                MPN: 70000590
                                                                3RD GEAR COMPLETE SERIES
                                                                from £692.71
                                                                from £692.71
                                                                This part replaces part number 132552 which we have in stock - and 3 more. Click to view details
                                                                # 039
                                                                -
                                                                2ND GEAR
                                                                # 039
                                                                MPN: 70000589
                                                                2ND GEAR COMPLETE SERIES
                                                                - Not for CH
                                                                from £3,633.52
                                                                from £3,633.52
                                                                This part replaces part number 132544 - and 1 more. Click to view details
                                                                # 039
                                                                MPN: 70000597
                                                                2ND GEAR COMPLETE SERIES
                                                                - Valid for CH
                                                                from £446.51
                                                                from £446.51
                                                                # 040
                                                                MPN: 108656
                                                                BEARING
                                                                from £309.40
                                                                from £309.40
                                                                This part replaces part number 104257
                                                                # 041
                                                                MPN: 153002
                                                                RING NUT
                                                                from £124.21
                                                                from £124.21
                                                                This part replaces part number 131774 - and 1 more. Click to view details
                                                                # 042
                                                                MPN: 144617
                                                                SPACER RING
                                                                from £25.21
                                                                from £25.21
                                                                # 043
                                                                MPN: 131357
                                                                4TH GEAR ROLLER RACES
                                                                - With grooving
                                                                from £58.04
                                                                from £58.04
                                                                # 044
                                                                MPN: 145232
                                                                SPACER - THICK MM. 5,0
                                                                - Valid for grooved roller races
                                                                from £41.02
                                                                from £41.02
                                                                # 044
                                                                MPN: 145233
                                                                SPACER - THICK MM. 4,7
                                                                - Valid for grooved roller races
                                                                from £23.48
                                                                from £23.48
                                                                # 044
                                                                MPN: 145234
                                                                SPACER - THICK MM. 4,8
                                                                - Valid for grooved roller races
                                                                from £23.60
                                                                from £23.60
                                                                # 044
                                                                MPN: 145235
                                                                SPACER - THICK MM. 4,9
                                                                - Valid for grooved roller races
                                                                from £23.60
                                                                from £23.60
                                                                # 044
                                                                MPN: 145236
                                                                SPACER - THICK MM. 5,1
                                                                - Valid for grooved roller races
                                                                from £23.60
                                                                from £23.60
                                                                # 044
                                                                MPN: 145237
                                                                SPACER - THICK MM. 5,2
                                                                - Valid for grooved roller races
                                                                from £142.01
                                                                from £142.01
                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
