030 - Brake Hydraulic System - Valid for GS

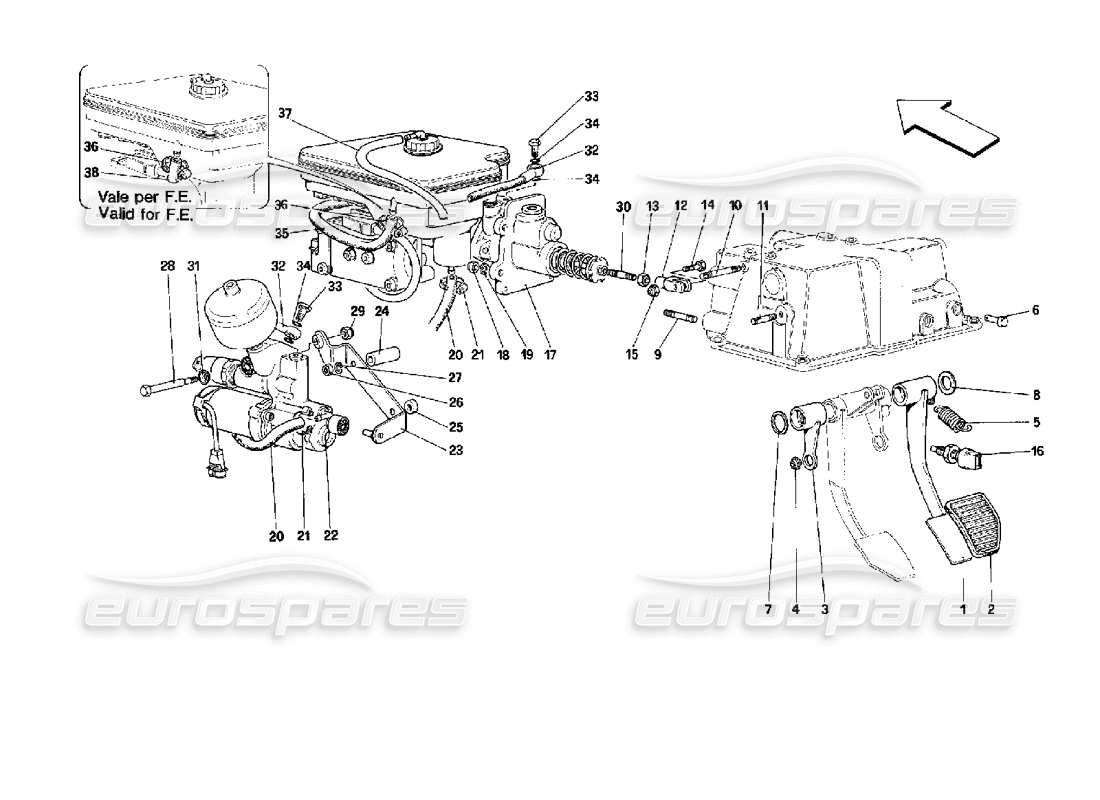

Ferrari Mondial 3.4 t Coupe/Cabrio Brake Hydraulic System - Valid for GS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 129606
BRAKE PEDAL
from £194.99
from £194.99
# 002
MPN: 106950
PEDAL COVER
from £11.68
from £11.68
# 003
MPN: 129609
BRAKE LEVER
from £246.87
from £246.87
# 004
MPN: 109407
BALL JOINT
from £21.94
from £21.94
# 005
MPN: 101305
PEDAL RETURN SPRING
from £8.15
from £8.15
This part replaces part number 660343
# 006
MPN: 129612
PIN
from £1.72
from £1.72
# 007
MPN: 112125
WASHER
from £1.44
from £1.44
# 008
MPN: 112127
WASHER -THICK 0,9 MM.
from £0.54
from £0.54
# 008
MPN: 112128
WASHER -THICK 1,0 MM.
from £24.35
from £24.35
# 008
MPN: 112129
WASHER -THICK 1,1 MM.
from £0.54
from £0.54
# 008
MPN: 112130
WASHER -THICK 1,2 MM.
from £0.57
from £0.57
# 008
MPN: 112131
WASHER -THICK 1,3 MM.
from £0.54
from £0.54
# 009
MPN: 13543421
STUD
Supersession
Supersession
# 010
MPN: 13517521
STUD
from £6.77
from £6.77
# 011
MPN: 13517021
STUD
from £2.80
from £2.80
# 012
MPN: 10007871
FORK
from £6.02
from £6.02
# 013
MPN: 16102311
LOCK NUT
from £0.42
from £0.42
This part replaces part number 16102315
# 014
MPN: 130926
SCREW
from £4.51
from £4.51
# 015
MPN: 16104411
SELF LOCKING NUT
from £0.54
from £0.54
# 016
MPN: 133555
STOP LIGHT SWITCH
from £18.60
from £18.60
# 017
MPN: 70000537
KIT FOR ABS HYDRAULIC UNIT
with reservoir
from £11,707.48
from £11,707.48
This part replaces part number 137006 - and 1 more. Click to view details
# 018
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 019
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 020
MPN: 136376
PIPE
from £14.82
from £14.82
This part replaces part number 132411 - and 1 more. Click to view details
# 021
MPN: 12179190
CLAMP
Supersession
Supersession
This part replaces part number 102604
# 022
MPN: 148977
MASTER CYLINDER
Supersession
Supersession
# 023
MPN: 137327
BRACKET
from £27.50
from £27.50
# 024
MPN: 137417
UPPER SPACER
from £5.44
from £5.44
# 025
MPN: 137416
LOWER SPACER
from £18.30
from £18.30
# 026
MPN: 133989
NUT
from £0.53
from £0.53
This part replaces part number 8 D 4-UNI 207
# 027
MPN: 127469
WASHER
from £43.03
from £43.03
# 028
MPN: 129636
SCREW
from £2.88
from £2.88
# 029
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 030
MPN: 13517121
STUD
Supersession
Supersession
# 031
MPN: 130861
WASHER
from £2.60
from £2.60
# 032
MPN: 131872
HOSE
Supersession
Supersession
# 033
MPN: 131873
UNION
from £3.59
from £3.59
# 034
MPN: 70000510
O-RING KIT
from £94.57
from £94.57
This part replaces part number 131874
# 035
MPN: 151845
PIPE
from £35.34
from £35.34
This part replaces part number 120929 - and 1 more. Click to view details
# 036
MPN: 12179190
CLAMP
Supersession
Supersession
This part replaces part number 102604

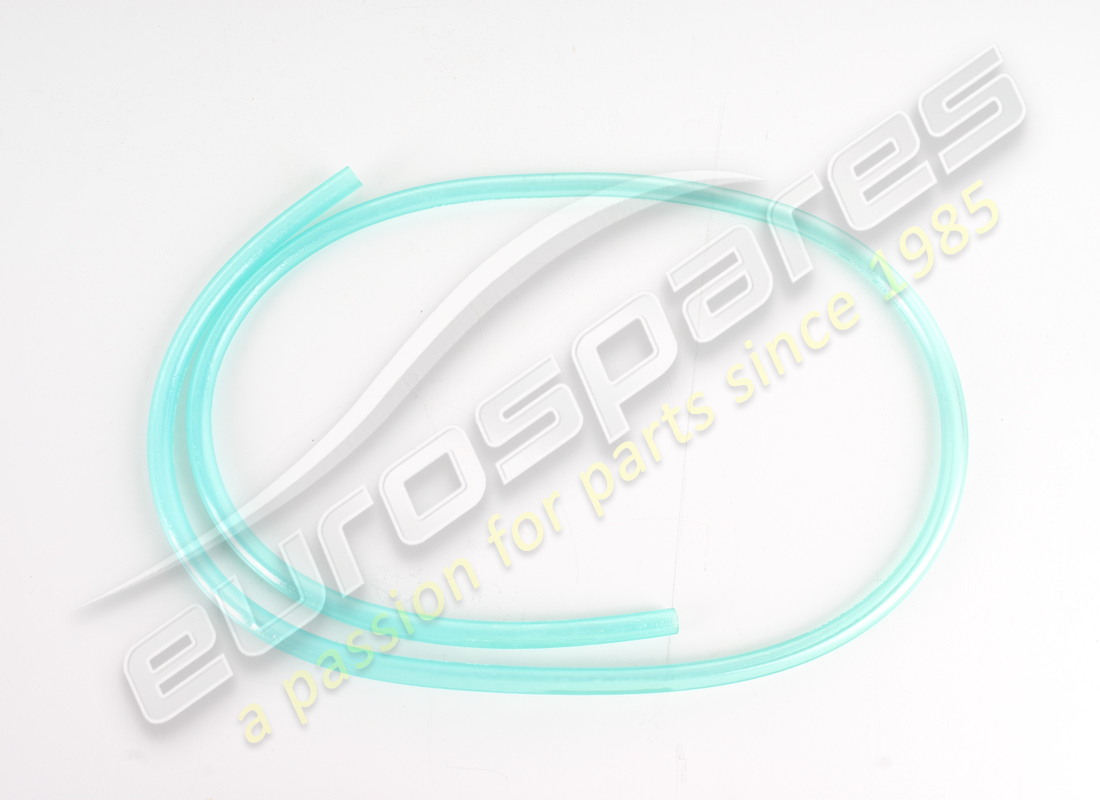

# 037
MPN: 136192
PIPE
from £1.03
from £1.03
# 038
MPN: 136379
PLUG
- Valid for F.E.
Supersession
Supersession
