ferrari mondial 3.4 t coupe/cabrio equipment - vertical bag parts diagram

045A - Equipment - Vertical Bag

Ferrari Mondial 3.4 t Coupe/Cabrio Equipment - Vertical Bag Parts Diagram

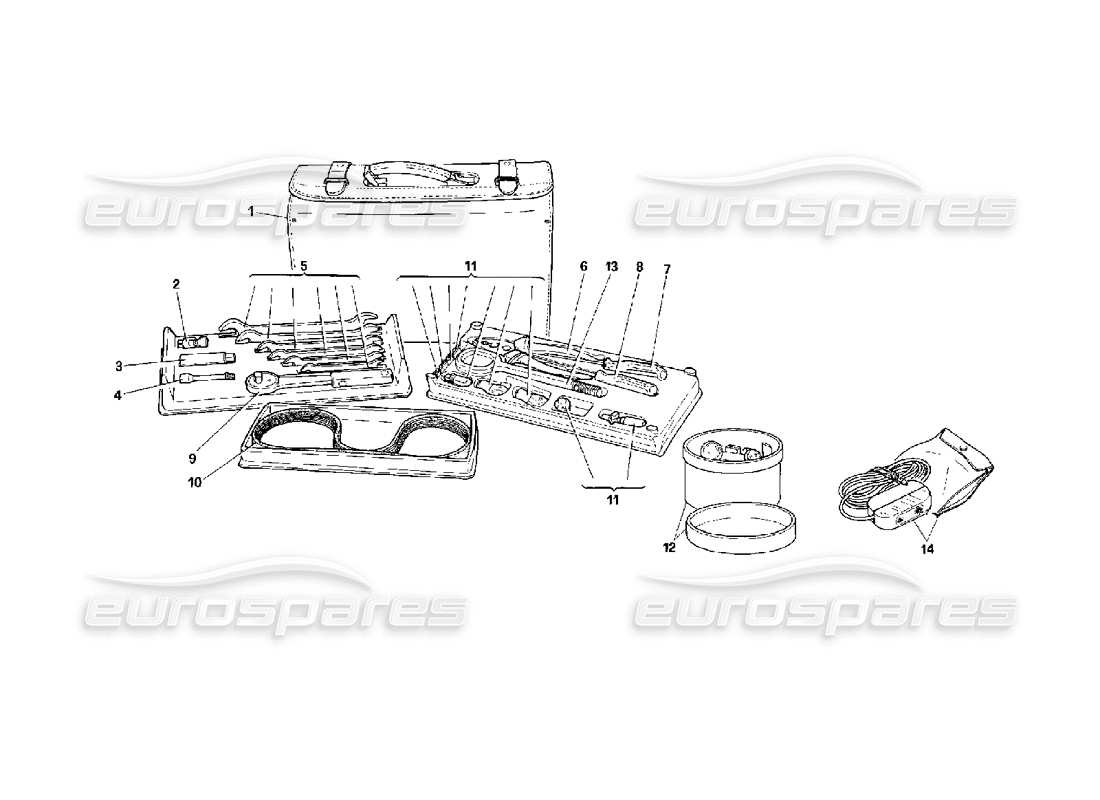

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 000
              MPN: 95990133

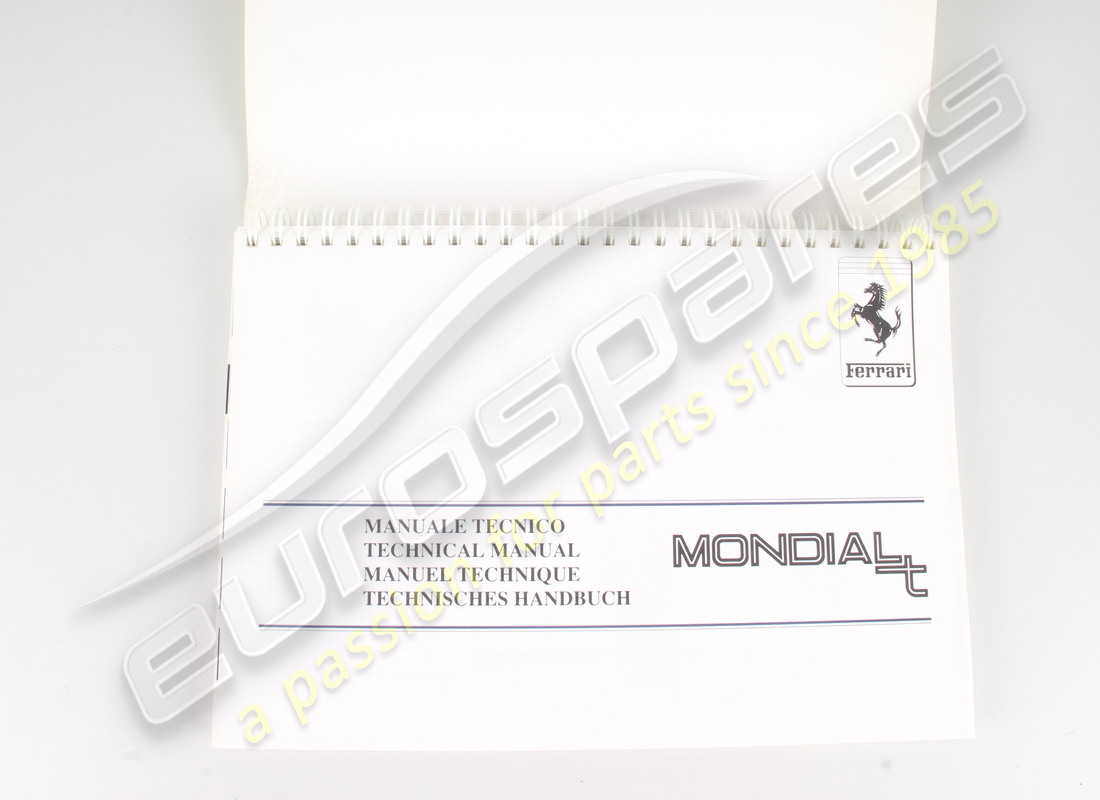

              HANDBOOK (USA VERSION)
              from £204.75
              from £204.75
              # 000
              MPN: 95990141
              HANDBOOK (EUROPEAN VERSION)
              from £108.49
              from £108.49
              This part replaces part number 95990125
              # 000
              MPN: 95991901
              INDOOR CAR COVER
              red
              from £341.25
              from £341.25
              # 001
              MPN: 152988
              Complete Tool Kit
              - Not for USA
              from £2,558.41
              from £2,558.41
              This part replaces part number 141010 which we have in stock
              # 001
              MPN: 152989
              Complete Tool Kit
              - Valid for USA
              from £436.28
              from £436.28
              This part replaces part number 141300
              # 002
              MPN: 126780
              JOINT FOR SPARKING PLUGS WRENCH
              from £71.48
              from £71.48
              This part replaces part number 126776
              # 003
              MPN: 126779
              SPARKING PLUG WRENCH
              from £42.68
              from £42.68
              This part replaces part number 126775
              # 004
              MPN: 143952
              EXTENSION FOR SPARKING PLUG WRENCH
              from £24.25
              from £24.25
              # 005
              MPN: 141188
              WRENCH SET
              - Not as spare part - With assembly 141010 and 141300
              # 006
              MPN: 101515
              180 MM CUTTING PLIERS
              - Not as spare part - With assembly 141010 and 141300
              from £42.90
              from £42.90
              # 007
              MPN: 101519
              SCREWDRIVER FOR 5-9 MM SLOT SCREWS
              - Not as spare part - With assembly 141010 and 141300
              # 008
              MPN: 101517
              SCREWDRIVER FOR 150 MM SLOT SCREWS
              - Not as spare part - With assembly 141010 and 141300
              # 009
              MPN: 141187
              CAR JACK
              from £115.64
              from £115.64
              # 010
              MPN: 199823
              ALTERNATOR & WATER PUMP BELT
              from £13.60
              from £13.60
              This part replaces part number 139449
              # 010
              MPN: 199827
              ALTERNATOR & WATER PUMP BELT
              Poly - V - K8 type
              from £27.09
              from £27.09
              This part replaces part number 152730 - and 1 more. Click to view details
              # 011
              -
              LAMP AND FUSES
              # 012
              MPN: 10857790
              12V-5W LAMP
              from £1.14
              from £1.14
              This part replaces part number 101524
              # 012
              MPN: 10857790
              12V-5W LAMP
              from £1.14
              from £1.14
              This part replaces part number 101524
              # 012
              MPN: 11054990
              10 AMP FUSE
              Supersession
              Supersession
              # 012
              MPN: 11054990
              10 AMP FUSE
              Supersession
              Supersession
              # 012
              MPN: 11055090
              15 AMP FUSE
              Supersession
              Supersession
              # 012
              MPN: 11055090
              15 AMP FUSE
              Supersession
              Supersession
              # 012
              MPN: 11055190
              20 AMP FUSE
              Supersession
              Supersession
              # 012
              MPN: 11055190
              20 AMP FUSE
              Supersession
              Supersession
              # 012
              MPN: 125240
              7,5 AMP FUSE
              from £0.47
              from £0.47
              This part replaces part number 11054890 - and 1 more. Click to view details
              # 012
              MPN: 125240
              7,5 AMP FUSE
              from £0.47
              from £0.47
              This part replaces part number 11054890 - and 1 more. Click to view details
              # 012
              MPN: 14144690
              12V-5/21W LAMP
              from £2.41
              from £2.41
              # 012
              MPN: 14144690
              12V-5/21W LAMP
              from £2.41
              from £2.41
              # 012
              MPN: 14148190
              12V-21W/P21W LAMP
              from £2.03
              from £2.03
              # 012
              MPN: 14148190
              12V-21W/P21W LAMP
              from £2.03
              from £2.03
              # 012
              MPN: 14151095
              H1 12V-55W LAMP
              from £8.03
              from £8.03
              # 012
              MPN: 14151590
              H3 12V-55W LAMP
              from £9.58
              from £9.58
              # 012
              MPN: 143165
              HB4 12V-55W LAMP
              from £36.28
              from £36.28
              # 012
              MPN: 143166
              HB3 12V-65W LAMP
              from £27.70
              from £27.70
              # 012
              MPN: 70000600
              COMPLETE LAMP AND FUSE HOLDER CASE
              - Only as spare part - Not for USA
              from £39.93
              from £39.93
              # 012
              MPN: 70000601
              COMPLETE LAMP AND FUSE HOLDER CASE
              - Only as spare part - Valid for USA
              from £55.84
              from £55.84
              # 013
              MPN: 128705
              TRACTION HOOK
              from £43.94
              from £43.94
              # 014
              MPN: 40179202
              EMERGENCY LIGHT
              from £309.75
              from £309.75
              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
