ferrari mondial 3.4 t coupe/cabrio body shell: inner elements - rear part - coupe parts diagram

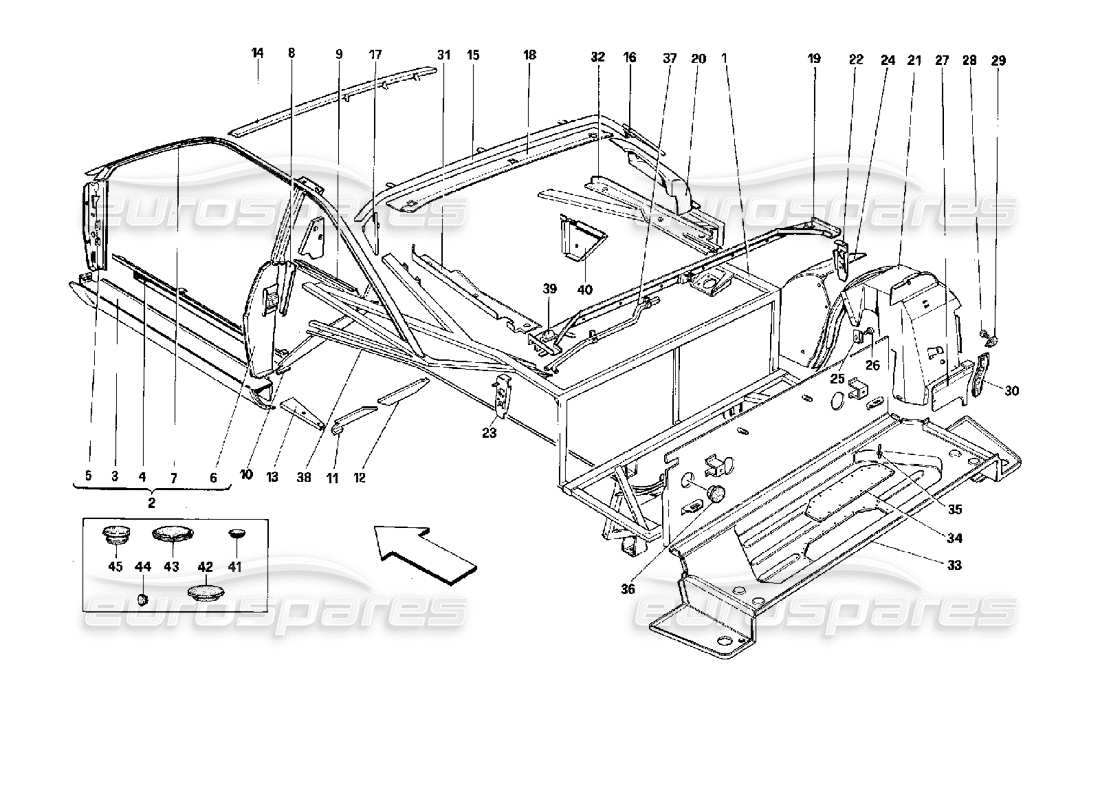

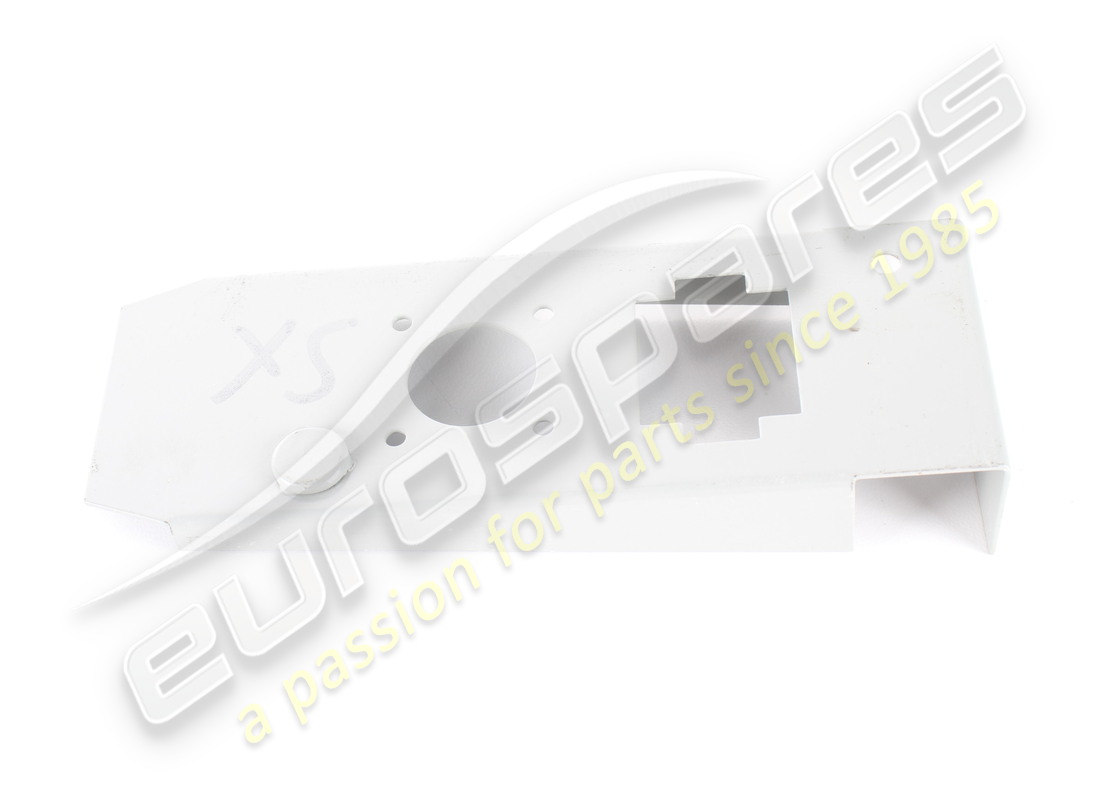

103 - Body Shell: Inner Elements - Rear Part - Coupe

Ferrari Mondial 3.4 t Coupe/Cabrio Body Shell: Inner Elements - Rear Part - Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 142184
                                                            Rear Frame
                                                            - Valid for 3P
                                                            from £2,457.17
                                                            from £2,457.17
                                                            # 001
                                                            MPN: 146411
                                                            Rear Frame
                                                            - Valid for 4P - Valid for SA
                                                            # 001
                                                            MPN: 146485
                                                            Rear Frame
                                                            - Valid for 4P - Valid for J
                                                            # 001
                                                            MPN: 147231
                                                            Rear Frame
                                                            - Valid for 4P - Not for USA-CH-SA-J and GD
                                                            # 001
                                                            MPN: 147306
                                                            Rear Frame
                                                            - Valid for 4P - Valid for GD
                                                            # 001
                                                            MPN: 147392
                                                            Rear Frame
                                                            - Valid for 4P - Valid for CH
                                                            # 002
                                                            MPN: 62588400
                                                            LH DOOR OPENING
                                                            - Not for TA and USA
                                                            from £686.19
                                                            from £686.19
                                                            This part replaces part number 62811900
                                                            # 002
                                                            MPN: 62588500
                                                            RH DOOR OPENING
                                                            - Not for TA and USA
                                                            from £742.10
                                                            from £742.10
                                                            # 002
                                                            MPN: 62621500
                                                            LH DOOR OPENING
                                                            - Valid for TA and USA
                                                            from £673.24
                                                            from £673.24
                                                            This part replaces part number 62633600
                                                            # 002
                                                            MPN: 62621600
                                                            RH DOOR OPENING
                                                            - Valid for TA and USA
                                                            from £658.18
                                                            from £658.18
                                                            # 004
                                                            MPN: 60602800
                                                            INNER RH COVERING - COUPÉ
                                                            from £30.03
                                                            from £30.03
                                                            # 004
                                                            MPN: 61082600
                                                            INNER LH COVERING - COUPÉ
                                                            from £36.95
                                                            from £36.95
                                                            This part replaces part number 60602900
                                                            # 005
                                                            MPN: 62534100
                                                            RH SEAT FOR DOOR HINGE
                                                            from £18.04
                                                            from £18.04
                                                            # 005
                                                            MPN: 62534200
                                                            LH SEAT FOR DOOR HINGE
                                                            from £37.05
                                                            from £37.05
                                                            # 006
                                                            MPN: 62533500
                                                            RH POST. FOR REAR FENDER
                                                            from £53.96
                                                            from £53.96
                                                            # 006
                                                            MPN: 62533700
                                                            LH POST. FOR REAR FENDER
                                                            from £129.91
                                                            from £129.91
                                                            # 007
                                                            MPN: 60932100
                                                            RH RAIL
                                                            - Valid for GD
                                                            from £108.57
                                                            from £108.57
                                                            # 007
                                                            MPN: 60932200
                                                            LH RAIL
                                                            - Not for TA and USA
                                                            from £108.57
                                                            from £108.57
                                                            # 007
                                                            MPN: 60944300
                                                            RH RAIL
                                                            - Not for TA-USA and GD
                                                            from £99.19
                                                            from £99.19
                                                            # 007
                                                            MPN: 60998500
                                                            RH RAIL
                                                            - Valid for TA and USA
                                                            from £128.31
                                                            from £128.31
                                                            # 007
                                                            MPN: 60998600
                                                            LH RAIL
                                                            - Valid for TA and USA
                                                            from £128.31
                                                            from £128.31
                                                            # 008
                                                            MPN: 60658300
                                                            STIFFENING ANGLE PIECE FOR LH FENDER
                                                            from £11.76
                                                            from £11.76
                                                            # 008
                                                            MPN: 60658400
                                                            STIFFENING ANGLE PIECE FOR RH FENDER
                                                            from £7.68
                                                            from £7.68
                                                            # 009
                                                            MPN: 62605200
                                                            LOWER STIFFENING FOR REAR RH WINDOW
                                                            from £22.63
                                                            from £22.63
                                                            # 009
                                                            MPN: 62605300
                                                            LOWER STIFFENING FOR REAR LH WINDOW
                                                            from £16.59
                                                            from £16.59
                                                            # 010
                                                            MPN: 62600300
                                                            RH STIFFENING
                                                            - Not for USA
                                                            from £38.78
                                                            from £38.78
                                                            # 010
                                                            MPN: 62600400
                                                            LH STIFFENING
                                                            - Not for USA
                                                            from £36.93
                                                            from £36.93
                                                            # 011
                                                            MPN: 62842800
                                                            LOWER REINFORCE RH REAR FENDER
                                                            - Valid for USA
                                                            from £75.72
                                                            from £75.72
                                                            # 011
                                                            MPN: 62843000
                                                            LOWER REINFORCE LH REAR FENDER
                                                            - Valid for USA
                                                            from £72.11
                                                            from £72.11
                                                            # 012
                                                            MPN: 62843100
                                                            UPPER REINFORCE RH REAR FENDER
                                                            - Valid for USA
                                                            from £44.85
                                                            from £44.85
                                                            # 012
                                                            MPN: 62843200
                                                            UPPER REINFORCE LH REAR FENDER
                                                            - Valid for USA
                                                            from £44.85
                                                            from £44.85
                                                            # 013
                                                            MPN: 136756
                                                            SUPPORT FOR RH REAR BODY SIDE
                                                            - Not for CH
                                                            from £6.19
                                                            from £6.19
                                                            # 013
                                                            MPN: 136757
                                                            SUPPORT FOR LH REAR BODY SIDE
                                                            - Not for CH
                                                            from £4.96
                                                            from £4.96
                                                            # 013
                                                            MPN: 143945
                                                            SUPPORT FOR RH REAR BODY SIDE
                                                            - Valid for CH
                                                            from £15.58
                                                            from £15.58
                                                            # 013
                                                            MPN: 143946
                                                            SUPPORT FOR LH REAR BODY SIDE
                                                            - Valid for CH
                                                            from £9.92
                                                            from £9.92
                                                            # 014
                                                            MPN: 60723200
                                                            FRONT RIB
                                                            from £35.70
                                                            from £35.70
                                                            This part replaces part number 60937000
                                                            # 015
                                                            MPN: 60828700
                                                            REAR RIB
                                                            - Valid for TA
                                                            from £68.78
                                                            from £68.78
                                                            # 015
                                                            MPN: 61093400
                                                            REAR RIB
                                                            - Not for TA
                                                            from £99.98
                                                            from £99.98
                                                            # 016
                                                            MPN: 60781000
                                                            SUPPORT FOR REAR RH BELTS
                                                            - Not for TA and USA
                                                            from £15.20
                                                            from £15.20
                                                            # 016
                                                            MPN: 60910300
                                                            SUPPORT FOR REAR RH BELTS
                                                            - Valid for TA and USA
                                                            from £22.00
                                                            from £22.00
                                                            # 017
                                                            MPN: 60781100
                                                            SUPPORT FOR REAR LH BELTS
                                                            - Not for TA and USA
                                                            from £15.20
                                                            from £15.20
                                                            # 017
                                                            MPN: 60910400
                                                            SUPPORT FOR REAR LH BELTS
                                                            - Valid for TA and USA
                                                            from £22.00
                                                            from £22.00
                                                            # 018
                                                            MPN: 60616400
                                                            BOTTON PLATE FOR REAR RIB
                                                            - Not for TA
                                                            from £13.32
                                                            from £13.32
                                                            # 018
                                                            MPN: 61266000
                                                            BOTTON PLATE FOR REAR RIB
                                                            - Valid for TA
                                                            from £14.12
                                                            from £14.12
                                                            # 019
                                                            MPN: 62481700
                                                            UNION BETWEEN LUGGAGE ROOM AND LUGGAGE ENGINE
                                                            from £113.62
                                                            from £113.62
                                                            # 020
                                                            MPN: 60951500
                                                            RH COVERING OVER REAR WINDOW
                                                            - Not for TA
                                                            from £29.55
                                                            from £29.55
                                                            # 020
                                                            MPN: 60951600
                                                            LH COVERING OVER REAR WINDOW
                                                            - Not for TA
                                                            from £29.55
                                                            from £29.55
                                                            # 020
                                                            MPN: 61030300
                                                            RH COVERING OVER REAR WINDOW
                                                            - Valid for TA
                                                            from £60.83
                                                            from £60.83
                                                            # 020
                                                            MPN: 61030400
                                                            LH COVERING OVER REAR WINDOW
                                                            - Valid for TA
                                                            from £60.83
                                                            from £60.83
                                                            # 021
                                                            MPN: 62566500

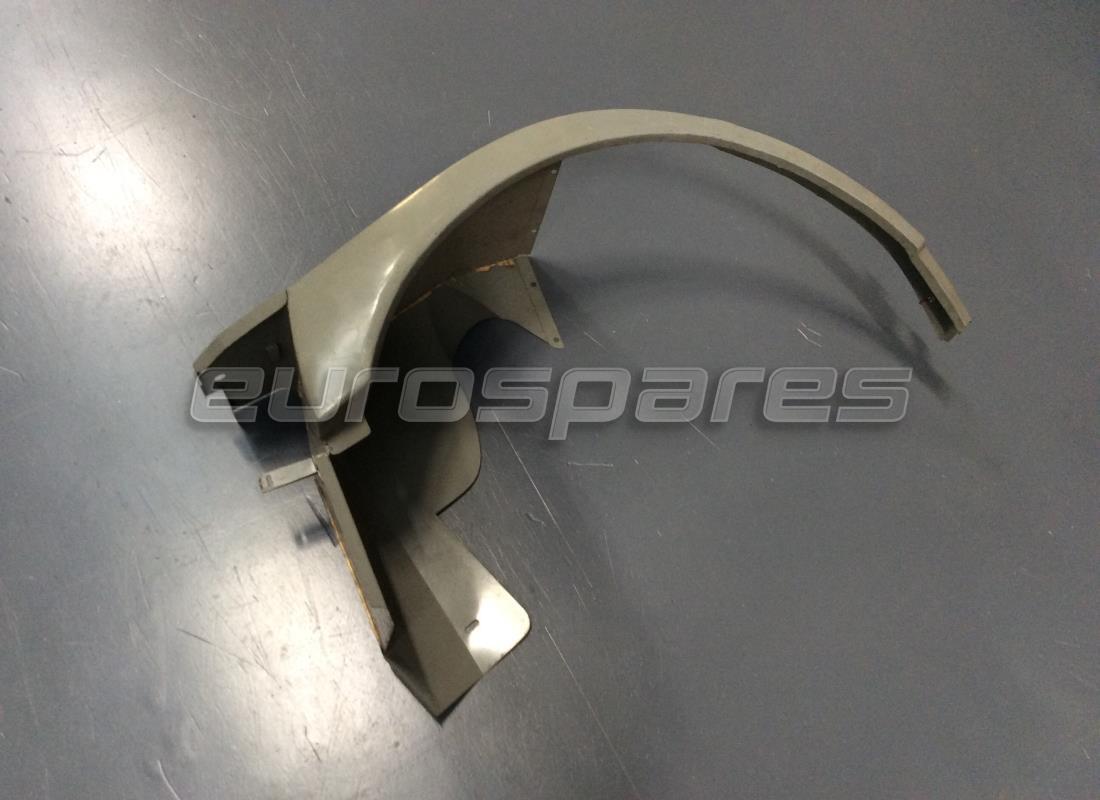

                                                            RH REAR WHEELHOUSE
                                                            - Not for CH
                                                            from £151.29
                                                            from £151.29
                                                            # 021
                                                            MPN: 62566600

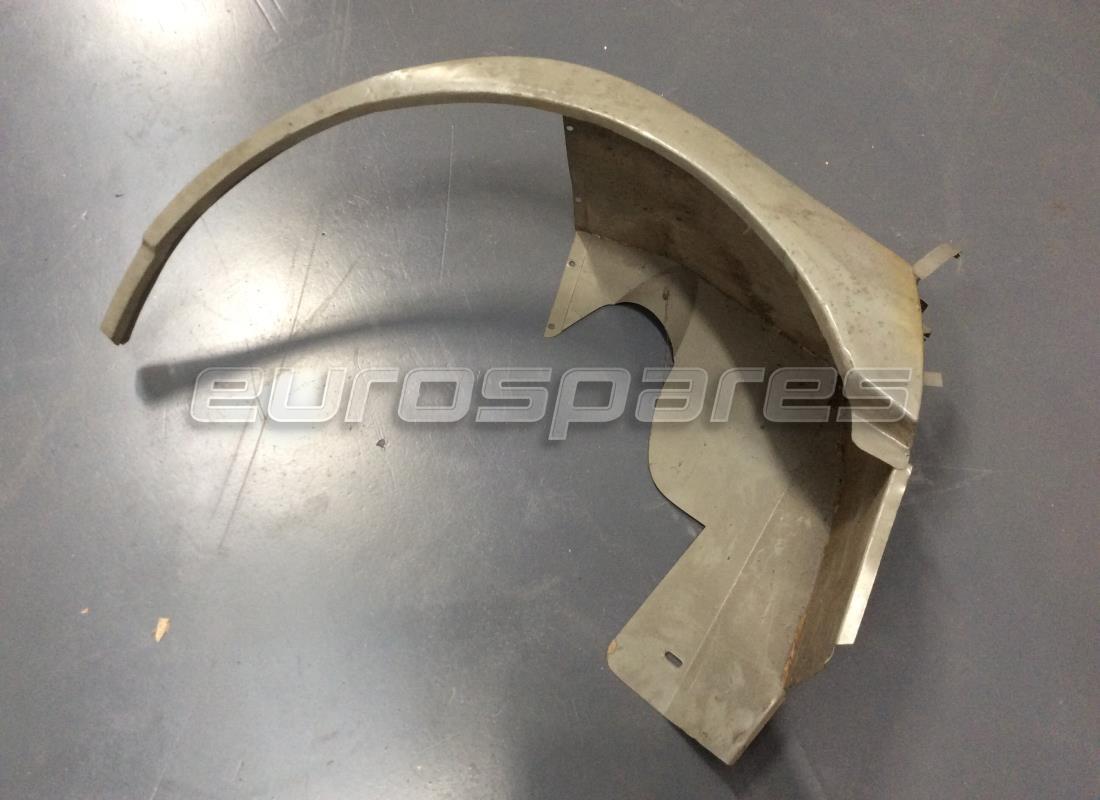

                                                            LH REAR WHEELHOUSE
                                                            - Not for TA-USA e F.E.
                                                            from £166.70
                                                            from £166.70
                                                            # 021
                                                            MPN: 62632700
                                                            LH REAR WHEELHOUSE
                                                            - Valid for TA e USA
                                                            from £141.40
                                                            from £141.40
                                                            # 021
                                                            MPN: 62822300
                                                            RH REAR WHEELHOUSE
                                                            - Valid for CH
                                                            from £167.19
                                                            from £167.19
                                                            # 021
                                                            MPN: 63945500
                                                            LH REAR WHEELHOUSE
                                                            - Valid for F.E.
                                                            from £158.76
                                                            from £158.76
                                                            # 022
                                                            MPN: 62532900
                                                            RH BRACKET
                                                            from £13.73
                                                            from £13.73
                                                            # 023
                                                            MPN: 62533000
                                                            LH BRACKET
                                                            from £13.07
                                                            from £13.07
                                                            # 024
                                                            MPN: 62608500
                                                            RH FRONT SECTION
                                                            from £427.51
                                                            from £427.51
                                                            # 024
                                                            MPN: 62608600
                                                            LH FRONT SECTION
                                                            from £777.29
                                                            from £777.29
                                                            # 025
                                                            MPN: 60517200
                                                            SPRING
                                                            from £2.19
                                                            from £2.19
                                                            # 026
                                                            MPN: 15903802
                                                            SCREW
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 15903802 - and 1 more. Click to view details
                                                            # 027
                                                            MPN: 61816100
                                                            LH REAR GRAVEL
                                                            from £19.42
                                                            from £19.42
                                                            # 027
                                                            MPN: 61816200
                                                            RH REAR GRAVEL
                                                            from £19.42
                                                            from £19.42
                                                            # 028
                                                            MPN: 15688075
                                                            SCREW
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                                            # 029
                                                            MPN: 40136707
                                                            CLIP
                                                            from £0.76
                                                            from £0.76
                                                            # 030
                                                            MPN: 61816300
                                                            GASKET
                                                            from £1.26
                                                            from £1.26
                                                            # 031
                                                            MPN: 62611900
                                                            LH COVER
                                                            from £24.05
                                                            from £24.05
                                                            # 032
                                                            MPN: 62617600
                                                            RH COVER
                                                            from £24.05
                                                            from £24.05
                                                            # 033
                                                            MPN: 62637400
                                                            VERTICAL SECTION BONNET AND BOTTOM LUGGAGE
                                                            - Valid for 3P
                                                            from £348.59
                                                            from £348.59
                                                            # 033
                                                            MPN: 63325500
                                                            VERTICAL SECTION BONNET AND BOTTOM LUGGAGE
                                                            - Valid for 4P
                                                            from £340.20
                                                            from £340.20
                                                            # 034
                                                            MPN: 60810000
                                                            BOTTOM LUGGAGE COVER
                                                            from £30.76
                                                            from £30.76
                                                            This part replaces part number 61810000
                                                            # 035
                                                            MPN: 60565600
                                                            RIVET
                                                            from £0.47
                                                            from £0.47
                                                            # 036
                                                            MPN: 14507387
                                                            PLUG
                                                            - Not for F.E.
                                                            from £0.62
                                                            from £0.62
                                                            # 037
                                                            MPN: 60787300
                                                            BOTTON PLATE FOR REAR RIB
                                                            from £41.30
                                                            from £41.30
                                                            # 038
                                                            MPN: 62619500
                                                            CABLE DUCT FOR TRUNK BONNET
                                                            from £144.97
                                                            from £144.97
                                                            # 039
                                                            MPN: 60523700
                                                            FIXED HINGE FOR REAR BONNET
                                                            from £30.75
                                                            from £30.75
                                                            # 040
                                                            MPN: 60622100
                                                            RH BRACKET FOR FRONT BELTS RETRACTOR
                                                            from £105.00
                                                            from £105.00
                                                            # 040
                                                            MPN: 60622200
                                                            LH BRACKET FOR FRONT BELTS RETRACTOR
                                                            from £32.73
                                                            from £32.73
                                                            # 041
                                                            MPN: 112934
                                                            PLUG TO CLOSE EDP HOLES ON THE FRAME
                                                            from £6.43
                                                            from £6.43
                                                            # 042
                                                            MPN: 60659400
                                                            PLUG TO CLOSE EDP HOLE ON THE BENCH
                                                            from £1.51
                                                            from £1.51
                                                            # 043
                                                            MPN: 14507187
                                                            PLUG TO CLOSE HOLE TRUNK ROOM
                                                            from £2.07
                                                            from £2.07
                                                            # 044
                                                            MPN: 14506587
                                                            PLUG TO CLOSE HOLE SWITCH ENCLOSURE
                                                            from £0.53
                                                            from £0.53
                                                            # 045
                                                            MPN: 62446300
                                                            PLUG TO CLOSE HOLE UNDER FRAME
                                                            from £20.81
                                                            from £20.81
