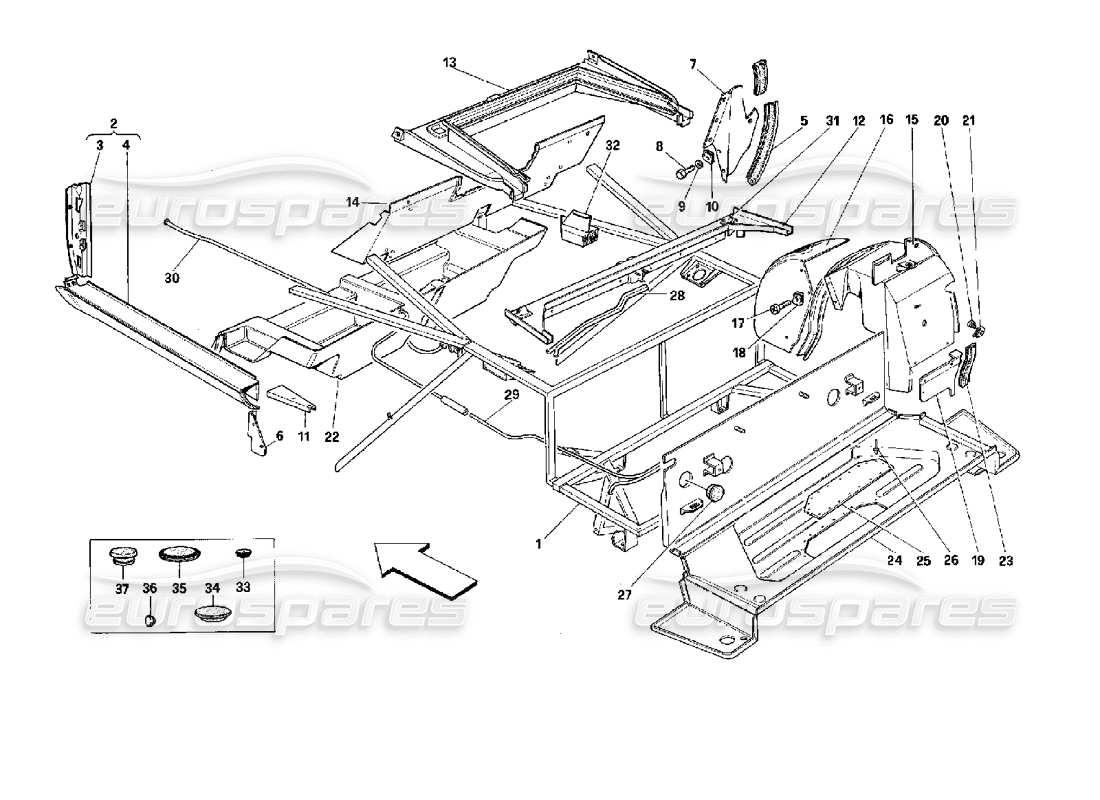

103A - Body Shell: Inner Elements - Rear Part - Cabriolet

Ferrari Mondial 3.4 t Coupe/Cabrio Body Shell: Inner Elements - Rear Part - Cabriolet Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 142184
                                                      Rear Frame
                                                      - Valid for 3P
                                                      from £2,457.17
                                                      from £2,457.17
                                                      # 001
                                                      MPN: 142184
                                                      Rear Frame
                                                      - Valid for 4P - Valid for USA
                                                      from £2,457.17
                                                      from £2,457.17
                                                      # 001
                                                      MPN: 146427
                                                      Rear Frame
                                                      - Valid for 4P - Valid for AUS
                                                      # 001
                                                      MPN: 146457
                                                      Rear Frame
                                                      - Valid for 4P - Valid for J
                                                      # 001
                                                      MPN: 147189
                                                      Rear Frame
                                                      - Valid for 4P - Valid for ZA and GB
                                                      # 001
                                                      MPN: 147216
                                                      Rear Frame
                                                      - Valid for 4P - Not for USA-CH-ZA-GB-J and AUS
                                                      # 001
                                                      MPN: 147941
                                                      Rear Frame
                                                      - Valid for 4P - Valid for CH
                                                      # 002
                                                      MPN: 62658400
                                                      RH DOOR OPENING
                                                      from £292.24
                                                      from £292.24
                                                      # 002
                                                      MPN: 62658500
                                                      LH DOOR OPENING
                                                      from £292.24
                                                      from £292.24
                                                      # 003
                                                      MPN: 62534100
                                                      RH SEAT FOR DOOR HINGE
                                                      from £18.04
                                                      from £18.04
                                                      # 003
                                                      MPN: 62534200
                                                      LH SEAT FOR DOOR HINGE
                                                      from £37.05
                                                      from £37.05
                                                      # 005
                                                      MPN: 61303400
                                                      GASKET
                                                      from £6.58
                                                      from £6.58
                                                      # 006
                                                      MPN: 62670000
                                                      RH LOWER SHEET
                                                      from £8.17
                                                      from £8.17
                                                      # 006
                                                      MPN: 62830200
                                                      LH LOWER SHEET
                                                      from £8.17
                                                      from £8.17

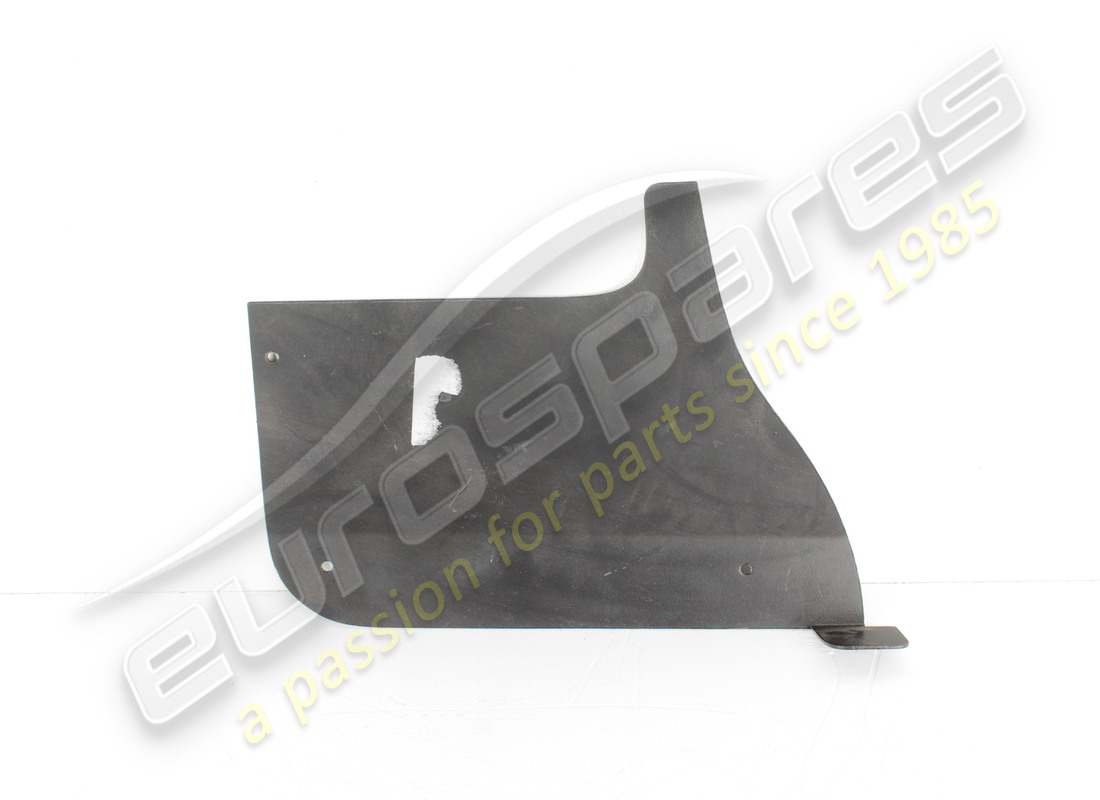

                                                      # 007
                                                      MPN: 62668100
                                                      RH SHIELD PANEL
                                                      from £40.90
                                                      from £40.90
                                                      # 007
                                                      MPN: 62680700
                                                      LH SHIELD PANEL
                                                      - Valid for not catalyst cars and USA 3P
                                                      from £63.61
                                                      from £63.61
                                                      # 007
                                                      MPN: 62851100
                                                      LH SHIELD PANEL
                                                      - Valid for catalyst cars and USA 4P
                                                      from £42.24
                                                      from £42.24
                                                      # 008
                                                      MPN: 15924806
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      # 009
                                                      MPN: 12643701
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 12643704 - and 1 more. Click to view details
                                                      # 010
                                                      MPN: 14189776
                                                      SPRING
                                                      from £0.47
                                                      from £0.47
                                                      # 011
                                                      MPN: 136756
                                                      SUPPORT FOR RH REAR BODY SIDE
                                                      - Not for CH
                                                      from £6.19
                                                      from £6.19
                                                      # 011
                                                      MPN: 136757
                                                      SUPPORT FOR LH REAR BODY SIDE
                                                      - Not for CH
                                                      from £4.96
                                                      from £4.96
                                                      # 011
                                                      MPN: 143945
                                                      SUPPORT FOR RH REAR BODY SIDE
                                                      - Valid for CH
                                                      from £15.58
                                                      from £15.58
                                                      # 011
                                                      MPN: 143946
                                                      SUPPORT FOR LH REAR BODY SIDE
                                                      - Valid for CH
                                                      from £9.92
                                                      from £9.92
                                                      # 012
                                                      MPN: 61869200
                                                      UNION BETWEEN LUGGAGE ROOM AND LUGGAGE ENGINE
                                                      from £88.32
                                                      from £88.32
                                                      # 013
                                                      MPN: 62669300
                                                      SEAT FOR TOP
                                                      - Valid for cars with rear abdominal belt
                                                      from £852.24
                                                      from £852.24
                                                      # 013
                                                      MPN: 63228100
                                                      SEAT FOR TOP
                                                      - Valid for cars with rear belt with 3 fixing points - Valid for AUS
                                                      from £1,847.09
                                                      from £1,847.09
                                                      # 013
                                                      MPN: 63521700
                                                      SEAT FOR TOP
                                                      - Valid for cars with rear belt with 3 fixing points - Not for AUS
                                                      from £1,200.19
                                                      from £1,200.19
                                                      # 014
                                                      MPN: 62669900
                                                      SHIELD PANEL BETWEEN PASSENGER COMPARTMENTE AND ENGINE
                                                      - Not for USA 4P
                                                      from £136.34
                                                      from £136.34
                                                      # 014
                                                      MPN: 62918900
                                                      SHIELD PANEL BETWEEN PASSENGER COMPARTMENTE AND ENGINE
                                                      - Valid for USA 4P
                                                      from £175.61
                                                      from £175.61
                                                      # 015
                                                      MPN: 62637500
                                                      RH REAR WHEELHOUSE
                                                      - Not for CH
                                                      Supersession
                                                      Supersession
                                                      # 015
                                                      MPN: 62637600
                                                      LH REAR WHEELHOUSE
                                                      - Not for F.E.
                                                      Supersession
                                                      Supersession
                                                      # 015
                                                      MPN: 62822700
                                                      RH REAR WHEELHOUSE
                                                      - Valid for CH
                                                      from £144.36
                                                      from £144.36
                                                      # 015
                                                      MPN: 62916200
                                                      LH REAR WHEELHOUSE
                                                      - Valid for F.E.
                                                      from £332.40
                                                      from £332.40
                                                      # 016
                                                      MPN: 62608500
                                                      FRONT SECTION FOR RH WHEELHOUSE
                                                      from £427.51
                                                      from £427.51
                                                      # 016
                                                      MPN: 62608600
                                                      FRONT SECTION FOR LH WHEELHOUSE
                                                      from £777.29
                                                      from £777.29
                                                      # 017
                                                      MPN: 15903802
                                                      SCREW
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 15903802 - and 1 more. Click to view details
                                                      # 018
                                                      MPN: 60517200
                                                      CLIP
                                                      from £2.19
                                                      from £2.19
                                                      # 019
                                                      MPN: 61816100
                                                      LH REAR GRAVEL
                                                      from £19.42
                                                      from £19.42
                                                      # 019
                                                      MPN: 61816200
                                                      RH REAR GRAVEL
                                                      from £19.42
                                                      from £19.42
                                                      # 020
                                                      MPN: 15688075
                                                      SCREW
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                                      # 021
                                                      MPN: 40136707
                                                      CLIP
                                                      from £0.76
                                                      from £0.76
                                                      # 022
                                                      MPN: 62667600
                                                      HOUSING FOR REAR SEATS
                                                      - Not for USA 4P
                                                      from £363.02
                                                      from £363.02
                                                      This part replaces part number 61223200
                                                      # 022
                                                      MPN: 62875400
                                                      HOUSING FOR REAR SEATS
                                                      - Valid for USA 4P
                                                      from £393.65
                                                      from £393.65
                                                      # 023
                                                      MPN: 61816300
                                                      GASKET
                                                      from £1.26
                                                      from £1.26

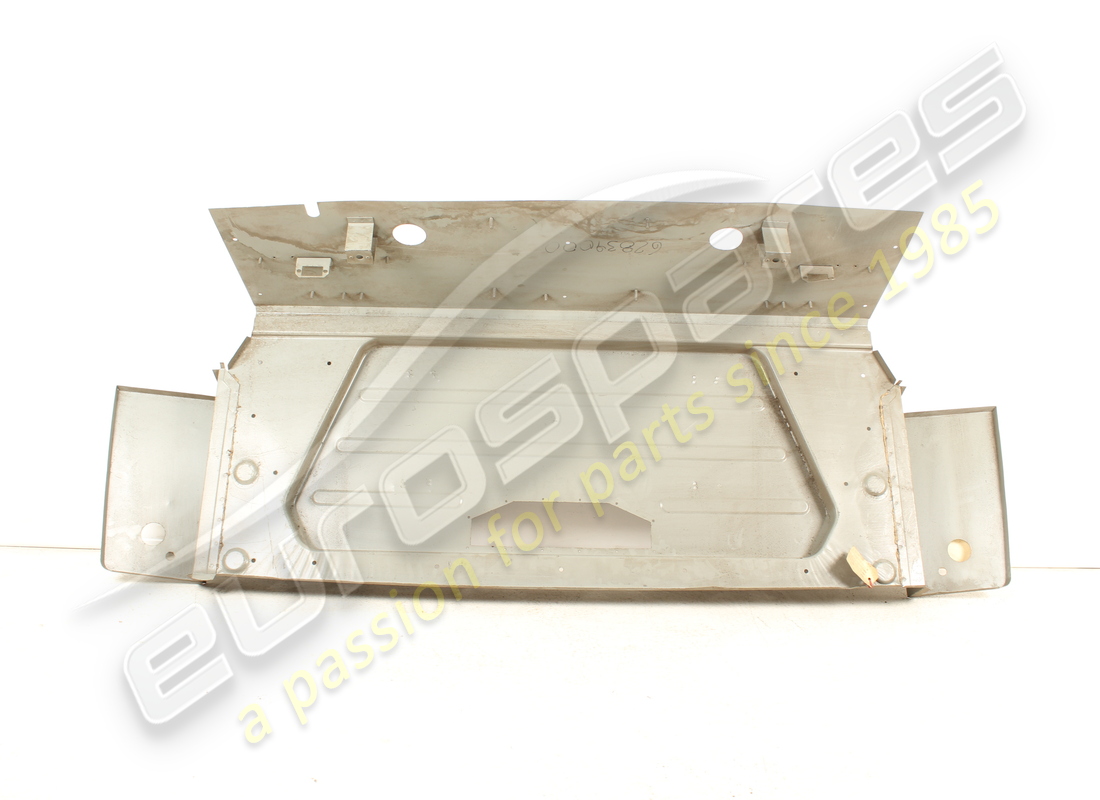

                                                      # 024
                                                      MPN: 62839000
                                                      VERTICAL PANEL AND LUGGAGE BOTTOM
                                                      - Valid for 3P
                                                      from £346.13
                                                      from £346.13
                                                      # 024
                                                      MPN: 62919000
                                                      VERTICAL PANEL AND LUGGAGE BOTTOM
                                                      - Valid for 4P
                                                      from £532.33
                                                      from £532.33
                                                      # 025
                                                      MPN: 60810000
                                                      LUGGAGE BOTTOM COVER
                                                      from £30.76
                                                      from £30.76
                                                      This part replaces part number 61810000
                                                      # 026
                                                      MPN: 60565600
                                                      RIVET
                                                      from £0.47
                                                      from £0.47
                                                      # 027
                                                      MPN: 14507387
                                                      PLUG
                                                      - Not for F.E.
                                                      from £0.62
                                                      from £0.62
                                                      # 028
                                                      MPN: 61307200
                                                      CABLE FOR ENGINE BONNET
                                                      from £60.83
                                                      from £60.83
                                                      # 029
                                                      MPN: 61221100
                                                      CABLE DUCT FOR TRUNK BONNET
                                                      - Not for USA and J
                                                      from £58.81
                                                      from £58.81
                                                      # 029
                                                      MPN: 61436600
                                                      CABLE DUCT FOR TRUNK BONNET
                                                      - Valid for USA and J
                                                      from £72.11
                                                      from £72.11
                                                      # 030
                                                      MPN: 61344700
                                                      FRONT CABLE DUCT FOR TRUNK BONNET
                                                      from £27.43
                                                      from £27.43
                                                      # 031
                                                      MPN: 60523700
                                                      FIXED HINGE FOR TRUNK BONNET
                                                      from £30.75
                                                      from £30.75
                                                      # 032
                                                      MPN: 61292800
                                                      RH WOOD STOPPER
                                                      from £34.11
                                                      from £34.11
                                                      # 032
                                                      MPN: 61292900
                                                      LH WOOD STOPPER
                                                      from £34.11
                                                      from £34.11
                                                      # 033
                                                      MPN: 112934
                                                      PLUG TO CLOSE EDP HOLES ON THE FRAME
                                                      from £6.43
                                                      from £6.43
                                                      # 034
                                                      MPN: 60659400
                                                      PLUG TO CLOSE EDP HOLE ON THE BENCH
                                                      from £1.51
                                                      from £1.51
                                                      # 034
                                                      MPN: 60659400
                                                      PLUG TO CLOSE EDP HOLE UNDERFRAME
                                                      from £1.51
                                                      from £1.51
                                                      # 035
                                                      MPN: 14507187
                                                      PLUG TO CLOSE HOLE TRUNK ROOM
                                                      from £2.07
                                                      from £2.07
                                                      # 036
                                                      MPN: 14506587
                                                      PLUG TO CLOSE HOLE SWITCH ENCLOSURE
                                                      from £0.53
                                                      from £0.53
                                                      # 037
                                                      MPN: 62446300
                                                      PLUG TO CLOSE HOLE UNDER FRAME
                                                      from £20.81
                                                      from £20.81
