ferrari mondial 3.4 t coupe/cabrio engine compartment lid - cabriolet parts diagram

111A - Engine Compartment Lid - Cabriolet

Ferrari Mondial 3.4 t Coupe/Cabrio Engine Compartment Lid - Cabriolet Parts Diagram

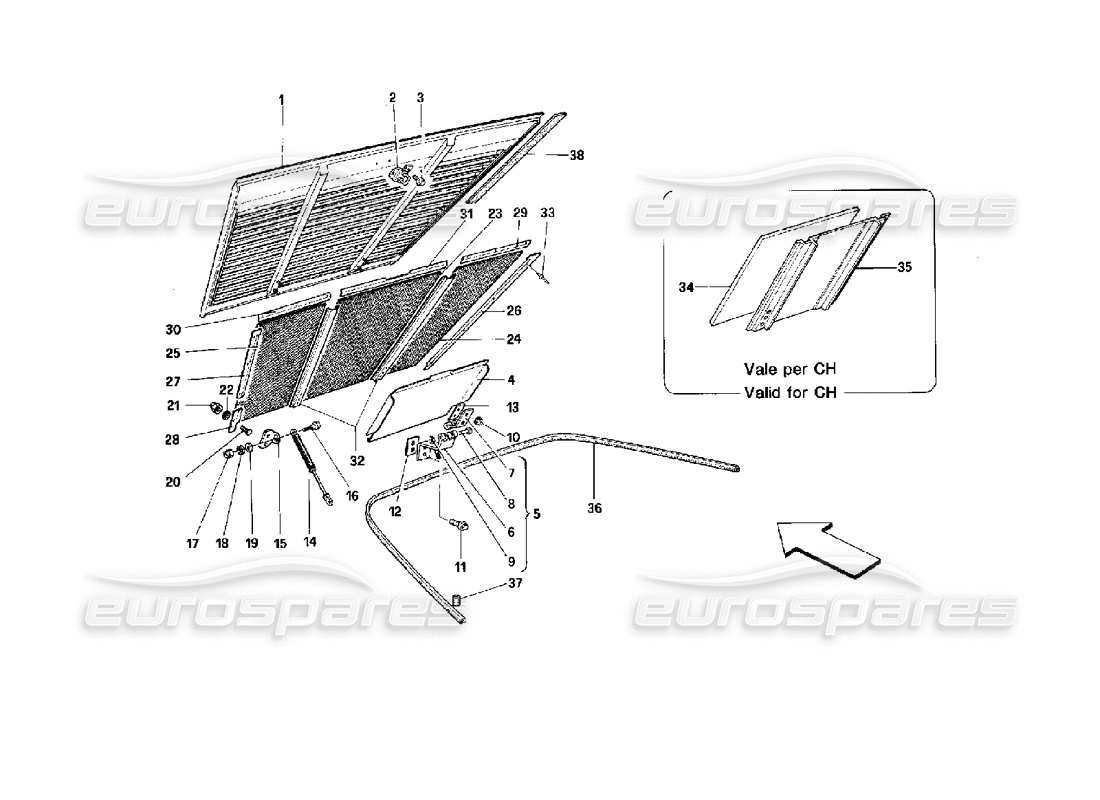

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 61254300
                                                              Engine Bonnet
                                                              - Not for USA and AUS
                                                              from £624.75
                                                              from £624.75
                                                              # 001
                                                              MPN: 61868700
                                                              Engine Bonnet
                                                              - Valid for USA and AUS
                                                              from £840.00
                                                              from £840.00
                                                              # 002
                                                              MPN: 60702100
                                                              CATCH
                                                              from £7.12
                                                              from £7.12
                                                              # 003
                                                              MPN: 13836371
                                                              SCREW
                                                              from £1.49
                                                              from £1.49
                                                              # 004
                                                              MPN: 61810700
                                                              WATER SHIELD
                                                              - Not for USA and CH
                                                              from £51.51
                                                              from £51.51
                                                              # 004
                                                              MPN: 61894800
                                                              WATER SHIELD
                                                              - Valid for USA - Not for CH
                                                              from £58.93
                                                              from £58.93
                                                              # 005
                                                              MPN: 61255200
                                                              COMPLETE HINGE FOR BONNET
                                                              from £27.06
                                                              from £27.06
                                                              # 006
                                                              MPN: 61255300
                                                              FIXED HINGE
                                                              from £16.69
                                                              from £16.69
                                                              # 007
                                                              MPN: 61255400
                                                              MOBILE HINGE
                                                              from £21.00
                                                              from £21.00
                                                              # 008
                                                              MPN: 40028904
                                                              PIN
                                                              from £5.68
                                                              from £5.68
                                                              # 009
                                                              MPN: 11065476
                                                              CIRCLIP
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 11065470
                                                              # 010
                                                              MPN: 13832101
                                                              NUT
                                                              from £0.47
                                                              from £0.47
                                                              # 011
                                                              MPN: 13836071
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 012
                                                              MPN: 61255500
                                                              ZINCFOIL
                                                              from £6.07
                                                              from £6.07
                                                              # 013
                                                              MPN: 61255600
                                                              ZINCFOIL
                                                              from £6.07
                                                              from £6.07
                                                              # 014
                                                              MPN: 62380500
                                                              ENGINE COVER STRUT
                                                              from £35.13
                                                              from £35.13
                                                              This part replaces part number 60118007 - and 1 more. Click to view details
                                                              # 015
                                                              MPN: 61314100
                                                              PLATE TO FIX. ROD
                                                              from £16.01
                                                              from £16.01
                                                              # 016
                                                              MPN: 40161903
                                                              BOLT
                                                              from £20.67
                                                              from £20.67
                                                              # 017
                                                              MPN: 15896470
                                                              NUT
                                                              (minimum order quantity = 20)
                                                              from £0.78
                                                              from £0.78
                                                              This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                              # 018
                                                              MPN: 149951
                                                              WASHER
                                                              from £0.47
                                                              from £0.47
                                                              This part replaces part number 10615301 - and 4 more. Click to view details
                                                              # 019
                                                              MPN: 12638101
                                                              WASHER
                                                              from £0.71
                                                              from £0.71
                                                              # 020
                                                              MPN: 60702800
                                                              SCREW
                                                              from £0.53
                                                              from £0.53
                                                              # 021
                                                              MPN: 14054048
                                                              NUT
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 14054042
                                                              # 022
                                                              MPN: 10519377
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 10519305 - and 1 more. Click to view details
                                                              # 023
                                                              MPN: 61298900
                                                              CENTRAL GRILL
                                                              - Not for USA and AUS
                                                              from £12.45
                                                              from £12.45
                                                              # 023
                                                              MPN: 61895000
                                                              CENTRAL GRILL
                                                              - Valid for USA and AUS
                                                              from £13.63
                                                              from £13.63
                                                              # 024
                                                              MPN: 61370300
                                                              RH SIDE GRILL
                                                              from £5.59
                                                              from £5.59
                                                              # 025
                                                              MPN: 61370400
                                                              LH SIDE GRILL
                                                              from £5.20
                                                              from £5.20
                                                              # 026
                                                              MPN: 61370500
                                                              RH SIDE ANGULAR
                                                              from £4.83
                                                              from £4.83
                                                              # 027
                                                              MPN: 61370600
                                                              LH SIDE ANGULAR
                                                              from £19.91
                                                              from £19.91
                                                              # 028
                                                              MPN: 61370700
                                                              EXTENSION FOR LH SIDE ANGULAR
                                                              from £6.68
                                                              from £6.68
                                                              # 029
                                                              MPN: 61370800
                                                              RH REAR ANGULAR
                                                              from £5.51
                                                              from £5.51
                                                              # 030
                                                              MPN: 61370900
                                                              LH REAR ANGULAR
                                                              from £4.66
                                                              from £4.66
                                                              # 031
                                                              MPN: 61371000
                                                              REAR CENTRAL ANGULAR
                                                              - Not for USA and AUS
                                                              from £6.52
                                                              from £6.52
                                                              # 031
                                                              MPN: 61895200
                                                              REAR CENTRAL ANGULAR
                                                              - Valid for USA and AUS
                                                              from £29.91
                                                              from £29.91
                                                              # 032
                                                              MPN: 61371100
                                                              CENTRAL ANGULAR
                                                              - Not for USA and AUS
                                                              from £18.30
                                                              from £18.30
                                                              # 032
                                                              MPN: 61371100
                                                              RH CENTRAL ANGULAR
                                                              - Valid for USA and AUS
                                                              from £18.30
                                                              from £18.30
                                                              # 032
                                                              MPN: 61895100
                                                              LH CENTRAL ANGULAR
                                                              - Valid for USA and AUS
                                                              from £18.30
                                                              from £18.30
                                                              # 033
                                                              MPN: 60174307
                                                              FIXING RIVET FOR ANGULAR AND
                                                              from £2.84
                                                              from £2.84
                                                              # 034
                                                              MPN: 62832600
                                                              Insulation
                                                              - Valid for CH
                                                              from £105.73
                                                              from £105.73
                                                              # 035
                                                              MPN: 62832700
                                                              SHIELD
                                                              - Valid for CH
                                                              from £74.97
                                                              from £74.97
                                                              # 036
                                                              MPN: 60880600
                                                              GASKET
                                                              from £28.27
                                                              from £28.27
                                                              # 037
                                                              MPN: 60568000
                                                              STOP BUFFER
                                                              Supersession
                                                              Supersession
                                                              # 038
                                                              MPN: 62426500
                                                              GASKET
                                                              from £3.35
                                                              from £3.35
