ferrari mondial 3.4 t coupe/cabrio luggage compartment lid and tapestry parts diagram

112A - Luggage Compartment Lid and Tapestry

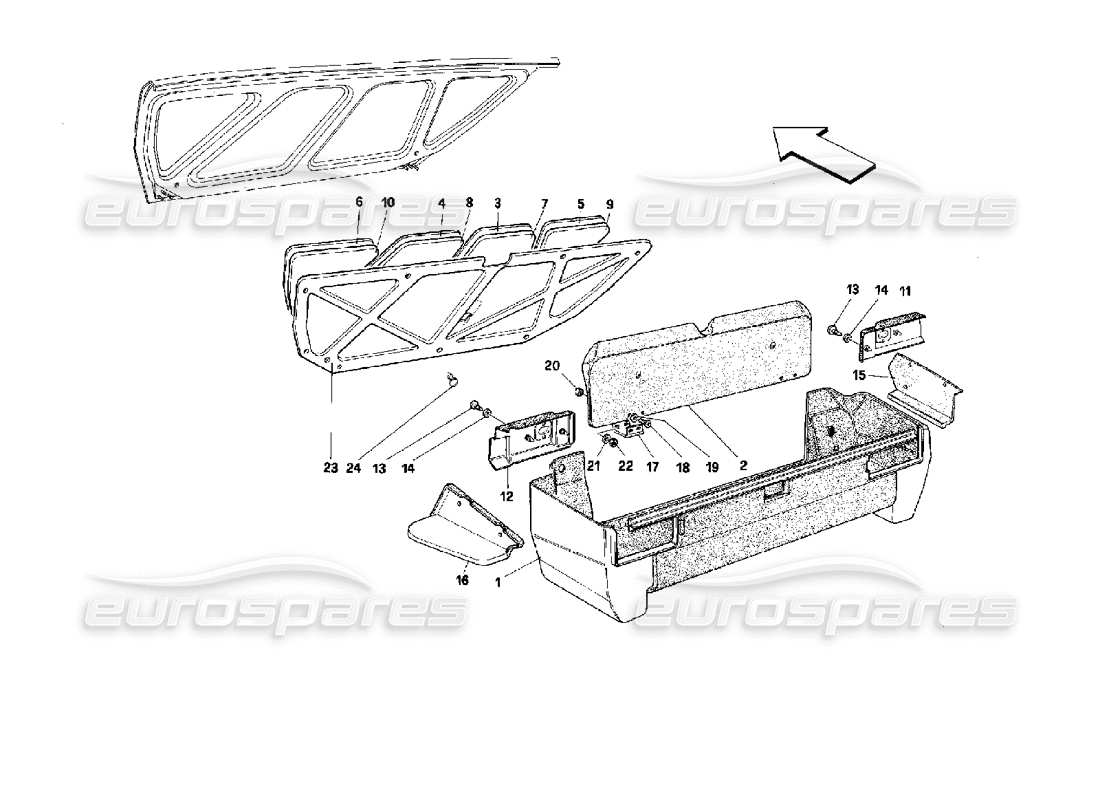

Ferrari Mondial 3.4 t Coupe/Cabrio Luggage Compartment Lid and Tapestry Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 62576600
                                          CARPET - COUPÉ
                                          - Not for F.E.
                                          from £639.62
                                          from £639.62
                                          # 001
                                          MPN: 62678700
                                          CARPET - CABRIOLET
                                          - Not for F.E.
                                          from £685.54
                                          from £685.54
                                          # 001
                                          MPN: 62861900
                                          CARPET - CABRIOLET
                                          - Valid for F.E.
                                          from £673.95
                                          from £673.95
                                          # 001
                                          MPN: 62862000
                                          CARPET - COUPÉ
                                          - Valid for F.E.
                                          from £433.06
                                          from £433.06
                                          # 002
                                          MPN: 62547700
                                          COVER - COUPÉ
                                          from £321.05
                                          from £321.05
                                          # 002
                                          MPN: 62681700
                                          COVER - CABRIOLET
                                          - Not for F.E.
                                          from £150.05
                                          from £150.05
                                          # 002
                                          MPN: 62861800
                                          COVER - CABRIOLET
                                          - Valid for F.E.
                                          from £226.84
                                          from £226.84
                                          # 003
                                          MPN: 61898500
                                          Insulation
                                          from £10.25
                                          from £10.25
                                          # 004
                                          MPN: 61898600
                                          Insulation
                                          from £10.77
                                          from £10.77
                                          # 005
                                          MPN: 61898700
                                          Insulation
                                          from £44.33
                                          from £44.33
                                          # 006
                                          MPN: 61898800
                                          Insulation
                                          from £44.33
                                          from £44.33
                                          # 007
                                          MPN: 61898900
                                          Insulation
                                          from £96.34
                                          from £96.34
                                          # 008
                                          MPN: 61899000
                                          Insulation
                                          from £96.34
                                          from £96.34
                                          # 009
                                          MPN: 61899100
                                          Insulation
                                          from £90.81
                                          from £90.81
                                          # 010
                                          MPN: 61899200
                                          Insulation
                                          from £10.49
                                          from £10.49
                                          # 011
                                          MPN: 62589400
                                          RH PROTECTION - COUPÉ
                                          from £81.99
                                          from £81.99
                                          # 011
                                          MPN: 62681900
                                          RH PROTECTION - CABRIOLET
                                          from £104.12
                                          from £104.12
                                          # 012
                                          MPN: 61945300
                                          LH PROTECTION - COUPÉ
                                          - Valid for TA
                                          from £65.11
                                          from £65.11
                                          This part replaces part number 61245300
                                          # 012
                                          MPN: 62589500
                                          LH PROTECTION - COUPÉ
                                          - Not for TA
                                          from £86.09
                                          from £86.09
                                          # 012
                                          MPN: 62682000
                                          LH PROTECTION - CABRIOLET
                                          from £104.12
                                          from £104.12
                                          # 013
                                          MPN: 61866800
                                          PROTECTION PIN
                                          from £56.33
                                          from £56.33
                                          # 014
                                          MPN: 61866900
                                          RUBBER TO STOP PIN
                                          from £1.02
                                          from £1.02
                                          # 015
                                          MPN: 62682400
                                          RH SIDE SHIELD - CABRIOLET
                                          from £49.17
                                          from £49.17
                                          # 016
                                          MPN: 62682500
                                          LH SIDE SHIELD - CABRIOLET
                                          from £49.17
                                          from £49.17
                                          # 017
                                          MPN: 62574400
                                          HINGE
                                          from £22.39
                                          from £22.39
                                          # 018
                                          MPN: 20297602
                                          SCREW
                                          from £5.70
                                          from £5.70
                                          # 019
                                          MPN: 14496204
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 14496201
                                          # 020
                                          MPN: 10794011
                                          NUT
                                          from £0.26
                                          from £0.26
                                          # 021
                                          MPN: 127494
                                          WASHER
                                          (minimum order quantity = 20)
                                          from £0.53
                                          from £0.53
                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                          # 022
                                          MPN: 15896211
                                          NUT
                                          Supersession
                                          Supersession
                                          This part replaces part number 15896210
                                          # 023
                                          MPN: 61899300
                                          UNDER BONNET CARPET
                                          from £157.71
                                          from £157.71
                                          # 024
                                          MPN: 14592787
                                          BUTTON TO FIX. CARPET
                                          from £21.52
                                          from £21.52
