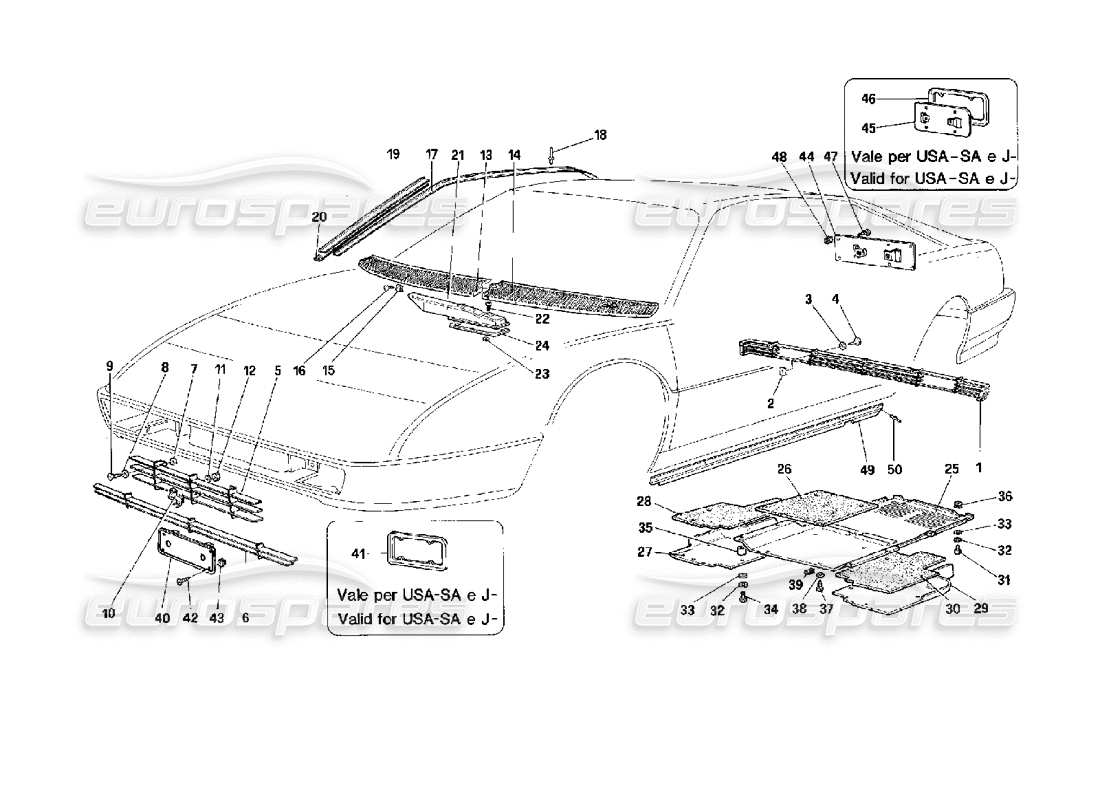

Ferrari Mondial 3.4 t Coupe/Cabrio External Finishing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 62481400
REAR GRILL
from £840.09
from £840.09
# 002
MPN: 61066500
SPRING
from £2.33
from £2.33
# 003
MPN: 12637806
WASHER
Supersession
Supersession
# 004
MPN: 15644178
SCREW
Supersession
Supersession
# 005
MPN: 61722700
FRONT RADIATOR GRILL
from £2,211.35
from £2,211.35
# 006
MPN: 61800500
FRONT UNDERBODY GRILL
from £586.94
from £586.94
# 007
MPN: 60696300
SPRING
from £0.47
from £0.47
# 008
MPN: 10519377
WASHER
Supersession
Supersession
This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
# 009
MPN: 15688178
SCREW
from £1.27
from £1.27
# 010
MPN: 63603800
FRONT HORSE
Supersession
Supersession
This part replaces part number 61739400
# 011
MPN: 10519201
WASHER
from £0.84
from £0.84
This part replaces part number 10519281
# 012
MPN: 12574011
NUT
from £0.53
from £0.53
# 013
MPN: 62568900
RH UNDERWINDSHIELD GRILL
- Not for GD
from £57.81
from £57.81
# 013
MPN: 62569100
RH UNDERWINDSHIELD GRILL
- Valid for GD
from £24.13
from £24.13
# 014
MPN: 62569000
LH UNDERWINDSHIELD GRILL
- Not for GD
from £55.05
from £55.05
# 014
MPN: 62569200
LH UNDERWINDSHIELD GRILL
- Valid for GD
from £24.13
from £24.13
# 015
MPN: 61325200
SPRING
from £0.99
from £0.99
# 016
MPN: 15687378
SCREW
Supersession
Supersession
This part replaces part number 15782701 which we have in stock
# 017
MPN: 60967300
RH DRIP - COUPÉ
from £99.49
from £99.49
This part replaces part number 60666000
# 017
MPN: 60967400
LH DRIP - COUPÉ
from £99.49
from £99.49
This part replaces part number 60666100 which we have in stock
# 018
MPN: 60310703
FIXING DRIP GRIP
from £1.18
from £1.18
# 019
MPN: 61758100
RH DRIP - CABRIOLET
from £214.87
from £214.87
# 019
MPN: 61758200
LH DRIP - CABRIOLET
from £133.98
from £133.98
# 020
MPN: 61758300
GASKET - CABRIOLET
from £16.31
from £16.31
# 021
MPN: 61088500
CONDITIONER AIR INTAKE
- Not for GD
from £21.60
from £21.60
# 021
MPN: 61109900
CONDITIONER AIR INTAKE
- Valid for GD
from £118.43
from £118.43
# 022
MPN: 20286209
SCREW
from £5.40
from £5.40
# 023
MPN: 60674600
GASKET
from £1.08
from £1.08
# 024
MPN: 61088600
AIR INTAKE GASKET
from £7.55
from £7.55
# 025
MPN: 143083
CENTRAL PANEL FOR ENGINE PROT.
- Valid for CH 3P
from £446.01
from £446.01
# 025
MPN: 147758
CENTRAL PANEL FOR ENGINE PROT.
- Valid for CH 4P
from £198.76
from £198.76
# 026
MPN: 143836
CENTRAL INSULATION
- Valid for CH
from £112.20
from £112.20
# 027
MPN: 143084
RH PANEL FOR ENGINE PROTECTION
- Valid for CH
from £135.84
from £135.84
# 028
MPN: 143837
RH INSULATION
- Valid for CH
from £106.59
from £106.59
# 029
MPN: 143085
LH PANEL FOR ENGINE PROTECTION
- Valid for CH
from £131.72
from £131.72
# 030
MPN: 143838
LH INSULATION
- Valid for CH
from £106.59
from £106.59
# 031
MPN: 10977524
SCREW
from £0.50
from £0.50
# 032
MPN: 12643724
WASHER
- Valid for CH
from £0.47
from £0.47
This part replaces part number 109684 - and 3 more. Click to view details
# 033
MPN: 127494
WASHER
- Valid for CH - (minimum order quantity = 20)
from £0.51
from £0.51
This part replaces part number 10516470 - and 4 more. Click to view details
# 034
MPN: 10902521
SCREW
- Valid for CH
from £0.71
from £0.71
# 035
MPN: 140085
SPACER
- Valid for CH
from £19.47
from £19.47
# 036
MPN: 60659100
NUT
- Valid for CH
from £0.59
from £0.59
This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
# 037
MPN: 15687901
SCREW
- Valid for CH
from £0.84
from £0.84
# 038
MPN: 14497701
WASHER
- Valid for CH
from £0.53
from £0.53
# 039
MPN: 60696300
SPRING
- Valid for CH
from £0.47
from £0.47
# 040
MPN: 61721400
FRONT PLATE HOLDER
- Not for USA-SA-J and AUS
from £202.39
from £202.39
# 040
MPN: 63220700
FRONT PLATE HOLDER
- Valid for AUS
from £49.77
from £49.77
# 041
MPN: 60987900
FRONT PLATE HOLDER FRAME
- Valid for USA-SA and J
from £38.94
from £38.94
# 042
MPN: 15687978
SCREW
Supersession
Supersession
# 043
MPN: 14201980
BLOCK TO FIX. PLATE AND PLATE HOLDER
from £0.53
from £0.53
# 044
MPN: 60810200
REAR PLATE HOLDER
- Not for USA-SA-J and AUS
from £30.02
from £30.02
This part replaces part number 60671500
# 044
MPN: 63221200
REAR PLATE HOLDER
- Valid for AUS
# 045
MPN: 60960600
REAR PLATE HOLDER
- Valid for USA-SA e J
from £25.81
from £25.81
# 046
MPN: 60987900
FRONT PLATE HOLDER FRAME
- Valid for USA-SA and J
from £38.94
from £38.94
# 047
MPN: 15687978
SCREW
Supersession
Supersession
# 048
MPN: 14201980
BLOCK TO FIX. PLATE AND PLATE HOLDER
from £0.53
from £0.53
# 049
MPN: 61682200
RH LOWER MOLDING - CABRIOLET
from £211.14
from £211.14
# 049
MPN: 61682300
LH LOWER MOLDING - CABRIOLET
from £211.14
from £211.14
# 050
MPN: 60225901
RIVET - CABRIOLET
from £0.67
from £0.67
