118 - Seats and Rear Safety Belts - Coupe

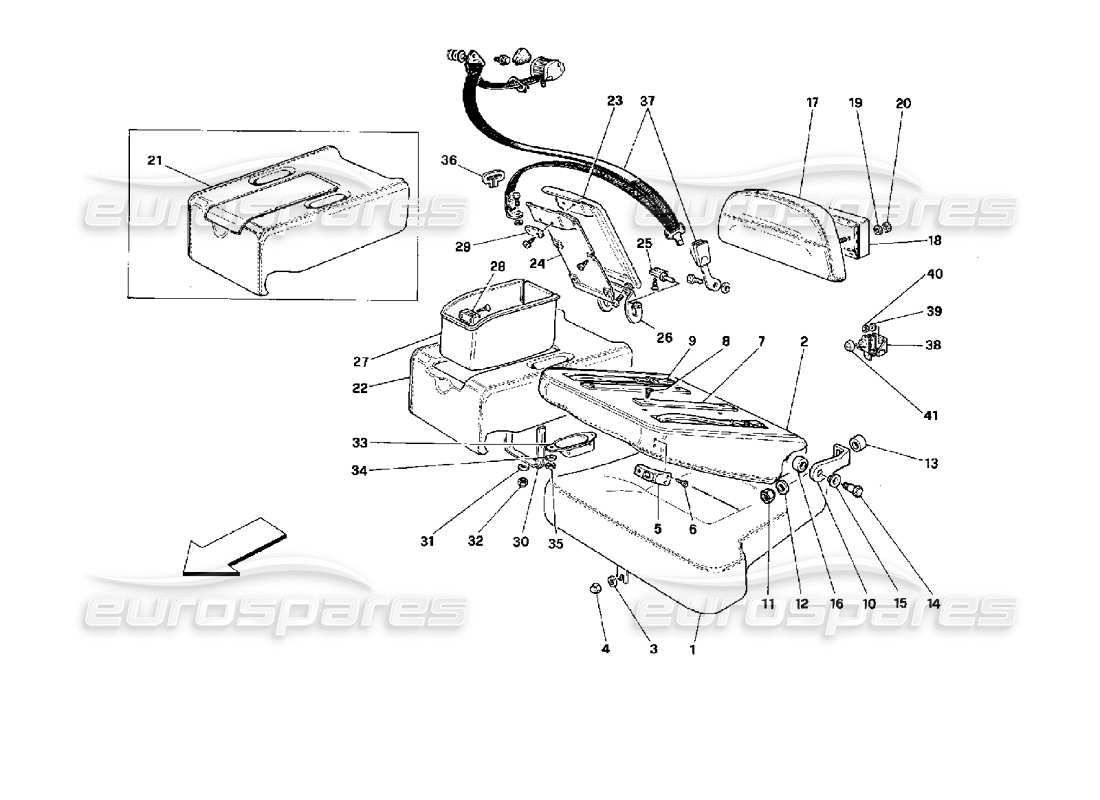

Ferrari Mondial 3.4 t Coupe/Cabrio Seats and Rear Safety Belts - Coupe Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 625566..
LINED LH REAR CUSHION
Supersession
Supersession
# 001
MPN: 625567..
LINED RH REAR CUSHION
Supersession
Supersession
# 001
MPN: 626963..
RH CUSHION LINING
Supersession
Supersession
# 001
MPN: 626984..
LH CUSHION LINING
Supersession
Supersession
# 002
MPN: 625568..
RH REAR SEAT BACK
Supersession
Supersession
# 002
MPN: 625569..
LH REAR SEAT BACK
Supersession
Supersession
# 002
MPN: 626964..
SEAT BACK LINING
Supersession
Supersession
# 003
MPN: 12640677
WASHER
not as spare part - use part number: 12640678
Supersession
Supersession
This part replaces part number 12640606 - and 1 more. Click to view details
# 004
MPN: 20293000
FIXING CUSHION NUT
from £0.52
from £0.52
# 005
MPN: 62558300
BRACKET ON LH SEAT BACK
from £1.85
from £1.85
# 005
MPN: 62575500
BRACKET ON RH SEAT BACK
from £5.08
from £5.08
# 006
MPN: 15908578
SCREW
from £0.99
from £0.99
# 007
MPN: 62607900
STRIP FOR REAR SEAT BACK
from £58.10
from £58.10
# 008
MPN: 15671402
SCREW
from £0.47
from £0.47
# 009
MPN: 625678..
BELTS
Supersession
Supersession
# 010
MPN: 62560200
RH SEAT BACK FASTENING BRACKET
from £5.08
from £5.08
# 010
MPN: 62575300
LH SEAT BACK FASTENING BRACKET
from £5.08
from £5.08
# 011
MPN: 104030
SELF LOCKING NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 012
MPN: 14496501
WASHER
from £0.85
from £0.85
# 013
MPN: 62588100
SPACER
from £1.76
from £1.76
# 014
MPN: 62557800
SCREW FIXING SEAT BACK
from £2.48
from £2.48
# 015
MPN: 62557700
BUSHING
from £4.30
from £4.30
# 016
MPN: 62557900
SPACER
from £1.51
from £1.51
# 017
MPN: 625603..
LINING HEAD REST
Supersession
Supersession
# 018
MPN: 626636..
LINING HEAD REST SPACER
Supersession
Supersession
# 019
MPN: 12624101
WASHER
from £0.53
from £0.53
# 020
MPN: 14084111
NUT
from £0.53
from £0.53
This part replaces part number 14084100
# 021
MPN: 625898..
COMPLETE REAR OBJECT-HOLDER
Supersession
Supersession
# 022
MPN: 625705..
LINED OBJECT-HOLDER STRUCTURE
Supersession
Supersession
# 023
MPN: 625694..
LINED OBJECT-HOLDER COVER
Supersession
Supersession
# 024
MPN: 62570100
COVER INNER LINING
from £47.07
from £47.07
# 025
MPN: 61153300
RH HINGE
from £2.10
from £2.10
# 025
MPN: 61192600
LH HINGE
from £1.51
from £1.51
# 026
MPN: 62586300
COVER HINGE
from £9.69
from £9.69
# 027
MPN: 62613600
OBJECT-HOLDER BOX
from £81.40
from £81.40
# 028
MPN: 60627800
MAGNETIC BLOCK (WITH PLATE 29)
from £9.66
from £9.66
# 029
-
PLATE (WITH BLOCK 28)
# 030
MPN: 62671900
BOX BRACKET
from £11.29
from £11.29
# 031
MPN: 14446921
WASHER
from £0.47
from £0.47
# 032
MPN: 14059111
NUT
from £0.47
from £0.47
# 033
MPN: 62613500
SIDE OBJECT-HOLDER LINING
from £36.81
from £36.81
# 034
MPN: 10615170
WASHER
Supersession
Supersession
# 035
MPN: 10721911
NUT
from £0.53
from £0.53
# 036
MPN: 60709400
LOWER PLATE FOR REAR BELTS
from £5.68
from £5.68
# 037
MPN: 62529500
REAR BELTS SERIES
- Not for USA-SA and J
from £160.65
from £160.65
# 037
MPN: 62636300
REAR BELTS SERIES
- Valid for USA-SA and J
from £176.47
from £176.47
# 038
MPN: 62590400
SEAT RELEASE
from £40.21
from £40.21
# 039
MPN: 149951
WASHER
from £0.53
from £0.53
This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
# 040
MPN: 12574115
NUT
from £1.08
from £1.08
# 041
MPN: 62871500
PLUG SEAT RELEASE
from £15.10
from £15.10
