ferrari mondial 3.4 t coupe/cabrio front seats - not for passive belts parts diagram

119 - Front Seats - Not for Passive Belts

Ferrari Mondial 3.4 t Coupe/Cabrio Front Seats - Not for Passive Belts Parts Diagram

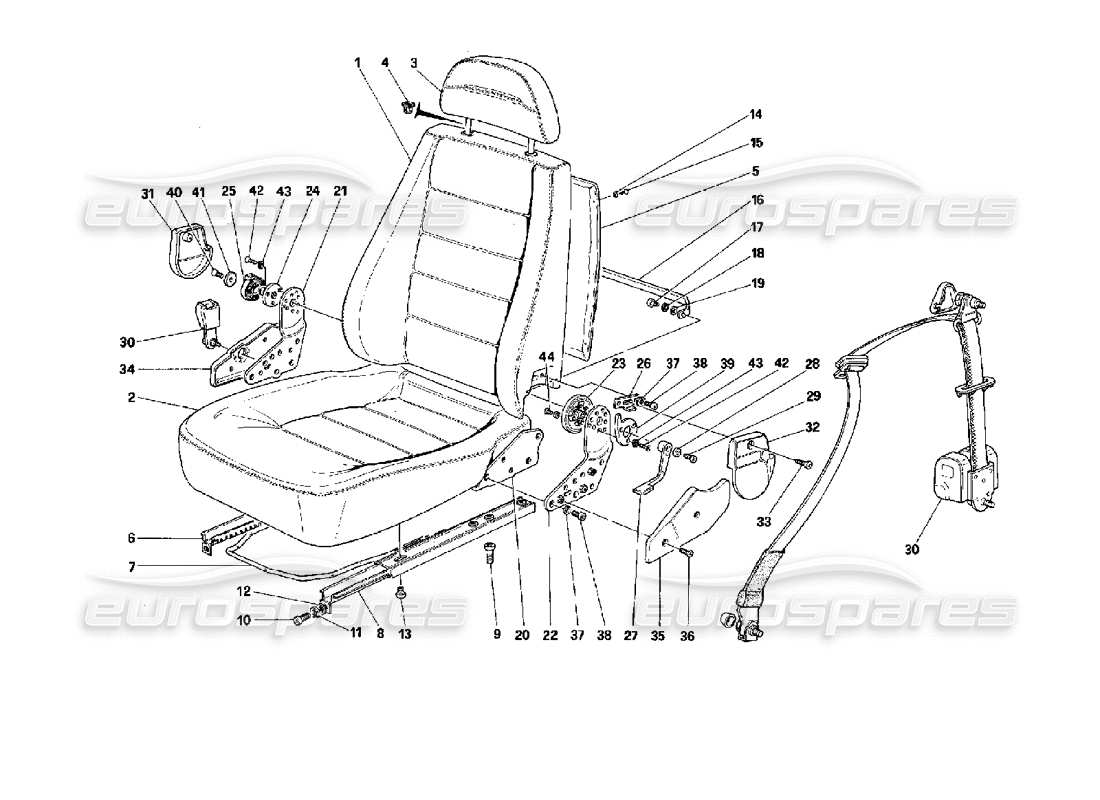

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Price
                                                                                # 00
                                                                                MPN: 900114690
                                                                                COMPLETE INTERIOR IN BLUE
                                                                                # 00
                                                                                MPN: 900114697
                                                                                Complete interior in cream
                                                                                (no dashboard)
                                                                                # 001
                                                                                MPN: 626962..
                                                                                SEAT BACK LINING
                                                                                Supersession
                                                                                Supersession
                                                                                # 001
                                                                                MPN: 628314..
                                                                                FRONT RH LINED BACK SEAT
                                                                                Supersession
                                                                                Supersession
                                                                                # 001
                                                                                MPN: 628315..
                                                                                FRONT LH LINED BACK SEAT
                                                                                Supersession
                                                                                Supersession
                                                                                # 001
                                                                                MPN: 629807..
                                                                                FRONT RH COMPLETE SEAT
                                                                                - Not for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 001
                                                                                MPN: 629808..
                                                                                FRONT LH COMPLETE SEAT
                                                                                - Not for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 001
                                                                                MPN: 629907..
                                                                                FRONT RH COMPLETE SEAT
                                                                                - Valid for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 001
                                                                                MPN: 629908..
                                                                                FRONT LH COMPLETE SEAT
                                                                                - Valid for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 002
                                                                                MPN: 626983..
                                                                                CUSHION LINING
                                                                                - Valid for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 002
                                                                                MPN: 628316..
                                                                                FRONT LINED PILLOW
                                                                                - Valid for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 002
                                                                                MPN: 629801..
                                                                                CUSHION LINING
                                                                                - Not for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 002
                                                                                MPN: 629829..
                                                                                FRONT LINED PILLOW
                                                                                - Not for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 003
                                                                                MPN: 626972..
                                                                                HEAD REST LINING
                                                                                Supersession
                                                                                Supersession
                                                                                # 003
                                                                                MPN: 628313..
                                                                                LINED HEAD REST
                                                                                Supersession
                                                                                Supersession
                                                                                # 004
                                                                                MPN: 20058905
                                                                                HEADREST PLASTIC INSERT
                                                                                from £19.41
                                                                                from £19.41
                                                                                # 005
                                                                                MPN: 628321..
                                                                                SHIELD PANEL FOR BACK SEAT
                                                                                Supersession
                                                                                Supersession
                                                                                # 006
                                                                                MPN: 62597600
                                                                                RH GUIDE FOR SEAT
                                                                                from £28.84
                                                                                from £28.84

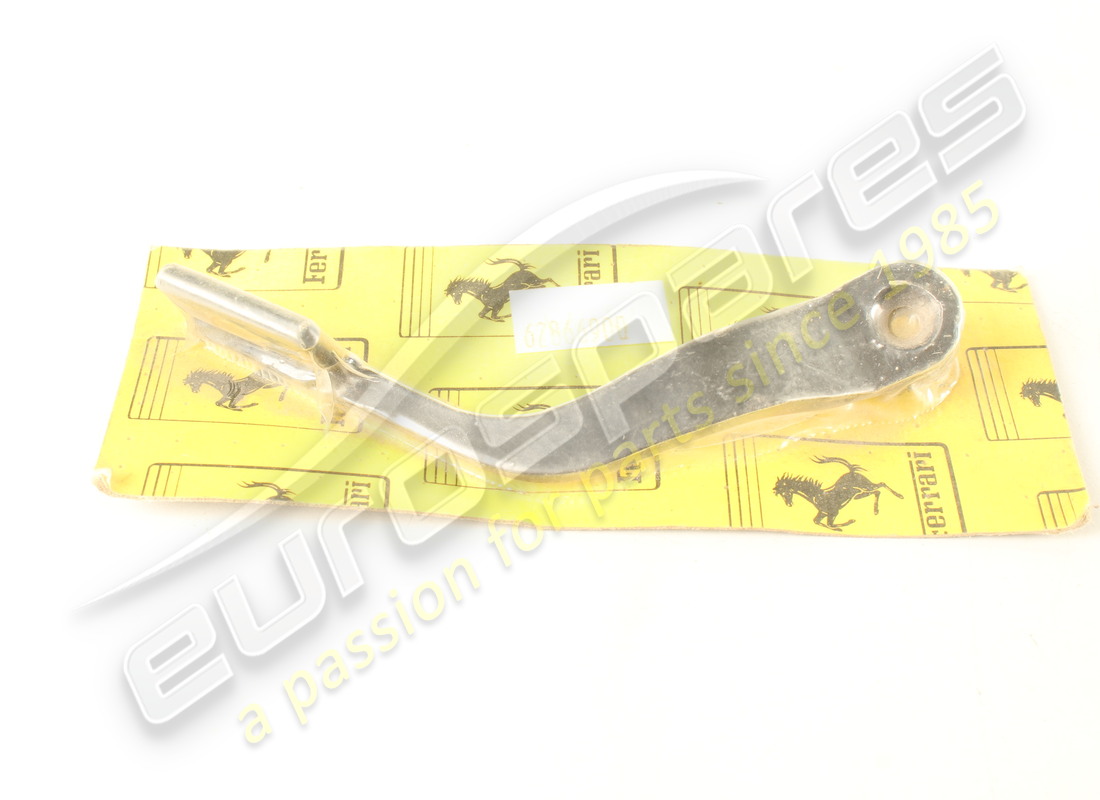

                                                                                # 007
                                                                                MPN: 62886000
                                                                                GUIDES CONTROL FORK
                                                                                from £28.81
                                                                                from £28.81
                                                                                # 008
                                                                                MPN: 62597700
                                                                                LH GUIDE FOR SEAT
                                                                                from £27.91
                                                                                from £27.91
                                                                                # 009
                                                                                MPN: 40294308
                                                                                FRAME-SEAT REAR SCREW
                                                                                from £2.78
                                                                                from £2.78
                                                                                This part replaces part number 20293306
                                                                                # 010
                                                                                MPN: 14306326
                                                                                FRAME-SEAT FRONT SCREW
                                                                                from £1.11
                                                                                from £1.11
                                                                                # 011
                                                                                MPN: 12601374
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                # 012
                                                                                MPN: 14496506
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                # 013
                                                                                MPN: 40294308
                                                                                SEAT GUIDES SCREW
                                                                                from £2.55
                                                                                from £2.55
                                                                                This part replaces part number 20293306
                                                                                # 014
                                                                                MPN: 62823200
                                                                                WASHER
                                                                                from £0.71
                                                                                from £0.71
                                                                                # 015
                                                                                MPN: 15908878
                                                                                SCREW
                                                                                from £0.51
                                                                                from £0.51
                                                                                This part replaces part number 15908806
                                                                                # 016
                                                                                MPN: 62651800
                                                                                JOINT CONNECTION
                                                                                Supersession
                                                                                Supersession
                                                                                # 017
                                                                                MPN: 14302931
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 018
                                                                                MPN: 10615279
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                # 019
                                                                                MPN: 12642801
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 12642824
                                                                                # 020
                                                                                MPN: 62593300
                                                                                LH PLATE FOR SEAT
                                                                                from £28.29
                                                                                from £28.29
                                                                                This part replaces part number 62593100
                                                                                # 020
                                                                                MPN: 62593500
                                                                                RH PLATE FOR SEAT
                                                                                from £35.70
                                                                                from £35.70
                                                                                This part replaces part number 62592900
                                                                                # 021
                                                                                MPN: 62595000
                                                                                RH JOINT PLATE
                                                                                from £28.66
                                                                                from £28.66
                                                                                # 022
                                                                                MPN: 62594900
                                                                                LH JOINT PLATE
                                                                                from £27.29
                                                                                from £27.29
                                                                                # 023
                                                                                MPN: 62652200
                                                                                RH HAND BACK SEAT REGULATOR
                                                                                from £128.56
                                                                                from £128.56
                                                                                # 023
                                                                                MPN: 62652400
                                                                                LH HAND BACK SEAT REGULATOR
                                                                                from £39.76
                                                                                from £39.76
                                                                                # 024
                                                                                MPN: 62652000
                                                                                BUSH FOR SPRING
                                                                                from £12.39
                                                                                from £12.39
                                                                                # 025
                                                                                MPN: 62651900
                                                                                SPRING FOR REAR SEAT
                                                                                from £10.27
                                                                                from £10.27
                                                                                # 026
                                                                                MPN: 62887300
                                                                                PLATE TO STOP SPRING AT THE BACK SEAT
                                                                                from £14.58
                                                                                from £14.58
                                                                                # 027
                                                                                MPN: 62866800
                                                                                RH SEAT RELEASE HANDLE
                                                                                from £143.25
                                                                                from £143.25
                                                                                # 027
                                                                                MPN: 62866900
                                                                                LH SEAT RELEASE HANDLE
                                                                                from £143.25
                                                                                from £143.25
                                                                                # 028
                                                                                MPN: 12606776
                                                                                WASHER
                                                                                Supersession
                                                                                Supersession
                                                                                # 029
                                                                                MPN: 14440737
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 030
                                                                                MPN: 60834900
                                                                                FRONT SAFETY BELTS SET - COUPÉ
                                                                                - Valid for USA-SA and J
                                                                                from £229.07
                                                                                from £229.07
                                                                                # 030
                                                                                MPN: 61444700
                                                                                FRONT SAFETY BELTS SET - CABRIOLET
                                                                                - Valid for USA
                                                                                # 030
                                                                                MPN: 63007800
                                                                                FRONT SAFETY BELTS SET - CABRIOLET
                                                                                - Valid for AUS
                                                                                from £173.95
                                                                                from £173.95
                                                                                # 030
                                                                                MPN: 67419900
                                                                                FRONT SAFETY BELTS SET - CABRIOLET
                                                                                - Not for USA and AUS
                                                                                from £579.69
                                                                                from £579.69
                                                                                This part replaces part number 62855600
                                                                                # 030
                                                                                MPN: 67420000
                                                                                FRONT SAFETY BELTS SET - COUPÉ
                                                                                - Not for USA-SA and J
                                                                                from £832.79
                                                                                from £832.79
                                                                                This part replaces part number 70000594
                                                                                # 031
                                                                                MPN: 629524..
                                                                                RH UPPER JOINT COVER FOR RH SEAT
                                                                                Supersession
                                                                                Supersession
                                                                                # 031
                                                                                MPN: 629530..
                                                                                RH UPPER JOINT COVER FOR LH SEAT
                                                                                Supersession
                                                                                Supersession
                                                                                # 032
                                                                                MPN: 629527..
                                                                                LH UPPER JOINT COVER FOR RH SEAT
                                                                                Supersession
                                                                                Supersession
                                                                                # 032
                                                                                MPN: 629532..
                                                                                LH UPPER JOINT COVER FOR LH SEAT
                                                                                Supersession
                                                                                Supersession
                                                                                # 033
                                                                                MPN: 14441037
                                                                                SCREW
                                                                                from £0.47
                                                                                from £0.47
                                                                                # 034
                                                                                MPN: 628320..
                                                                                RH LOWER JOINT COVER FOR RH SEAT
                                                                                - Valid for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 034
                                                                                MPN: 628851..
                                                                                RH LOWER JOINT COVER FOR LH SEAT
                                                                                - Valid for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 034
                                                                                MPN: 632222..
                                                                                RH LOWER JOINT COVER FOR LH SEAT
                                                                                - Not for USA-SA and J
                                                                                from £44.45
                                                                                from £44.45
                                                                                # 034
                                                                                MPN: 632224..
                                                                                RH LOWER JOINT COVER FOR RH SEAT
                                                                                - Not for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 035
                                                                                MPN: 628317..
                                                                                LH LOWER JOINT COVER FOR LH SEAT
                                                                                - Valid for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 035
                                                                                MPN: 628697..
                                                                                LH LOWER JOINT COVER FOR RH SEAT
                                                                                - Valid for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 035
                                                                                MPN: 632221..
                                                                                LH LOWER JOINT COVER FOR LH SEAT
                                                                                - Not for USA-SA and J
                                                                                from £41.71
                                                                                from £41.71
                                                                                # 035
                                                                                MPN: 632223..
                                                                                LH LOWER JOINT COVER FOR RH SEAT
                                                                                - Not for USA-SA and J
                                                                                Supersession
                                                                                Supersession
                                                                                # 036
                                                                                MPN: 20297602
                                                                                SCREW
                                                                                from £5.70
                                                                                from £5.70
                                                                                # 037
                                                                                MPN: 12601374
                                                                                WASHER
                                                                                from £0.47
                                                                                from £0.47
                                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                # 038
                                                                                MPN: 40294308
                                                                                SCREW
                                                                                from £2.59
                                                                                from £2.59
                                                                                This part replaces part number 20293306
                                                                                # 039
                                                                                MPN: 62955700
                                                                                BACK SEAT FASTENING FOR RH SEAT
                                                                                from £5.83
                                                                                from £5.83
                                                                                # 039
                                                                                MPN: 62955800
                                                                                BACK SEAT FASTENING FOR LH SEAT
                                                                                from £23.21
                                                                                from £23.21
                                                                                # 040
                                                                                MPN: 14441227
                                                                                SCREW
                                                                                from £1.08
                                                                                from £1.08
                                                                                # 041
                                                                                MPN: 12624177
                                                                                WASHER FOR SPRING
                                                                                from £1.39
                                                                                from £1.39
                                                                                # 042
                                                                                MPN: 14441227
                                                                                SCREW
                                                                                from £1.08
                                                                                from £1.08
                                                                                # 043
                                                                                MPN: 12606876
                                                                                WASHER
                                                                                from £0.71
                                                                                from £0.71
                                                                                # 044
                                                                                MPN: 14441127
                                                                                SCREW
                                                                                from £0.54
                                                                                from £0.54
                                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
