130 - Sunroof - Coupe

Ferrari Mondial 3.4 t Coupe/Cabrio Sunroof - Coupe Parts Diagram

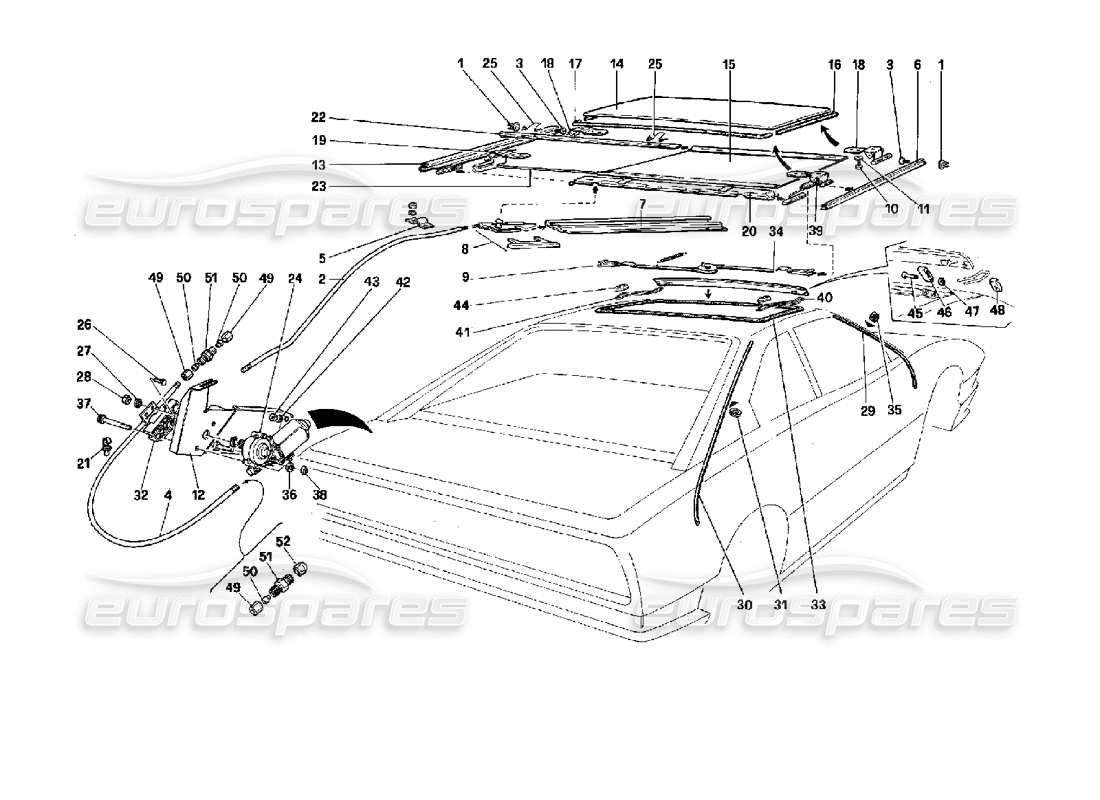

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                        #
                                                                                                        Part number
                                                                                                        Description
                                                                                                        Price
                                                                                                        # 001
                                                                                                        MPN: 60911800
                                                                                                        NUT SCREW
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 002
                                                                                                        MPN: 62447100
                                                                                                        TUBE
                                                                                                        from £98.21
                                                                                                        from £98.21
                                                                                                        # 003
                                                                                                        MPN: 60911900
                                                                                                        SCREW
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 004
                                                                                                        MPN: 62447000
                                                                                                        TUBE
                                                                                                        from £159.93
                                                                                                        from £159.93
                                                                                                        # 005
                                                                                                        MPN: 60916100
                                                                                                        BRACKET
                                                                                                        from £6.58
                                                                                                        from £6.58
                                                                                                        # 006
                                                                                                        MPN: 60964700
                                                                                                        RH FRONT GUIDE
                                                                                                        from £4.02
                                                                                                        from £4.02
                                                                                                        # 007
                                                                                                        MPN: 61310500
                                                                                                        GUIDE
                                                                                                        from £12.05
                                                                                                        from £12.05
                                                                                                        # 008
                                                                                                        MPN: 60970200
                                                                                                        CABLE
                                                                                                        from £3,590.33
                                                                                                        from £3,590.33
                                                                                                        This part replaces part number 60964500
                                                                                                        # 009
                                                                                                        MPN: 60976600
                                                                                                        LEVERAGE
                                                                                                        from £406.23
                                                                                                        from £406.23
                                                                                                        # 010
                                                                                                        MPN: 60965100
                                                                                                        SCREW TO FRONT AND REAR PLATE
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 011
                                                                                                        MPN: 60965200
                                                                                                        SPRING WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 012
                                                                                                        MPN: 62446600
                                                                                                        PLATE TO FIX. MOTOR
                                                                                                        from £41.40
                                                                                                        from £41.40
                                                                                                        # 013
                                                                                                        MPN: 60964600
                                                                                                        LH FRONT GUIDE
                                                                                                        from £21.74
                                                                                                        from £21.74

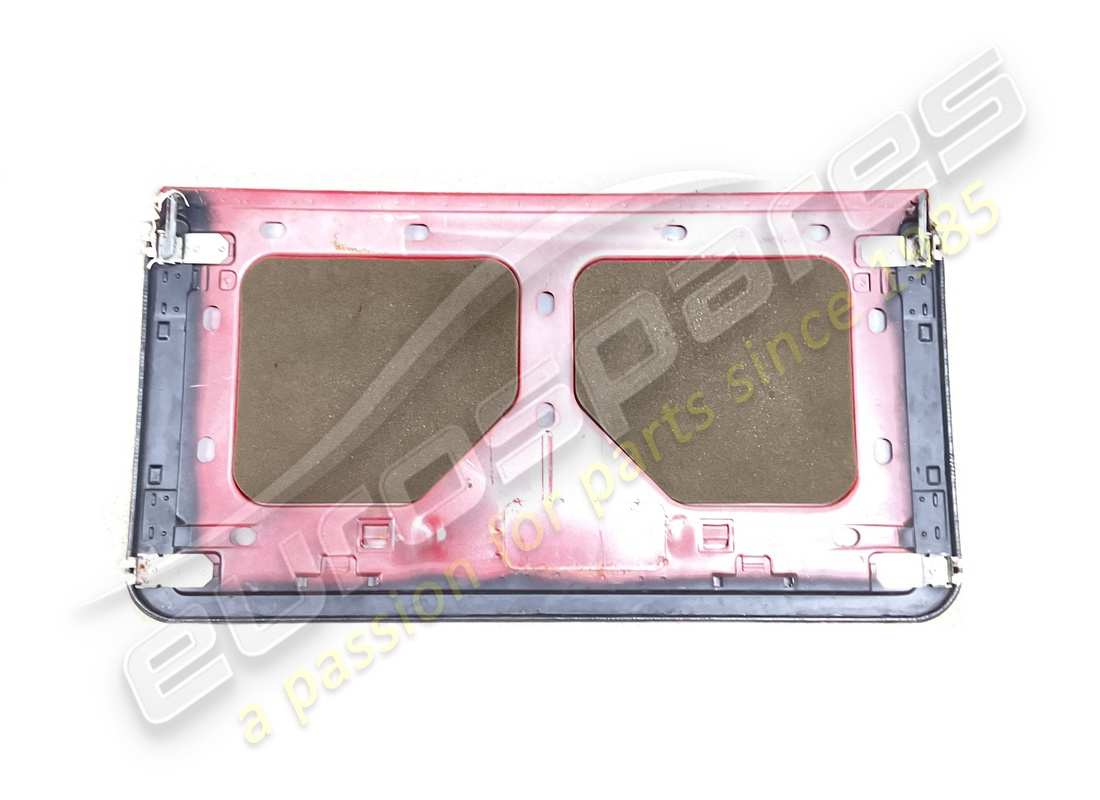

                                                                                                        # 014
                                                                                                        MPN: 60913300
                                                                                                        SLIDING ROOF, COMPLETE
                                                                                                        from £379.83
                                                                                                        from £379.83
                                                                                                        # 015
                                                                                                        MPN: 61030000
                                                                                                        INNER COVERING
                                                                                                        from £610.61
                                                                                                        from £610.61
                                                                                                        # 016
                                                                                                        MPN: 60963100
                                                                                                        FRONT, SIDE GASKET
                                                                                                        from £274.44
                                                                                                        from £274.44
                                                                                                        # 017
                                                                                                        MPN: 60963200
                                                                                                        REAR GASKET
                                                                                                        from £68.04
                                                                                                        from £68.04
                                                                                                        # 018
                                                                                                        MPN: 60963500
                                                                                                        FRONT FUIDE PLATE
                                                                                                        from £405.02
                                                                                                        from £405.02
                                                                                                        # 019
                                                                                                        MPN: 60963600
                                                                                                        REAR LEFT GUIDE PLATE
                                                                                                        from £240.51
                                                                                                        from £240.51
                                                                                                        # 020
                                                                                                        MPN: 60913600
                                                                                                        MOBILE TRAVERSE
                                                                                                        from £58.11
                                                                                                        from £58.11
                                                                                                        # 021
                                                                                                        MPN: 14573480
                                                                                                        CABLE TERMINAL
                                                                                                        from £0.71
                                                                                                        from £0.71
                                                                                                        # 022
                                                                                                        MPN: 60963900
                                                                                                        GUIDE
                                                                                                        from £213.63
                                                                                                        from £213.63
                                                                                                        This part replaces part number 60653100
                                                                                                        # 023
                                                                                                        MPN: 60964000
                                                                                                        ROD
                                                                                                        from £3.72
                                                                                                        from £3.72
                                                                                                        # 024
                                                                                                        MPN: 62446800
                                                                                                        MOTOR
                                                                                                        from £973.70
                                                                                                        from £973.70
                                                                                                        This part replaces part number 60964200 which we have in stock - and 1 more. Click to view details
                                                                                                        # 025
                                                                                                        MPN: 60963800
                                                                                                        SPRING
                                                                                                        from £74.97
                                                                                                        from £74.97
                                                                                                        # 026
                                                                                                        MPN: 10444621
                                                                                                        SCREW
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        # 027
                                                                                                        MPN: 10615279
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 028
                                                                                                        MPN: 10794011
                                                                                                        NUT
                                                                                                        from £0.30
                                                                                                        from £0.30
                                                                                                        # 029
                                                                                                        MPN: 60915600
                                                                                                        FRONT DRAIN TUBE
                                                                                                        from £7.68
                                                                                                        from £7.68
                                                                                                        # 030
                                                                                                        MPN: 60915700
                                                                                                        REAR DRAIN TUBE
                                                                                                        from £3.85
                                                                                                        from £3.85
                                                                                                        # 031
                                                                                                        MPN: 10396680
                                                                                                        INSULATING RING FOR REAR TUBES
                                                                                                        from £1.07
                                                                                                        from £1.07
                                                                                                        # 032
                                                                                                        MPN: 62458900
                                                                                                        BLOCK
                                                                                                        from £52.70
                                                                                                        from £52.70
                                                                                                        # 033
                                                                                                        MPN: 60962900
                                                                                                        GASKET
                                                                                                        from £5.03
                                                                                                        from £5.03
                                                                                                        # 034
                                                                                                        MPN: 61077200
                                                                                                        SPOYLER
                                                                                                        from £301.40
                                                                                                        from £301.40
                                                                                                        This part replaces part number 61105200
                                                                                                        # 035
                                                                                                        MPN: 10396280
                                                                                                        INSULATING RING FOR FRONT TUBES
                                                                                                        from £1.84
                                                                                                        from £1.84
                                                                                                        # 036
                                                                                                        MPN: 127494
                                                                                                        WASHER
                                                                                                        (minimum order quantity = 20)
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                        # 037
                                                                                                        MPN: 62459000
                                                                                                        SCREW
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 038
                                                                                                        MPN: 15896211
                                                                                                        NUT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 15896210 which we have in stock
                                                                                                        # 039
                                                                                                        MPN: 60963700
                                                                                                        RH PLATE
                                                                                                        from £221.66
                                                                                                        from £221.66
                                                                                                        # 040
                                                                                                        MPN: 61105400
                                                                                                        RH SPRING
                                                                                                        from £28.83
                                                                                                        from £28.83
                                                                                                        # 041
                                                                                                        MPN: 61105300
                                                                                                        LH SPRING
                                                                                                        from £21.32
                                                                                                        from £21.32
                                                                                                        # 043
                                                                                                        MPN: 102948
                                                                                                        NUT
                                                                                                        from £0.54
                                                                                                        from £0.54
                                                                                                        This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                        # 045
                                                                                                        MPN: 61105900
                                                                                                        PIN
                                                                                                        from £3.47
                                                                                                        from £3.47
                                                                                                        # 046
                                                                                                        MPN: 61104400
                                                                                                        BLOCK
                                                                                                        from £11.63
                                                                                                        from £11.63
                                                                                                        # 047
                                                                                                        MPN: 11087476
                                                                                                        SEEGER RING
                                                                                                        from £3.98
                                                                                                        from £3.98
                                                                                                        # 048
                                                                                                        MPN: 61105500
                                                                                                        BLOCK
                                                                                                        from £3.47
                                                                                                        from £3.47
                                                                                                        # 049
                                                                                                        MPN: 62493500
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 050
                                                                                                        MPN: 62493600
                                                                                                        OGIVA
                                                                                                        from £4.82
                                                                                                        from £4.82

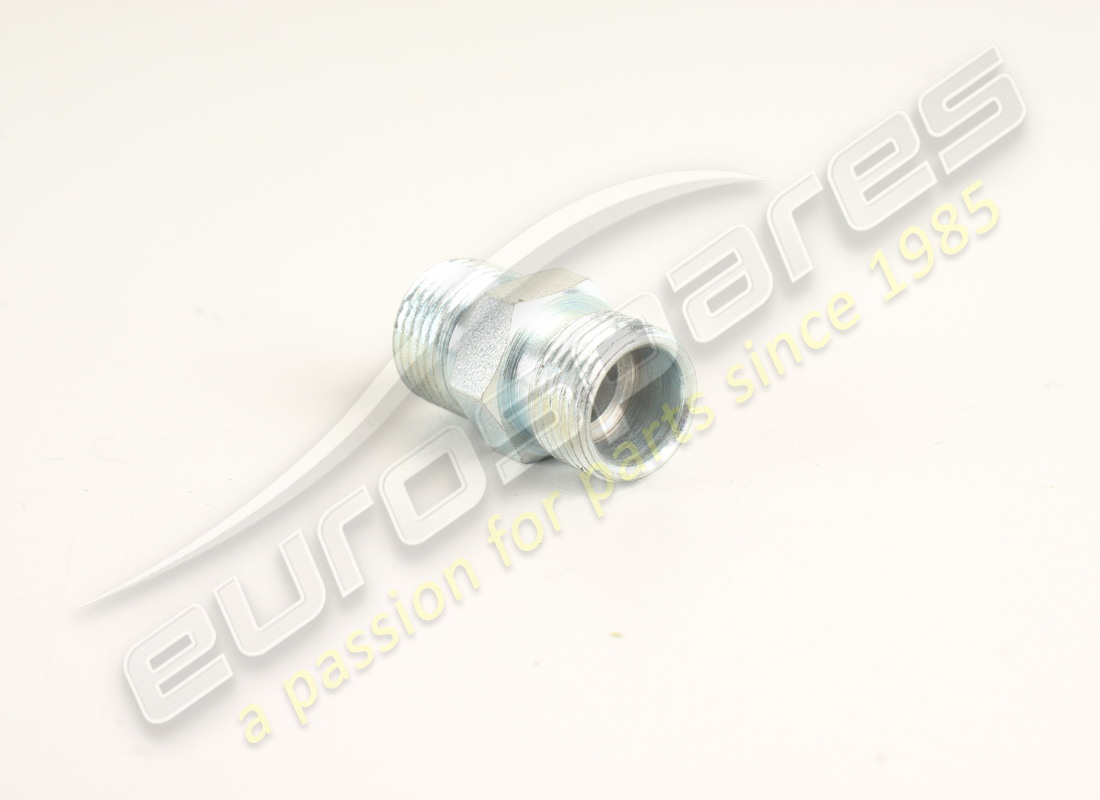

                                                                                                        # 051
                                                                                                        MPN: 62493700
                                                                                                        UNION
                                                                                                        from £21.03
                                                                                                        from £21.03
                                                                                                        # 052
                                                                                                        MPN: 62493800
                                                                                                        CUP NUT
                                                                                                        from £26.92
                                                                                                        from £26.92
                                                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
