0053 - TURBOCHARGING SYSTEM ADJUSTMENTS
Ferrari SF90 Stradale TURBOCHARGING SYSTEM ADJUSTMENTS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 890655
PIPE FROM HIGH PRESSURE SIDE TO LH DUMP VALVE
from £59.80
from £59.80
# 001
MPN: 890656
PIPE FROM HIGH PRESSURE SIDE TO RH DUMP VALVE
from £59.80
from £59.80
# 002
MPN: 315352

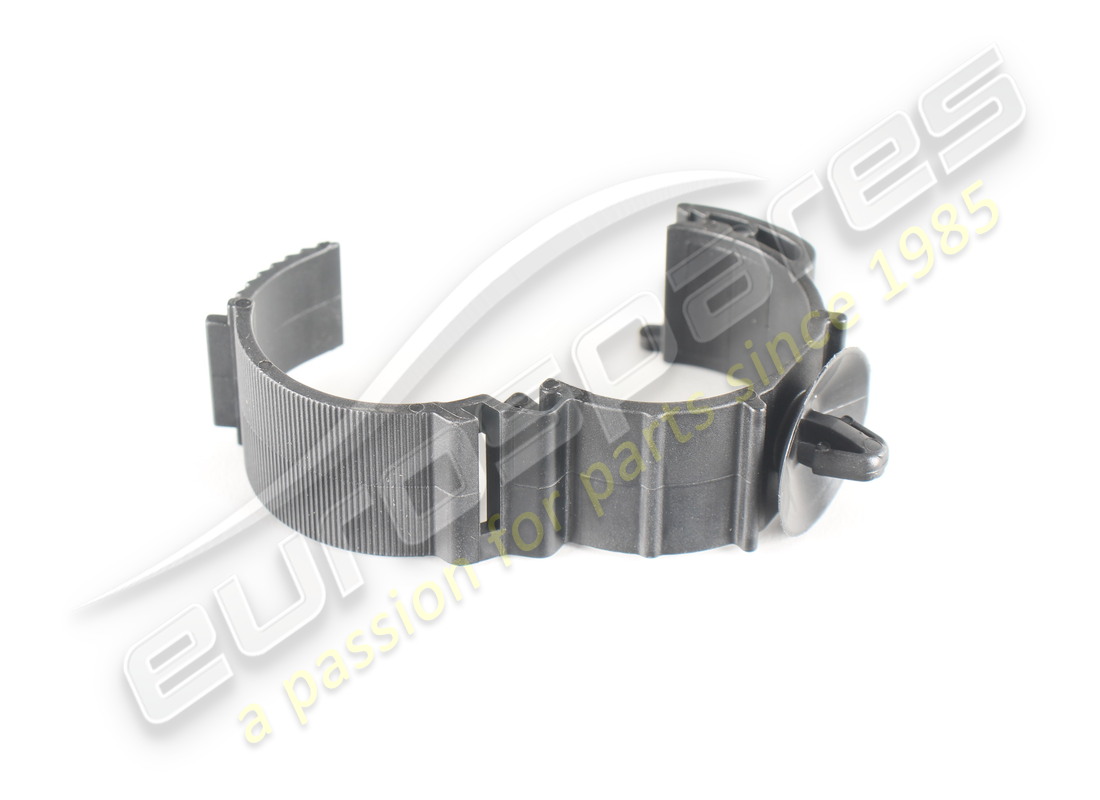

CLIP
from £0.63
from £0.63
# 003
MPN: 262112
COLLAR
from £6.05
from £6.05
# 004
MPN: 982210

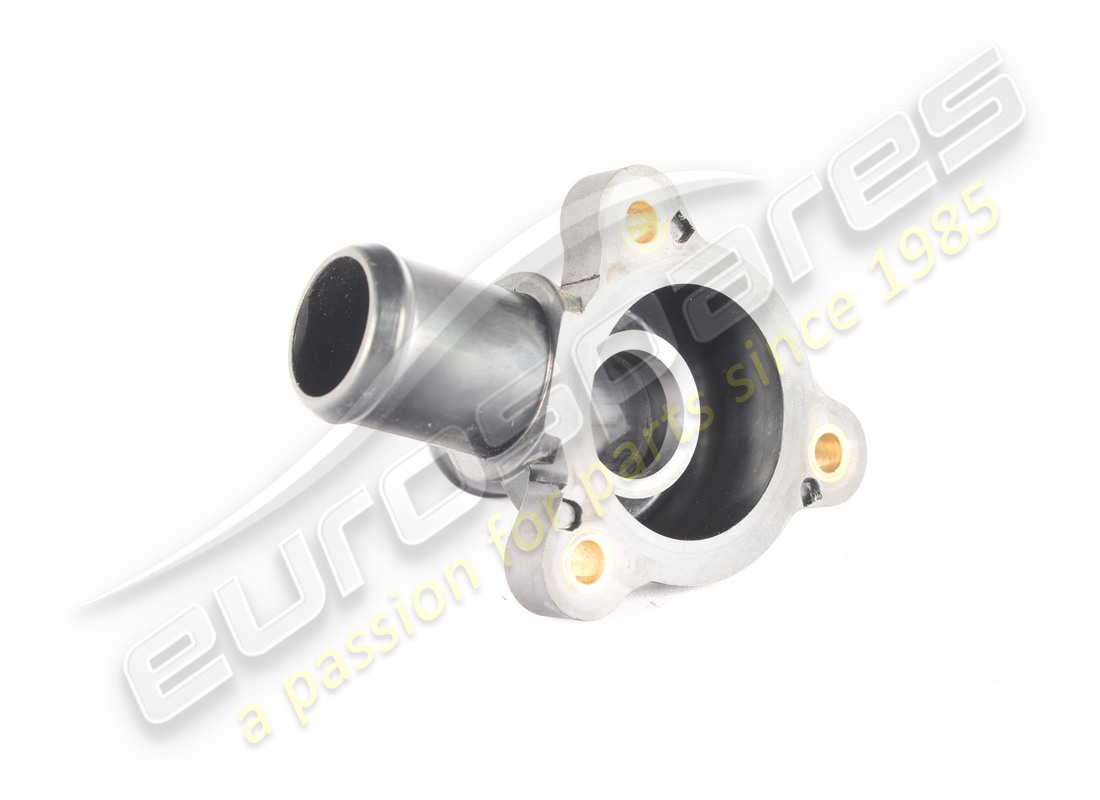

DUMP VALVE BASE
from £18.18
from £18.18
This part replaces part number 936872 - and 1 more. Click to view details
# 005
MPN: 315495
DUMP-VALVE
from £57.18
from £57.18
# 006
MPN: 878496
RH DUMP VALVE BRACKET
from £6.47
from £6.47
# 006
MPN: 965883
LH DUMP VALVE BRACKET
from £11.16
from £11.16
# 007
MPN: 231621
SCREW
from £0.47
from £0.47
This part replaces part number 216568
# 008
MPN: 12647601
WASHER
| No longer supplied |
from £0.47
from £0.47
# 009
MPN: 331701
CYLINDRICAL BUSHING WITH SCREWS
from £11.35
from £11.35
# 010
MPN: 14040614
NUT
from £0.47
from £0.47
# 011
MPN: 820020
PIPE FROM DUMP VALVE TO RH LOW PRESSURE SIDE
from £43.47
from £43.47
# 011
MPN: 881480
PIPE FROM DUMP VALVE TO LH LOW PRESSURE SIDE
from £50.21
from £50.21
# 012
MPN: 278577
CLIP
from £0.93
from £0.93
# 013
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 014
MPN: 14040614
NUT
from £0.47
from £0.47
