ferrari testarossa (1990) clutch release control parts diagram

059 - clutch release control

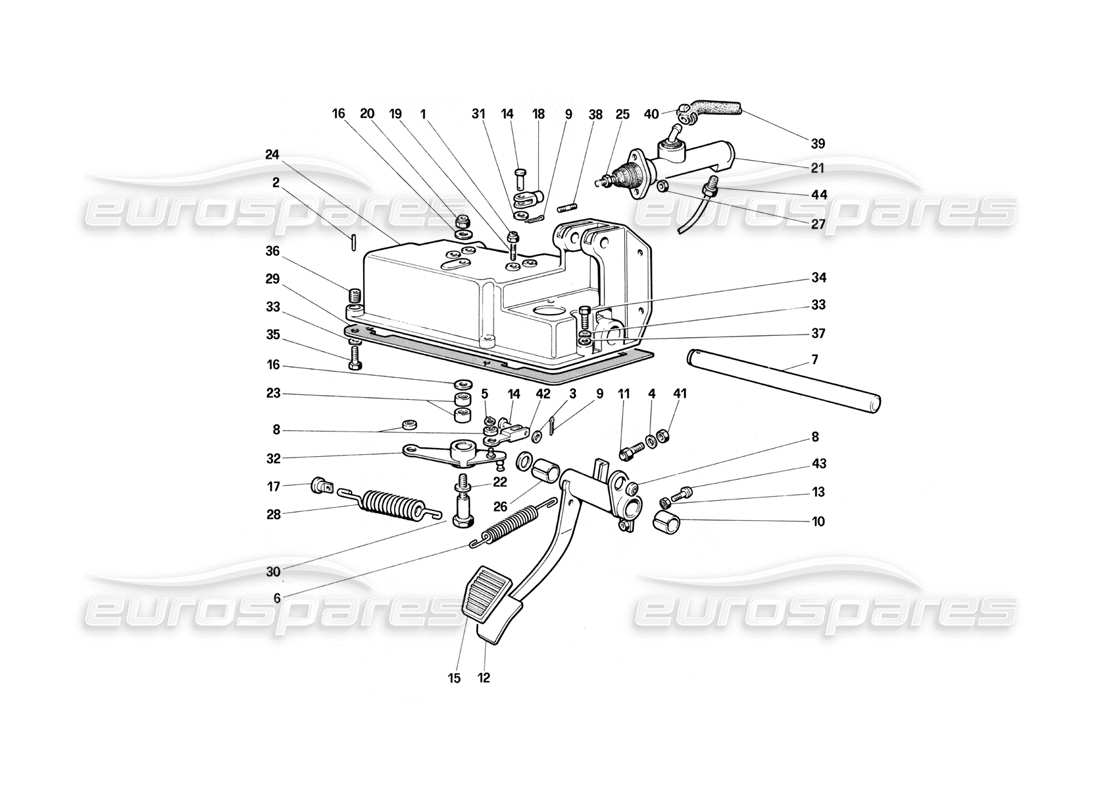

Ferrari Testarossa (1990) Clutch Release Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 102948
                                                                                        NUT
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                        # 002
                                                                                        MPN: 13942870
                                                                                        PIN
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 003
                                                                                        MPN: 10519601
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 004
                                                                                        MPN: 12601371
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 005
                                                                                        MPN: 11065676
                                                                                        SEEGER RING
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 11065675 - and 1 more. Click to view details
                                                                                        # 006
                                                                                        MPN: 141531
                                                                                        PEDAL RETURN SPRING
                                                                                        from £14.23
                                                                                        from £14.23
                                                                                        # 007
                                                                                        MPN: 113831
                                                                                        PIN FOR PEDAL SPRING
                                                                                        from £63.92
                                                                                        from £63.92
                                                                                        # 008
                                                                                        MPN: 109407
                                                                                        BALL JOINT
                                                                                        from £21.94
                                                                                        from £21.94
                                                                                        # 009
                                                                                        MPN: 10734201
                                                                                        SPLIT PIN
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 010
                                                                                        MPN: 103163
                                                                                        BUSH
                                                                                        from £2.85
                                                                                        from £2.85
                                                                                        # 011
                                                                                        MPN: 114825
                                                                                        STOP PUSH ROD
                                                                                        from £38.43
                                                                                        from £38.43
                                                                                        # 012
                                                                                        MPN: 119458
                                                                                        CLUTCH PEDAL
                                                                                        from £128.02
                                                                                        from £128.02
                                                                                        # 013
                                                                                        MPN: 16102311
                                                                                        NUT
                                                                                        from £0.42
                                                                                        from £0.42
                                                                                        This part replaces part number 16102315
                                                                                        # 014
                                                                                        MPN: 10050810
                                                                                        PIN
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 015
                                                                                        MPN: 106949
                                                                                        PEDAL COVER
                                                                                        from £17.95
                                                                                        from £17.95
                                                                                        # 016
                                                                                        MPN: 113500
                                                                                        WASHER
                                                                                        from £10.25
                                                                                        from £10.25
                                                                                        # 017
                                                                                        MPN: 114828
                                                                                        SPRING RETAINING PIN
                                                                                        from £21.88
                                                                                        from £21.88
                                                                                        # 018
                                                                                        MPN: 10007871
                                                                                        FORK
                                                                                        from £6.02
                                                                                        from £6.02
                                                                                        # 019
                                                                                        MPN: 11500121
                                                                                        STUD
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 13540820
                                                                                        # 020
                                                                                        MPN: 148020
                                                                                        SELF LOCKING NUT
                                                                                        from £2.51
                                                                                        from £2.51
                                                                                        This part replaces part number 102825 - and 3 more. Click to view details
                                                                                        # 021
                                                                                        MPN: 175211
                                                                                        MASTER CYLINDER
                                                                                        from £87.66
                                                                                        from £87.66
                                                                                        This part replaces part number 123416 - and 1 more. Click to view details
                                                                                        # 022
                                                                                        MPN: 112126
                                                                                        SHIM
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 023
                                                                                        MPN: 115430
                                                                                        ROLLER CAGE
                                                                                        from £12.60
                                                                                        from £12.60
                                                                                        # 025
                                                                                        MPN: 16102311
                                                                                        LOCK NUT
                                                                                        from £0.42
                                                                                        from £0.42
                                                                                        This part replaces part number 16102315
                                                                                        # 026
                                                                                        MPN: 106083
                                                                                        SHIM, 1,0 MM. THICK
                                                                                        from £0.71
                                                                                        from £0.71
                                                                                        # 026
                                                                                        MPN: 113833
                                                                                        SHIM, 1,1 MM. THICK
                                                                                        If required
                                                                                        from £1.85
                                                                                        from £1.85
                                                                                        # 026
                                                                                        MPN: 113834
                                                                                        SHIM, 1,2 MM. THICK
                                                                                        If required
                                                                                        from £2.07
                                                                                        from £2.07
                                                                                        # 026
                                                                                        MPN: 113835
                                                                                        SHIM, 1,3 MM. THICK
                                                                                        If required
                                                                                        from £1.85
                                                                                        from £1.85
                                                                                        # 026
                                                                                        MPN: 113836
                                                                                        SHIM, 1,4 MM. THICK
                                                                                        If required
                                                                                        from £2.32
                                                                                        from £2.32
                                                                                        # 027
                                                                                        MPN: 104030
                                                                                        SELF LOCKING NUT
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 16104125
                                                                                        # 028
                                                                                        MPN: 114826
                                                                                        SERVICE SPRING
                                                                                        from £24.87
                                                                                        from £24.87
                                                                                        # 029
                                                                                        MPN: 119331
                                                                                        GASKET
                                                                                        from £8.47
                                                                                        from £8.47
                                                                                        # 030
                                                                                        MPN: 114830
                                                                                        PIN FOR RELAY LEVER
                                                                                        from £6.12
                                                                                        from £6.12
                                                                                        # 031
                                                                                        MPN: 12602701
                                                                                        WASHER
                                                                                        # 032
                                                                                        MPN: 124194
                                                                                        RELAY LEVER
                                                                                        from £42.87
                                                                                        from £42.87
                                                                                        This part replaces part number 124167 - and 1 more. Click to view details
                                                                                        # 033
                                                                                        MPN: 106852
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                                        # 034
                                                                                        MPN: 16043821
                                                                                        SCREW
                                                                                        from £0.71
                                                                                        from £0.71
                                                                                        # 035
                                                                                        MPN: 16043421
                                                                                        SCREW
                                                                                        from £2.69
                                                                                        from £2.69
                                                                                        This part replaces part number 95524
                                                                                        # 036
                                                                                        MPN: 13525870
                                                                                        HELI-COIL
                                                                                        from £1.85
                                                                                        from £1.85
                                                                                        This part replaces part number 105510
                                                                                        # 037
                                                                                        MPN: 10519620
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 038
                                                                                        MPN: 13543324
                                                                                        STUD
                                                                                        from £0.81
                                                                                        from £0.81
                                                                                        This part replaces part number 13543321
                                                                                        # 039
                                                                                        MPN: 151845
                                                                                        PIPE
                                                                                        from £35.34
                                                                                        from £35.34
                                                                                        This part replaces part number 120929 - and 1 more. Click to view details
                                                                                        # 040
                                                                                        MPN: 12179190
                                                                                        CLAMP
                                                                                        Supersession
                                                                                        Supersession
                                                                                        This part replaces part number 102604
                                                                                        # 041
                                                                                        MPN: 16100821
                                                                                        NUT
                                                                                        from £0.71
                                                                                        from £0.71
                                                                                        This part replaces part number 16100825 which we have in stock
                                                                                        # 042
                                                                                        MPN: 121209
                                                                                        FORK
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 043
                                                                                        MPN: 123961
                                                                                        PEDAL TRAVEL ADJUSTING PUSH ROD
                                                                                        from £2.60
                                                                                        from £2.60
                                                                                        # 044
                                                                                        MPN: 124841
                                                                                        CLUTCH CONTROL HOSE
                                                                                        from £32.23
                                                                                        from £32.23
