101 - Body - External Components

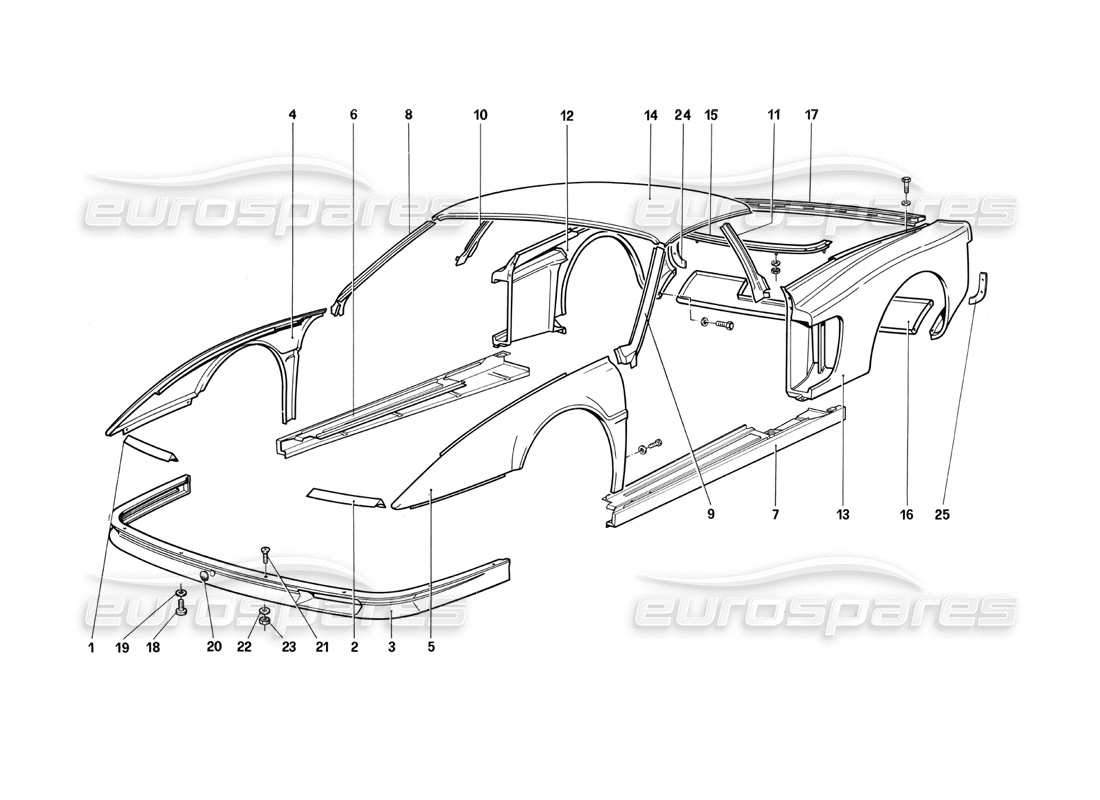

Ferrari Testarossa (1990) Body - External Components Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 61476800
                                          FRONT RIGHT LIGHT COVERING
                                          from £610.17
                                          from £610.17
                                          # 002
                                          MPN: 61476900
                                          FRONT LEFT LIGHT COVERING
                                          from £610.17
                                          from £610.17
                                          # 003
                                          MPN: 61477000
                                          FRONT SPOYLER
                                          Not for CDN
                                          from £793.30
                                          from £793.30
                                          # 003
                                          MPN: 61555700
                                          FRONT SPOYLER
                                          For CDN
                                          from £2,985.65
                                          from £2,985.65
                                          # 004
                                          MPN: 61477100
                                          FRONT RIGHT FENDER
                                          Not for US
                                          from £2,118.65
                                          from £2,118.65
                                          This part replaces part number 61571400
                                          # 004
                                          MPN: 61571400
                                          FRONT RIGHT FENDER
                                          For US
                                          Supersession
                                          Supersession
                                          # 005
                                          MPN: 61477200
                                          FRONT LEFT FENDER
                                          Not for US
                                          from £1,500.00
                                          from £1,500.00
                                          This part replaces part number 61571500 - and 1 more. Click to view details
                                          # 005
                                          MPN: 61571500
                                          FRONT LEFT FENDER
                                          For US
                                          Supersession
                                          Supersession
                                          # 006
                                          MPN: 61557600
                                          RIGHT UNDERDOOR RAIL, COMPLETE
                                          from £647.24
                                          from £647.24
                                          This part replaces part number 61477300
                                          # 007
                                          MPN: 61557700
                                          LEFT UNDERDOOR RAIL, COMPLETE
                                          from £1,949.97
                                          from £1,949.97
                                          This part replaces part number 61477400
                                          # 008
                                          MPN: 61477500
                                          RIGHT PILLAR FOR WINDSHIELD
                                          from £110.09
                                          from £110.09
                                          # 009
                                          MPN: 61477600
                                          LEFT PILLAR FOR WINDSHIELD
                                          from £77.06
                                          from £77.06
                                          # 010
                                          MPN: 61477700
                                          PILLAR FOR RIGHT SIDE WINDOW
                                          from £80.92
                                          from £80.92
                                          # 011
                                          MPN: 61477800
                                          PILLAR FOR LEFT SIDE WINDOW
                                          from £80.92
                                          from £80.92
                                          # 012
                                          MPN: 61477900
                                          REAR RIGHT FENDER
                                          Not for US
                                          from £7,252.12
                                          from £7,252.12
                                          # 012
                                          MPN: 61478000/A
                                          RH REAR WING SECTION
                                          from £945.00
                                          from £945.00
                                          # 012
                                          MPN: 61540700
                                          REAR RIGHT FENDER
                                          For US
                                          from £6,186.11
                                          from £6,186.11
                                          # 013
                                          MPN: 61478000
                                          REAR LEFT FENDER
                                          Not for US
                                          from £5,206.77
                                          from £5,206.77
                                          # 013
                                          MPN: 61540800
                                          REAR LEFT FENDER
                                          For US
                                          from £4,865.51
                                          from £4,865.51
                                          # 013
                                          MPN: 95971648
                                          REAR WING COVER
                                          Rear wing workshop protection cover
                                          from £204.85
                                          from £204.85
                                          # 013
                                          MPN: 95971649
                                          REAR WING COVER
                                          Rear wing workshop protection cover
                                          from £204.85
                                          from £204.85
                                          # 014
                                          MPN: 61478100
                                          ROOF
                                          from £402.20
                                          from £402.20
                                          # 015
                                          MPN: 61478200
                                          REAR WINDOW LOWER CROSS
                                          from £211.21
                                          from £211.21
                                          # 016
                                          MPN: 61478300
                                          REAR LOWER COVERING
                                          from £1,542.37
                                          from £1,542.37
                                          # 017
                                          MPN: 61478400
                                          REAR UPPER COVERING
                                          from £808.76
                                          from £808.76
                                          # 018
                                          MPN: 15644301
                                          SCREW
                                          from £1.61
                                          from £1.61
                                          # 019
                                          MPN: 10520101
                                          WASHER
                                          from £1.39
                                          from £1.39
                                          # 020
                                          MPN: 61572500
                                          PLUG
                                          from £20.86
                                          from £20.86
                                          # 021
                                          MPN: 13301311
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          # 022
                                          MPN: 12643724
                                          WASHER
                                          from £0.48
                                          from £0.48
                                          This part replaces part number 109684 - and 4 more. Click to view details
                                          # 023
                                          MPN: 14084211
                                          NUT
                                          from £0.71
                                          from £0.71
                                          # 024
                                          MPN: 61580600
                                          R.H ZINCFOIL
                                          from £2.61
                                          from £2.61
                                          # 025
                                          MPN: 61580700
                                          LH ZINCFOIL
                                          from £2.92
                                          from £2.92
