ferrari testarossa (1990) dashboard (for us version) parts diagram

117 - Dashboard (for US Version)

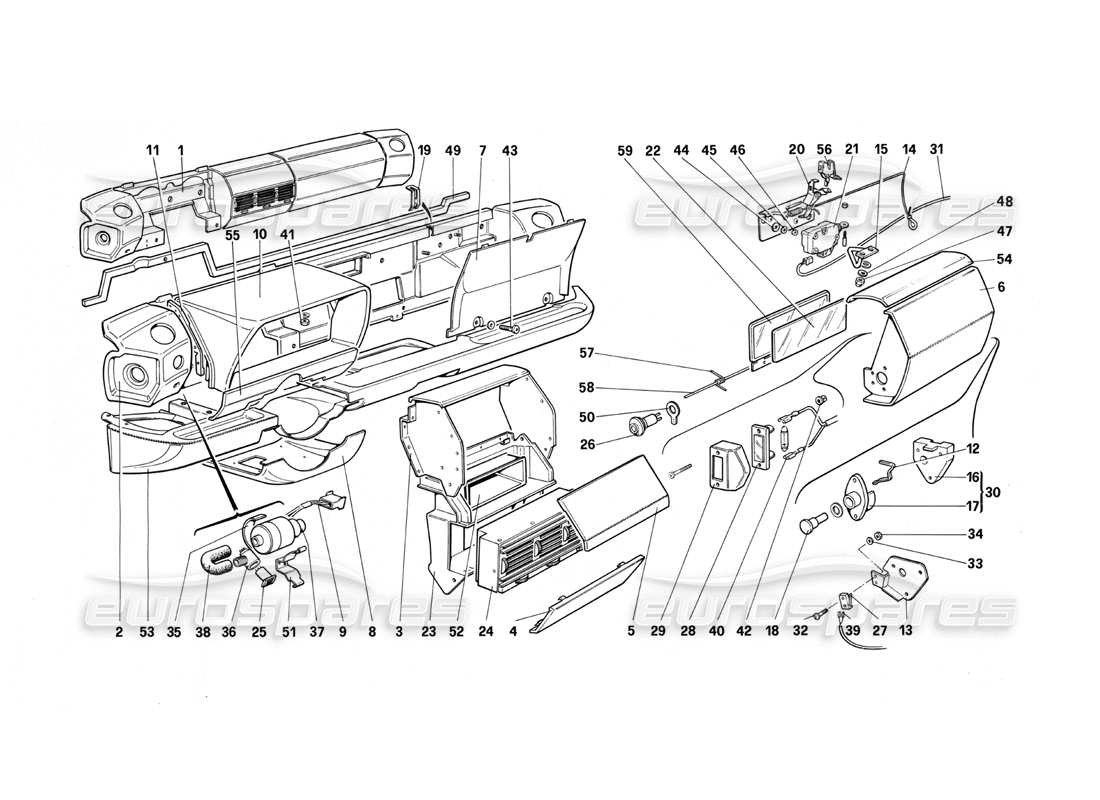

Ferrari Testarossa (1990) Dashboard (for US Version) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Key
                                                                                                          Price
                                                                                                          # 001
                                                                                                          MPN: 61553666
                                                                                                          DASH BOARD ASSEMBLY
                                                                                                          With instruments seat
                                                                                                          DASH BOARD ASSEMBLY Genuine Ferrari Part - New (to order)
                                                                                                          # 001
                                                                                                          MPN: 61553700
                                                                                                          DASH BOARD ASSEMBLY
                                                                                                          Without instruments seat
                                                                                                          from £3,034.41
                                                                                                          from £3,034.41
                                                                                                          DASHBOARD ASSY Genuine Ferrari Part - New (to order)
                                                                                                          DASHBOARD ASSY Genuine Ferrari Part - Used In stock
                                                                                                          # 002
                                                                                                          MPN: 61553866
                                                                                                          DASH BOARD FRAME
                                                                                                          DASH BOARD FRAME Genuine Ferrari Part - New (to order)
                                                                                                          # 003
                                                                                                          MPN: 61520866
                                                                                                          DASH BOARD CENTRAL SECTION
                                                                                                          DASH BOARD CENTRAL SECTION Genuine Ferrari Part - New (to order)
                                                                                                          # 004
                                                                                                          MPN: 61553968
                                                                                                          DASH BOARD CENTRAL PANEL
                                                                                                          DASH BOARD CENTRAL PANEL Genuine Ferrari Part - New (to order)
                                                                                                          # 005
                                                                                                          MPN: 61521166
                                                                                                          DASH BOARD CENTRAL COVER
                                                                                                          DASH BOARD CENTRAL COVER Genuine Ferrari Part - New (to order)
                                                                                                          # 006
                                                                                                          MPN: 61554166
                                                                                                          DASH BOARD BOX
                                                                                                          DASH BOARD BOX Genuine Ferrari Part - New (to order)
                                                                                                          # 007
                                                                                                          MPN: 61554200
                                                                                                          DASH BOARD BOX PANEL
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 61554212
                                                                                                          Genuine Ferrari Part (no longer available to order)
                                                                                                          # 008
                                                                                                          MPN: 61554966
                                                                                                          STEERING COLUMN COVER
                                                                                                          Until car no 82829
                                                                                                          STEERING COLUMN COVER Genuine Ferrari Part - New (to order)
                                                                                                          # 008
                                                                                                          MPN: 61578466
                                                                                                          STEERING COLUMN COVER
                                                                                                          From car No 82830
                                                                                                          STEERING COLUMN COVER Genuine Ferrari Part - New (to order)
                                                                                                          # 009
                                                                                                          MPN: 119436
                                                                                                          SENSOR CABLE FOR INTERNAL TEMPERATURE
                                                                                                          SENSOR CABLE FOR INTERNAL TEMPERATURE Genuine Ferrari Part - New (to order)
                                                                                                          # 011
                                                                                                          MPN: 61521866
                                                                                                          RIGHT ANGLE PIECE
                                                                                                          RIGHT ANGLE PIECE Genuine Ferrari Part - New (to order)
                                                                                                          # 011
                                                                                                          MPN: 61521966
                                                                                                          LEFT ANGLE PIECE
                                                                                                          LEFT ANGLE PIECE Genuine Ferrari Part - New (to order)
                                                                                                          # 012
                                                                                                          MPN: 61522660
                                                                                                          CLIP
                                                                                                          CLIP Genuine Ferrari Part - New (to order)
                                                                                                          # 013
                                                                                                          MPN: 61554500
                                                                                                          BRACKET
                                                                                                          from £11.89
                                                                                                          from £11.89
                                                                                                          BRACKET LHD Genuine Ferrari Part - New In stock
                                                                                                          # 014
                                                                                                          MPN: 61554466
                                                                                                          SAFETY CABLE
                                                                                                          SAFETY CABLE Genuine Ferrari Part - New (to order)
                                                                                                          # 015
                                                                                                          MPN: 61554666
                                                                                                          LOCK STRIKER
                                                                                                          LOCK STRIKER Genuine Ferrari Part - New (to order)
                                                                                                          # 016
                                                                                                          MPN: 61522466
                                                                                                          RIGHT FIXED HINGE
                                                                                                          RIGHT FIXED HINGE Genuine Ferrari Part - New (to order)
                                                                                                          # 016
                                                                                                          MPN: 61522500
                                                                                                          LEFT FIXED HINGE
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Ferrari Part (no longer available to order)
                                                                                                          # 016
                                                                                                          MPN: 61558966
                                                                                                          HOUSING INSTRUMENTS
                                                                                                          HOUSING INSTRUMENTS Genuine Ferrari Part - New (to order)
                                                                                                          # 017
                                                                                                          MPN: 61522600
                                                                                                          RIGHT MOBILE HINGE
                                                                                                          from £2.10
                                                                                                          from £2.10
                                                                                                          RH MOBILE HINGE Genuine Ferrari Part - New In stock
                                                                                                          # 017
                                                                                                          MPN: 61522766
                                                                                                          LEFT MOBILE HINGE
                                                                                                          LEFT MOBILE HINGE Genuine Ferrari Part - New (to order)
                                                                                                          # 018
                                                                                                          MPN: 61522866
                                                                                                          PIN
                                                                                                          PIN Genuine Ferrari Part - New (to order)
                                                                                                          # 019
                                                                                                          MPN: 61554760
                                                                                                          Frame
                                                                                                          Frame Genuine Ferrari Part - New (to order)
                                                                                                          # 021
                                                                                                          MPN: 61523100
                                                                                                          LOCK MAGNET
                                                                                                          from £1,043.90
                                                                                                          from £1,043.90
                                                                                                          LOCK MAGNET Genuine Ferrari Part - New (to order)
                                                                                                          # 022
                                                                                                          MPN: 61523200
                                                                                                          COURTESY MIRROR
                                                                                                          from £22.53
                                                                                                          from £22.53
                                                                                                          COURTESY MIRROR Genuine Ferrari Part - New (to order)
                                                                                                          # 023
                                                                                                          MPN: 61523360
                                                                                                          FRAME WORK
                                                                                                          FRAME WORK Genuine Ferrari Part - New (to order)
                                                                                                          # 024
                                                                                                          MPN: 61523566
                                                                                                          CENTRAL AIR OUTLET
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Ferrari Part (no longer available to order)
                                                                                                          # 025
                                                                                                          MPN: 61879168
                                                                                                          SENSOR FOR INTERNAL TEMPERATURE
                                                                                                          SENSOR FOR INTERNAL TEMPERATURE Genuine Ferrari Part - New (to order)
                                                                                                          # 026
                                                                                                          MPN: 61523600
                                                                                                          SOCKET
                                                                                                          from £9.45
                                                                                                          from £9.45
                                                                                                          SOCKET Genuine Ferrari Part - New (to order)
                                                                                                          SOCKET Genuine Ferrari Part - Used In stock
                                                                                                          # 026
                                                                                                          MPN: 61545800
                                                                                                          LOCK BRACKET
                                                                                                          from £57.33
                                                                                                          from £57.33
                                                                                                          LOCK BRACKET LHD Genuine Ferrari Part - New In stock
                                                                                                          LOCK BRACKET LHD Genuine Ferrari Part - Used In stock
                                                                                                          # 027
                                                                                                          MPN: 61523766
                                                                                                          SWITCH
                                                                                                          SWITCH Genuine Ferrari Part - New (to order)
                                                                                                          # 028
                                                                                                          MPN: 61647260
                                                                                                          DASH BOARD BOX LAMP
                                                                                                          DASH BOARD BOX LAMP Genuine Ferrari Part - New (to order)
                                                                                                          # 029
                                                                                                          MPN: 61523866
                                                                                                          DASH BOARD BOX LAMP FRAME
                                                                                                          DASH BOARD BOX LAMP FRAME Genuine Ferrari Part - New (to order)
                                                                                                          # 031
                                                                                                          MPN: 124410
                                                                                                          SOCKET CABLES
                                                                                                          from £5.60
                                                                                                          from £5.60
                                                                                                          SOCKET CABLES Genuine Ferrari Part - New In stock
                                                                                                          # 032
                                                                                                          MPN: 61524180
                                                                                                          SCREW
                                                                                                          SCREW Genuine Ferrari Part - New (to order)
                                                                                                          # 033
                                                                                                          MPN: 61524200
                                                                                                          WASHER
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          WASHER Genuine Ferrari Part - New (to order)
                                                                                                          # 034
                                                                                                          MPN: 61524300
                                                                                                          NUT
                                                                                                          from £0.54
                                                                                                          from £0.54
                                                                                                          NUT Genuine Ferrari Part - New (to order)
                                                                                                          # 035
                                                                                                          MPN: 120065
                                                                                                          SENSOR RING
                                                                                                          from £0.86
                                                                                                          from £0.86
                                                                                                          RING Genuine Ferrari Part - New In stock
                                                                                                          # 036
                                                                                                          MPN: 61679266
                                                                                                          BOX SENSOR
                                                                                                          BOX SENSOR Genuine Ferrari Part - New (to order)
                                                                                                          # 037
                                                                                                          MPN: 61679366
                                                                                                          SUCTION FAN FOR SENSOR
                                                                                                          SUCTION FAN FOR SENSOR Genuine Ferrari Part - New (to order)
                                                                                                          # 038
                                                                                                          MPN: 124839
                                                                                                          TUBE FROM SUCTION FAN TO SENSOR
                                                                                                          TUBE FROM SUCTION FAN TO SENSOR Genuine Ferrari Part - New (to order)
                                                                                                          # 038
                                                                                                          MPN: 61523966
                                                                                                          RIGHT DASHBOARD BOX HINGE
                                                                                                          RIGHT DASHBOARD BOX HINGE Genuine Ferrari Part - New (to order)
                                                                                                          # 038
                                                                                                          MPN: 61524000
                                                                                                          LEFT DASHBOARD BOX HINGE
                                                                                                          from £6.33
                                                                                                          from £6.33
                                                                                                          This part replaces part number 61522500 - and 1 more. Click to view details
                                                                                                          LH DASHBOARD BOX HINGE Genuine Ferrari Part - New (to order)
                                                                                                          LH DASHBOARD BOX HINGE Genuine Ferrari Part - Used In stock
                                                                                                          # 039
                                                                                                          MPN: 124469
                                                                                                          SWITCH CABLES
                                                                                                          from £3.01
                                                                                                          from £3.01
                                                                                                          SPACER Genuine Ferrari Part - New (to order)
                                                                                                          # 040
                                                                                                          MPN: 124411
                                                                                                          LAMP CABLES
                                                                                                          from £11.88
                                                                                                          from £11.88
                                                                                                          CABLES Genuine Ferrari Part - New (to order)
                                                                                                          # 041
                                                                                                          MPN: 14684111
                                                                                                          NUT
                                                                                                          NUT Genuine Ferrari Part - New (to order)
                                                                                                          # 042
                                                                                                          MPN: 12611342
                                                                                                          FEMALE SCREW
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 12611107 which we have in stock
                                                                                                          Genuine Ferrari Part (no longer available to order)
                                                                                                          # 043
                                                                                                          MPN: 15688361
                                                                                                          SCREW
                                                                                                          SCREW Genuine Ferrari Part - New (to order)
                                                                                                          # 044
                                                                                                          MPN: 12643724
                                                                                                          WASHER
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                          WASHER Genuine Ferrari Part - New In stock
                                                                                                          WASHER Genuine Maserati Part - New In stock
                                                                                                          # 045
                                                                                                          MPN: 10519401
                                                                                                          WASHER
                                                                                                          from £0.71
                                                                                                          from £0.71
                                                                                                          WASHER USE 10519424 Genuine Ferrari Part - New In stock
                                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                                          # 046
                                                                                                          MPN: 15896211
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 15896210 which we have in stock
                                                                                                          Genuine Ferrari Part (no longer available to order)
                                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                                          # 047
                                                                                                          MPN: 14651811
                                                                                                          NUT
                                                                                                          NUT Genuine Ferrari Part - New (to order)
                                                                                                          # 048
                                                                                                          MPN: 16519201
                                                                                                          WASHER
                                                                                                          WASHER Genuine Ferrari Part - New (to order)
                                                                                                          # 049
                                                                                                          MPN: 61554300
                                                                                                          DASHBOARD SUPPORT STRUCTURE
                                                                                                          from £229.55
                                                                                                          from £229.55
                                                                                                          DASHBOARD SUPPORT LHD Genuine Ferrari Part - New (to order)
                                                                                                          DASHBOARD SUPPORT LHD Genuine Ferrari Part - Used In stock
                                                                                                          # 051
                                                                                                          MPN: 61689566
                                                                                                          BRACKET
                                                                                                          BRACKET Genuine Ferrari Part - New (to order)
                                                                                                          # 052
                                                                                                          MPN: 61541666
                                                                                                          RADIO BOX
                                                                                                          RADIO BOX Genuine Ferrari Part - New (to order)
                                                                                                          # 053
                                                                                                          MPN: 61554860
                                                                                                          KNEE PROTECTION
                                                                                                          Until car no 82829
                                                                                                          KNEE PROTECTION Genuine Ferrari Part - New (to order)
                                                                                                          # 053
                                                                                                          MPN: 61578366
                                                                                                          KNEE PROTECTION
                                                                                                          From car No 82838
                                                                                                          KNEE PROTECTION Genuine Ferrari Part - New (to order)
                                                                                                          # 055
                                                                                                          MPN: 61561960
                                                                                                          LOWER COVER
                                                                                                          LOWER COVER Genuine Ferrari Part - New (to order)
                                                                                                          # 056
                                                                                                          MPN: 61545666
                                                                                                          GLOVE BOX LOCK
                                                                                                          GLOVE BOX LOCK Genuine Ferrari Part - New (to order)
                                                                                                          # 057
                                                                                                          MPN: 61577500
                                                                                                          CLIP
                                                                                                          from £1.06
                                                                                                          from £1.06
                                                                                                          RETURN SPRING Genuine Ferrari Part - New (to order)
                                                                                                          # 058
                                                                                                          MPN: 61577686
                                                                                                          PIN
                                                                                                          PIN Genuine Ferrari Part - New (to order)
                                                                                                          # 058
                                                                                                          MPN: 66761466
                                                                                                          NEGATIVE TERMINAL
                                                                                                          NEGATIVE TERMINAL Genuine Ferrari Part - New (to order)
                                                                                                          # 059
                                                                                                          MPN: 61577466
                                                                                                          MIRROR, COMPLETE
                                                                                                          MIRROR, COMPLETE Genuine Ferrari Part - New (to order)
