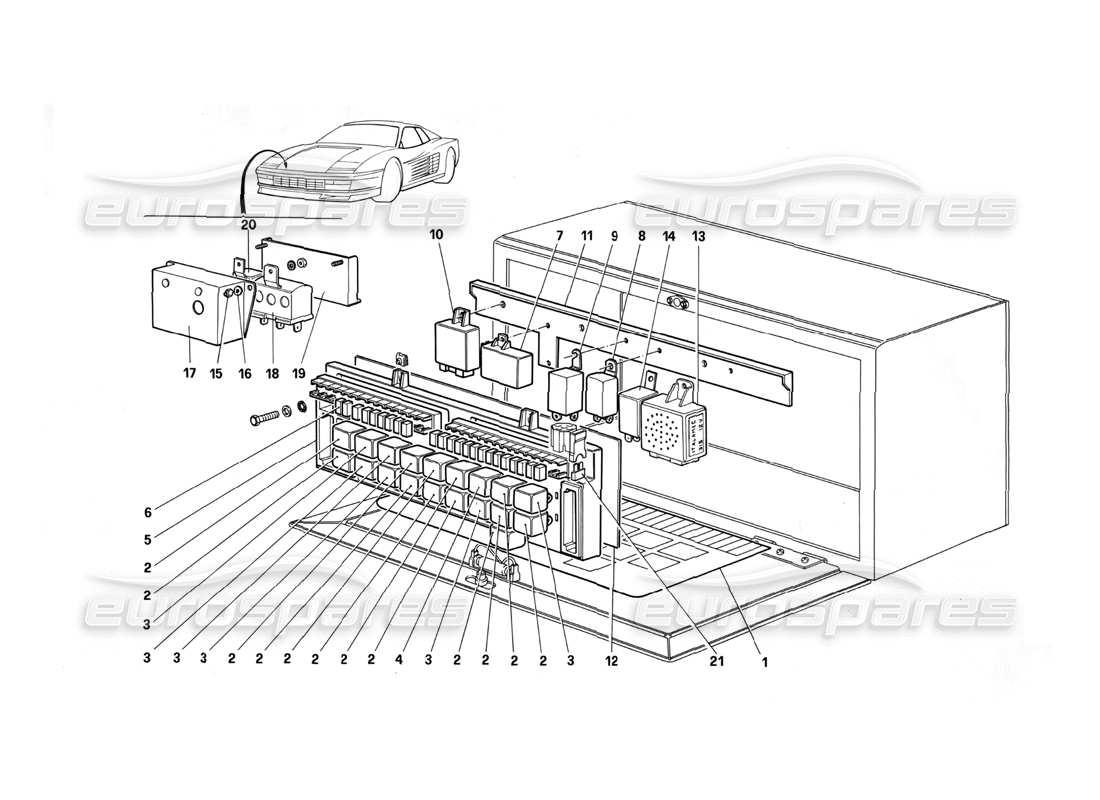

Ferrari Testarossa (1990) Valves and Relays Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 129575
                            INDICATION SHEET
                            For control unit No. 129108
                            from £12.25
                            from £12.25
                            This part replaces part number 124090
                            # 001
                            MPN: 133764
                            INDICATION SHEET
                            For control unit No. 132204
                            from £37.87
                            from £37.87
                            # 002
                            MPN: 40130007
                            RELAY
                            0332209151
                            from £15.66
                            from £15.66
                            This part replaces part number 110356 - and 1 more. Click to view details
                            # 003
                            MPN: 40130106
                            RELAY
                            from £10.40
                            from £10.40
                            This part replaces part number 110355
                            # 004
                            MPN: 40283905
                            RELAY
                            from £37.86
                            from £37.86
                            This part replaces part number 110354 which we have in stock - and 2 more. Click to view details

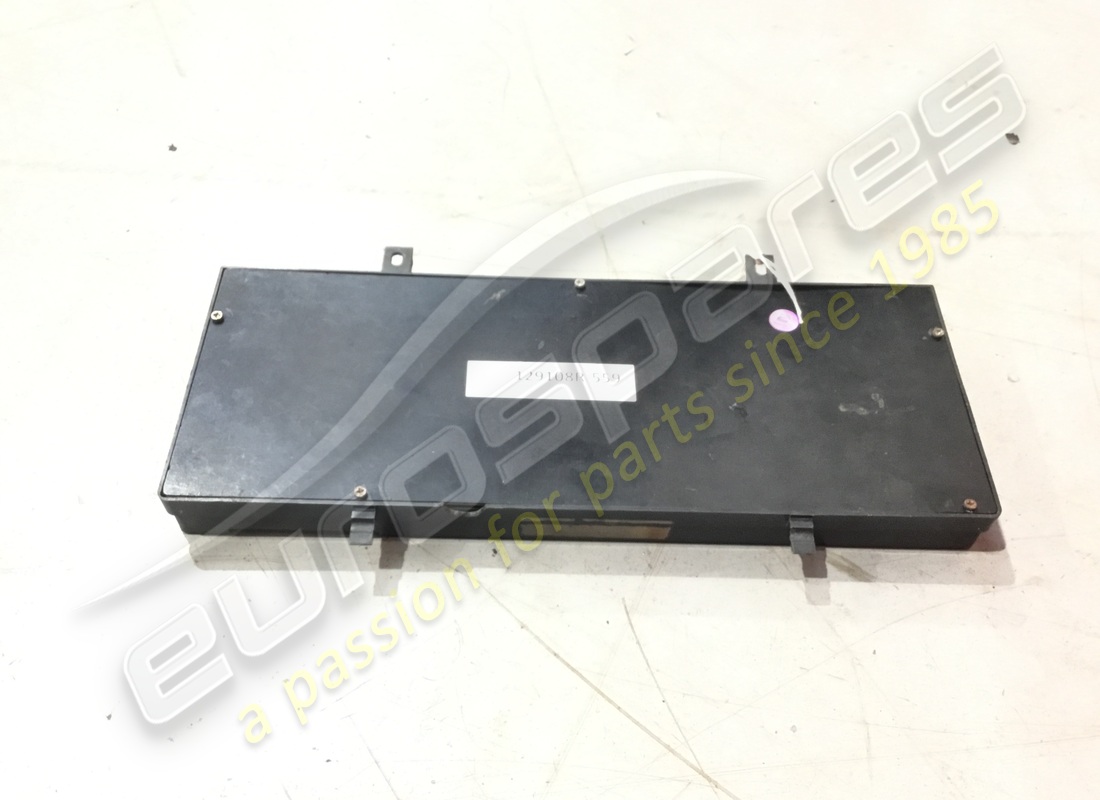

                            # 005
                            MPN: 129108
                            CONTROL UNIT, ASSY.
                            from £3,750.00
                            from £3,750.00
                            This part replaces part number 124089 - and 3 more. Click to view details
                            # 005
                            MPN: 132204
                            CONTROL UNIT, ASSY.
                            Only for GB - for car with Dim-Dip device
                            Supersession
                            Supersession
                            # 006
                            MPN: 115549
                            BRIDGE
                            For control unit No. 132204
                            # 006
                            MPN: 125240
                            7,5A FUSE
                            from £0.47
                            from £0.47
                            This part replaces part number 11054890 - and 1 more. Click to view details
                            # 006
                            MPN: 125241
                            IOA FUSE
                            from £0.53
                            from £0.53
                            This part replaces part number 11054990 - and 1 more. Click to view details
                            # 006
                            MPN: 125242
                            15AFUSE
                            from £0.50
                            from £0.50
                            This part replaces part number 11055090 - and 1 more. Click to view details
                            # 006
                            MPN: 125243
                            20A FUSE
                            from £0.47
                            from £0.47
                            This part replaces part number 11055190 - and 1 more. Click to view details
                            # 007
                            MPN: 61079400
                            A.C. CONTROL UNIT
                            from £5,487.83
                            from £5,487.83
                            # 008
                            MPN: 124717
                            TACHOMETRIC RELAY
                            Supersession
                            Supersession
                            # 009
                            MPN: 61048000
                            SIGNAL INDICATOR RELAY AND HAZARD
                            For J - CH - Not for US
                            from £161.81
                            from £161.81
                            This part replaces part number 111754
                            # 009
                            MPN: 61651800
                            INTERMITTENCE FOR DIRECTION AND HAZARD
                            For US version
                            from £75.50
                            from £75.50
                            # 010
                            MPN: 257-80-162-00
                            WIPER INTERMITTENCE
                            from £93.20
                            from £93.20
                            # 011
                            MPN: 124092
                            CONTROL UNIT FIXING PLATE
                            from £6.19
                            from £6.19
                            # 012
                            MPN: 116055
                            REAR COVER
                            # 013
                            MPN: 133198
                            SEAT BELTS CONTROL UNIT FOR US
                            Until car no 76572
                            from £94.11
                            from £94.11
                            # 013
                            MPN: 136133
                            SEAT BELTS CONTROL UNIT FOR US
                            Until car no 76573
                            from £50.81
                            from £50.81
                            # 013
                            MPN: 61830700
                            SEAL BELTS CONTROL UNIT
                            For SA - CDN
                            from £71.40
                            from £71.40
                            This part replaces part number 61268300 - and 1 more. Click to view details
                            # 014
                            MPN: 131486
                            BUZZER FOR LOWER OIL PRESSURE AND EXHAUST HIGHT TEMPERATURE
                            For US - CH
                            from £49.82
                            from £49.82
                            # 014
                            MPN: 61914500
                            BRAKE WARNING LIGHT CONTROL RELAY
                            Not for US - SA - J
                            from £8.64
                            from £8.64
                            # 014
                            MPN: 62346400
                            DIM-DIP, DEVICE, ASSY.
                            For GB until car ..........
                            from £36.00
                            from £36.00
                            # 015
                            MPN: 169180
                            NUT
                            For GB car with Dim-Dip device
                            from £0.54
                            from £0.54
                            This part replaces part number 12574121
                            # 016
                            MPN: 10519301
                            WASHER
                            from £12.68
                            from £12.68
                            This part replaces part number 10517377 - and 2 more. Click to view details
                            # 017
                            MPN: 62342800
                            PROTECTION COVER
                            from £19.15
                            from £19.15
                            # 018
                            MPN: 62342000
                            RESISTOR
                            from £5.92
                            from £5.92
                            # 019
                            MPN: 132128
                            SUPPORT
                            from £16.93
                            from £16.93
                            # 020
                            MPN: 62342100
                            RELAY
                            from £11.55
                            from £11.55
                            # 021
                            MPN: 131942
                            3A FUSE FOR BATTERY-ALTERNATOR CABLE PROTECTION
                            from £0.47
                            from £0.47
                            This part replaces part number MC3742/10
                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
