ferrari testarossa (1990) heater unit parts diagram

127 - Heater Unit

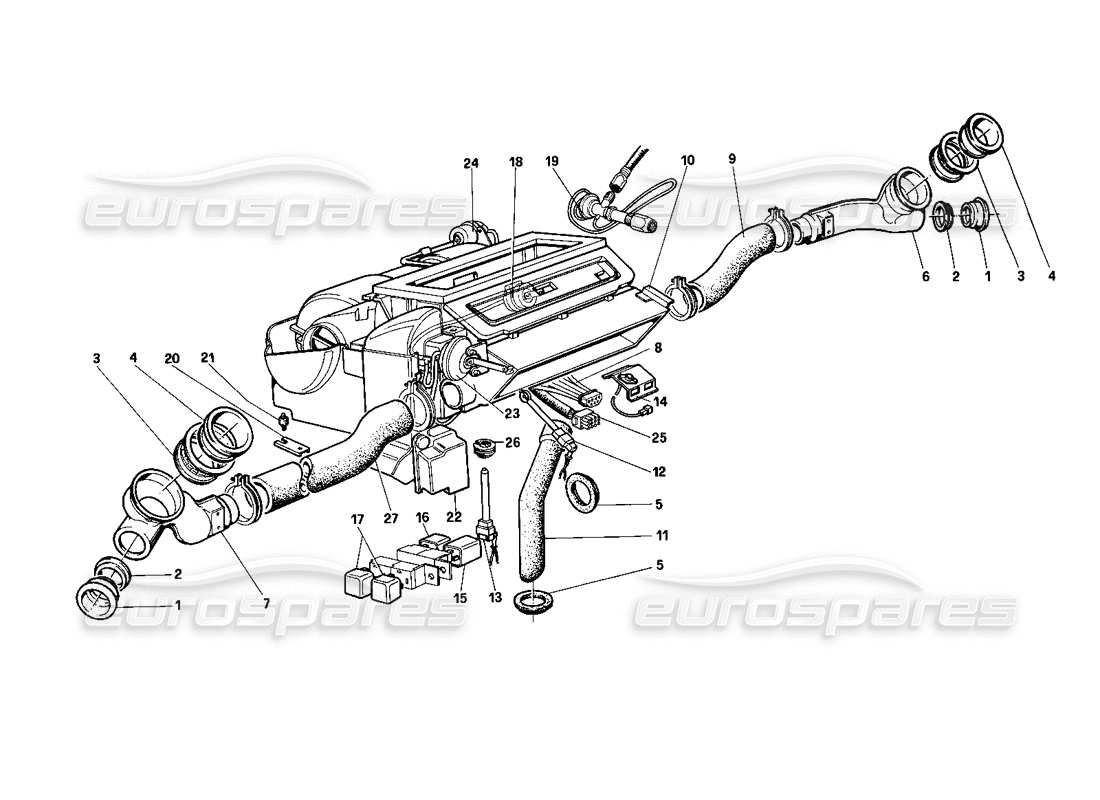

Ferrari Testarossa (1990) Heater Unit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 61528300
                                              AIR DUCT GASKET
                                              # 002
                                              MPN: 61503600
                                              FRAME FOR GASKET
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 61528400
                                              # 003
                                              MPN: 61528500
                                              AIR VENT FRAME RING
                                              from £4.30
                                              from £4.30

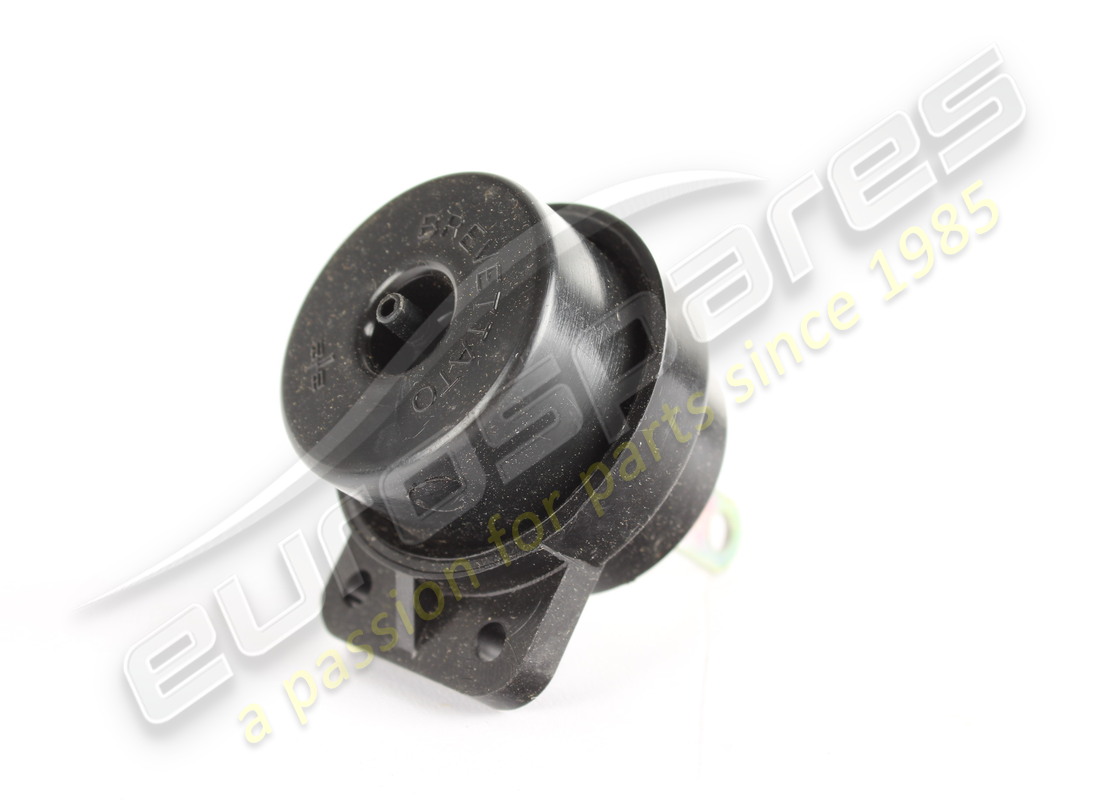

                                              # 004
                                              MPN: 61528600
                                              AIR VENT
                                              from £90.07
                                              from £90.07
                                              # 005
                                              MPN: 61528700
                                              GASKET FOR WATER OUTLET PIPE
                                              from £1.04
                                              from £1.04

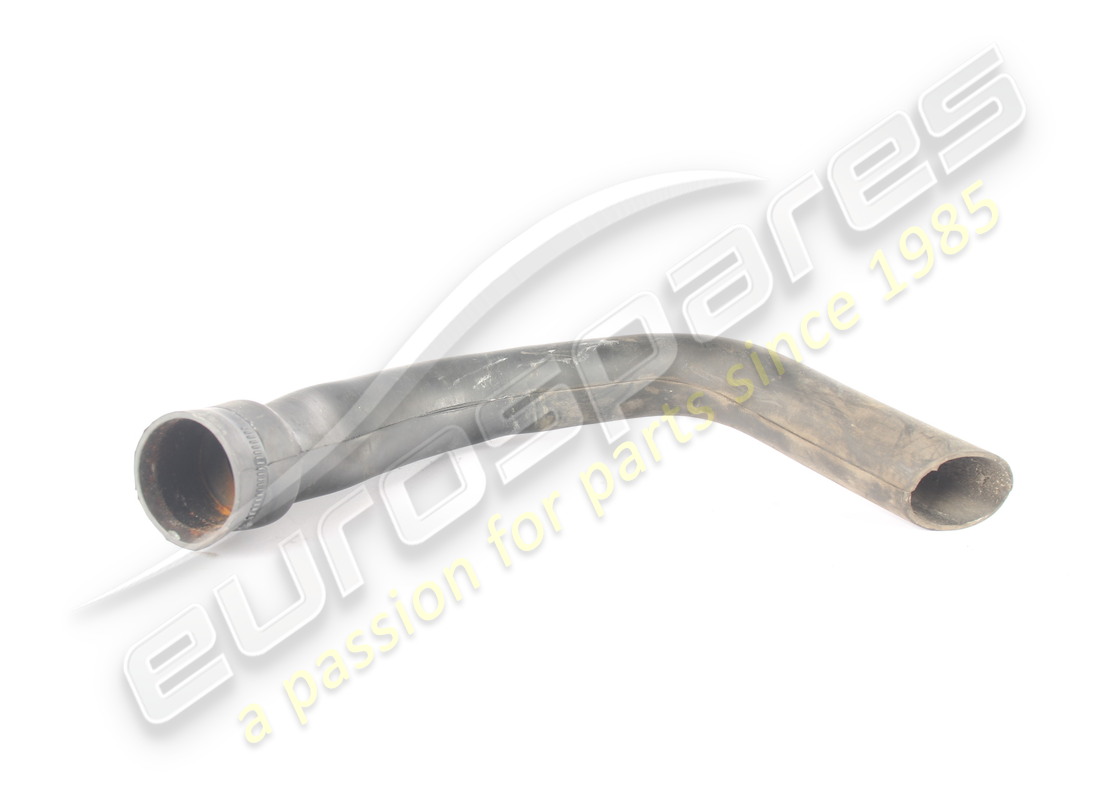

                                              # 006
                                              MPN: 61528800
                                              RH AIR DUCT
                                              For LHD
                                              from £70.90
                                              from £70.90
                                              # 006
                                              MPN: 61535500
                                              RH AIR DUCT
                                              For RHD
                                              from £64.73
                                              from £64.73
                                              # 007
                                              MPN: 61528900
                                              LH AIR DUCT
                                              For LHD
                                              from £70.90
                                              from £70.90
                                              # 007
                                              MPN: 61535600
                                              LH AIR DUCT
                                              For RHD
                                              from £64.73
                                              from £64.73
                                              # 008
                                              MPN: 61539700
                                              CONNECTION FOR VACUUM PIPE

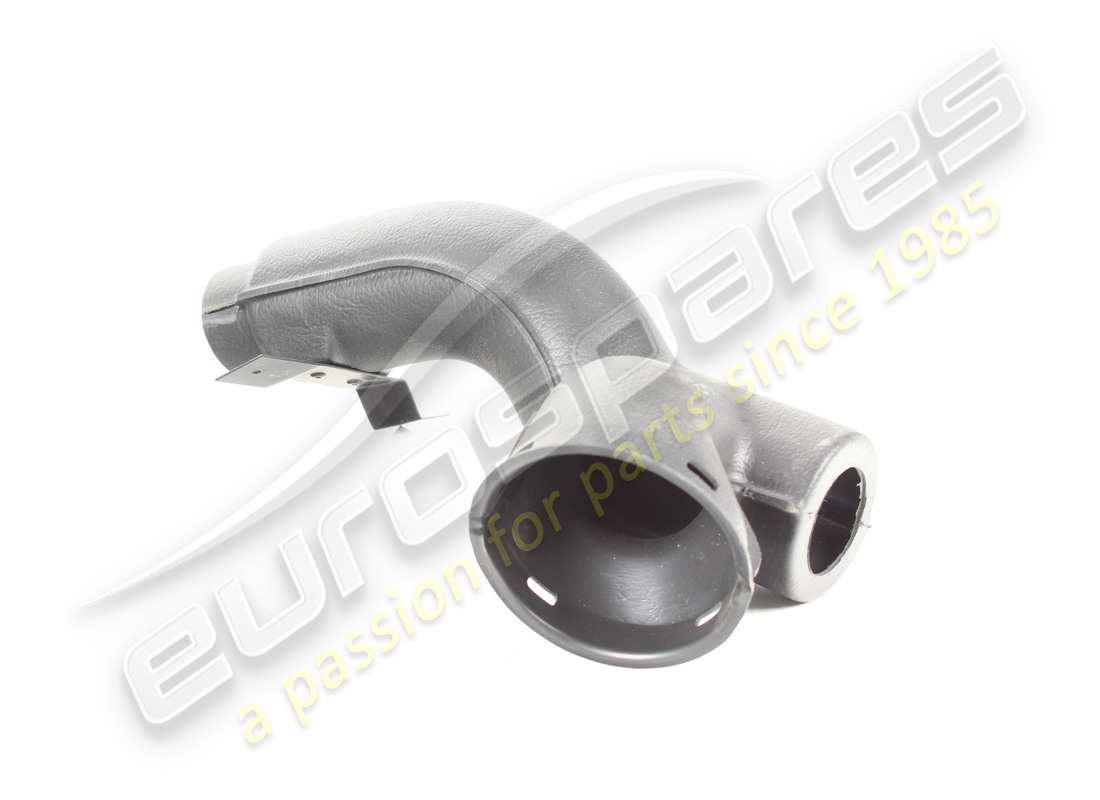

                                              # 009
                                              MPN: 61559100
                                              RH UNION FROM HEATER AIR VENT
                                              from £143.29
                                              from £143.29
                                              # 010
                                              MPN: 134131

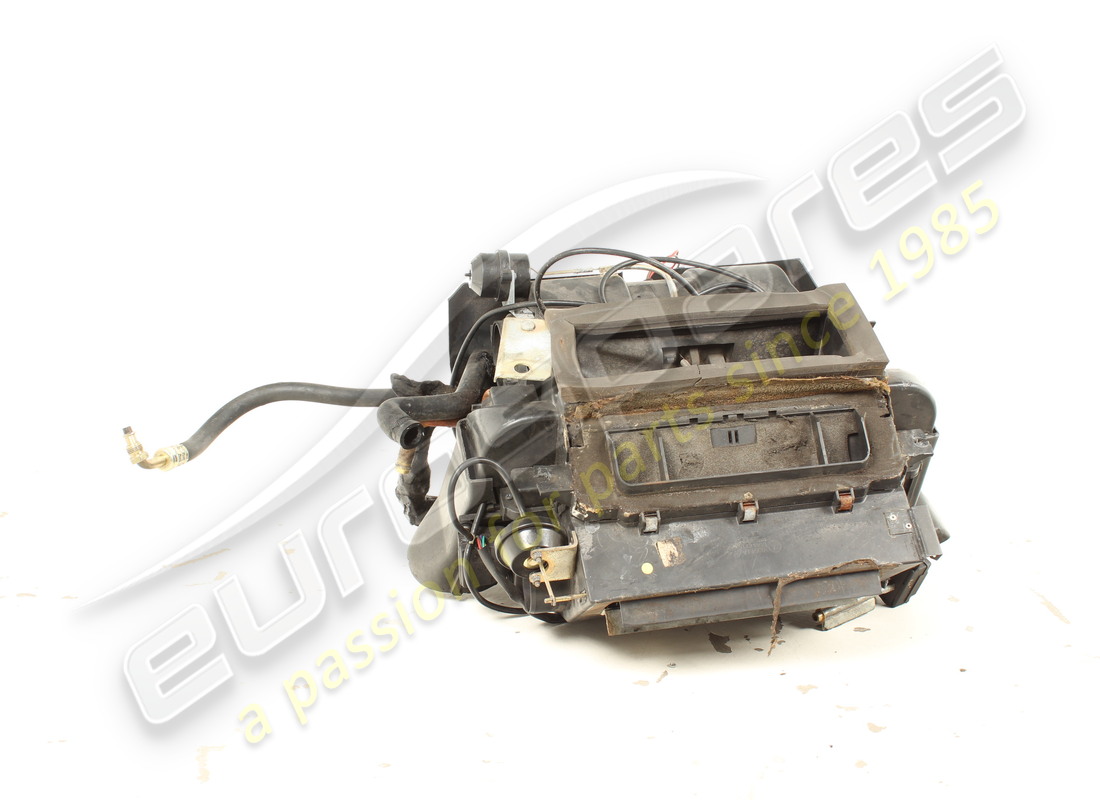

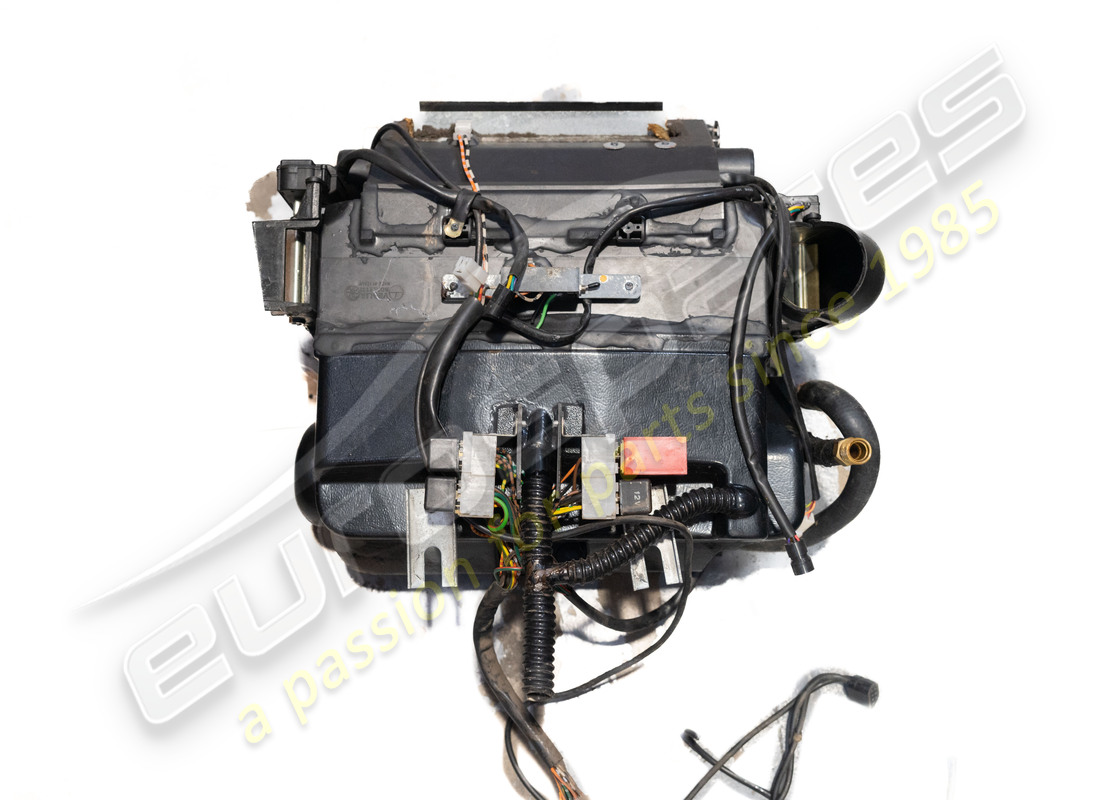

                                              AIR CONDITIONER
                                              for LHD - Starting from car No 73497
                                              from £2,497.76
                                              from £2,497.76
                                              # 010
                                              MPN: 134143
                                              AIR CONDITIONER
                                              For RHD - Starting from car No 73497
                                              from £1,047.86
                                              from £1,047.86
                                              # 010
                                              MPN: 60955900
                                              AIR CONDITIONER
                                              For LHD - Until car no 73495
                                              from £3,192.64
                                              from £3,192.64
                                              # 010
                                              MPN: 61716800
                                              AIR CONDITIONER
                                              For RHD - Until car no 73495
                                              from £2,409.54
                                              from £2,409.54
                                              # 011
                                              MPN: 61529300
                                              CONDENSATE DRAIN PIPE
                                              from £11.50
                                              from £11.50
                                              # 012
                                              MPN: 61079600

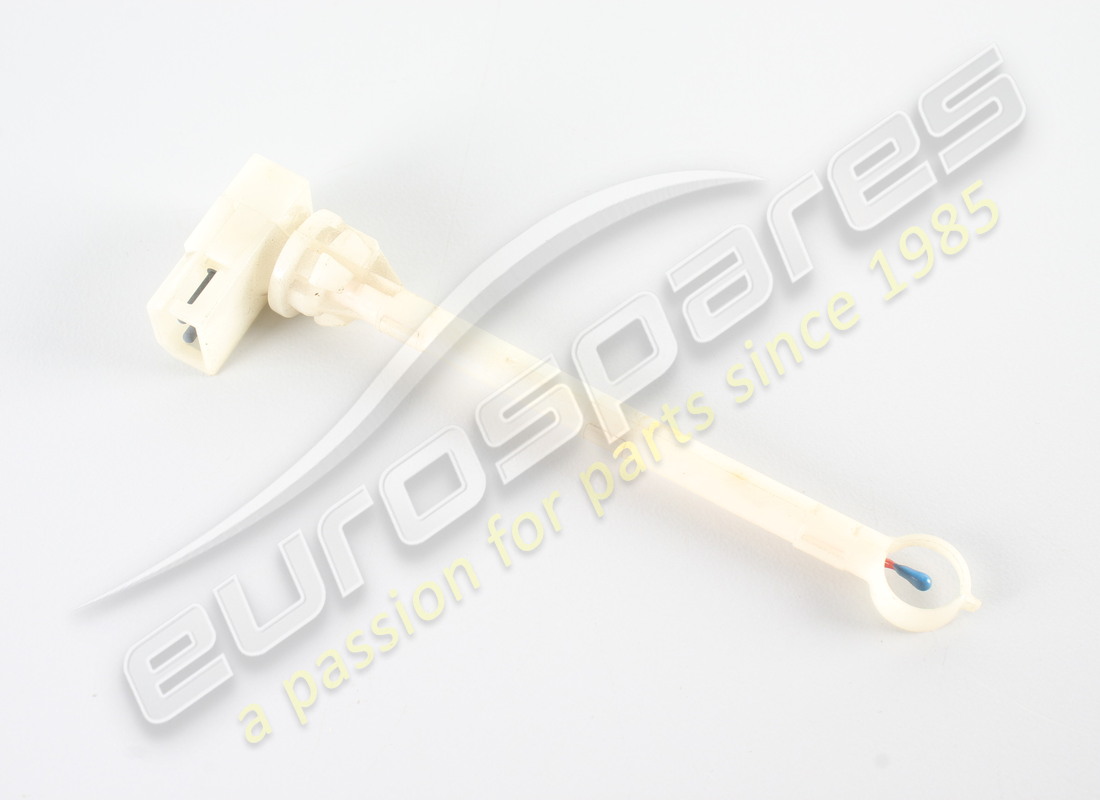

                                              AIR TEMPERATURE SENSOR
                                              from £153.57
                                              from £153.57
                                              # 013
                                              MPN: 62341000
                                              COOLER TEMPERATURE SENSOR
                                              from £248.85
                                              from £248.85
                                              This part replaces part number 61079500
                                              # 014
                                              MPN: 127014
                                              POWER TRANSISTOR
                                              from £103.22
                                              from £103.22
                                              This part replaces part number 60930200 which we have in stock
                                              # 015
                                              MPN: 123509
                                              TIMER
                                              from £85.23
                                              from £85.23
                                              # 016
                                              MPN: 62478900
                                              CONTROL RELAY
                                              from £6.31
                                              from £6.31
                                              # 017
                                              MPN: 40130007
                                              RELAY
                                              0332209151
                                              from £16.83
                                              from £16.83
                                              This part replaces part number 110356 - and 1 more. Click to view details
                                              # 018
                                              MPN: 61268000
                                              INTERIOR ACTUATOR
                                              from £14.42
                                              from £14.42
                                              # 019
                                              MPN: 61742600

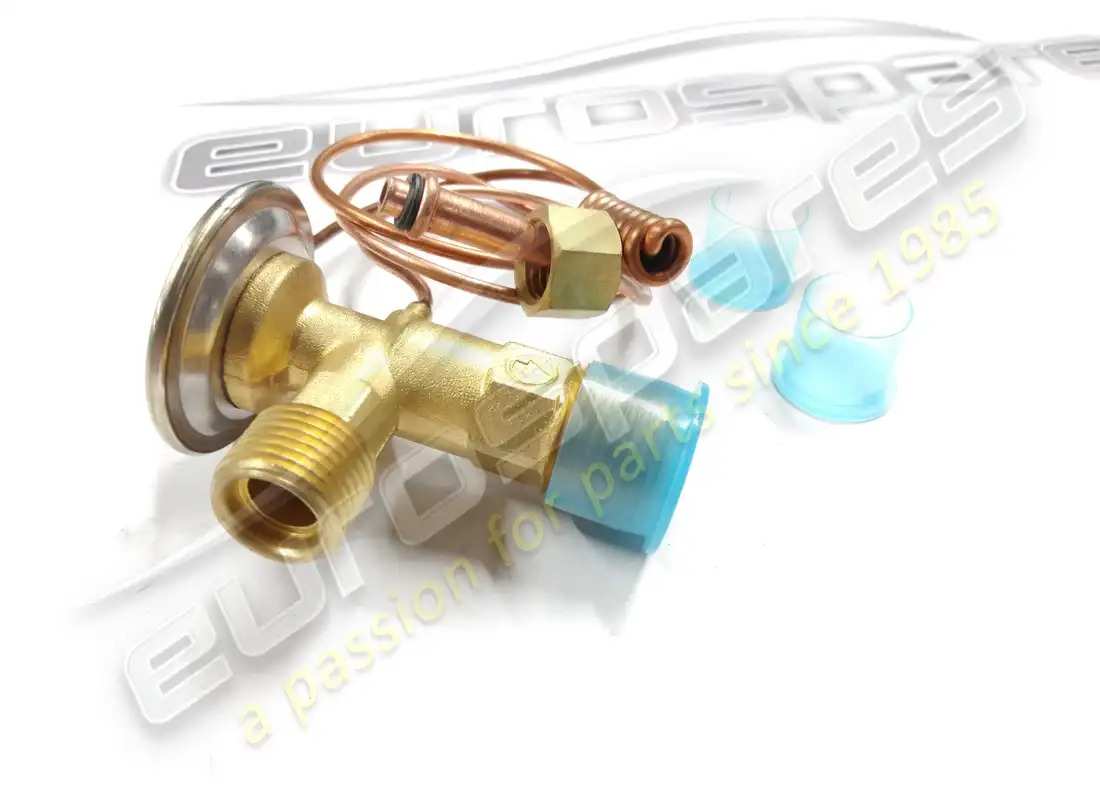

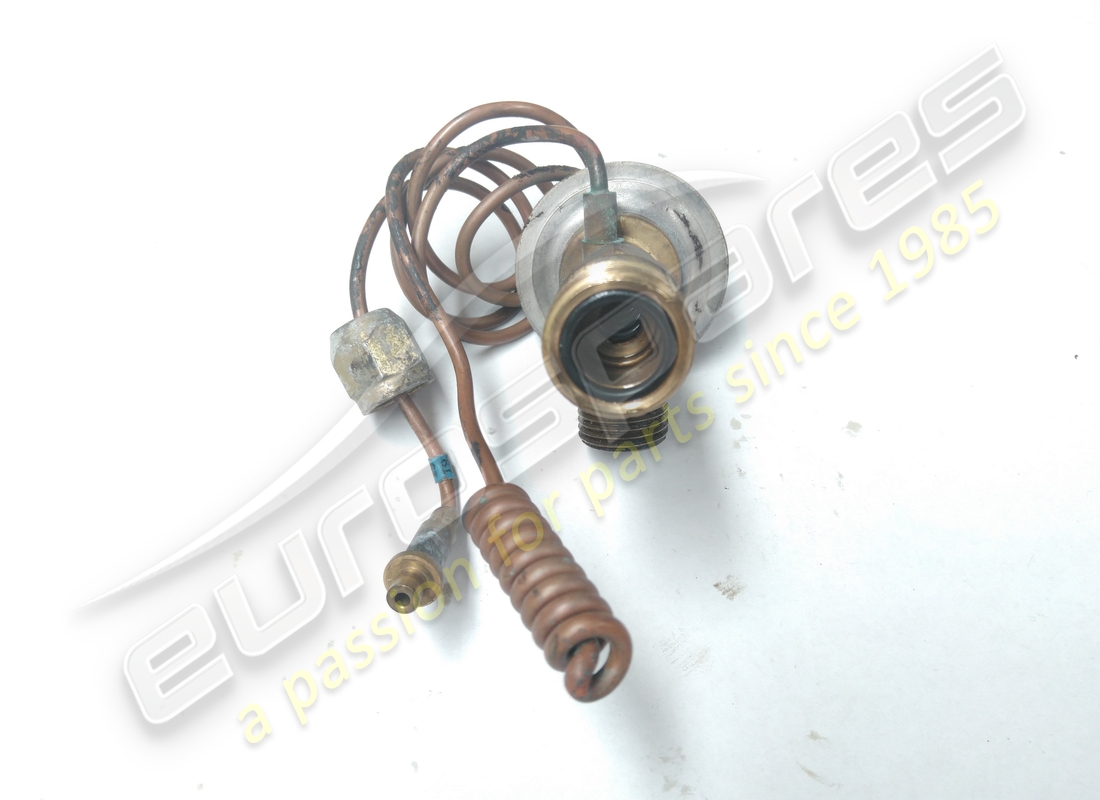

                                              EXPANSION VALVE
                                              from £26.39
                                              from £26.39
                                              This part replaces part number 109251 - and 1 more. Click to view details
                                              # 020
                                              MPN: 60726800
                                              AIR CONDITIONER ASSEMBLY LOWER BRACKET
                                              from £8.06
                                              from £8.06
                                              # 021
                                              MPN: 102947
                                              ANTI-SHAKER SUPPORT
                                              from £7.01
                                              from £7.01
                                              This part replaces part number 102007 - and 14 more. Click to view details
                                              # 022
                                              MPN: 124037
                                              RH AIR DUCT WITH ACTUATOR
                                              For LHD
                                              from £224.75
                                              from £224.75
                                              # 022
                                              MPN: 124038
                                              LH AIR DUCT WITH ACTUATOR
                                              For LHD
                                              from £94.48
                                              from £94.48
                                              # 022
                                              MPN: 125447
                                              RH AIR DUCT WITH ACTUATOR
                                              For RHD
                                              from £119.70
                                              from £119.70
                                              # 022
                                              MPN: 125448
                                              LH AIR DUCT WITH ACTUATOR
                                              For RHD
                                              from £113.87
                                              from £113.87
                                              # 023
                                              MPN: 60930700
                                              ACTUATOR FOR DEFROSTER COVER
                                              from £25.71
                                              from £25.71
                                              # 024
                                              MPN: 60930500
                                              ACTUATOR
                                              from £35.43
                                              from £35.43
                                              # 025
                                              MPN: 124036
                                              CABLE FOR AIR CONDITIONER ASSEMBLY
                                              from £41.00
                                              from £41.00
                                              # 026
                                              MPN: 61086200
                                              GASKET
                                              from £1.49
                                              from £1.49
                                              # 027
                                              MPN: 61559200
                                              LH UNION FROM HEATER AIR VENT
                                              from £143.29
                                              from £143.29
