005 - OIL SYSTEM

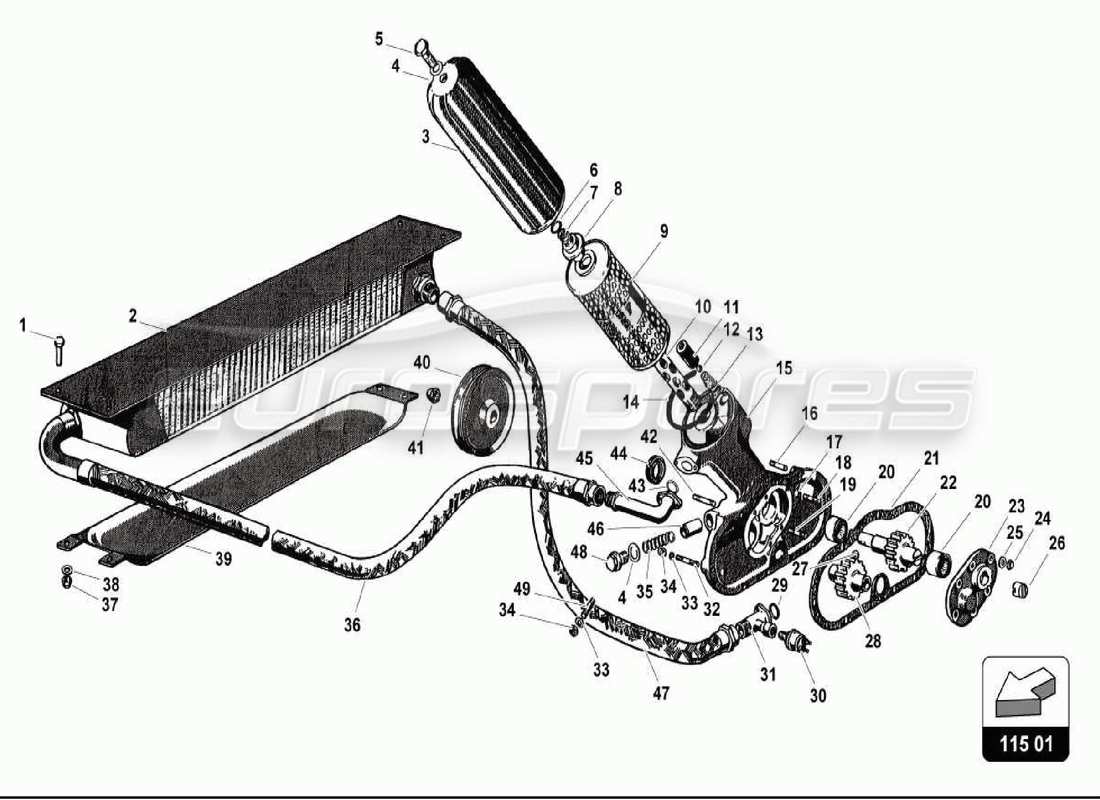

Lamborghini 350 GT Oil System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008100830
SCREW M8X20 UNI 5739/8G/Z
from £0.54
from £0.54
# 002
MPN: 001501692
# 003
MPN: 001500874
OIL FILTER
# 004
MPN: 008401804
ANNEALED COPPER WASHER 18.2X30 X1
from £2.53
from £2.53
# 005
MPN: 001500921
OIL FILTER PLUG
# 006
MPN: 008602002
RING 21 MM OR
from £14.31
from £14.31
# 007
MPN: 001500925
CARTRIDGE FILTER SPRING
from £15.93
from £15.93
# 008
MPN: 001500892
OIL FILTER CARTRIDGEHOUSING
from £116.08
from £116.08
# 009
MPN: 001501188
OIL FILTER
Gasket Required = 001501128
from £27.16
from £27.16
# 010
MPN: 001500889
OIL FILTER PIPE
from £54.23
from £54.23
# 011
MPN: 001501189
OVER PRESSURE VALVE SEAT
from £259.40
from £259.40
# 012
MPN: 008911101
VALVE BALL
from £3.70
from £3.70
# 013
MPN: 001501190
OIL SAFETY VALVE SPRING
from £5.81
from £5.81

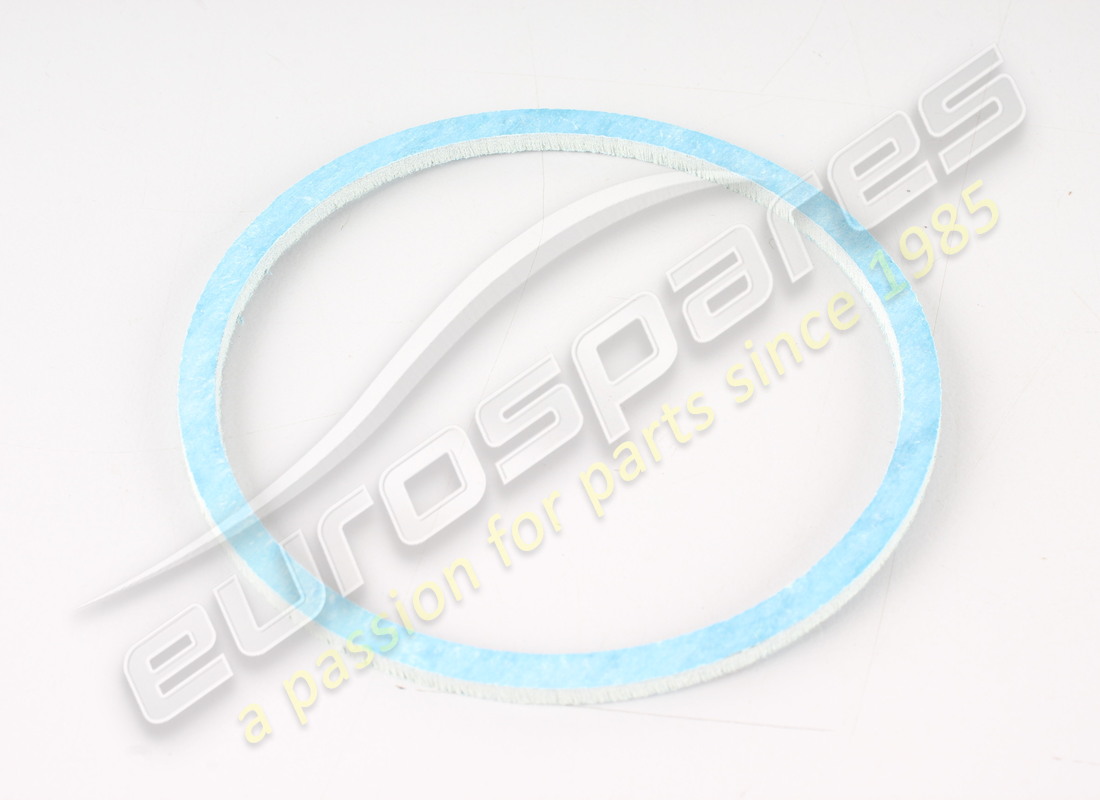

# 014
MPN: 001501128
OIL FILTER SEAL
from £12.41
from £12.41
# 015
MPN: 001500890
Oil Pump L 351
# 016
MPN: 008300619
STUD.M6X32 UNI 5911 8G Z
# 017
MPN: 008850605
PIN RIF.8H7X6,25X10
# 018
MPN: 008300615
STUD 6X22 UNI 5911/8G/Z
from £12.69
from £12.69
# 019
MPN: 008300610
STUD 6X1X16 8G UNI5911 Z.
from £15.47
from £15.47
# 020
MPN: 008521703
BEARING
from £39.93
from £39.93
# 021
MPN: 001500898
PUMP SEAL
from £17.75
from £17.75
# 022
MPN: 001500944
# 023
MPN: 00150089
# 024
MPN: 008200604
NUT
Supersession
Supersession
# 025
MPN: 008410602
WASHER 12X6.4X0.5 DIN 137/B
from £28.85
from £28.85
# 026
MPN: 001500915
Oil Pump Joint
from £52.41
from £52.41
# 027
MPN: LN-00951
# 028
MPN: 001500893
OIL PUMP DRIVE GEAR
from £1,050.55
from £1,050.55
# 029
MPN: 008601703
RING 17 MM OR
from £1.08
from £1.08
# 030
MPN: 001508565
OIL PRESSURE TRANSMITTER
from £1,163.79
from £1,163.79
This part replaces part number 001501494
# 031
MPN: 001501481
OIL PRESSURE ACTUATOR FLANGE
from £549.05
from £549.05
# 032
MPN: PN-00944
(MONTATO DAL TELAIO N.4155)
# 033
MPN: 008400606
WASHER 12.5X6.4X1.6 UNI 6592/5 S/Z
Supersession
Supersession
# 034
MPN: 008200605
NUT
from £1.89
from £1.89
# 035
MPN: 001500927
OIL PRESSURE VALVE SPRING
from £8.50
from £8.50
# 036
MPN: 001501480
# 037
MPN: N0111849
NUT
from £1.51
from £1.51
This part replaces part number 008200809
# 038
MPN: N90179103
WASHER 18X8.4X2.5/8G/ZD
from £1.06
from £1.06
This part replaces part number 008400801
# 039
MPN: 001501647
OIL RADIATOR
# 040
MPN: 001500895
ALTERNATOR DRIVE PULLEY
from £779.37
from £779.37
# 041
MPN: 008201212
NUT
from £1.27
from £1.27
# 042
MPN: 008300616
STUD M6X50 UNI 5911 8G/Z
from £22.78
from £22.78
# 043
MPN: 008602304
RING 23 MM OR
from £5.71
from £5.71
This part replaces part number 008602302
# 044
MPN: GN-0095
# 045
MPN: 001501478
PUMP OIL OUTLET PIPE
# 046
MPN: 001500914
OIL PRESSURE VALVE PISTON
from £49.75
from £49.75
# 047
MPN: 001501479
from £591.60
from £591.60
# 048
MPN: 001500913
# 049
MPN: 008300614
STUD M6X18 UNI 5911 8G/ZD
Supersession
Supersession
