lamborghini lp700-4 coupe (2012) oil cooler parts diagram

117.03.00 - OIL COOLER

Lamborghini LP700-4 Coupe (2012) OIL COOLER Parts Diagram

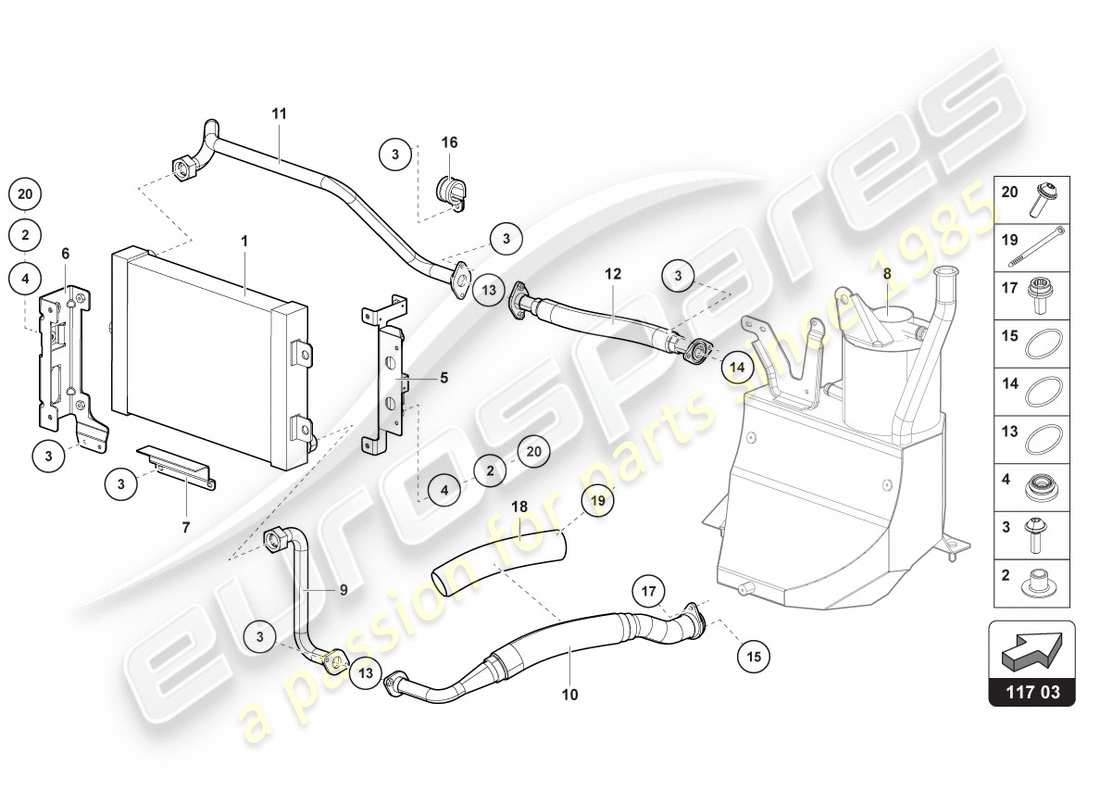

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 001
                      MPN: 07M117021C
                      OIL COOLER
                      from £1,129.19
                      from £1,129.19
                      OIL COOLER Genuine Lamborghini - New (to order)
                      # 002
                      MPN: 8Z0129734
                      BUSH
                      from £5.03
                      from £5.03
                      SPACER Genuine Lamborghini - New (to order)
                      # 003
                      MPN: N10558102
                      SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                      M6X18
                      from £2.60
                      from £2.60
                      HEXALOBULAR SOCKET HEAD BOLT Genuine Lamborghini - New In stock
                      # 004
                      MPN: 8Z0129669A
                      GROMMET
                      from £3.94
                      from £3.94
                      GROMMET Genuine Lamborghini - New (to order)
                      # 005
                      MPN: 470115633
                      RETAINER FOR OIL COOLER
                      INNER
                      Supersession
                      Supersession
                      Genuine Lamborghini (no longer available to order)
                      # 006
                      MPN: 470115632
                      RETAINER FOR OIL COOLER
                      OUTER
                      Supersession
                      Supersession
                      Genuine Lamborghini (no longer available to order)
                      # 007
                      MPN: 470117188
                      RETAINER FOR OIL COOLER
                      from £10.64
                      from £10.64
                      BRACKET Genuine Lamborghini - New (to order)
                      BRACKET Genuine Lamborghini - Used In stock
                      # 008
                      -
                      OIL CONTAINER
                      SEE ILLUSTRATION : 117.02
                      # 009
                      MPN: 470115655
                      OIL HOSE
                      from £83.03
                      from £83.03
                      OIL HOSE Genuine Lamborghini - New (to order)
                      OIL HOSE Genuine Lamborghini - Used In stock
                      # 010
                      MPN: 470115657A
                      OIL HOSE
                      (EUROPE spec vehicles)
                      from £279.93
                      from £279.93
                      OIL HOSE Genuine Lamborghini - New (to order)
                      OIL HOSE Genuine Lamborghini - Used In stock
                      # 010
                      MPN: 470115657C
                      OIL HOSE
                      from £710.45
                      from £710.45
                      OIL HOSE Genuine Lamborghini - New (to order)
                      OIL HOSE Genuine Lamborghini - Used In stock
                      # 011
                      MPN: 470115689A
                      OIL PIPE
                      from £103.77
                      from £103.77
                      OIL HOSE Genuine Lamborghini - New (to order)
                      OIL HOSE Genuine Lamborghini - Used In stock
                      # 012
                      MPN: 470115687
                      OIL PIPE
                      from £197.13
                      from £197.13
                      OIL HOSE Genuine Lamborghini - New (to order)
                      OIL HOSE Genuine Lamborghini - Used In stock
                      # 013
                      MPN: WHT004894
                      SEAL RING
                      31.42X2.62
                      from £2.09
                      from £2.09
                      ORING Genuine Lamborghini - New In stock
                      # 014
                      MPN: WHT004894
                      SEAL RING
                      31.42X2.62
                      from £2.15
                      from £2.15
                      ORING Genuine Lamborghini - New In stock
                      # 015
                      MPN: WHT004896
                      SEAL RING
                      38X2
                      from £11.06
                      from £11.06
                      O-RING Genuine Lamborghini - New In stock
                      # 016
                      MPN: N0206244
                      CLAMP
                      from £2.68
                      from £2.68
                      HOLDING CLIP Genuine Lamborghini - New (to order)
                      CLAMP Genuine Porsche Part - New (to order)
                      # 017
                      MPN: N10717001
                      SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
                      M8X18
                      from £1.45
                      from £1.45
                      12-POINT SOCKET M8X18 Genuine Lamborghini - New In stock
                      BOLT, WITH POLYGON SOCKET HD. Genuine Porsche Part - New (to order)
                      # 018
                      MPN: 470198049
                      HEAT SHIELD
                      from £68.03
                      from £68.03
                      HEAT SHIELD Genuine Lamborghini - New (to order)
                      # 019
                      MPN: 470971850C
                      SPRING BAND CLAMP
                      from £5.19
                      from £5.19
                      This part replaces part number 470971850
                      CABLE TIE Genuine Lamborghini - New (to order)
                      # 020
                      MPN: N91054001
                      SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD
                      M6X22
                      from £0.61
                      from £0.61
                      HEXALOBULAR SOCKETM6X22-S11 Genuine Lamborghini - New (to order)
                      SEMI ROUND BOLT (COMBI) WITH Genuine Porsche Part - New (to order)
