121.04.00 - Cooling System

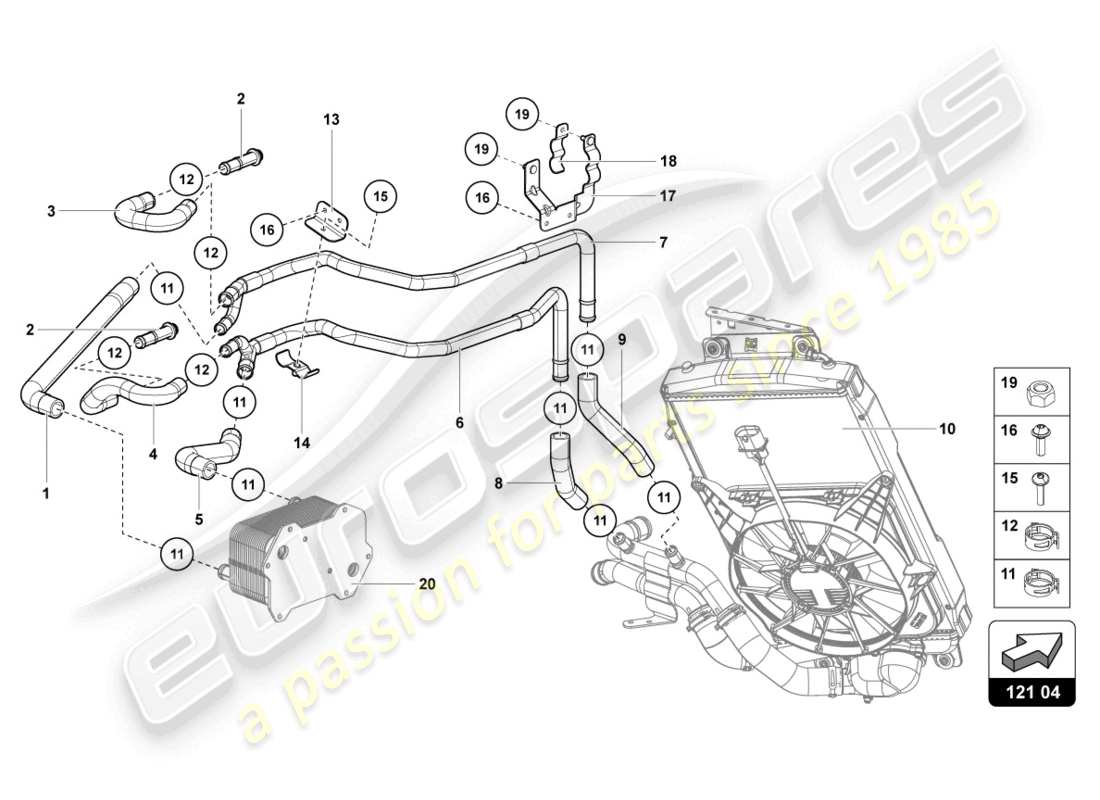

Lamborghini Ultimae Roadster (2022) COOLING SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 002
          -
          HOSE CONNECTOR
          SEE ILLUSTRATION : 145.03
          # 007
          MPN: 470121194A
          COOLANT HOSE
          from £421.58
          from £421.58
          COOLANT HOSE Genuine Lamborghini - New In stock
          COOLANT HOSE Genuine Lamborghini - Used In stock
          # 010
          -
          COOLER FOR COOLANT
          SEE ILLUSTRATION : 121.03
          # 011
          MPN: N90687001
          SPRING BAND CLAMP
          27X12
          from £4.70
          from £4.70
          SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
          SPRING CLIP Genuine Porsche Part - New (to order)
          # 012
          MPN: N90686901
          SPRING BAND CLAMP
          23X12
          from £0.64
          from £0.64
          SPRING CLAMP B23X12 Genuine Lamborghini - New In stock
          SPRING CLIP Genuine Porsche Part - New (to order)
          # 013
          MPN: 470121724B
          BRACKET FOR COOLANT PIPE
          rear
          from £37.29
          from £37.29
          BRACKET Genuine Lamborghini - New (to order)
          # 014
          MPN: 470121660A
          BRACKET FOR COOLANT PIPE
          from £7.54
          from £7.54
          BRACKET SUPP.Tubi H2O Genuine Lamborghini - New (to order)
          # 015
          MPN: N10632202
          ROUND HD. SCREW
          M6X30
          from £1.22
          from £1.22
          This part replaces part number N90965801
          HEXAL.SOCKET SCREW W. FLANGE M6X30 8.8 Genuine Lamborghini - New In stock
          # 016
          MPN: N10558102
          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
          M6X18
          from £2.60
          from £2.60
          HEXALOBULAR SOCKET HEAD BOLT Genuine Lamborghini - New In stock
          # 017
          MPN: 470121079C
          BRACKET FOR COOLANT PIPE
          from £17.33
          from £17.33
          BRACKET Genuine Lamborghini - New (to order)
          BRACKET Genuine Lamborghini - Used In stock
          # 018
          MPN: 470121527A
          BRACKET FOR COOLANT PIPE
          from £17.00
          from £17.00
          BRACKET Genuine Lamborghini - New (to order)
          # 019
          MPN: N02214812
          HEXAGON NUT, SELF-LOCKING
          M6
          from £1.08
          from £1.08
          This part replaces part number 008200612
          HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
          hex. nut, self-locking - M6 Genuine Porsche Part - New In stock
          # 020
          -
          OIL COOLER
          SEE ILLUSTRATION : 117.01
