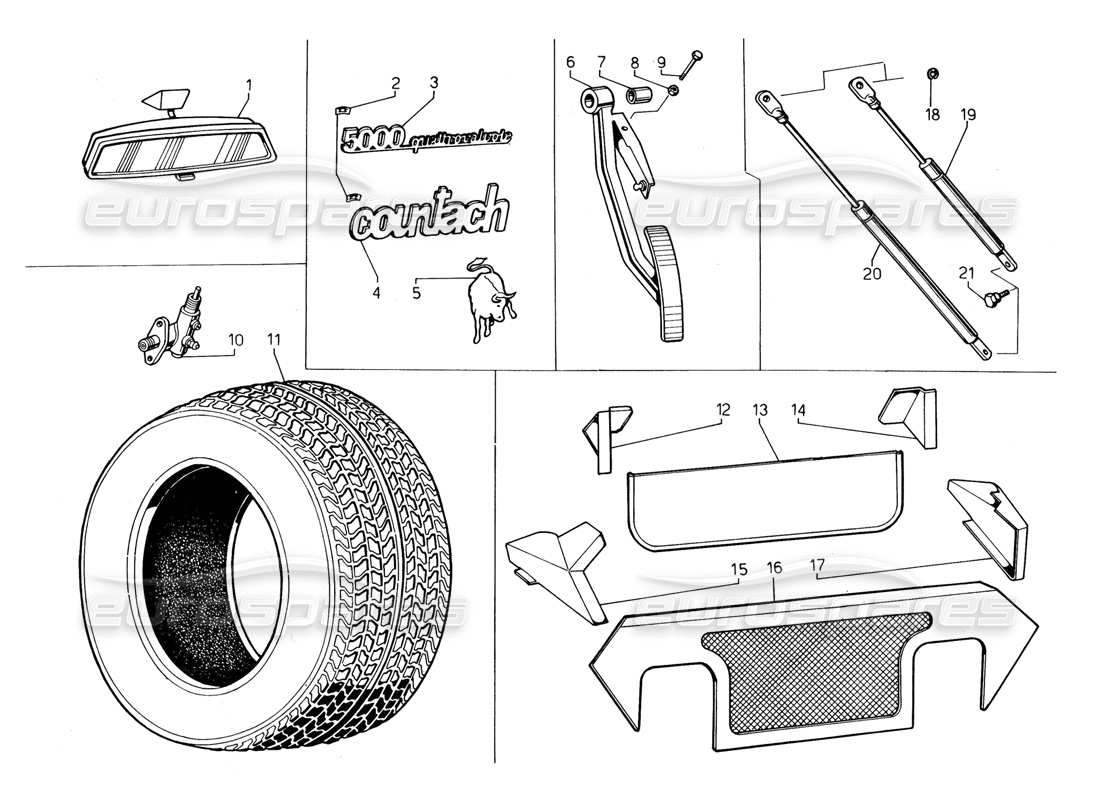

Lamborghini Countach 5000 QV (1985) Miscellaneous Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 007058052
REAR MIRROR
Specchietto retrovisore interne abitacolo
Supersession
Supersession
# 002
MPN: 006121017
SEAL
Mollette fissaggio marchio
from £4.37
from £4.37
# 003
MPN: 006122589
INSCRIPTION
Scritta «5000 4 valvole» colors nera
from £89.13
from £89.13
# 004
MPN: 006111345
NAME PLATE
Scritta countach nero opaco
from £81.90
from £81.90
# 005
MPN: 006121271
BLACK BULL
Marchio Lamborghini (toro allum. anodizz.) For Silver use part number : 006128588
from £112.51
from £112.51
# 006
MPN: 004222072
Accelerator Pedal
PEDALE ACCELERATORE
# 007
MPN: 008801501
BUSH
BoccolaMB 1525 DU
from £11.69
from £11.69
# 008
MPN: 008200604
NUT
DADO M6 UNI 5588-65/8G
Supersession
Supersession
# 009
MPN: 008100632
BOLT
Bull. M6x30 UNI 5739-65A 5S
from £1.67
from £1.67
# 010
MPN: 005121977
TRANSMISSION
RINVIO CONTAKM.
from £1,173.91
from £1,173.91
# 011
MPN: 005321978
ORIG. COVER PIRELLI
Copertura orig pirelli (ant. 225/50 VR15)
# 012
MPN: 007066003
SUPPOR
Supp. sinistro x portatarga post.
from £46.85
from £46.85
# 013
MPN: 007066004
REAR PLATE SUPP.
PORTATARGA POSTERIORE
from £63.46
from £63.46
# 014
MPN: 007066002
SUPPOR
Supp. destro x portatarga post.
from £46.85
from £46.85
# 015
MPN: 007030007
SHIELD
Angolare sx x riparo marmitte
from £127.10
from £127.10
# 016
MPN: 007030008
TEMPLATE
MASCHERINA RIPARO MARMITTE
from £951.98
from £951.98
# 017
MPN: 007030006
RIGHT ANGULAR
Angolare dx x riparo marmitte
from £93.69
from £93.69
# 018
MPN: 008580702
LOCK RING
SEEGER 7 9 DIN 6799
from £11.53
from £11.53
# 019
MPN: 007059034
SPRING
Molla a gas x cofano anteriore - USE 007021195
from £76.90
from £76.90

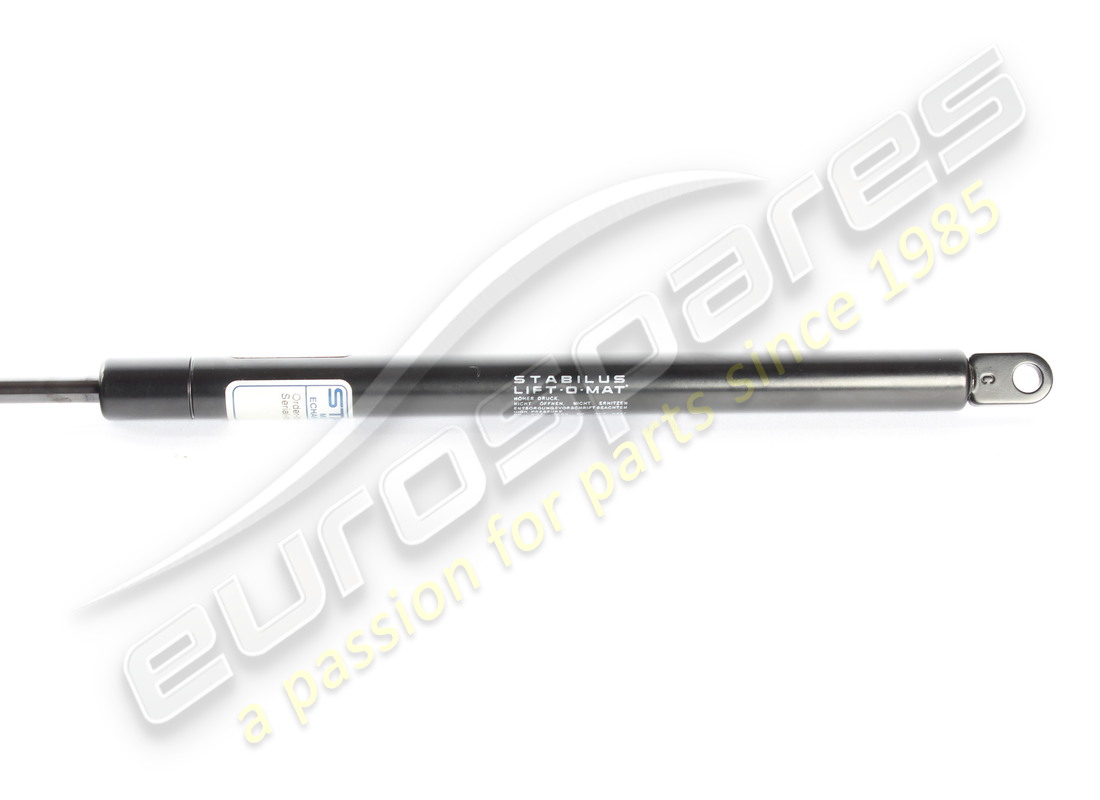

# 020
MPN: 007060026
SPRING
Molla a gas x cofano motore
from £276.93
from £276.93
# 021
MPN: 007059027
PIN
Perno x ammortizz. a gas apert. cofano
from £78.68
from £78.68
