lamborghini countach 5000 qvi (1989) distribution parts diagram

002 - distribution

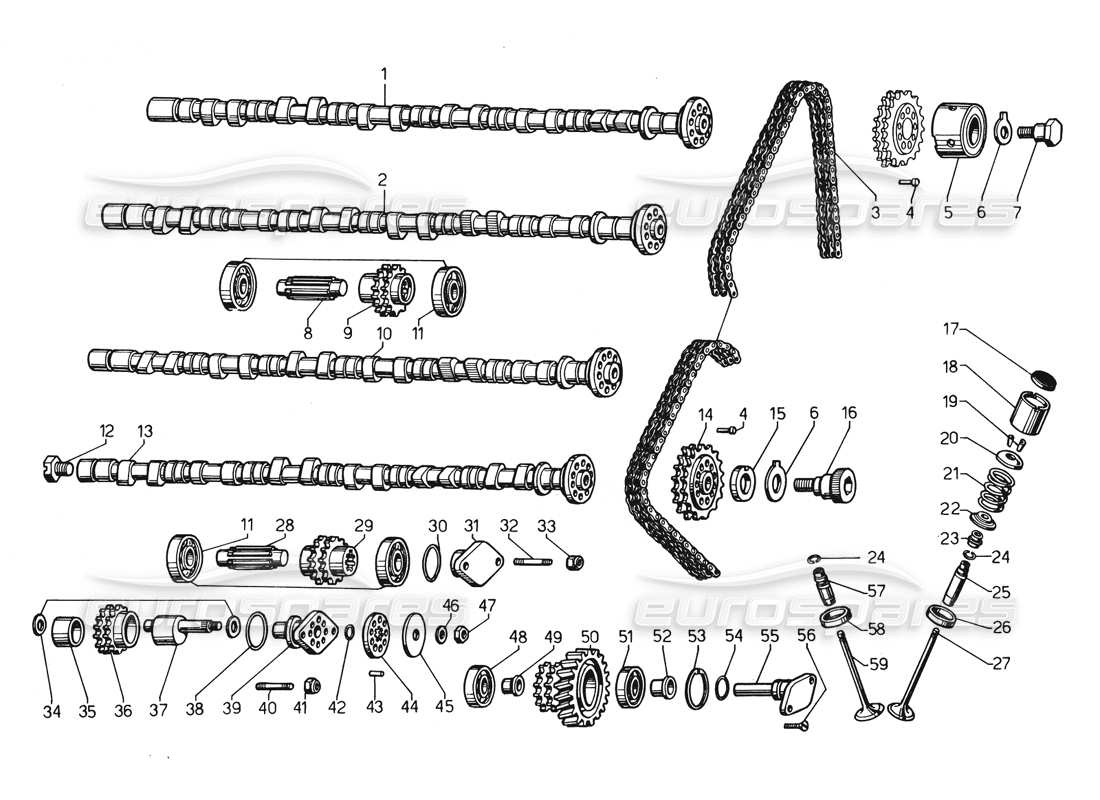

Lamborghini Countach 5000 QVi (1989) Distribution Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        MPN: 001221871
        SHAFT
        Distribution tree left head USA exhaust
        from £1,235.38
        from £1,235.38
        LH EXHAUST HEAD CAMSHAFT Genuine Lamborghini - New (to order)
        # 002
        MPN: 001221852
        SHAFT
        Albero distr. testa sin. aspiraz. USA
        from £1,235.38
        from £1,235.38
        LH INTAKE HEAD CAMSHAFT Genuine Lamborghini - New (to order)
        # 003
        MPN: 001227248

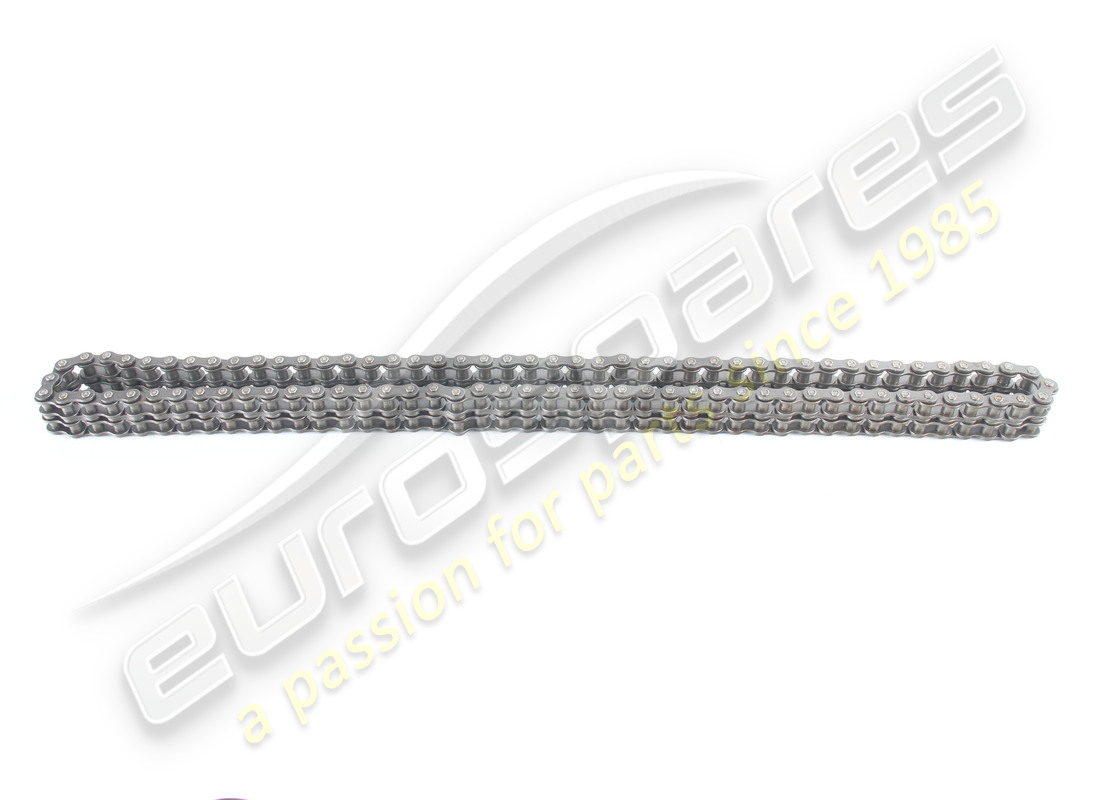

        DISTR. CHAIN
        from £133.49
        from £133.49
        TIMING OPEN CHAIN Genuine Lamborghini - New In stock
        # 004
        MPN: 001201964
        DOWEL
        GRANO DI RIFERIMENTO
        from £28.78
        from £28.78
        DOWEL Genuine Lamborghini - New (to order)
        # 005
        MPN: 001221296
        ROTOR
        Assieme girante x sfiato ol.io
        from £247.29
        from £247.29
        OIL BREATHER ROTOR ASSEMBLY Genuine Lamborghini - New (to order)

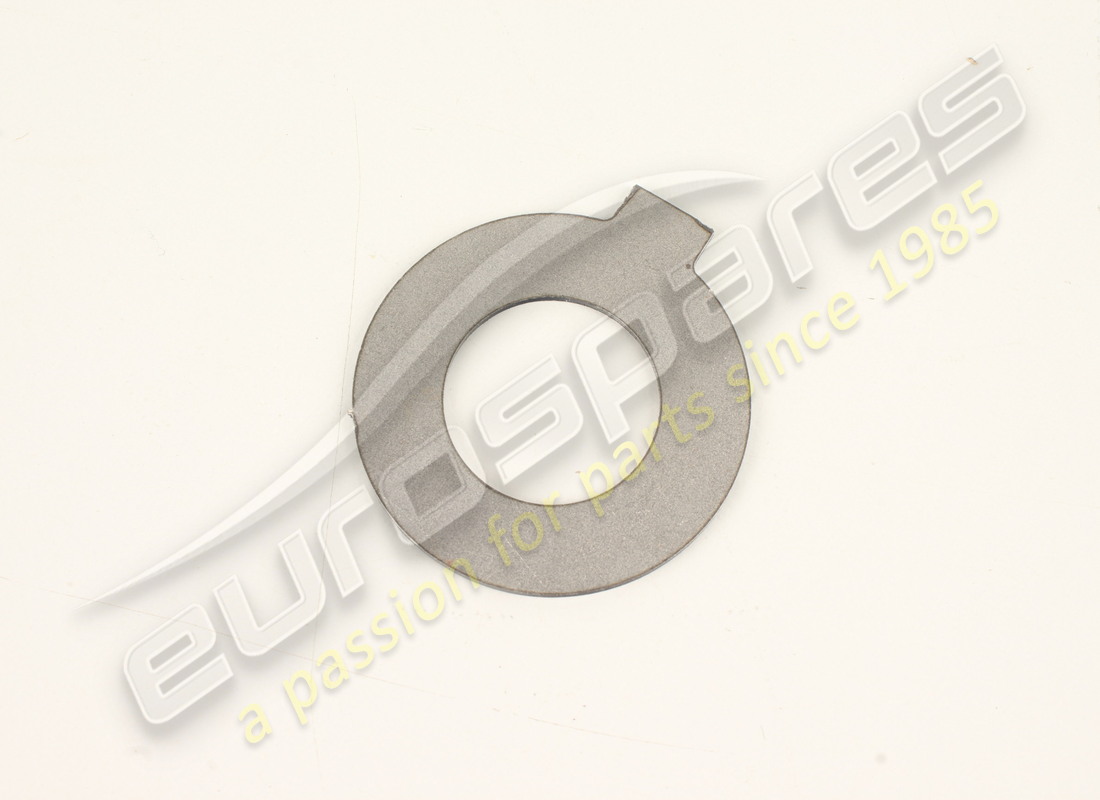

        # 006
        MPN: 001219762
        IND. PLATE
        PIASTRINA DI FERMO x VITI
        from £27.70
        from £27.70
        SCREW LOCK PLATE Genuine Lamborghini - New (to order)
        # 007
        MPN: 001220990
        SCREW
        Supersedes to the following 2 parts :008701031 x 2 & 001237892 x 2
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 008
        MPN: 001219422
        SHAFT GEAR
        Alberino x ingr. galopp. e traino
        from £129.76
        from £129.76
        GUIDE GEAR & DRIVE SHAFT Genuine Lamborghini - New (to order)
        # 009
        MPN: 001219424
        GEAR
        Ingr. galopp. alberino traino
        from £397.15
        from £397.15
        DRIVE SPINDLE GUIDE GEAR Genuine Lamborghini - New (to order)
        # 010
        MPN: 001221853
        SHAFT
        Albero distr. testa des. aspiraz. USA
        from £1,235.38
        from £1,235.38
        RH INTAKE HEAD CAMSHAFT Genuine Lamborghini - New (to order)

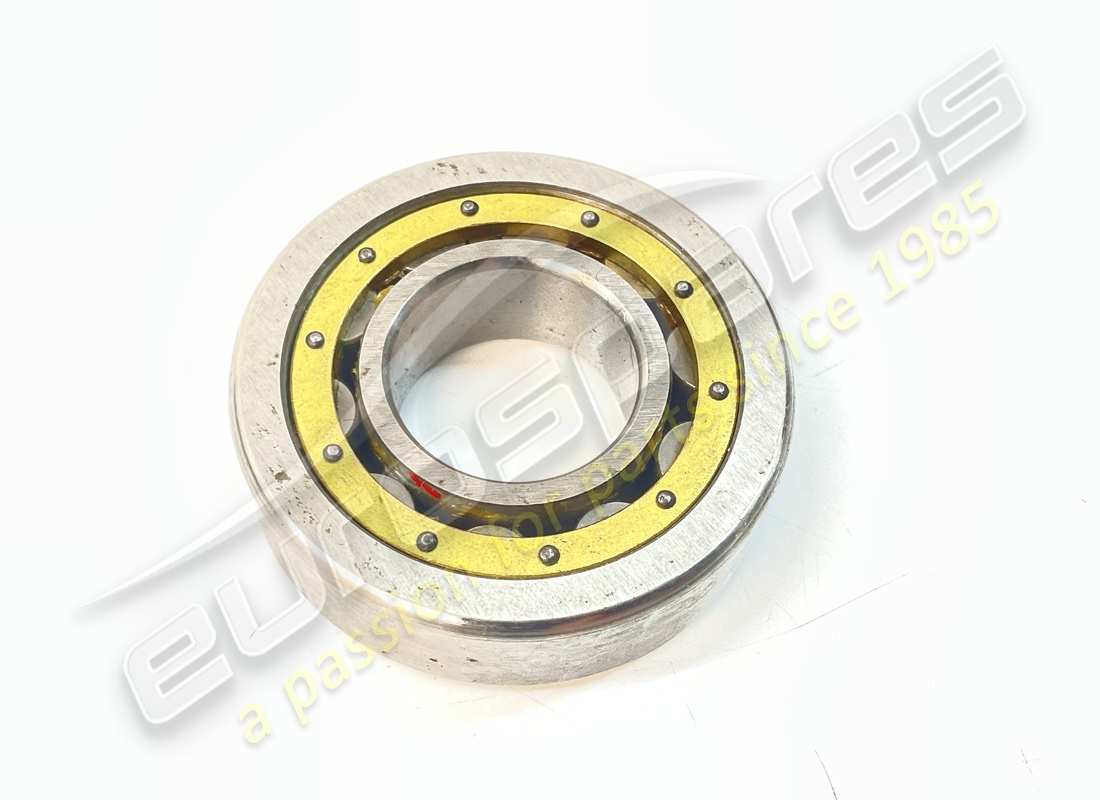

        # 011
        MPN: 008522202

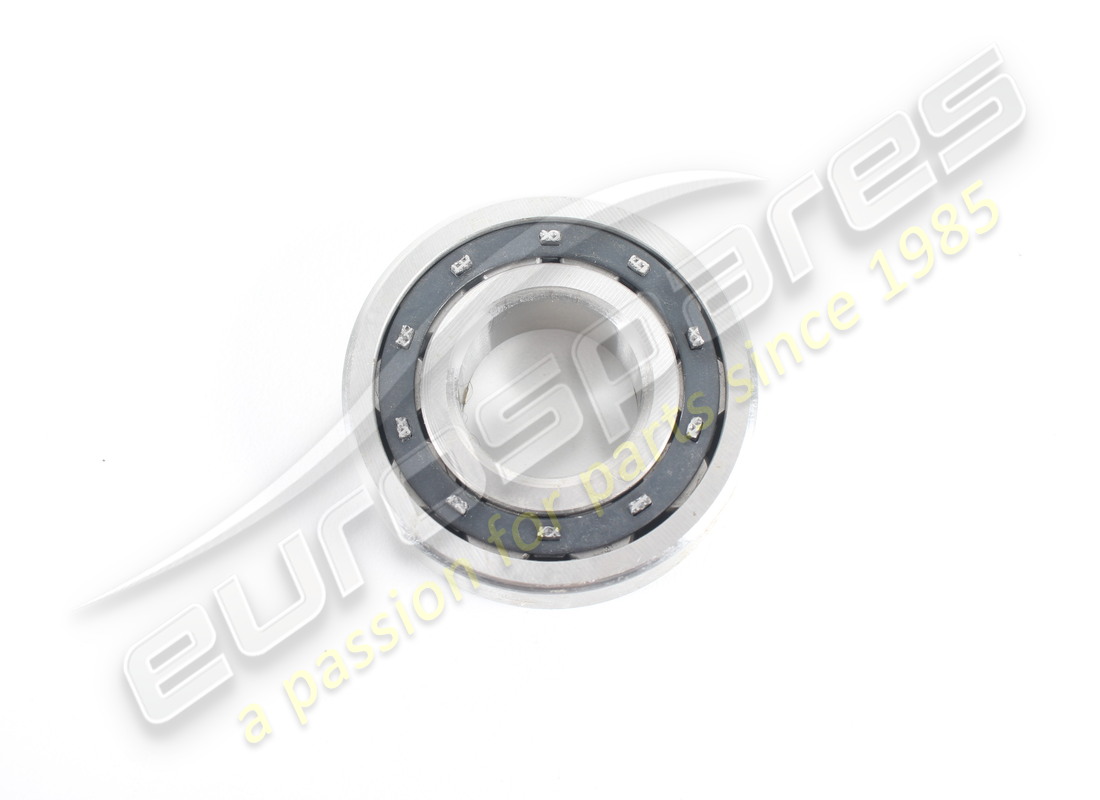

        BEARING
        Cusc. riv. NJ 2/22 TN 9
        from £282.37
        from £282.37
        BEARING (008522202) Eurospares Approved Part - New In stock
        BEARING Genuine Lamborghini - New In stock
        # 012
        MPN: 001222085
        CAMME STUD
        Termin. asse a camme x traino pompa O.B.P
        from £54.73
        from £54.73
        CAMSHAFT DRIVE END Genuine Lamborghini - New (to order)
        # 013
        MPN: 001221872
        SHAFT
        Albero distr. testa des. scarico USA
        from £1,235.38
        from £1,235.38
        RH EXHAUST HEAD CAMSHAFT Genuine Lamborghini - New (to order)
        # 014
        MPN: 001220849
        GEAR
        Ingranag. cond. su alberi distrib.
        from £174.53
        from £174.53
        CAMSHAFT DRIVING GEAR Genuine Lamborghini - New (to order)
        # 015
        MPN: 001219761
        WASHER
        Rond. x viti ten. grano di trascin. ingr.
        from £58.37
        from £58.37
        WASHER Genuine Lamborghini - New (to order)
        # 016
        MPN: 001220989
        SCREW
        Vite fiss. ingr. alb. distr. e com. distr. ace.
        from £201.06
        from £201.06
        CAMSHAFT & DRIVE GEAR FASTENIN G SCREW Genuine Lamborghini - New (to order)
        # 017
        MPN: 001220892
        VALVE SHIMS
        4.00 MM
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)
        # 018
        MPN: 07M109309
        CONT. BOWL V
        BICCHIERINO COMANDO VALVOLA
        from £22.27
        from £22.27
        VALVE BOWL Genuine Lamborghini - New (to order)
        # 019
        MPN: 001220843
        SEMICONE
        Semicono ten. valvole su piattello sup.
        from £4.81
        from £4.81
        VALVE SEAL COTTER ONPLATE Genuine Lamborghini - New (to order)
        # 020
        MPN: 07M109641
        TAPPET PLATE
        from £11.59
        from £11.59
        SPRING UPPER WASHER Genuine Lamborghini - New (to order)
        # 021
        MPN: 001223946
        SPRING
        Molla valvola (unica)
        from £22.89
        from £22.89
        VALVE SPRING (SINGLE) Genuine Lamborghini - New (to order)
        # 022
        MPN: 001220993
        CAP
        Lower valve spring plate
        Supersession
        Supersession
        Genuine Lamborghini (no longer available to order)

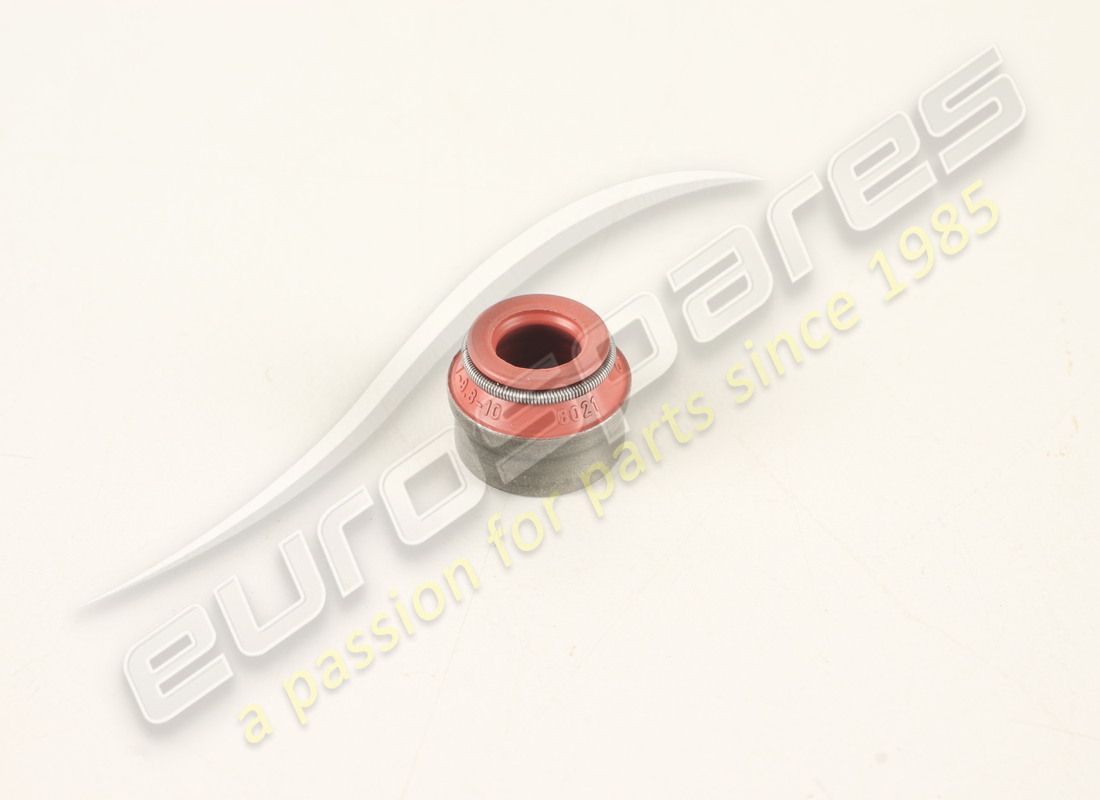

        # 023
        MPN: 07M109675
        VALVE RUB G
        from £9.56
        from £9.56
        INTAKE VALVE GUIDE RUBBER PAD Genuine Lamborghini - New (to order)
        # 024
        MPN: 001222483
        RING
        Anello arr. guida valv. asp. e scar, su test
        from £19.99
        from £19.99
        INTAKE/EXHAUST VALVEGUIDE STOP RING Genuine Lamborghini - New In stock
        # 025
        MPN: 001222476
        VALVE GUIDE
        GUIDA VALVOLA DI SCARICO
        from £45.85
        from £45.85
        EXHAUST VALVE GUIDE Genuine Lamborghini - New (to order)
        # 026
        MPN: 001220823
        EXH. VALE
        SEDE VALVOLA DI SCARICO
        from £10.61
        from £10.61
        EXHAUST VALVE SEAT Genuine Lamborghini - New (to order)
        # 027

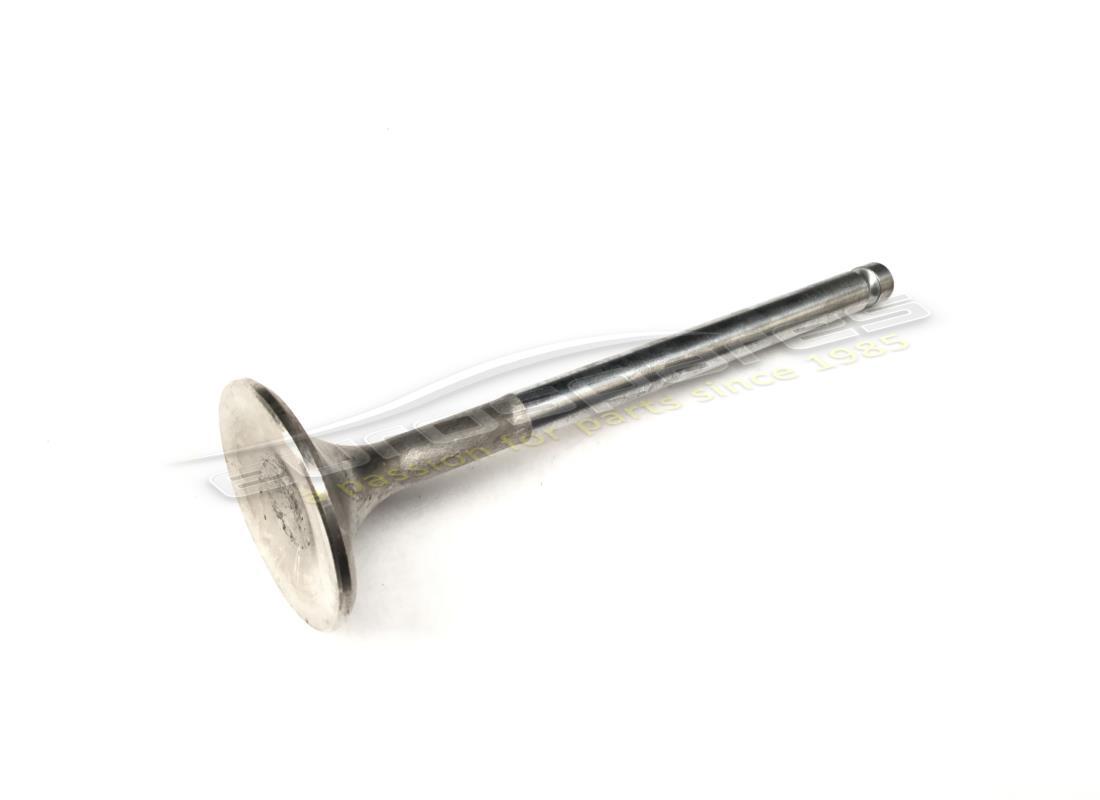

        MPN: 001220819

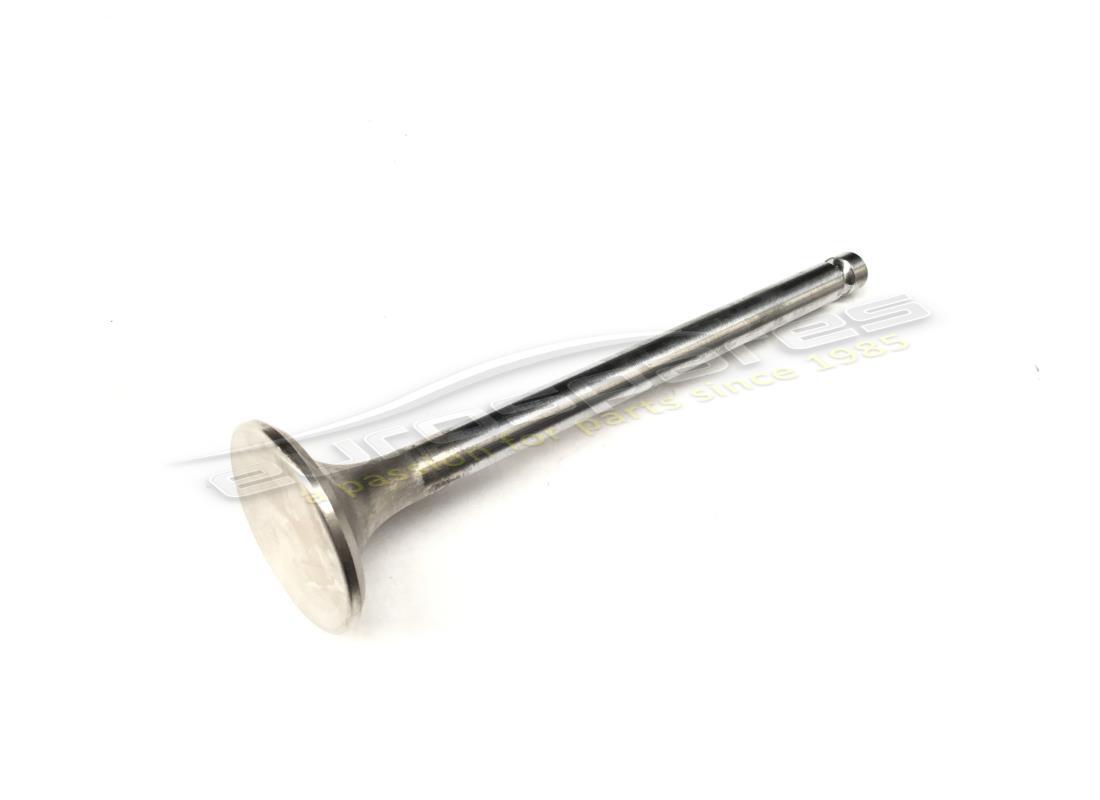

        EXHAV. VALVE
        VALVOLA DI SCARICO
        from £78.75
        from £78.75
        EXHAUST VALVE (001220819) Eurospares Approved Part - New In stock
        EXHAUST VALVE Genuine Lamborghini - New (to order)
        # 028
        MPN: 001219428
        SHAFT
        ALBERINO x INGRAN. GALOPPINO
        from £288.54
        from £288.54
        GUIDE GEAR SHAFT Genuine Lamborghini - New (to order)
        # 029
        MPN: 001219421
        GEAR
        INGRANAGGIO GALOPPINO
        from £381.40
        from £381.40
        GUIDE GEAR Genuine Lamborghini - New (to order)
        # 030
        MPN: 008604201
        SEAL RING
        ANELLO OR 147
        from £0.79
        from £0.79
        RING 43 MM OR Genuine Lamborghini - New (to order)
        # 031
        MPN: 001200336
        BEARIN COVE
        Cop. cusc. galopp.
        from £228.01
        from £228.01
        COVER Genuine Lamborghini - New (to order)
        # 032
        MPN: 008300613
        BOLT
        PRIG. 6x1x14 8G
        from £3.07
        from £3.07
        STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New In stock
        # 033
        MPN: 008200605
        NUT
        Dado orig. Urama vs. rif. NCM70 106M
        from £1.84
        from £1.84
        M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
        # 034
        MPN: 008401813
        WASHER
        RONDELLA
        from £11.53
        from £11.53
        WASHER Genuine Lamborghini - New (to order)
        # 035
        MPN: 008803001

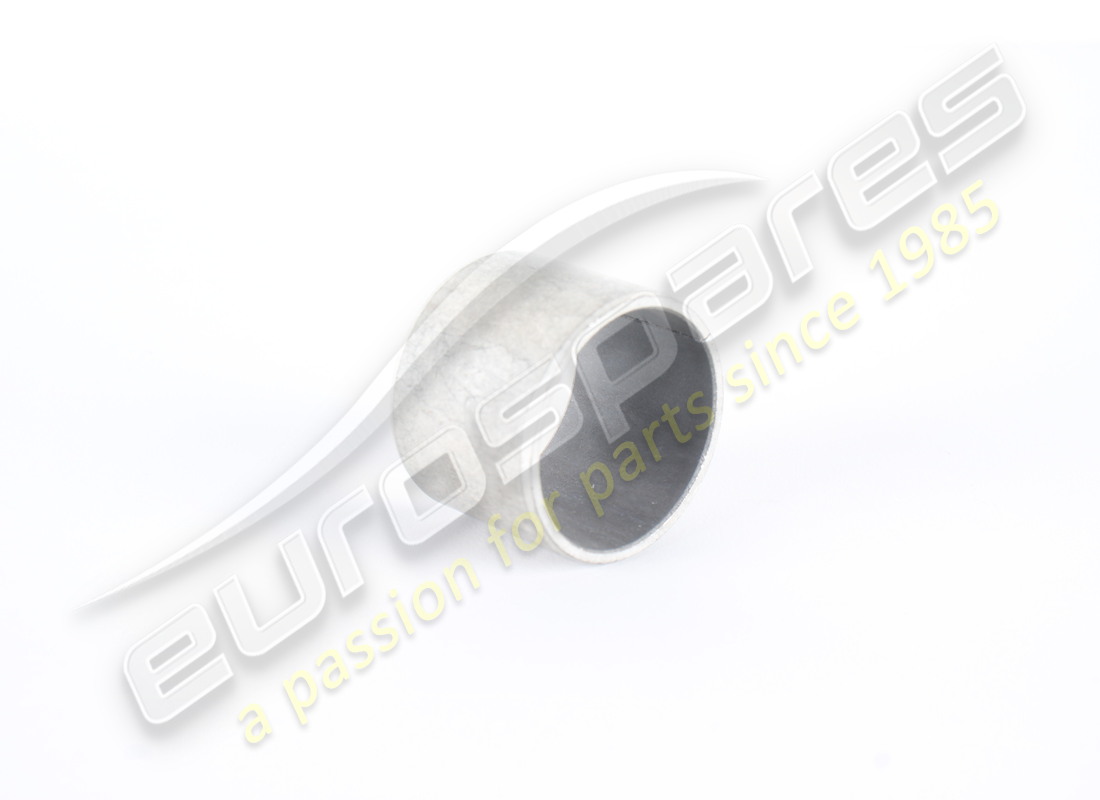

        BUSH
        Boccola x ingr. tenditore DU D 30x34x23
        from £41.88
        from £41.88
        BUSHING 30X34X23 MM Genuine Lamborghini - New In stock
        # 036
        MPN: 001219423
        GEAR
        INGRANAGGIO TENDITORE
        from £95.77
        from £95.77
        TIGHTENER GEAR Genuine Lamborghini - New (to order)
        # 037
        MPN: 001219425
        PIN
        PERNO x TENDITORE
        from £137.48
        from £137.48
        TIGHTENER PIN Genuine Lamborghini - New (to order)
        # 038
        MPN: 008604401
        SEAL RING
        ANELLO OR 3175
        from £0.53
        from £0.53
        RING 44 MM OR Genuine Lamborghini - New In stock
        # 039
        MPN: 001219426
        SUPPORT
        SUPP. x REG. TENDITORE
        from £411.24
        from £411.24
        TIGHTENER ADJUSTMENTBRACKET Genuine Lamborghini - New (to order)
        # 040
        MPN: 008300613
        BOLT
        PRIG. 6x1x14 8G
        from £3.07
        from £3.07
        STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New In stock
        # 041
        MPN: 008200605
        NUT
        Dado orig. Urama vs. rif. NCM70 106M
        from £1.84
        from £1.84
        M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
        # 042
        MPN: 008601702
        SEAL RING
        ANELLO OR 123
        from £0.53
        from £0.53
        RING 18 MM OR Genuine Lamborghini - New In stock
        # 043
        MPN: 001200343
        DOWEL
        Grano corpo reg. distr.
        from £16.75
        from £16.75
        DISTRIBUTION ADJUSTMENT DOWEL Genuine Lamborghini - New In stock
        # 044
        MPN: 001202447
        WASHER
        Rond. reg. tendit.
        Lamborghini PART 001202447 Genuine Lamborghini - New (to order)
        # 045
        MPN: 001200345
        WASHER
        Rond. rit. gran. tend.
        from £47.68
        from £47.68
        TIGHTENER DOWEL CHECK WASHER Genuine Lamborghini - New (to order)
        # 046
        MPN: 008411303
        LOCK WASHER
        Rond. el. a 13 UNI 1751
        from £1.91
        from £1.91
        SNAP RING 21X13X2.5 UNI 175 1 C72/Z Genuine Lamborghini - New (to order)
        # 047
        MPN: 008201213
        NUT
        DADO 12 UNI 210 8G
        from £3.36
        from £3.36
        12 UNI 210 8G NUT Genuine Lamborghini - New (to order)
        # 048

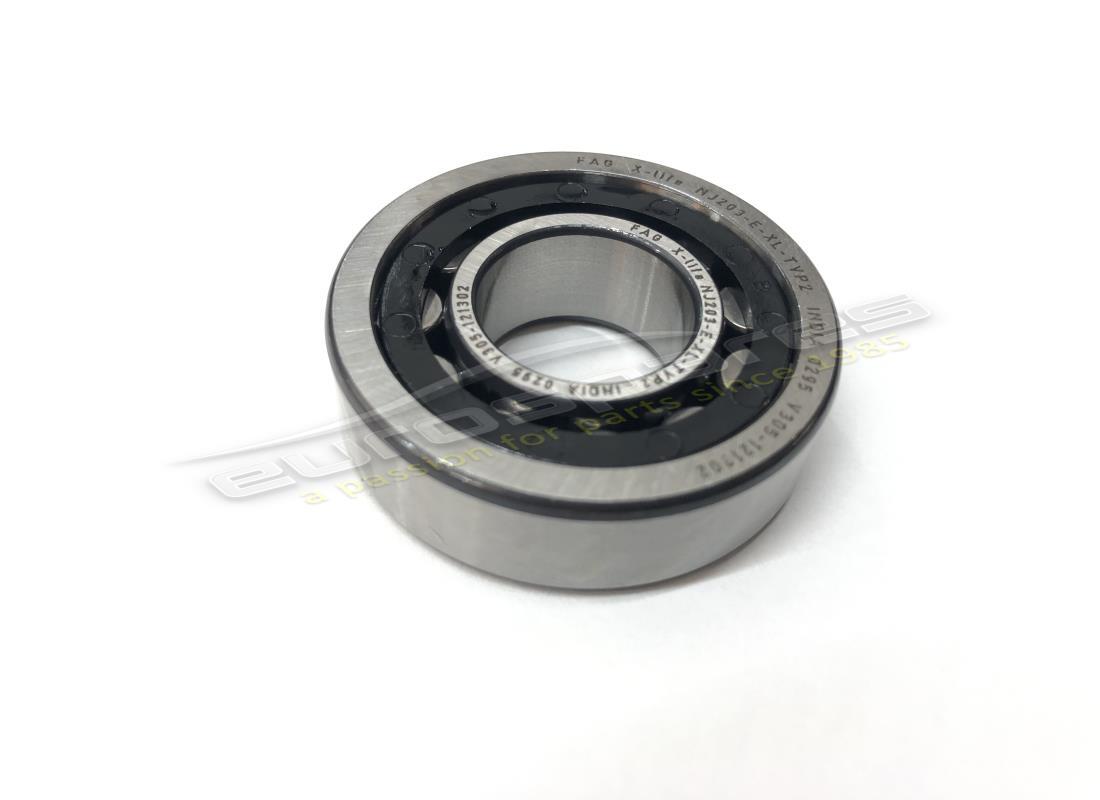

        MPN: 008521704
        BEARING
        Cusc. riv. NJ 203 ECP
        from £61.77
        from £61.77
        BEARING Genuine Lamborghini - New In stock
        # 049
        MPN: 001209449
        SPACER
        Distanz. csn. ingr. ridutt./C
        from £59.04
        from £59.04
        SPACER Genuine Lamborghini - New (to order)
        # 050
        MPN: 001219211
        GEAR
        INGRANAGGIO RIDUTTORE
        from £422.85
        from £422.85
        REDUCING GEAR Genuine Lamborghini - New (to order)
        # 051
        MPN: 008502006

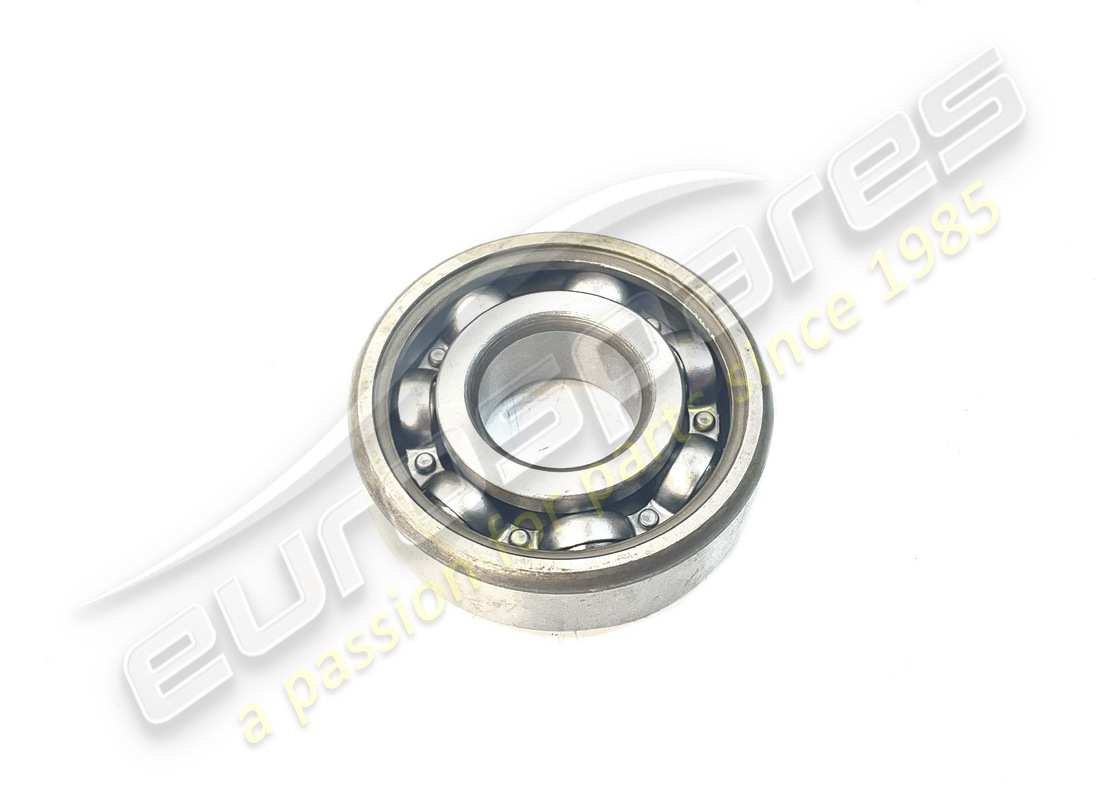

        BALL BEARIN
        Cusc. riv. 6304 5B 20 C3
        from £27.53
        from £27.53
        BEARING Genuine Lamborghini - New (to order)
        # 052
        MPN: 001209448
        BUSH
        Boccola csn ingr. ridutt./C
        from £83.32
        from £83.32
        BUSHING Genuine Lamborghini - New (to order)
        # 053
        MPN: 008575201
        CIRCLP
        Seeger D. 52 I UNI 3654
        from £0.78
        from £0.78
        O-RING I 52 UNI 3654 Genuine Lamborghini - New In stock
        # 054
        MPN: 008601801
        SEAL RING
        ANELLO OR 3075
        from £7.01
        from £7.01
        RING 19 MM OR Genuine Lamborghini - New In stock
        # 055
        MPN: 001209447
        PIVOT SHAFT
        Alb. supp. ingr. ridutt./C
        from £437.77
        from £437.77
        REDUCER GEAR SHAFT Genuine Lamborghini - New (to order)
        # 056
        MPN: 008700613
        SCREW
        VITE VSP 6x1x15A
        from £0.53
        from £0.53
        SCREW M6X14 UNI 5933/8G/ZB Genuine Lamborghini - New In stock
        # 057
        MPN: 001222475
        VALVE GUIDE
        GUIDA VALVOLA DI ASP.
        from £45.85
        from £45.85
        INTAKE VALVE GUIDE Genuine Lamborghini - New (to order)
        # 058
        MPN: 001220822
        SUET VALVE
        SEDE VALVOLA DI ASPIRAZIONE
        from £38.43
        from £38.43
        INTAKE VALVE SEAT Genuine Lamborghini - New (to order)
        # 059
        MPN: 001220818
        SUET VALVE
        VALVOLA DI ASPIRAZIONE
        from £75.00
        from £75.00
        INLATE VALVE (001220818) Eurospares Approved Part - New In stock
        INTAKE VALVE Genuine Lamborghini - New (to order)
