009 - crankcase

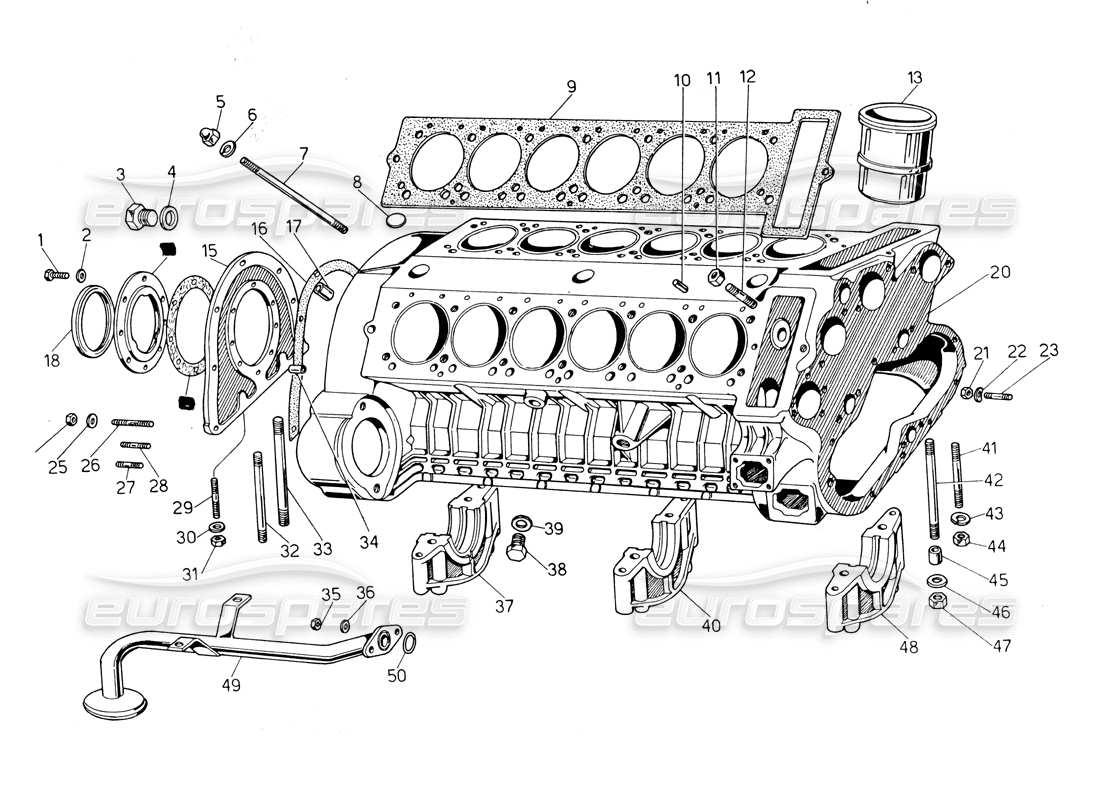

Lamborghini Countach LP400 Crankcase Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit

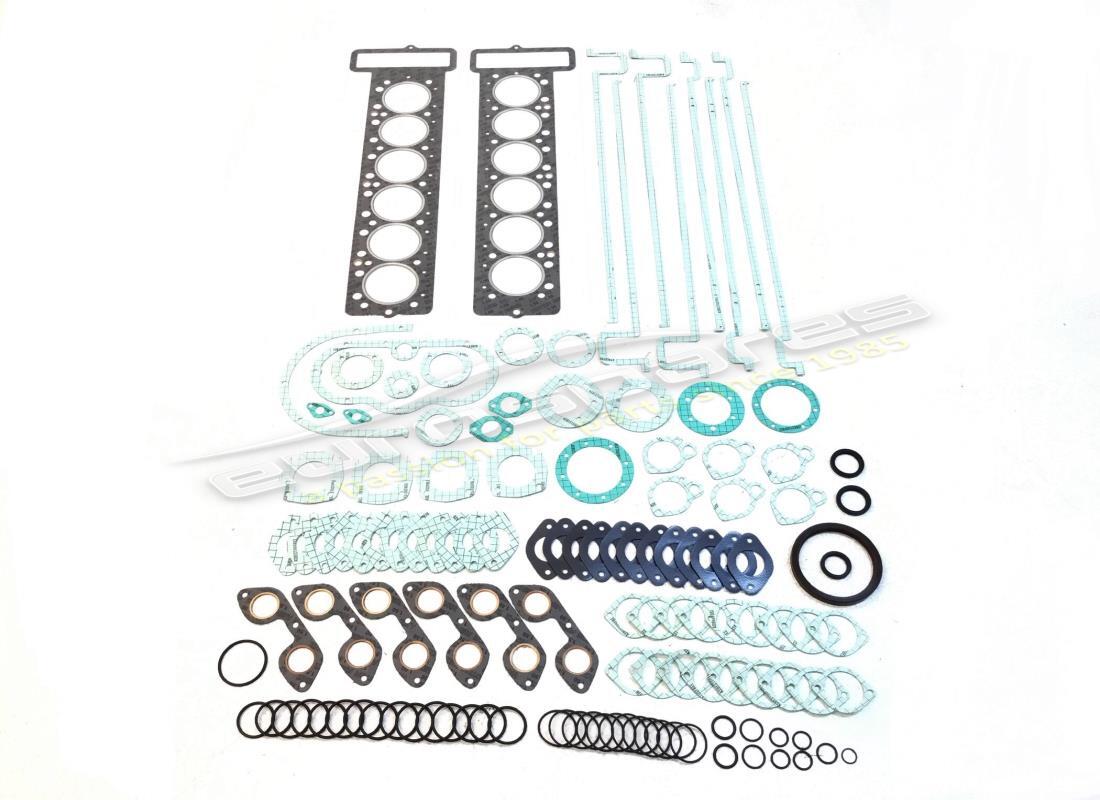

# 000
MPN: 001526487
GASKET SET
Complete engine gasket set / No oil seals
from £899.23
from £899.23
# 001
MPN: 008100625
BOLT
from £82.33
from £82.33
# 002
MPN: 008400616
WASHER
from £1.93
from £1.93
# 003
MPN: 008932202
PLUG
from £49.83
from £49.83
# 004
MPN: 008602002
GASKET
from £14.31
from £14.31
# 005
MPN: 008201101
NUT
from £22.23
from £22.23
# 006
MPN: 008411101
WASHER
from £4.86
from £4.86
# 007
MPN: 008301212
HEAD STUD
from £19.77
from £19.77
# 008
MPN: 008932401
PLUG
from £14.49
from £14.49
# 009
MPN: 001101815
RH HEAD GASKET
from £189.75
from £189.75
# 010
MPN: 001101816
LH HEAD GASKET
from £189.00
from £189.00
# 010
MPN: 008850804
DOWEL
from £11.11
from £11.11
# 011
MPN: N0111849
NUT
from £1.47
from £1.47
This part replaces part number 008200809
# 012
MPN: 008300815
STUD
from £10.53
from £10.53
# 013
MPN: 001801880
CANNA CILINDRI
from £204.75
from £204.75
# 015
MPN: 001812726
COVER
# 016
MPN: 001800294
GASKET
from £14.93
from £14.93
# 017
MPN: 008851103
LOCATING DOWEL
# 018
MPN: 008609902
RING
Supersession
Supersession
# 020
MPN: 001808029
basamento
from £6,433.89
from £6,433.89
# 021
MPN: 008200604
NUT
Supersession
Supersession
# 022
MPN: 008410603
WASHER
Supersession
Supersession
# 023
MPN: 008300610
THREADED STUD
from £15.47
from £15.47
# 024
MPN: 008200604
NUT
Supersession
Supersession
# 025
MPN: 008410602
WASHER
from £27.71
from £27.71
# 026
MPN: 008300609
THREADED STUD
from £8.84
from £8.84
# 027
MPN: 008300608
STUD
from £0.67
from £0.67
# 028
MPN: 008300614
STUD
Supersession
Supersession
# 029
MPN: 008300611
THREADED STUD
from £4.40
from £4.40
# 030
MPN: 008410602
WASHER
from £28.66
from £28.66
# 031
MPN: 008200604
NUT
Supersession
Supersession
# 032
MPN: 008300816
THREADED STUD
from £9.66
from £9.66
# 033
MPN: 008301213
THREADED STUD
from £37.40
from £37.40
# 034
MPN: 008850605
LOCATING DOWEL
# 035
MPN: 008200604
NUT
Supersession
Supersession
# 036
MPN: 008410603
WASHER
Supersession
Supersession
# 037
MPN: 001800297
SUPPORT
# 038
MPN: 008931403
TAPPO SCARICO ACQUA
from £31.55
from £31.55
# 039
MPN: 008401502
WASHER
from £10.41
from £10.41
# 040
MPN: 001800296
SUPPORT
# 041
MPN: 008300817
THREADED STUD
from £10.53
from £10.53
# 042
MPN: 008301214
THREADED STUD
from £21.81
from £21.81
# 043
MPN: 001711743
GASKET OR SEAL
from £16.73
from £16.73
# 043
MPN: WHT001514
WASHER
from £15.09
from £15.09
This part replaces part number 008410805
# 044
MPN: 008200805
NUT
from £0.49
from £0.49
# 045
MPN: 008851501
GRANO DI REFERIMENTO
Supersession
Supersession
# 046
MPN: 008411302
WASHER
Supersession
Supersession
# 047
MPN: 008201210
NUT
from £8.84
from £8.84
# 048
MPN: 001800295
SUPPORT
# 049
MPN: 001808151
TUBO ASPIRAZIONE OLIO
from £123.54
from £123.54
# 050
MPN: 008602901
GOMMINO DI TENUTA OLIO
from £0.54
from £0.54

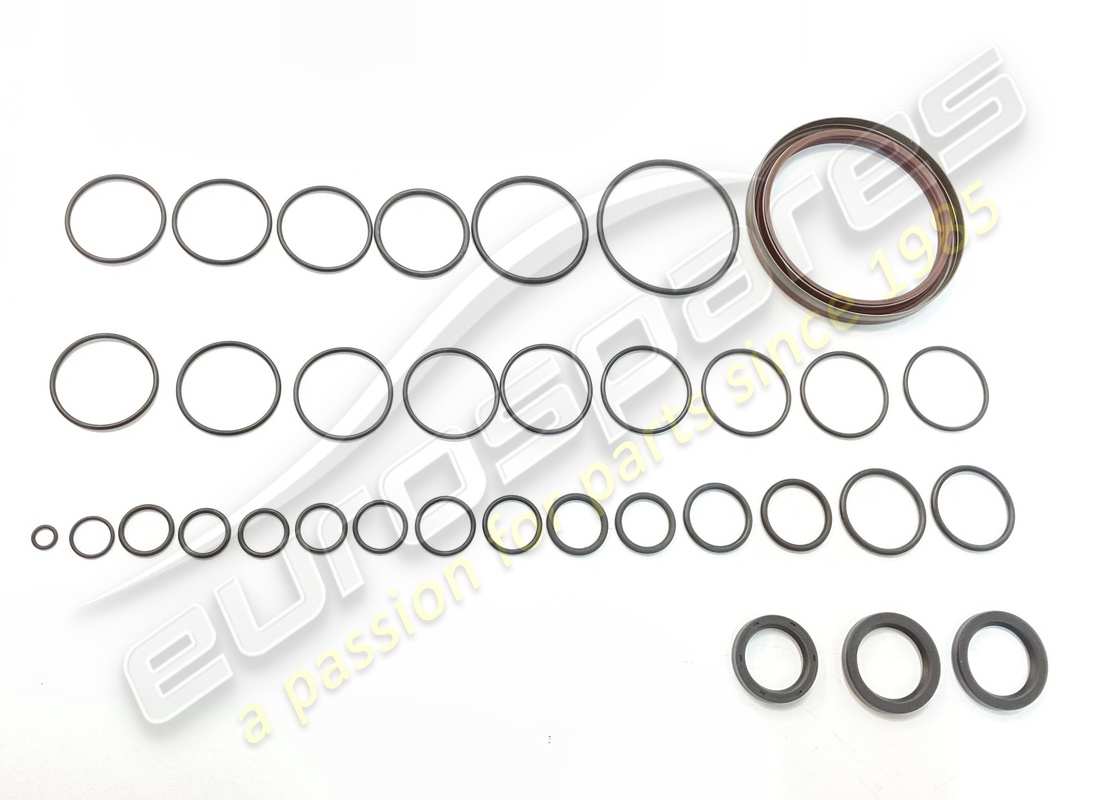

# 051
MPN: 001526467
OIL SEALS
Complete engine oil seal kit
from £74.72
from £74.72
