lamborghini countach lp400 gear shift lever parts diagram

014 - Gear shift lever

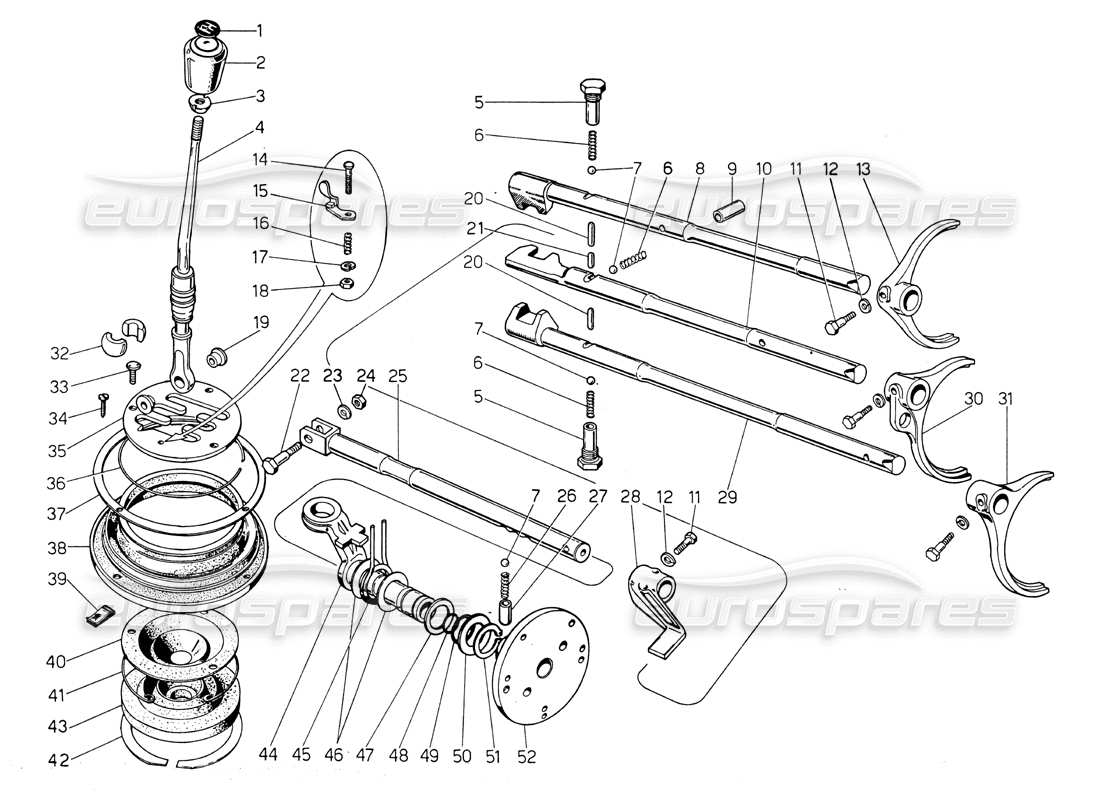

Lamborghini Countach LP400 Gear shift lever Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Key
                                                                                                          Price
                                                                                                          # 001
                                                                                                          MPN: 002410655
                                                                                                          PLACCHETTA INDICAZIONE MARCE
                                                                                                          from £47.21
                                                                                                          from £47.21
                                                                                                          GEAR SELECTOR BADGE Genuine Lamborghini - New (to order)
                                                                                                          # 002
                                                                                                          MPN: 002410654
                                                                                                          POMELLO
                                                                                                          from £346.72
                                                                                                          from £346.72
                                                                                                          This part replaces part number 002410134 which we have in stock
                                                                                                          KNOB WITHOUT GEM Genuine Lamborghini - New (to order)
                                                                                                          # 003
                                                                                                          MPN: 002410653
                                                                                                          RING NUT
                                                                                                          from £27.28
                                                                                                          from £27.28
                                                                                                          GEAR LEVER KNOB RINGNUT Genuine Lamborghini - New (to order)
                                                                                                          # 004
                                                                                                          MPN: 002410440
                                                                                                          LEVER
                                                                                                          from £458.26
                                                                                                          from £458.26
                                                                                                          SHIFT LEVER ASSEMBLY Genuine Lamborghini - New (to order)
                                                                                                          # 005
                                                                                                          MPN: 002409896
                                                                                                          BUSSOLA GUIDA SFERE
                                                                                                          from £196.92
                                                                                                          from £196.92
                                                                                                          ROD RETAINING BALL SLEEVE Genuine Lamborghini - New (to order)
                                                                                                          # 006
                                                                                                          MPN: 086311249
                                                                                                          SPRING
                                                                                                          from £3.07
                                                                                                          from £3.07
                                                                                                          This part replaces part number 002402242 - and 1 more. Click to view details
                                                                                                          ROD SNAP SPRING Genuine Lamborghini - New (to order)
                                                                                                          # 007
                                                                                                          MPN: 008910701
                                                                                                          SFERA
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Lamborghini (no longer available to order)
                                                                                                          # 008
                                                                                                          MPN: 002409893
                                                                                                          ASTA.INNESTO 4ª E 5ª VELOCITA
                                                                                                          Lamborghini PART 002409893 Genuine Lamborghini - New (to order)
                                                                                                          # 009
                                                                                                          MPN: 002401765
                                                                                                          BUSH
                                                                                                          from £10.95
                                                                                                          from £10.95
                                                                                                          GEAR LEVER BALL BUSHING Genuine Lamborghini - New (to order)
                                                                                                          # 010
                                                                                                          MPN: 002409892
                                                                                                          ASTA INNESTO 2ª E 3ª VELOCITA
                                                                                                          from £255.36
                                                                                                          from £255.36
                                                                                                          2ND/3RD SPEED ROD Genuine Lamborghini - New (to order)
                                                                                                          # 011
                                                                                                          MPN: 008100628
                                                                                                          BOLT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Lamborghini (no longer available to order)
                                                                                                          # 012
                                                                                                          MPN: 008410603
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Lamborghini (no longer available to order)
                                                                                                          # 013
                                                                                                          MPN: 002409883
                                                                                                          FORK 4ª AND 5ª SPEED
                                                                                                          from £401.29
                                                                                                          from £401.29
                                                                                                          4TH/5TH SPEED FORK Genuine Lamborghini - New (to order)
                                                                                                          # 014
                                                                                                          MPN: 008700635
                                                                                                          SCREW
                                                                                                          from £14.38
                                                                                                          from £14.38
                                                                                                          GEAR SELECTOR SCREW M6X1X30 Genuine Lamborghini - New (to order)
                                                                                                          # 015
                                                                                                          MPN: 002410634
                                                                                                          FERMO DI SICUREZZA PER R.M.
                                                                                                          from £53.31
                                                                                                          from £53.31
                                                                                                          REVERSE LEVER STOP Genuine Lamborghini - New (to order)
                                                                                                          # 016
                                                                                                          MPN: 002403369
                                                                                                          SPRING
                                                                                                          from £20.81
                                                                                                          from £20.81
                                                                                                          REVERSE LEVER LOCK SPRING Genuine Lamborghini - New In stock
                                                                                                          # 017
                                                                                                          MPN: 008410602
                                                                                                          WASHER
                                                                                                          from £28.85
                                                                                                          from £28.85
                                                                                                          WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                                                                                                          # 018
                                                                                                          MPN: 008200606
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Lamborghini (no longer available to order)
                                                                                                          # 019
                                                                                                          MPN: 002403702
                                                                                                          BUSH
                                                                                                          from £41.09
                                                                                                          from £41.09
                                                                                                          GEAR LEVER GUIDE BUSHING Genuine Lamborghini - New In stock
                                                                                                          # 020
                                                                                                          MPN: 002407979
                                                                                                          PUNTALINO PER ASTE LATERALI
                                                                                                          from £19.37
                                                                                                          from £19.37
                                                                                                          GEARBOX SIDE PIN ROD Genuine Lamborghini - New (to order)
                                                                                                          # 021
                                                                                                          MPN: 002409897
                                                                                                          PUNTALINO PER ASTA CENTRALE
                                                                                                          from £173.80
                                                                                                          from £173.80
                                                                                                          CENTRAL PIN STOP ROD Genuine Lamborghini - New (to order)
                                                                                                          # 022
                                                                                                          MPN: 002402934
                                                                                                          SCREW
                                                                                                          from £18.17
                                                                                                          from £18.17
                                                                                                          GEAR LEVER SCREW Genuine Lamborghini - New (to order)
                                                                                                          # 023
                                                                                                          MPN: 008410806
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Lamborghini (no longer available to order)
                                                                                                          # 024
                                                                                                          MPN: 008200806
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Lamborghini (no longer available to order)
                                                                                                          # 025
                                                                                                          MPN: 002409876
                                                                                                          PIVOT
                                                                                                          from £236.30
                                                                                                          from £236.30
                                                                                                          ROD CENTRAL PIN Genuine Lamborghini - New (to order)
                                                                                                          # 026
                                                                                                          MPN: 002403246
                                                                                                          SPRING
                                                                                                          from £3.62
                                                                                                          from £3.62
                                                                                                          GEARBOX SHAFT BALL SPRING Genuine Lamborghini - New (to order)
                                                                                                          # 027
                                                                                                          MPN: 002403245
                                                                                                          BUSH
                                                                                                          from £33.74
                                                                                                          from £33.74
                                                                                                          GEARBOX SHAFT BALL BUSHING Genuine Lamborghini - New (to order)
                                                                                                          # 028
                                                                                                          MPN: 002409887
                                                                                                          LEVER
                                                                                                          from £531.47
                                                                                                          from £531.47
                                                                                                          GEAR LEVER Genuine Lamborghini - New (to order)
                                                                                                          # 029
                                                                                                          MPN: 002411681
                                                                                                          ASTA INNESTO LA VELACITA A RM
                                                                                                          from £226.35
                                                                                                          from £226.35
                                                                                                          1ST SPEED/REVERSE ROD Genuine Lamborghini - New (to order)
                                                                                                          # 030
                                                                                                          MPN: 002409882
                                                                                                          FORK 2A AND 3A SPEED
                                                                                                          Lamborghini PART 002409882 Genuine Lamborghini - New (to order)
                                                                                                          # 031
                                                                                                          MPN: 002409881
                                                                                                          FORK 1ST SPEED AND REVERSE
                                                                                                          from £401.29
                                                                                                          from £401.29
                                                                                                          1ST SPEED/REVERSE FORK Genuine Lamborghini - New (to order)
                                                                                                          # 032
                                                                                                          MPN: 002409875
                                                                                                          SFERA PER LEVA COMANDO CAMBIO
                                                                                                          from £111.94
                                                                                                          from £111.94
                                                                                                          GEAR LEVER BALL Genuine Lamborghini - New (to order)
                                                                                                          # 033
                                                                                                          MPN: 008700634
                                                                                                          SCREW
                                                                                                          from £22.97
                                                                                                          from £22.97
                                                                                                          GEAR SELECTOR FASTENING SCREW Genuine Lamborghini - New (to order)
                                                                                                          # 034
                                                                                                          MPN: 008700506
                                                                                                          SCREW
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          SCREW KNIP 4.8X16DIN7971 BLACK STEEL Genuine Lamborghini - New In stock
                                                                                                          # 035
                                                                                                          MPN: 002409437
                                                                                                          SELETTORE
                                                                                                          from £281.08
                                                                                                          from £281.08
                                                                                                          GEAR SELECTOR / SLICK SHIFT GATE Genuine Lamborghini - New (to order)
                                                                                                          # 036
                                                                                                          MPN: 002409438
                                                                                                          SEEGER RING
                                                                                                          from £8.96
                                                                                                          from £8.96
                                                                                                          LEVER OUTER BOOT RING Genuine Lamborghini - New (to order)
                                                                                                          # 037
                                                                                                          MPN: 002409922
                                                                                                          RING
                                                                                                          from £55.97
                                                                                                          from £55.97
                                                                                                          GEARBOX BOOT RING Genuine Lamborghini - New (to order)
                                                                                                          # 038
                                                                                                          MPN: 002410638
                                                                                                          CUFFIA ESTERNA
                                                                                                          from £44.27
                                                                                                          from £44.27
                                                                                                          GEAR MOUNT OUTER BOOT Genuine Lamborghini - New (to order)
                                                                                                          # 039
                                                                                                          MPN: 002412243
                                                                                                          NUT
                                                                                                          from £2.12
                                                                                                          from £2.12
                                                                                                          PLATE Genuine Lamborghini - New In stock
                                                                                                          # 040
                                                                                                          MPN: 002412784
                                                                                                          CUFFIA PER LEVA COMANDO CAMBIO .
                                                                                                          from £39.35
                                                                                                          from £39.35
                                                                                                          GEAR LEVER UPPER BOOT Genuine Lamborghini - New In stock
                                                                                                          # 041
                                                                                                          MPN: 002412670
                                                                                                          SEEGER RING
                                                                                                          from £15.25
                                                                                                          from £15.25
                                                                                                          TRANSMISSION BOOT SNAP RING Genuine Lamborghini - New (to order)
                                                                                                          # 042
                                                                                                          MPN: 002412671
                                                                                                          RING
                                                                                                          from £14.38
                                                                                                          from £14.38
                                                                                                          GEARBOX CAP RETAINING SEGMENT Genuine Lamborghini - New (to order)
                                                                                                          # 043
                                                                                                          MPN: 002412672
                                                                                                          CUFFIA INTERNA PER LEVA COMANDO CAMBIO
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          Genuine Lamborghini (no longer available to order)
                                                                                                          # 044
                                                                                                          MPN: 002410314
                                                                                                          SUPPORT
                                                                                                          from £344.91
                                                                                                          from £344.91
                                                                                                          GEAR LEVER BRACKET Genuine Lamborghini - New (to order)
                                                                                                          # 045
                                                                                                          MPN: 002410451
                                                                                                          SPRING
                                                                                                          from £30.55
                                                                                                          from £30.55
                                                                                                          GEAR LEVER RETURN SPRING Genuine Lamborghini - New (to order)
                                                                                                          # 046
                                                                                                          MPN: 008403302
                                                                                                          WASHER
                                                                                                          from £9.66
                                                                                                          from £9.66
                                                                                                          GEAR LEVER SPRING WASHER Genuine Lamborghini - New (to order)
                                                                                                          # 047
                                                                                                          MPN: 008402601
                                                                                                          WASHER
                                                                                                          from £14.98
                                                                                                          from £14.98
                                                                                                          FLAT WASHER D.26X3.3X40 3 TH. Genuine Lamborghini - New (to order)
                                                                                                          # 048
                                                                                                          MPN: 008601705
                                                                                                          SEALING RING
                                                                                                          from £0.51
                                                                                                          from £0.51
                                                                                                          OR RING Genuine Lamborghini - New In stock
                                                                                                          OR RING Genuine Lamborghini - New (other) In stock
                                                                                                          ANELLO TENUTA
                                                                                                          # 049
                                                                                                          MPN: 008602101
                                                                                                          SEALING RING
                                                                                                          from £1.71
                                                                                                          from £1.71
                                                                                                          RING 22 MM OR Genuine Lamborghini - New In stock
                                                                                                          # 050
                                                                                                          MPN: 008402602
                                                                                                          WASHER
                                                                                                          from £6.97
                                                                                                          from £6.97
                                                                                                          WASHER 26X35X2-2.1-2.2-2.3 Genuine Lamborghini - New (to order)
                                                                                                          # 051
                                                                                                          MPN: 008582601
                                                                                                          SEEGER RING
                                                                                                          from £3.65
                                                                                                          from £3.65
                                                                                                          O-RING E 26 UNI 7435-75 Genuine Lamborghini - New (to order)
                                                                                                          # 052
                                                                                                          MPN: 002409791
                                                                                                          DISTANZIALE PER SUPPORTO LEVA CORN. CAMBIO
                                                                                                          from £232.99
                                                                                                          from £232.99
                                                                                                          GEARBOX ROD UPPER SHIM Genuine Lamborghini - New (to order)
