021 - Hand brake

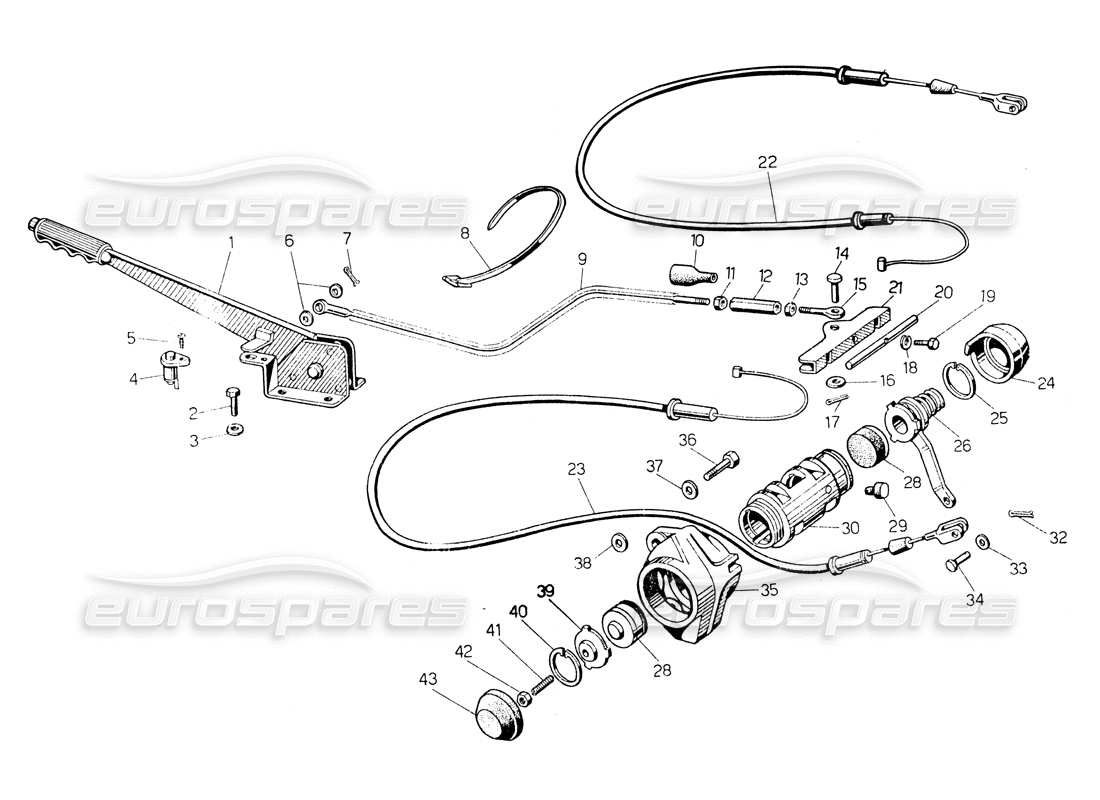

Lamborghini Countach LP400 Hand brake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 003311179
LEVER
# 002
MPN: 008100616
BOLT
from £0.53
from £0.53
# 003
MPN: 008410603
WASHER
Supersession
Supersession
# 004
MPN: 006721234
INTERRUTTORE FINE CORSA LEVA FRENO A MANO
from £23.47
from £23.47
# 005
MPN: 008700315
VITA
from £1.71
from £1.71
# 006
MPN: 008400806
RANDALLA
Supersession
Supersession
# 007
MPN: 008820201
SPLIT PIN
from £4.11
from £4.11
# 008
MPN: 008830403
JUBILEE CLIP
from £1.46
from £1.46
# 009
MPN: 003311189
COMPLESSIVO CAVO DALLA LEVA AL REGISTRO
from £9.05
from £9.05
# 010
MPN: 003307535
PROTEZIO. N PER CAVO FRENO MANO
from £18.62
from £18.62
# 011
MPN: 008200604
NUT
Supersession
Supersession
# 012
MPN: 413609206
ADJUSTING SLEEVE
(Valid for RH D. version – April 1994) REGISTRO
from £39.87
from £39.87
# 013
MPN: 008200607
NUT
from £8.05
from £8.05
# 014
MPN: 410609789
PIVOT
from £18.55
from £18.55
This part replaces part number 003301307 which we have in stock
# 015
MPN: 003309378
TIE ROD
from £15.80
from £15.80
# 016
MPN: 008400806
WASHER
Supersession
Supersession
# 017
MPN: 008820201
SPLIT PIN
from £4.11
from £4.11
# 018
MPN: 008410502
WASHER
Supersession
Supersession
# 019
MPN: 008100505
BOLT
from £0.54
from £0.54
# 020
MPN: 003309426
6ARRETTA PER TENUTA PERNO ARRESTO CAVO FRENO
from £6.81
from £6.81
# 021
MPN: 003309423
BRACKET / SUPPORT
from £14.22
from £14.22
# 022
MPN: 003310774
CAVO PER PINZA FRENO RUOTA DESTRA
from £80.07
from £80.07
# 023
MPN: 003310773
CAVO PER PINZA FRENO RUOTA SINISTRA
from £282.74
from £282.74
# 024
MPN: 003309387
GOMMINO DI PROTEZIONE PER LEVA PINZA FRENO
from £27.49
from £27.49
# 025
MPN: 008573601
SEEGER RING
from £0.53
from £0.53
# 026
MPN: 003309385
GRUPPO FRENO A MANO-PER RUOTA SINISTRA
from £63.27
from £63.27
# 027
MPN: 003309384
GRUPPO FRENO A MANO PER RUOTA DESTRA
from £63.27
from £63.27
# 028
MPN: 003309363
PASTIGLIA PER PINZE FRENO A MANO
Supersession
Supersession
# 029
MPN: 003309361
PIVOT
from £17.04
from £17.04
# 030
MPN: 003309365
CORPO INTERNO PINZA FRENO A MANO RUOTA SIN.
from £755.71
from £755.71
# 031
MPN: 003309364
CORPO INTERNO PINZA FRENO A MANO RUOTA DX.
from £196.09
from £196.09
# 032
MPN: 008820201
SPLIT PIN
from £4.11
from £4.11
# 033
MPN: 008400806
WASHER
Supersession
Supersession
# 034
MPN: 003309478
PIVOT
from £11.90
from £11.90
# 035
MPN: 003309590
SUPPORT
from £244.59
from £244.59
# 036
MPN: 008101225
BOLT
from £11.69
from £11.69
# 037
MPN: 008411302
WASHER
Supersession
Supersession
# 038
MPN: 008401305
WASHER
from £0.54
from £0.54
# 039
MPN: 003309362
SUPPORT
# 040
MPN: 008573701
SEEGER RING
from £0.53
from £0.53
# 041
MPN: 008700814
VITA
from £4.73
from £4.73
# 042
MPN: 008200811
NUT
from £3.65
from £3.65
# 043
MPN: 003309388
GOMMINO DI PROTEZIONE REGISTRO PINZA FRENO
from £34.95
from £34.95
