lamborghini countach lp400 pedals parts diagram

022 - Pedals

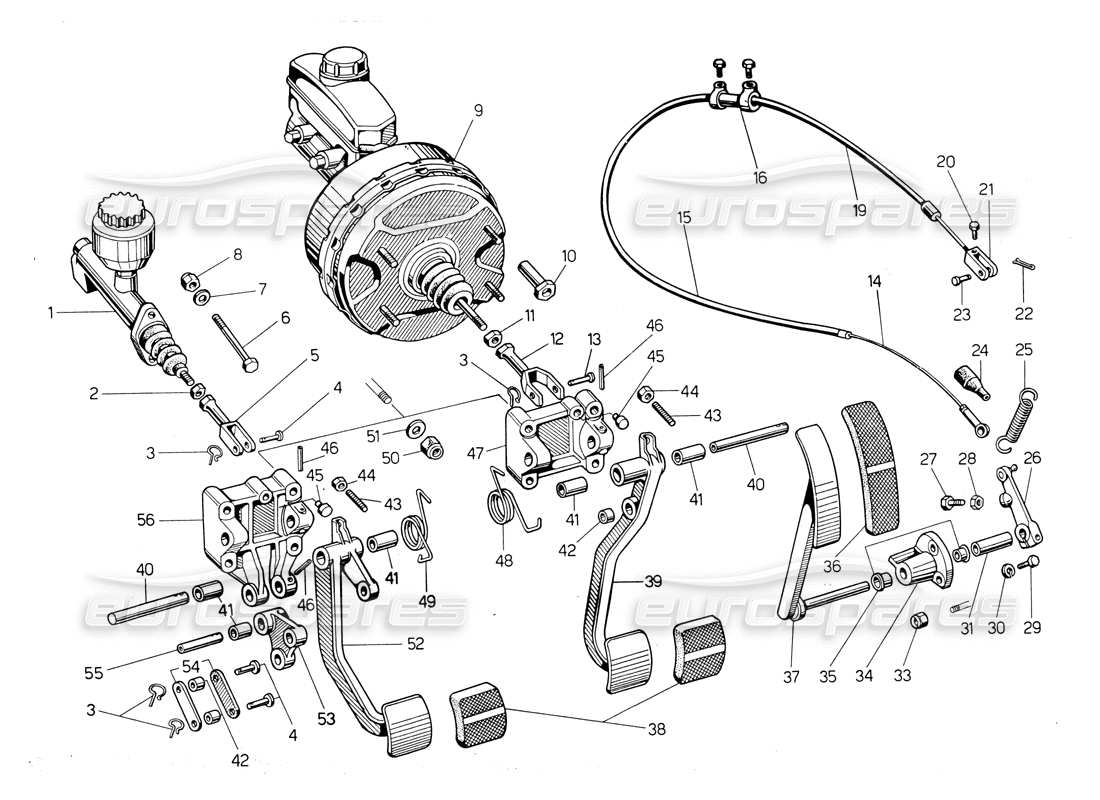

Lamborghini Countach LP400 Pedals Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                #
                                                                                                                Part number
                                                                                                                Description
                                                                                                                Key
                                                                                                                Price
                                                                                                                # 001
                                                                                                                MPN: 004219984
                                                                                                                COMPLESSIVO POMPA FRIZIONE
                                                                                                                from £204.07
                                                                                                                from £204.07
                                                                                                                CLUTCH MASTER CYLINDER Genuine Lamborghini - New In stock
                                                                                                                # 002
                                                                                                                MPN: 008200812
                                                                                                                NUT
                                                                                                                from £8.65
                                                                                                                from £8.65
                                                                                                                BM8 UNI 5590-65/8G NUT Genuine Lamborghini - New (to order)
                                                                                                                # 003
                                                                                                                MPN: 004207085
                                                                                                                SEEGER RING
                                                                                                                from £49.73
                                                                                                                from £49.73
                                                                                                                BRAKE CYLINDER PIN STOPPER Genuine Lamborghini - New In stock
                                                                                                                # 004
                                                                                                                MPN: 004210745
                                                                                                                PIVOT
                                                                                                                from £23.68
                                                                                                                from £23.68
                                                                                                                CLUTCH PEDAL FORK PIN Genuine Lamborghini - New (to order)
                                                                                                                # 005
                                                                                                                MPN: 004209990
                                                                                                                SELECTOR FORK
                                                                                                                from £84.58
                                                                                                                from £84.58
                                                                                                                CLUTCH CYLINDER CONTROL FORK Genuine Lamborghini - New (to order)
                                                                                                                # 006
                                                                                                                MPN: 008100822
                                                                                                                BOLT
                                                                                                                from £3.82
                                                                                                                from £3.82
                                                                                                                SCREW M8X60 UNI 57378G/ZD Genuine Lamborghini - New (to order)
                                                                                                                # 007
                                                                                                                MPN: 008410806
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                # 008
                                                                                                                MPN: 008200806
                                                                                                                NUT
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                # 009
                                                                                                                MPN: 004205398
                                                                                                                BRAKE PUMP
                                                                                                                from £506.34
                                                                                                                from £506.34
                                                                                                                This part replaces part number 004219271
                                                                                                                BRAKE PUMP Genuine Lamborghini - New (to order)
                                                                                                                brake master cylinder Original Equipment - New (to order)
                                                                                                                brake master cylinder Eurospares Approved Part - New In stock
                                                                                                                # 009
                                                                                                                MPN: 004219271
                                                                                                                BRAKE PUMP + SERVO
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                # 010
                                                                                                                MPN: 008201018
                                                                                                                NUT
                                                                                                                from £9.95
                                                                                                                from £9.95
                                                                                                                3/8X24 UNI 2AG 8GNUT Genuine Lamborghini - New (to order)
                                                                                                                # 011
                                                                                                                MPN: 008201017
                                                                                                                NUT
                                                                                                                from £3.82
                                                                                                                from £3.82
                                                                                                                3/8 X24 UNF SPECIAL NUT Genuine Lamborghini - New (to order)
                                                                                                                # 012
                                                                                                                MPN: 004209989
                                                                                                                FORK
                                                                                                                from £84.58
                                                                                                                from £84.58
                                                                                                                BRAKE CYLINDER CONTROL FORK Genuine Lamborghini - New (to order)
                                                                                                                # 013
                                                                                                                MPN: 004208714
                                                                                                                PIVOT
                                                                                                                from £249.02
                                                                                                                from £249.02
                                                                                                                BRAKE & CLUTCH CYLINDER PIN Genuine Lamborghini - New (to order)
                                                                                                                # 014
                                                                                                                MPN: 004229312
                                                                                                                CAVO BOWDEN PER ACCELERATORE
                                                                                                                from £39.82
                                                                                                                from £39.82
                                                                                                                ACCELERATOR WIRE UNIT Genuine Lamborghini - New In stock
                                                                                                                # 015
                                                                                                                MPN: 004210633
                                                                                                                TUBO IN NYLON PER CAVO ACCELERATORE
                                                                                                                Lamborghini PART 004210633 Genuine Lamborghini - New (to order)
                                                                                                                # 016
                                                                                                                MPN: 004208719
                                                                                                                BUSH
                                                                                                                from £169.56
                                                                                                                from £169.56
                                                                                                                HANDBRAKE PROTECTIONPIPE BUSHI NG Genuine Lamborghini - New (to order)
                                                                                                                # 017
                                                                                                                MPN: 008100625
                                                                                                                BOLT
                                                                                                                from £88.37
                                                                                                                from £88.37
                                                                                                                SCREW M6X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
                                                                                                                # 018
                                                                                                                MPN: 008200604
                                                                                                                NUT
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                # 019
                                                                                                                MPN: 004210632
                                                                                                                GUAINA PER CAVO ACCELERATORE
                                                                                                                from £6.10
                                                                                                                from £6.10
                                                                                                                ACCELERATOR WIRE SHEATH Genuine Lamborghini - New (to order)
                                                                                                                # 020
                                                                                                                MPN: 008100503
                                                                                                                BOLT
                                                                                                                from £0.54
                                                                                                                from £0.54
                                                                                                                SCREW M5X8 UNI 5739/8G Genuine Lamborghini - New In stock
                                                                                                                # 021
                                                                                                                MPN: 001300188
                                                                                                                LEVER
                                                                                                                from £131.42
                                                                                                                from £131.42
                                                                                                                ACCELERATOR WIRE LOCK FORK Genuine Lamborghini - New (to order)
                                                                                                                # 022
                                                                                                                MPN: 008820201
                                                                                                                SPLIT PIN
                                                                                                                from £4.23
                                                                                                                from £4.23
                                                                                                                SPLIT PIN 1.8X15 UNI 1336A Genuine Lamborghini - New (to order)
                                                                                                                # 023
                                                                                                                MPN: 001300372
                                                                                                                PIVOT
                                                                                                                from £13.53
                                                                                                                from £13.53
                                                                                                                ACCELERATOR WIRE PIN Genuine Lamborghini - New (to order)
                                                                                                                # 024
                                                                                                                MPN: 003307535
                                                                                                                PROTEZIONE PER CAVO ACCELERATORE
                                                                                                                from £19.15
                                                                                                                from £19.15
                                                                                                                HANDBRAKE WIRE COVER Genuine Lamborghini - New (to order)
                                                                                                                # 025
                                                                                                                MPN: 004212017
                                                                                                                SPRING
                                                                                                                from £23.30
                                                                                                                from £23.30
                                                                                                                ACCELERATOR PEDAL SPRING Genuine Lamborghini - New (to order)
                                                                                                                # 026
                                                                                                                MPN: 004210185
                                                                                                                LEVER
                                                                                                                from £67.08
                                                                                                                from £67.08
                                                                                                                ACCELERATOR PEDAL LEVER Genuine Lamborghini - New (to order)
                                                                                                                # 027
                                                                                                                MPN: 008100632
                                                                                                                BOLT
                                                                                                                from £1.81
                                                                                                                from £1.81
                                                                                                                SCREW M6X30 UNI 5739-65A 5 Genuine Lamborghini - New In stock
                                                                                                                # 028
                                                                                                                MPN: 008200604
                                                                                                                NUT
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                # 029
                                                                                                                MPN: 008100618
                                                                                                                BOLT
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                # 030
                                                                                                                MPN: 008410603
                                                                                                                WASHER
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                # 031
                                                                                                                MPN: 004210629
                                                                                                                DISTANZIALE PER PEDALE ACCELERATO
                                                                                                                from £50.41
                                                                                                                from £50.41
                                                                                                                ACCELERATOR PEDAL SHIM Genuine Lamborghini - New (to order)
                                                                                                                # 033
                                                                                                                MPN: 008200606
                                                                                                                NUT
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                # 034
                                                                                                                MPN: 004210628
                                                                                                                SUPPORT
                                                                                                                from £74.21
                                                                                                                from £74.21
                                                                                                                ACCELERATOR PEDAL BRACKET Genuine Lamborghini - New (to order)
                                                                                                                # 035
                                                                                                                MPN: 008801204
                                                                                                                BUSH
                                                                                                                from £6.06
                                                                                                                from £6.06
                                                                                                                BUSHING 7X16X18 MM Genuine Lamborghini - New (to order)
                                                                                                                # 036
                                                                                                                MPN: 004203128
                                                                                                                COPERTURA PER PEDALE ACCELERATORE
                                                                                                                from £45.00
                                                                                                                from £45.00
                                                                                                                ACCELERATOR PEDAL COVER Genuine Lamborghini - New (to order)
                                                                                                                ACCELERATOR PEDAL COVER Eurospares Approved Part - New In stock
                                                                                                                # 037
                                                                                                                MPN: 004210612
                                                                                                                PEDALE ACCELERATORE
                                                                                                                Lamborghini PART 004210612 Genuine Lamborghini - New (to order)
                                                                                                                # 038
                                                                                                                MPN: 004201212
                                                                                                                BRAKE PEDAL COVER
                                                                                                                from £30.00
                                                                                                                from £30.00
                                                                                                                BRAKE PEDAL COVER Genuine Lamborghini - New In stock
                                                                                                                BRAKE PEDAL COVER Eurospares Approved Part - New In stock
                                                                                                                # 039
                                                                                                                MPN: 004209820
                                                                                                                PEDALE FRENO
                                                                                                                from £289.36
                                                                                                                from £289.36
                                                                                                                BRAKE PEDAL Genuine Lamborghini - New (to order)
                                                                                                                # 040
                                                                                                                MPN: 004210744
                                                                                                                PIVOT
                                                                                                                from £52.15
                                                                                                                from £52.15
                                                                                                                CLUTCH PEDAL MOUNT PIN Genuine Lamborghini - New (to order)
                                                                                                                # 041
                                                                                                                MPN: 008801501
                                                                                                                BUSH
                                                                                                                from £12.06
                                                                                                                from £12.06
                                                                                                                BUSHING 15X17X25 MM Genuine Lamborghini - New (to order)
                                                                                                                # 042
                                                                                                                MPN: 008800803
                                                                                                                BUSH
                                                                                                                from £4.12
                                                                                                                from £4.12
                                                                                                                BUSHING 8X12X8 MM Genuine Lamborghini - New In stock
                                                                                                                # 043
                                                                                                                MPN: 004210834
                                                                                                                REGISTRO PER FINE CORSA PEDALE FRENO E FRIZ.
                                                                                                                from £2.91
                                                                                                                from £2.91
                                                                                                                BRAKE/CLUTCH PEDAL ADJUSTMENT Genuine Lamborghini - New (to order)
                                                                                                                # 044
                                                                                                                MPN: 008200604
                                                                                                                NUT
                                                                                                                Supersession
                                                                                                                Supersession
                                                                                                                Genuine Lamborghini (no longer available to order)
                                                                                                                # 045
                                                                                                                MPN: 410721381
                                                                                                                PEDAL STOP
                                                                                                                from £53.01
                                                                                                                from £53.01
                                                                                                                BRAKE CLUTCH PEDAL STOP Genuine Lamborghini - New (to order)
                                                                                                                # 047
                                                                                                                MPN: 004210741
                                                                                                                SUPPORT
                                                                                                                from £277.75
                                                                                                                from £277.75
                                                                                                                BRAKE PEDAL BRACKET Genuine Lamborghini - New (to order)
                                                                                                                # 048
                                                                                                                MPN: 004210740
                                                                                                                SPRING
                                                                                                                from £57.88
                                                                                                                from £57.88
                                                                                                                BRAKE PEDAL RETURN SPRING Genuine Lamborghini - New (to order)
                                                                                                                # 049
                                                                                                                MPN: 004209988
                                                                                                                SPRING
                                                                                                                from £28.49
                                                                                                                from £28.49
                                                                                                                CLUTCH PEDAL RETURN SPRING Genuine Lamborghini - New (to order)
                                                                                                                # 050
                                                                                                                MPN: N0111849
                                                                                                                NUT
                                                                                                                from £1.43
                                                                                                                from £1.43
                                                                                                                This part replaces part number 008200809
                                                                                                                HEX.HEAD CLAMPING NUT Genuine Lamborghini - New In stock
                                                                                                                # 051
                                                                                                                MPN: N90179103
                                                                                                                WASHER
                                                                                                                from £1.03
                                                                                                                from £1.03
                                                                                                                This part replaces part number 008400801
                                                                                                                WASHER Genuine Lamborghini - New In stock
                                                                                                                # 052
                                                                                                                MPN: 004210381
                                                                                                                PEDALE FRIZIONE
                                                                                                                from £289.36
                                                                                                                from £289.36
                                                                                                                CLUTCH PEDAL Genuine Lamborghini - New (to order)
                                                                                                                # 053
                                                                                                                MPN: 004210743
                                                                                                                LEVER
                                                                                                                from £168.32
                                                                                                                from £168.32
                                                                                                                CLUTCH PEDAL TRANSMISSION LEVE R Genuine Lamborghini - New (to order)
                                                                                                                # 054
                                                                                                                MPN: 004210747
                                                                                                                BIELLETTA
                                                                                                                from £28.49
                                                                                                                from £28.49
                                                                                                                CLUTCH PEDAL LINK ROD Genuine Lamborghini - New (to order)
                                                                                                                # 055
                                                                                                                MPN: 004210746
                                                                                                                PIVOT
                                                                                                                from £49.67
                                                                                                                from £49.67
                                                                                                                CLUTCH GEAR LEVER MOUNT PIN Genuine Lamborghini - New (to order)
                                                                                                                # 056
                                                                                                                MPN: 004210742
                                                                                                                SUPPORT
                                                                                                                from £916.17
                                                                                                                from £916.17
                                                                                                                CLUTCH PEDAL BRACKET Genuine Lamborghini - New (to order)
