lamborghini diablo (1991) front wheel and hub carrier parts diagram

51.01.00 - Front Wheel and Hub Carrier

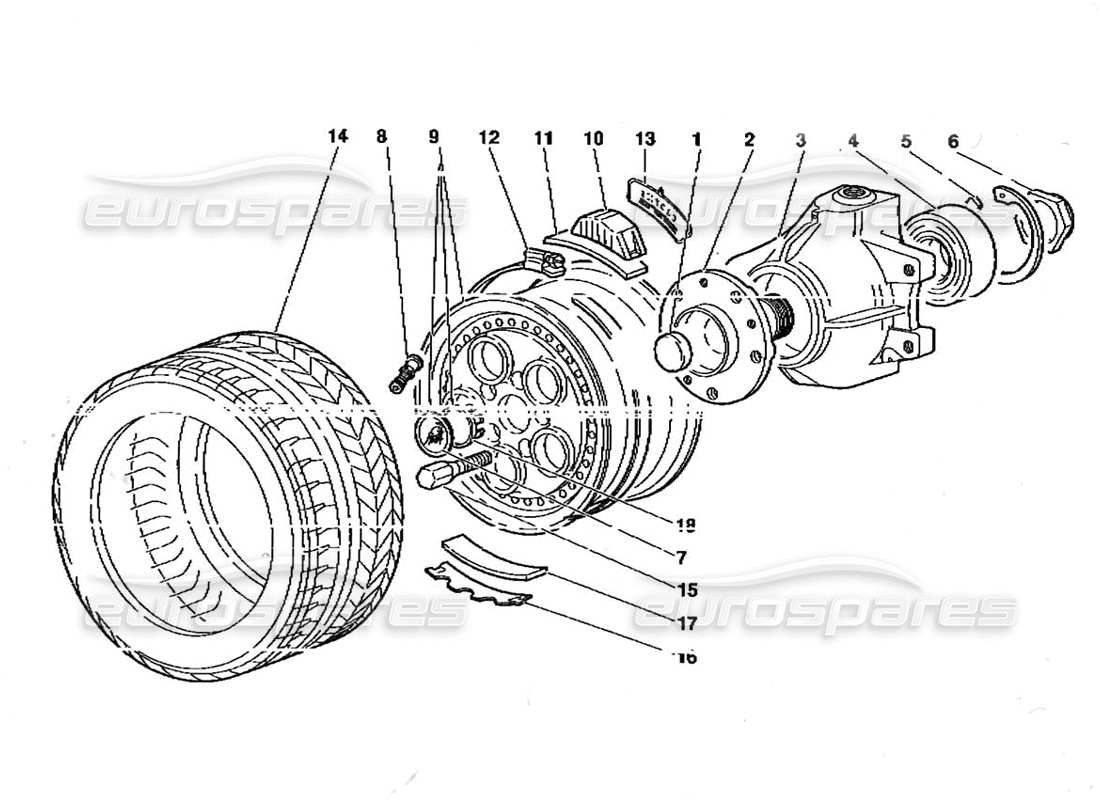

Lamborghini Diablo (1991) Front Wheel and Hub Carrier Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 008933601
        PLUG
        TAPPO
        from £12.61
        from £12.61
        # 002
        MPN: 005127087
        HUB
        MOZZO
        from £981.37
        from £981.37
        # 003
        MPN: 005131323
        LH HUB HOUSING
        from £1,969.15
        from £1,969.15
        # 003
        MPN: 005131327
        RH HUB HOUSING
        from £1,969.15
        from £1,969.15
        # 004
        MPN: 008515002
        BEARING
        CUSCINETTO
        from £77.02
        from £77.02
        This part replaces part number 008515004
        # 005
        MPN: 008579007
        RETAINER RING
        ANELLO RITEGNO
        from £14.77
        from £14.77
        # 006
        MPN: 008205001
        NUT
        DADO
        from £145.51
        from £145.51
        # 007
        MPN: 0052006282
        ORNAMENT
        FREGIO CON TORO
        from £102.03
        from £102.03
        # 007
        MPN: 0052006282/A
        Wheel Badges
        # 008
        MPN: 005330906
        VALVE
        VALVOLA
        from £28.80
        from £28.80
        # 009
        MPN: 005127258
        RIM
        CERCHIO RUOTA
        from £1,046.23
        from £1,046.23
        # 010
        MPN: 005131891
        SENDING UNIT
        TRASMETTITORE PRESSIONE
        from £288.41
        from £288.41
        # 011
        MPN: 005131894
        GASKET
        Guarnizione
        from £1.82
        from £1.82
        # 013
        MPN: 005132551
        PLATE
        TARGHETTA POSIZIONE TRASMETT
        from £2.58
        from £2.58
        # 014
        MPN: 005329986
        TYRE
        PN. ANT PIRELLI PZERO 245/40 ZR17
        # 014
        MPN: 005332472
        TYRE
        PNEUMATICO ANT BRIDGESTONE
        # 015
        MPN: 005234416
        STUD
        from £49.70
        from £49.70
        # 016
        MPN: 005131892
        BALANCE WEIGHT
        CONTRAPPESO PER TRASMETTITORE
        from £20.78
        from £20.78
        # 017
        MPN: 005131895
        GASKET
        Guarnizione
        from £2.16
        from £2.16
