9420.01.00 - Windscreen Wiper and Headlamp Washers

Lamborghini Diablo (1991) Windscreen Wiper and Headlamp Washers Parts Diagram

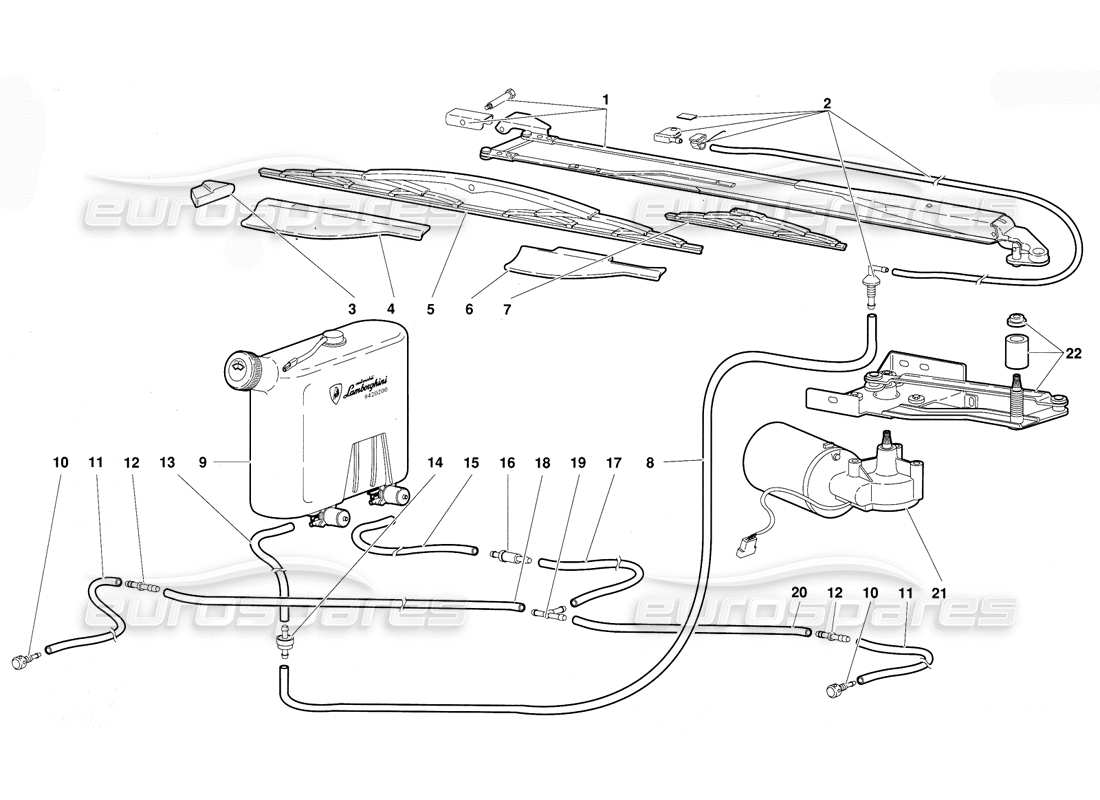

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 009420113
WIPER ARM
BRACCIOTERGITORE
Lamborghini PART 009420113 Genuine Lamborghini - New (to order)
# 002
MPN: 418955215
Windscreen Washer
LAVAPARABREZZA
from £82.75
from £82.75
WINDSCREEN WIPER KIT Genuine Lamborghini - New (to order)
# 003
MPN: 009420119
RUBBER PAD
TAMPONE COMMA
from £37.03
from £37.03
WIPER STROKE PAD Genuine Lamborghini - New (to order)
# 004
MPN: 009420118
FIN
ALETTA
from £167.90
from £167.90
WINDSHIELD WIPER ARMFLAP Genuine Lamborghini - New (to order)
# 005
MPN: 009420114
BRUSH
SPAZZOLA LUNGA
from £44.95
from £44.95
LONG BLADE Genuine Lamborghini - New (to order)
# 006
MPN: 009420117
FIN
ALETTA
from £167.90
from £167.90
WINDSHIELD WIPER ARMFLAP Genuine Lamborghini - New (to order)
# 007
MPN: 009420115
BRUSH
SPAZZOLA CORTA
from £52.45
from £52.45

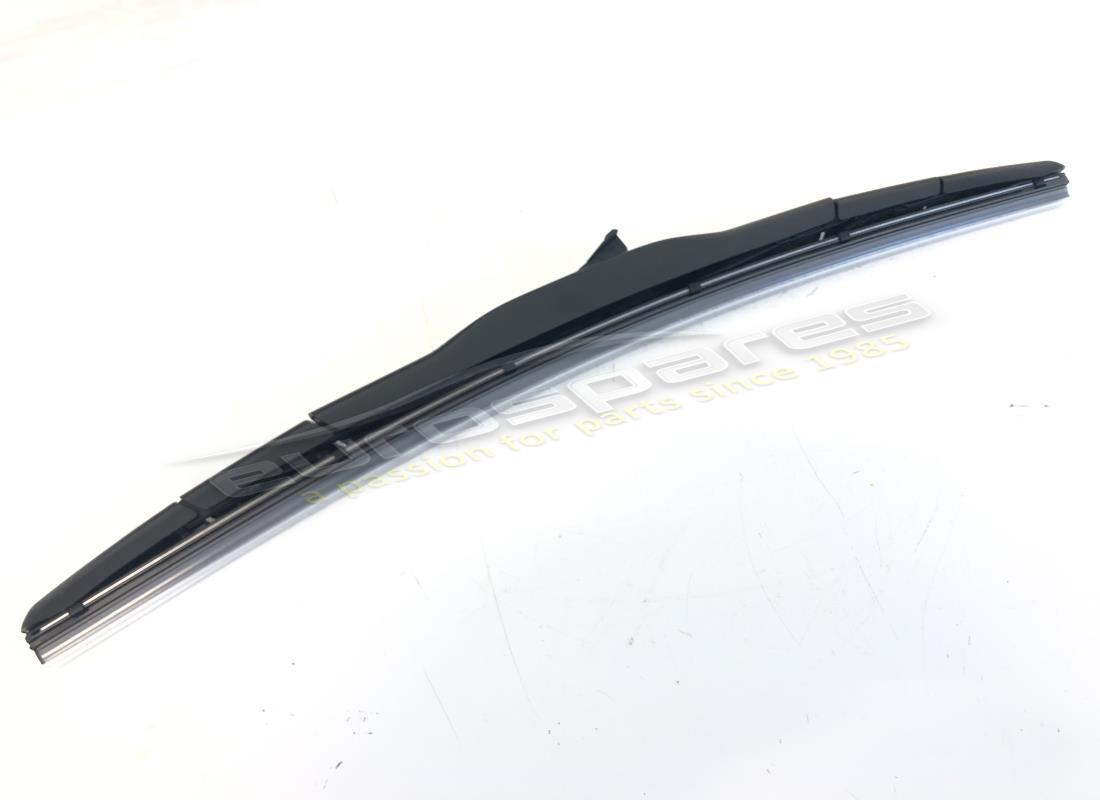

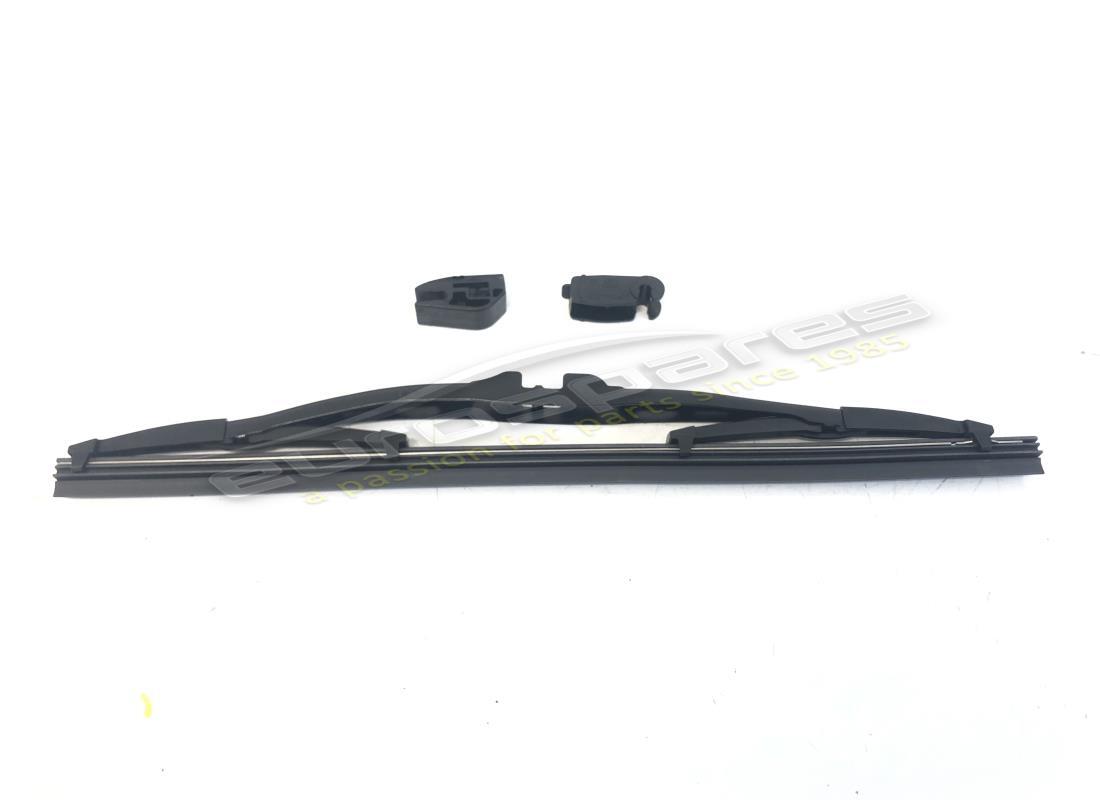

WIPER BLADE (SHORT BRUSH) Genuine Lamborghini - New In stock
# 008
MPN: 009420211
PIPE
Tubo
from £4.25
from £4.25
WIPER ONE-WAY VALVE PIPE Genuine Lamborghini - New (to order)
# 009
MPN: 009420200
WATER RESERVOIR
SERBATOIO ACQUA
from £67.41
from £67.41
WASHER RESERVOIR WITHOUT PUMPS Genuine Lamborghini - New (to order)
# 010
MPN: 400955985
JET
UGELLO
from £3.50
from £3.50
This part replaces part number 009420207
SPRAY JET Genuine Lamborghini - New In stock
# 011
MPN: 009420215
PIPE
Tubo
from £5.37
from £5.37
2WAY HEADLIGHT WASHER PIPE Genuine Lamborghini - New (to order)
# 012
MPN: 009420208
CONNECTION
RACCORDO A 2 VIE
from £1.05
from £1.05
2 WAY FITTING Genuine Lamborghini - New In stock
# 013
MPN: 009420201
PIPE
Tubo
from £8.46
from £8.46
WASHER RESERVOIR PIPE Genuine Lamborghini - New (to order)
# 014
MPN: 009420210
VALVE
VALVOLA Dl NON RITORNO
from £3.60
from £3.60
ONE-WAY VALVE Genuine Lamborghini - New (to order)
# 015
MPN: 009420216
PIPE
Tubo
from £3.94
from £3.94
MOTOR/PRESSURE VALVEPIPE Genuine Lamborghini - New (to order)
# 016
MPN: 009420217
VALVE
VALVOLA Dl NON RITORNO
from £3.90
from £3.90
see 009420227 Genuine Lamborghini - New In stock
# 017
MPN: 009420212
PIPE
Tubo
from £15.87
from £15.87
3 WAY ONE-WAY VALVE PIPE Genuine Lamborghini - New (to order)
# 018
MPN: 009420213
PIPE
Tubo
from £3.94
from £3.94
3WAY/RH HEADLIGHT FITTING PIPE Genuine Lamborghini - New (to order)
# 019
MPN: 009420209
3 WAY CONNECTION
RACCORDO A 3 VIE
from £1.70
from £1.70
3 WAY FITTING Genuine Lamborghini - New (to order)
# 020
MPN: 009420214
PIPE
Tubo
from £12.03
from £12.03
3WAY/LH HEADLIGHT FITTING PIPE Genuine Lamborghini - New (to order)
# 021
MPN: 009420112
electric motor
MOTORING TERGI
from £378.90
from £378.90
WINDSCREEN WIPER MOTOR Genuine Lamborghini - New (to order)
