62.02.00 - fuel system

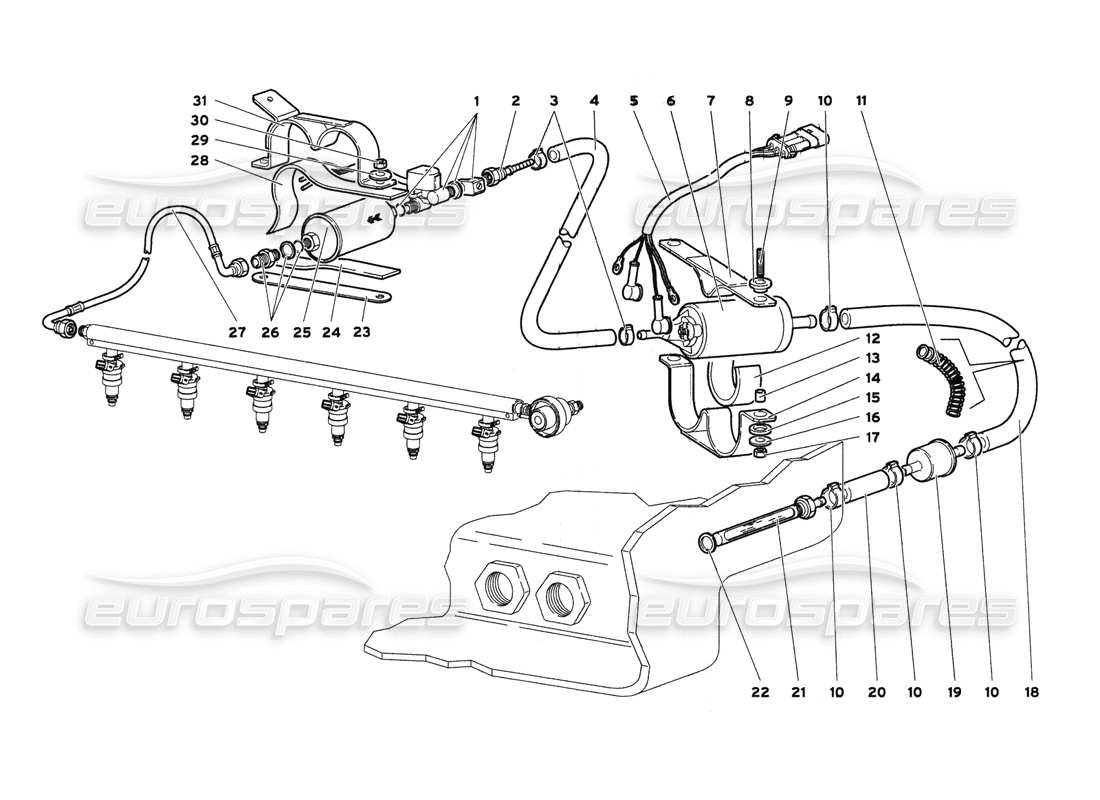

Lamborghini Diablo 6.0 (2001) Fuel System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0061006426
MED SOLENOID VALVE KIT
from £379.74
from £379.74
# 002
MPN: 006227630
UNION
from £8.43
from £8.43
# 003
MPN: 008831528
CLAMP
Supersession
Supersession
# 004
MPN: 006230218
PIPE
from £31.52
from £31.52
# 005
MPN: 0061008760
FUEL PUMP WIRING
from £26.91
from £26.91
# 006
MPN: 002024398
fuel pump
from £276.00
from £276.00
# 007
MPN: 006229532
PLATE
from £29.10
from £29.10
# 008
MPN: 001701495
RUBBER RING
from £32.99
from £32.99
# 009
MPN: WHT003031
STUD
from £5.85
from £5.85
This part replaces part number 008300839
# 010
MPN: 400251189B
CLAMP
from £6.53
from £6.53
# 011
MPN: 0062002430
SPRING
Supersession
Supersession
# 012
MPN: 006226900
GASKET
from £15.05
from £15.05
# 013
MPN: 001701592
SPACER
from £11.72
from £11.72
# 014
MPN: 006229533
CLAMP
from £38.35
from £38.35
# 015
MPN: WHT001189
RUBBER RING
from £2.38
from £2.38
This part replaces part number 001707163
# 016
MPN: WHT001942
WASHER
from £2.18
from £2.18
# 017
MPN: N0111849
NUT
from £1.47
from £1.47
This part replaces part number 008200809
# 018
MPN: 006230225
PIPE
from £12.62
from £12.62
# 019

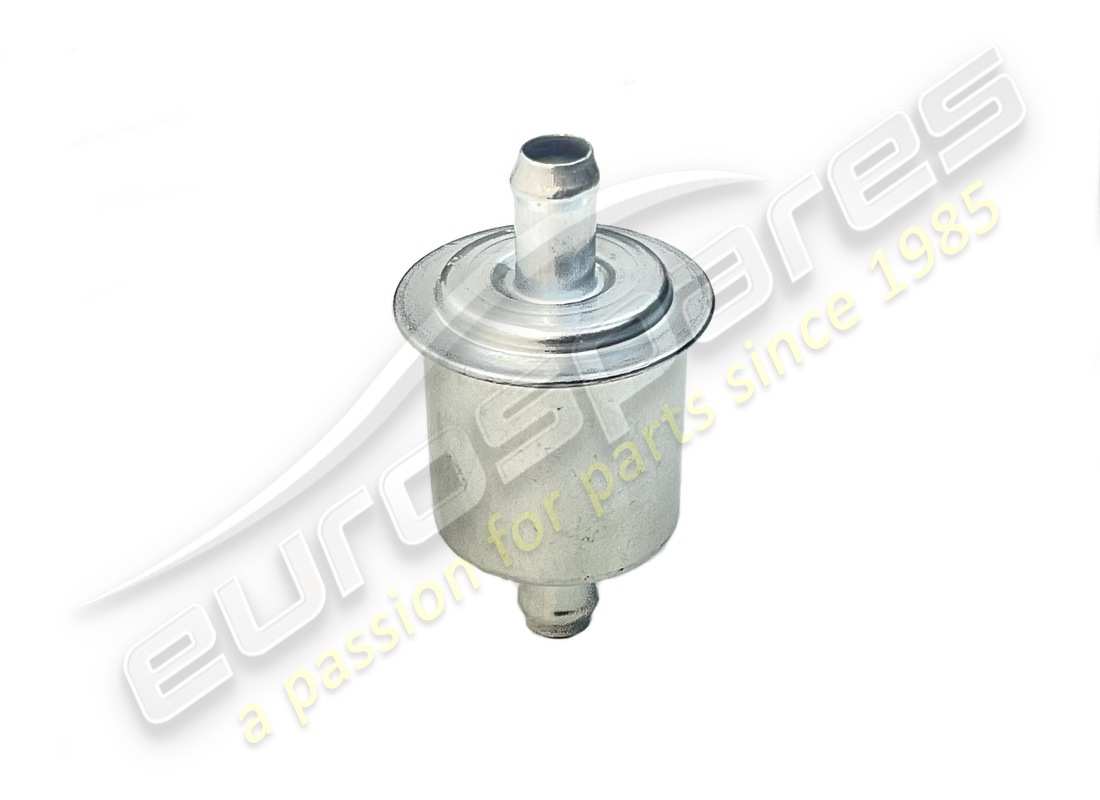

MPN: 006229221
FILTER
from £45.69
from £45.69
# 020
MPN: 006230226
PIPE
from £29.23
from £29.23
# 021
MPN: 0062001649
SUCTION PIPE
from £377.24
from £377.24
# 022
MPN: WHT003048
WASHER
from £2.13
from £2.13
# 023
MPN: 0062007226
PLATE
# 024
MPN: 410201196
GASKET
from £3.03
from £3.03
# 025
MPN: 400201511A
FUEL FILTER
from £32.95
from £32.95
This part replaces part number 002030563
# 026
MPN: 006230564
UNION
Supersession
Supersession
# 027
MPN: 006231552
PIPE FOR 1 TO 6 CYLINDER BLOCK
from £145.26
from £145.26
# 027
MPN: 006231554
PIPE FOR 7 TO 12 CYLINDER BLOCK
from £85.26
from £85.26
# 028
MPN: 006230214
GASKET
# 029
MPN: WHT002961
WASHER
from £0.53
from £0.53
This part replaces part number 008400607
# 030
MPN: 008200606
NUT
Supersession
Supersession
# 031
MPN: 0062006493
CLAMP
