17.01.00 - WATER PUMP

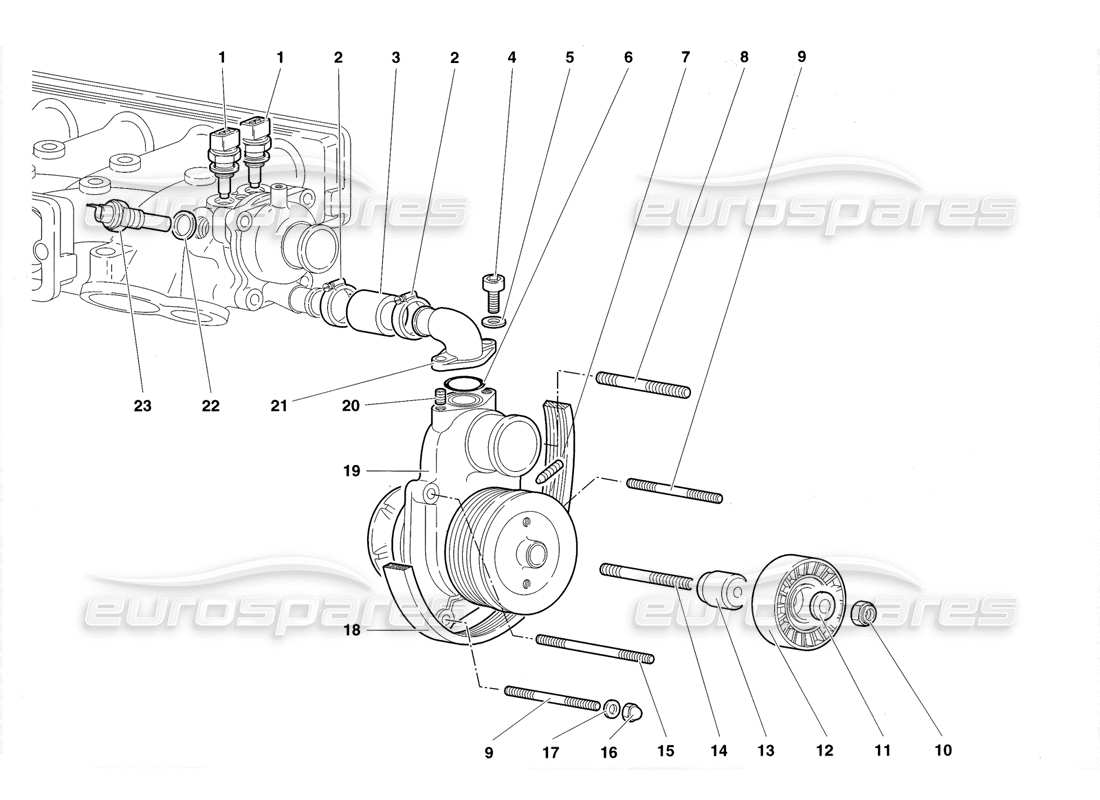

Lamborghini Diablo Roadster (1998) Water Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 07L919501A
TEMPERAT. SENSOR
SENSORE TEMP. ACQUA
from £116.28
from £116.28
This part replaces part number 002024394 - and 1 more. Click to view details
# 002
MPN: 008832604
STRAP
FASCETTA
from £2.27
from £2.27
# 003
MPN: 001732811
PIPE
Tubo
from £15.88
from £15.88
# 004
MPN: 008700617
SCREW
VITE
from £0.53
from £0.53
This part replaces part number 008700670
# 005
MPN: 008410602
WASHER
RONDELLA
from £28.66
from £28.66
# 006
MPN: WHT003062
SEAL
ANELLO TENUTA
from £3.98
from £3.98
This part replaces part number 008602802
# 007
MPN: 008700650
SCREW
VITE
from £1.68
from £1.68
# 008
MPN: 008301034
STUD
PRIGIONIERO
from £3.65
from £3.65
# 009
MPN: WHT003028
STUD
PRIGIONIERO
from £12.54
from £12.54
# 010
MPN: 008201008
NUT
DADO
from £0.57
from £0.57
# 011
MPN: 008400806
WASHER
RONDELLA
from £0.54
from £0.54
# 012
MPN: 07M109565
PULLEY
PULEGGIA
from £536.20
from £536.20
# 013
MPN: 001237082
BUSHING
BUSSOLA
from £147.00
from £147.00
# 014
MPN: WHT003028
STUD
PRIGIONIERO
from £12.54
from £12.54
# 015
MPN: 008300833
STUD
PRIGIONIERO
from £3.82
from £3.82
# 016
MPN: 008200809
NUT
DADO
Supersession
Supersession
# 017
MPN: 008400806
WASHER
RONDELLA
from £0.53
from £0.53
# 018
MPN: 001736516
TRANS BELT
WATER PUMP, ALTERNATOR & POWER STEERING
from £112.83
from £112.83
# 019
MPN: 001700862
WATER PUMP
Water pump
# 020
MPN: 008840601
HELI-COIL
HELI-COIL
from £1.67
from £1.67
# 021
MPN: 001732803
CONNECTION
RACCORDO
from £208.10
from £208.10
# 022
MPN: 008401408
WASHER
RONDELLA
from £1.29
from £1.29
# 023
MPN: 001724221
THERMOCOUPLE
TERMOCOPPIA
from £79.90
from £79.90
