lamborghini diablo se30 (1995) front hood parts diagram

9459.01.00 - Front Hood

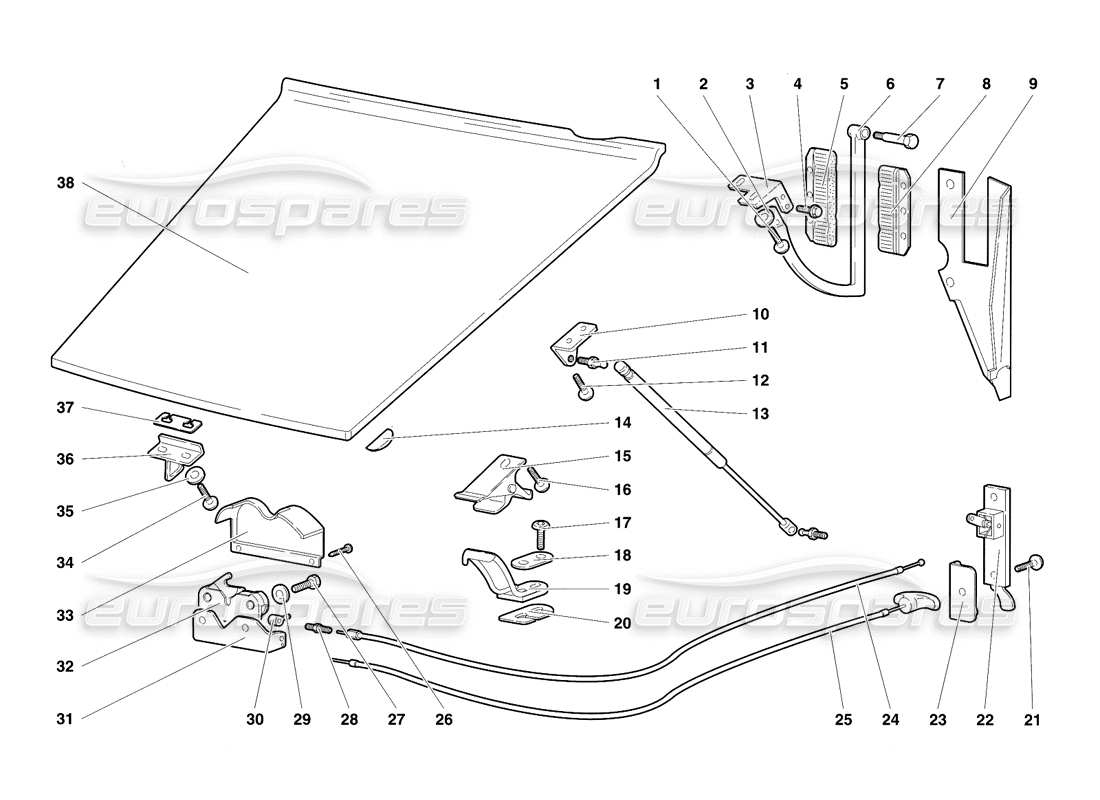

Lamborghini Diablo SE30 (1995) Front Hood Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008700685
SCREW
VITE
Supersession
Supersession
# 002
MPN: 008400627
WASHER
RONDELLA
from £13.82
from £13.82
# 003
MPN: 009459321
RIGHT SUPPORT
SUPPORTO DX
from £31.84
from £31.84
# 003
MPN: 009459322
LEFT SUPPORT
SUPPORTO SX
from £31.84
from £31.84
# 004
MPN: 008700674
SCREW
VITE
Supersession
Supersession
# 005
MPN: 009459310
BRUSH
SPAZZOLA
from £47.59
from £47.59
# 006
MPN: 009459320
LEFT HINGE
CERNIERASX
# 006
MPN: 009459325
RIGHT HINGE
CERNIERADX
from £157.37
from £157.37
# 007
MPN: 009459323
PIN
PERNO
from £30.66
from £30.66
# 008
MPN: 009459311
BRUSH
SPAZZOLA
from £47.59
from £47.59
# 009
MPN: 009459316
RIGHT PLATE
PIASTRA DX
from £119.40
from £119.40
# 009
MPN: 009459317
LEFT PLATE
PIASTRA SX
from £29.28
from £29.28
# 010
MPN: 009459309
BRACKET
STAFFA
from £24.05
from £24.05
# 011
MPN: 009459305
PIN
PERNO
from £1.60
from £1.60
# 012
MPN: 008700665
SCREW
VITE
from £31.84
from £31.84
# 013
MPN: 0079004387
SHOCK ABSORBER
MARTI NETTO
from £78.86
from £78.86
This part replaces part number 009459318
# 014
MPN: 009459105
RIGHT PAD
TASSELLO DX
from £45.69
from £45.69
# 014
MPN: 009459106
LEFT PAD
TASSELLO SX
from £45.69
from £45.69
# 015
MPN: 009459208
SAFETY HOOK
SAFETY HOOK
from £72.48
from £72.48
# 016
MPN: 008700665
SCREW
VITE
from £31.84
from £31.84
# 017
MPN: 008700665
SCREW
VITE
from £31.84
from £31.84
# 018
MPN: 009459226
PLATE
Piastrina
from £19.04
from £19.04
# 019
MPN: 009459224
LOCK STRIKER
RISCONTRO
from £95.98
from £95.98
# 020
MPN: 009459225
SHIM
SPESSORE Dl REGISTRO
from £9.95
from £9.95
# 021
MPN: 008700544
SCREW
VITE
from £1.09
from £1.09
# 022
MPN: 009459200
OPENI. HOOD HANDLE
MANIGLIA APERTURA COFANO
from £326.68
from £326.68
# 023
MPN: 009459223
PLATE
Piastrina
from £8.87
from £8.87
# 024
MPN: 009459001
OPENING HOOD CABLE
CAVO APERTURA COFANO
from £12.76
from £12.76
# 025
MPN: 009459003
EMERGENCY CABLE
CAVO EMERGENZA
# 026
MPN: WHT003065
SCREW
VITE
from £0.90
from £0.90
# 027
MPN: 008100623
SCREW
VITE
Supersession
Supersession
# 028
MPN: 009460213
ADJ/SCREW
VITE REGISTRO
# 029
MPN: WHT002961
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
# 030
MPN: 009459217
CLAMP
MORSETTO
# 031
MPN: 009459213
SPACER
DISTANZIALE
from £14.06
from £14.06
# 032
MPN: 009459216
FRONT HOOD LOCK
SERRATURA COFANO ANT.
from £107.65
from £107.65
# 033
MPN: 009459212
METAL COVERING
LOCK COVERING
from £110.69
from £110.69
# 034
MPN: 008700665
SCREW
VITE
from £31.84
from £31.84
# 035
MPN: 008400627
WASHER
RONDELLA
from £13.82
from £13.82
# 036
MPN: 009459227
LOCK STRIKER
RISCONTRO
from £79.84
from £79.84
# 037
MPN: 009459228
SHIM
SPESSORE Dl REGISTRO
from £6.14
from £6.14
# 038
MPN: 600945901
FRONT BONNET
COFANO ANTERIORE
from £4,124.82
from £4,124.82
