103.03.00 - engine block

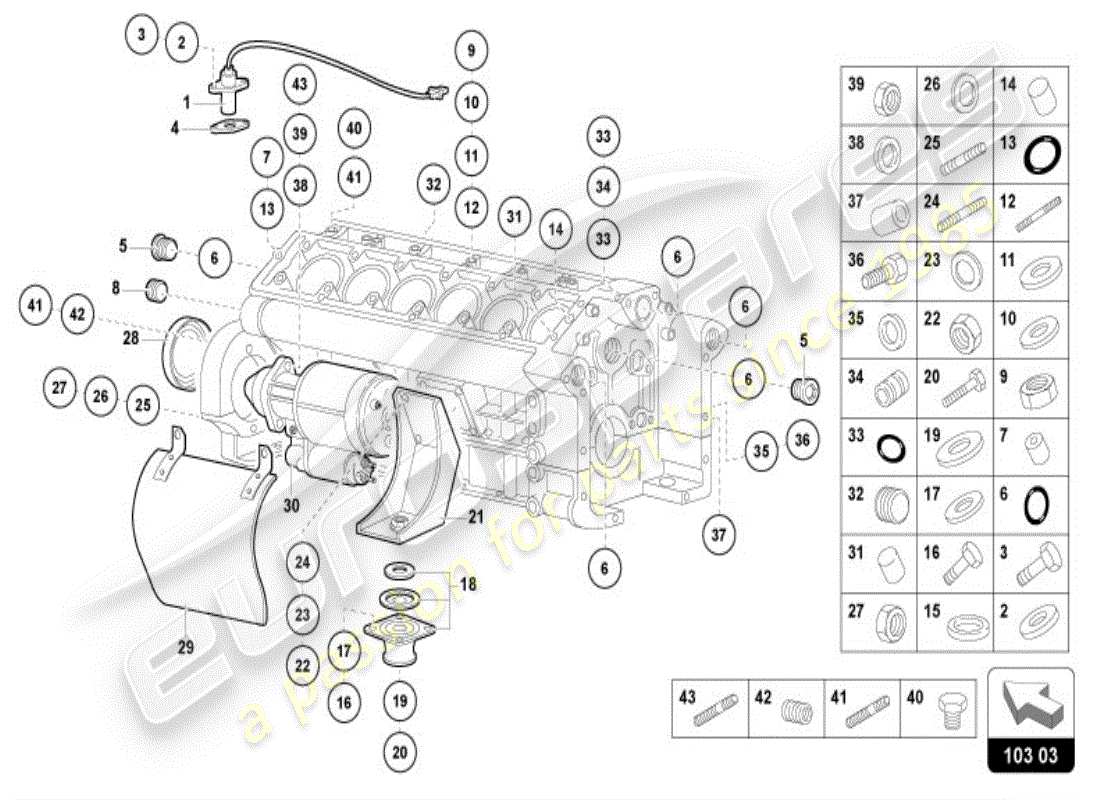

Lamborghini Diablo VT (1995) ENGINE BLOCK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Key
                                                                  Price
                                                                  # 001
                                                                  MPN: 001625411
                                                                  SENSOR
                                                                  NOT FOR THIS MODEL
                                                                  TIMING SENSOR Genuine Lamborghini - New (to order)
                                                                  # 002
                                                                  MPN: 008410502
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 003
                                                                  MPN: 008100504
                                                                  SCREW
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 004
                                                                  MPN: 001628601
                                                                  SPACER
                                                                  SP 0,2 MM0
                                                                  SPACER Genuine Lamborghini - New (to order)
                                                                  # 004
                                                                  MPN: 001628602
                                                                  SPACER
                                                                  SP 0,4 MM0
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 005
                                                                  MPN: 001830023
                                                                  CAP
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 006
                                                                  MPN: 008603501
                                                                  RING
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 007
                                                                  MPN: 001832161
                                                                  DOWEL
                                                                  from £247.46
                                                                  from £247.46
                                                                  CRANKCASE/HEAD REFERENCE DOWEL Genuine Lamborghini - New (to order)
                                                                  # 008
                                                                  MPN: 008933503
                                                                  CAP
                                                                  PLUG Genuine Lamborghini - New (to order)
                                                                  # 009
                                                                  MPN: 008200806
                                                                  NUT
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 010
                                                                  MPN: 008410806
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 011
                                                                  MPN: 008400801
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 012
                                                                  MPN: 008300891
                                                                  STUD
                                                                  from £9.63
                                                                  from £9.63
                                                                  STUD M8X220 UNI 59118G/Z Genuine Lamborghini - New (to order)
                                                                  # 013
                                                                  MPN: 008601102
                                                                  RING
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 014
                                                                  -
                                                                  DOWEL
                                                                  NOT FOR THIS MODEL
                                                                  # 015
                                                                  MPN: 008401425
                                                                  WASHER
                                                                  INCLUDED IN ENGINE GASKET KIT
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 015
                                                                  MPN: 008603501
                                                                  RING
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 016
                                                                  MPN: 008101031
                                                                  SCREW
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 017
                                                                  MPN: 008411005
                                                                  WASHER
                                                                  from £0.51
                                                                  from £0.51
                                                                  WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
                                                                  # 017
                                                                  MPN: 008411014
                                                                  WASHER
                                                                  from £0.51
                                                                  from £0.51
                                                                  SNAP RING D.10 DIN 7980 Genuine Lamborghini - New In stock
                                                                  # 018
                                                                  MPN: 001824365
                                                                  ELASTIC SUPPORT
                                                                  from £183.51
                                                                  from £183.51
                                                                  PAD 786027 S5W Genuine Lamborghini - New (to order)
                                                                  # 018
                                                                  MPN: 001834734
                                                                  ELASTIC SUPPORT
                                                                  from £115.53
                                                                  from £115.53

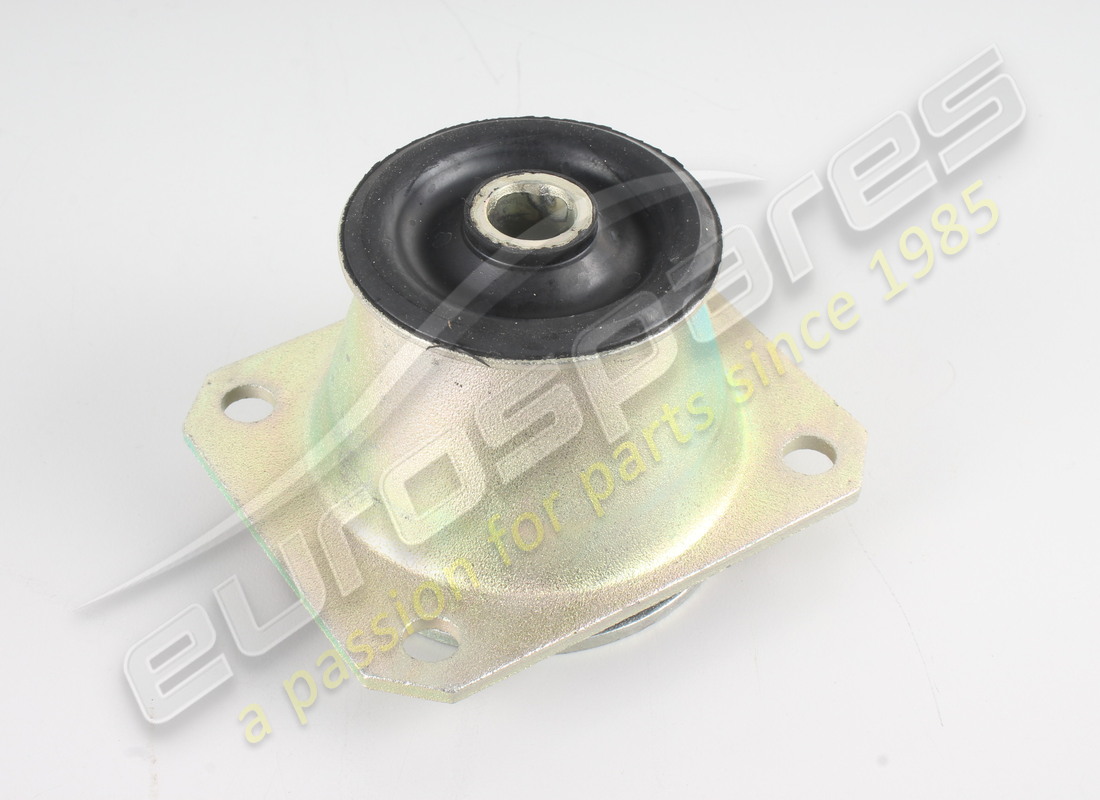

                                                                  ELASTIC ENGINE MOUNT Genuine Lamborghini - New (to order)
                                                                  # 019
                                                                  MPN: 001831606
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 020
                                                                  MPN: 004131471
                                                                  SCREW
                                                                  from £21.58
                                                                  from £21.58
                                                                  METAL CONE FASTENINGSCREW Genuine Lamborghini - New (to order)
                                                                  # 021
                                                                  MPN: 001831475
                                                                  SUPPORT
                                                                  RIGHT
                                                                  Lamborghini PART 001831475 Genuine Lamborghini - New (to order)
                                                                  # 021
                                                                  MPN: 001831476
                                                                  SUPPORT
                                                                  LEFT
                                                                  from £221.60
                                                                  from £221.60
                                                                  see 001835941 Genuine Lamborghini - New (to order)
                                                                  # 021
                                                                  MPN: 001835941
                                                                  SUPPORT
                                                                  from £199.48
                                                                  from £199.48
                                                                  RH/LH ENGINE MOUNT Genuine Lamborghini - New (to order)
                                                                  # 022
                                                                  MPN: 008200808
                                                                  NUT
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 023
                                                                  MPN: 008410806
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 024
                                                                  MPN: 008300814
                                                                  STUD
                                                                  from £4.25
                                                                  from £4.25
                                                                  STUD M8X18 UNI 5914 8G ZD Genuine Lamborghini - New (to order)
                                                                  # 025
                                                                  MPN: 008301240
                                                                  STUD
                                                                  from £27.20
                                                                  from £27.20
                                                                  STARTER MOTOR SPECIAL STUD Genuine Lamborghini - New (to order)
                                                                  # 026
                                                                  -
                                                                  WASHER
                                                                  NOT FOR THIS MODEL
                                                                  # 027
                                                                  -
                                                                  NUT
                                                                  NOT FOR THIS MODEL
                                                                  # 028
                                                                  MPN: 001829403
                                                                  RING
                                                                  INCLUDED IN ENGINE GASKET KIT
                                                                  RING Genuine Lamborghini - New (to order)
                                                                  # 029
                                                                  MPN: 001632074
                                                                  SHIELD
                                                                  from £414.60
                                                                  from £414.60
                                                                  STARTER MOTOR GUARD Genuine Lamborghini - New (to order)
                                                                  # 029
                                                                  MPN: 001635959
                                                                  SHIELD
                                                                  from £413.10
                                                                  from £413.10
                                                                  STARTER MOTOR COVER Genuine Lamborghini - New (to order)
                                                                  STARTER MOTOR COVER Genuine Lamborghini - Used In stock
                                                                  # 030
                                                                  MPN: 001630672
                                                                  STARTER MOTOR
                                                                  from £608.24
                                                                  from £608.24
                                                                  STARTER MOTOR Genuine Lamborghini - New (to order)
                                                                  # 032
                                                                  MPN: 008931209
                                                                  PLUG
                                                                  PLUG Genuine Lamborghini - New (to order)
                                                                  # 033
                                                                  MPN: 008600701
                                                                  RING
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 034
                                                                  MPN: 001833995
                                                                  WHEAT
                                                                  from £19.94
                                                                  from £19.94
                                                                  CRANKCASE/HEAD DOWEL Genuine Lamborghini - New (to order)
                                                                  # 035
                                                                  MPN: 008400609
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  Genuine Lamborghini (no longer available to order)
                                                                  # 036
                                                                  MPN: 008100620
                                                                  SCREW
                                                                  from £3.78
                                                                  from £3.78
                                                                  SCREW M6X12 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
                                                                  # 037
                                                                  MPN: 008851304
                                                                  WHEAT
                                                                  from £40.36
                                                                  from £40.36
                                                                  DOWEL Genuine Lamborghini - New (to order)
                                                                  # 038
                                                                  MPN: 008411213
                                                                  WASHER
                                                                  from £1.41
                                                                  from £1.41
                                                                  WASHER 12X21X2 DIN 128A ZD Genuine Lamborghini - New (to order)
                                                                  # 038
                                                                  MPN: 008411303
                                                                  WASHER
                                                                  from £2.01
                                                                  from £2.01
                                                                  SNAP RING 21X13X2.5 UNI 175 1 C72/Z Genuine Lamborghini - New (to order)
                                                                  # 039
                                                                  MPN: 001832869
                                                                  NUT
                                                                  NUT Genuine Lamborghini - New (to order)
                                                                  # 039
                                                                  MPN: 008201218
                                                                  NUT
                                                                  from £12.35
                                                                  from £12.35
                                                                  D.112X20 UNFX10 NUT Genuine Lamborghini - New (to order)
                                                                  # 040
                                                                  MPN: 008101402
                                                                  SCREW
                                                                  from £18.54
                                                                  from £18.54
                                                                  OIL DRAIN PLUG M14X1.5 Genuine Lamborghini - New (to order)
                                                                  # 041
                                                                  -
                                                                  STUD
                                                                  NOT FOR THIS MODEL
                                                                  # 042
                                                                  -
                                                                  BUSHING
                                                                  NOT FOR THIS MODEL
                                                                  # 043
                                                                  -
                                                                  STUD
                                                                  NOT FOR THIS MODEL
