133.09.00 - LINKAGE

Lamborghini Diablo VT (1995) LINKAGE Parts Diagram

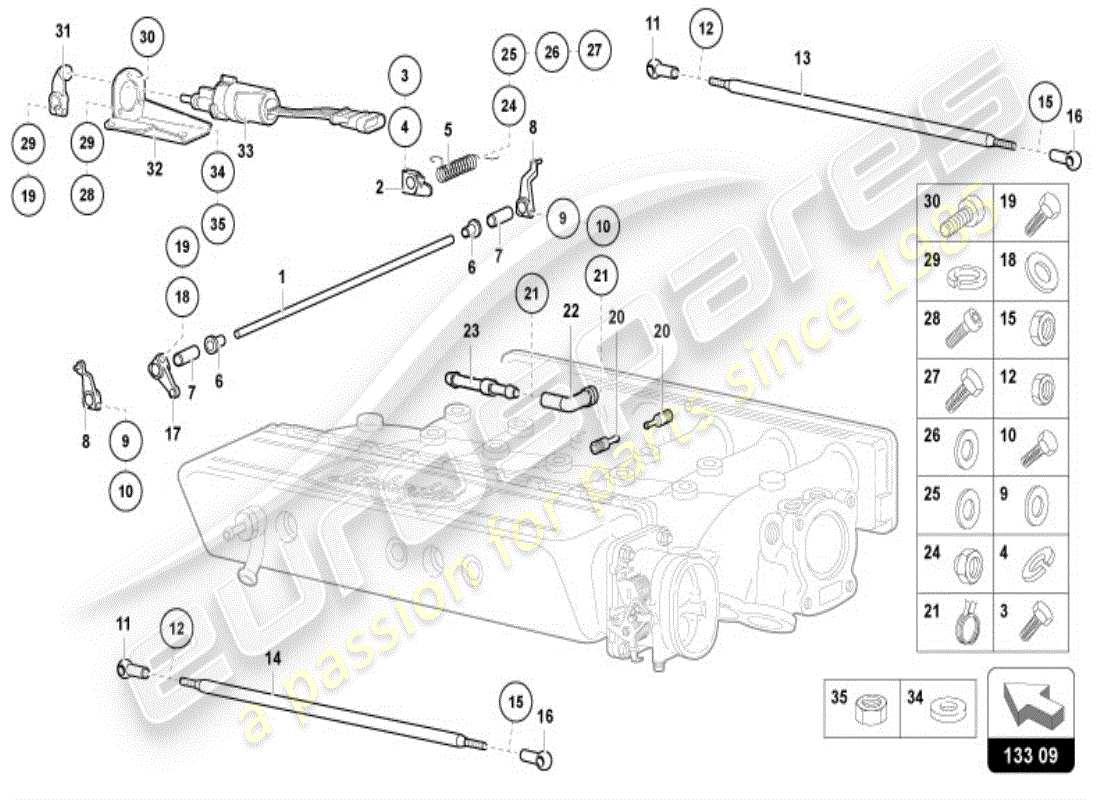

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 001
                                              MPN: 001323135
                                              SHAFT
                                              from £21.18
                                              from £21.18
                                              INJECTION CONTROL SHAFT Genuine Lamborghini - New (to order)
                                              # 002
                                              MPN: 001331005
                                              LEVER
                                              from £24.39
                                              from £24.39
                                              SPRING LOCK LEVER Genuine Lamborghini - New (to order)
                                              # 003
                                              MPN: 008100607
                                              SCREW
                                              from £3.78
                                              from £3.78
                                              SCREW M6X18 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
                                              # 004
                                              MPN: 008410603
                                              WASHER
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 005
                                              MPN: 001310961
                                              SPRING
                                              from £51.61
                                              from £51.61
                                              FILTER CARBURETTOR RETURN SPRI NG Genuine Lamborghini - New (to order)
                                              # 006
                                              MPN: 008801204
                                              BUSHING
                                              from £6.02
                                              from £6.02
                                              BUSHING 7X16X18 MM Genuine Lamborghini - New (to order)
                                              # 007
                                              MPN: 001323136
                                              SPACER
                                              from £8.74
                                              from £8.74
                                              SHIM ON INJECTION CONTROL SHAF T Genuine Lamborghini - New (to order)
                                              # 008
                                              MPN: 001311580
                                              LEVER
                                              from £212.23
                                              from £212.23
                                              CARBURETTOR DRIVE SHAFT LEVER Genuine Lamborghini - New (to order)
                                              # 009
                                              MPN: 008410603
                                              WASHER
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 010
                                              MPN: 008100618
                                              SCREW
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 011
                                              MPN: 001300804
                                              COUPLING HEAD
                                              from £7.54
                                              from £7.54
                                              HEAD UNIT Genuine Lamborghini - New In stock
                                              # 012
                                              MPN: 008200504
                                              NUT
                                              from £10.20
                                              from £10.20
                                              M5 LH SPECIAL NUT Genuine Lamborghini - New (to order)
                                              # 013
                                              MPN: 001328014
                                              TIE ROD
                                              LEFT
                                              from £231.82
                                              from £231.82
                                              LH THROTTLE LEVER TIEROD Genuine Lamborghini - New (to order)
                                              # 014
                                              MPN: 001328016
                                              TIE ROD
                                              RIGHT
                                              from £328.58
                                              from £328.58
                                              RH THROTTLE LEVER TIEROD Genuine Lamborghini - New (to order)
                                              # 015
                                              MPN: 008200501
                                              NUT
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 016
                                              MPN: 001308539
                                              COUPLING HEAD
                                              TESTINA SIN Genuine Lamborghini - New (to order)
                                              # 017
                                              MPN: 001301093
                                              LEVER
                                              from £145.86
                                              from £145.86
                                              CARBURETTOR ROD LEVER Genuine Lamborghini - New In stock
                                              # 018
                                              MPN: 008410603
                                              WASHER
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 019
                                              MPN: 008100621
                                              SCREW
                                              from £1.11
                                              from £1.11
                                              SCREW M6X20 UNI 5739/5S/Z Genuine Lamborghini - New In stock
                                              # 020
                                              MPN: 001328721
                                              CONNECTION
                                              from £12.84
                                              from £12.84
                                              UNION Genuine Lamborghini - New (to order)
                                              # 021
                                              MPN: 008830122
                                              STRAP
                                              FROM 12600 - part. compatibile sulle vetture precedenti
                                              from £0.53
                                              from £0.53
                                              CLAMP Genuine Lamborghini - New (to order)
                                              # 022
                                              MPN: 001329321
                                              90? CONNECTION
                                              FROM 12600 - part. compatibile sulle vetture precedenti
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 023
                                              MPN: 001329319
                                              CONNECTION
                                              FROM 12600 - part. compatibile sulle vetture precedenti
                                              from £0.75
                                              from £0.75
                                              THROTTLE CASING CONNECTION PIP E REDUCTI Genuine Lamborghini - New (to order)
                                              # 024
                                              MPN: 008200605
                                              NUT
                                              from £1.97
                                              from £1.97
                                              M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
                                              # 025
                                              MPN: 008400606
                                              WASHER
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 026
                                              MPN: 008410602
                                              WASHER
                                              from £29.39
                                              from £29.39
                                              WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                                              # 027
                                              MPN: 008100625
                                              SCREW
                                              from £87.92
                                              from £87.92
                                              SCREW M6X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
                                              # 028
                                              -
                                              SCREW
                                              NOT FOR THIS MODEL
                                              # 029
                                              -
                                              WASHER
                                              NOT FOR THIS MODEL
                                              # 030
                                              -
                                              SCREW
                                              NOT FOR THIS MODEL
                                              # 031
                                              -
                                              LEVER
                                              NOT FOR THIS MODEL
                                              # 032
                                              -
                                              SUPPORT
                                              NOT FOR THIS MODEL
                                              # 033
                                              -
                                              CONTROL
                                              NOT FOR THIS MODEL
                                              # 034
                                              -
                                              WASHER
                                              NOT FOR THIS MODEL
                                              # 035
                                              -
                                              NUT
                                              NOT FOR THIS MODEL
