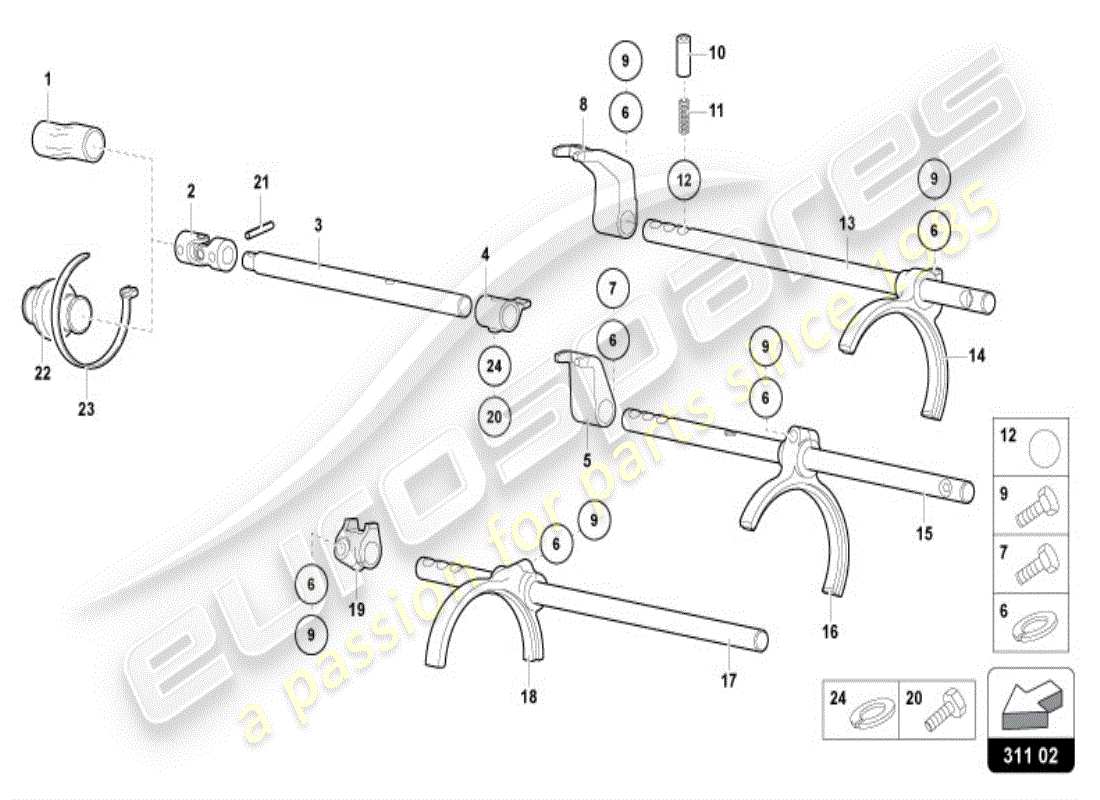

311.02.00 - GEARBOX

Lamborghini Diablo VT (1995) GEARBOX Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 001
                                        MPN: 002432117
                                        LINER
                                        from £42.44
                                        from £42.44
                                        CV JOINT SHEATH Genuine Lamborghini - New (to order)
                                        # 002
                                        MPN: 002430983
                                        UNIVERSAL JOINT
                                        from £170.50
                                        from £170.50
                                        UNIVERSAL JOINT Genuine Lamborghini - New In stock
                                        # 003
                                        MPN: 002427211
                                        ROD
                                        from £212.23
                                        from £212.23
                                        GEARBOX ROD Genuine Lamborghini - New (to order)
                                        # 004
                                        MPN: 002425186
                                        SELECTOR
                                        from £110.65
                                        from £110.65
                                        GEARBOX ROD PRONG Genuine Lamborghini - New (to order)
                                        # 005
                                        MPN: 002425188
                                        SELECTOR
                                        from £106.96
                                        from £106.96
                                        2ND/3RD SPEED ROD PRONG Genuine Lamborghini - New (to order)
                                        # 006
                                        MPN: 008410817
                                        WASHER
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 007
                                        MPN: 008100830
                                        SCREW
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 008
                                        MPN: 002425189
                                        SELECTOR
                                        from £133.52
                                        from £133.52
                                        1ST SPEED/REVERSE ROD PRONG Genuine Lamborghini - New (to order)
                                        # 009
                                        MPN: 008100803
                                        SCREW
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 010
                                        MPN: 002401765
                                        BUSHING
                                        from £11.15
                                        from £11.15
                                        GEAR LEVER BALL BUSHING Genuine Lamborghini - New (to order)
                                        # 011
                                        MPN: 002402242
                                        SPRING
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 012
                                        MPN: 008910701
                                        BALL
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 013
                                        MPN: 002425229
                                        ROD
                                        from £120.04
                                        from £120.04
                                        1ST SPEED/REVERSE ROD Genuine Lamborghini - New (to order)
                                        # 014
                                        MPN: 002425190
                                        FORK
                                        1? AND RETRO GEAR
                                        from £130.71
                                        from £130.71
                                        1ST SPEED/REVERSE FORK Genuine Lamborghini - New (to order)
                                        # 015
                                        MPN: 002425230
                                        ROD
                                        from £134.00
                                        from £134.00
                                        2ND/3RD SPEED ROD Genuine Lamborghini - New (to order)
                                        # 016
                                        MPN: 002425191
                                        FORK
                                        2? AND 3? GEAR
                                        from £340.05
                                        from £340.05
                                        2ND/3RD SPEED FORK Genuine Lamborghini - New (to order)
                                        # 017
                                        MPN: 002425231
                                        ROD
                                        from £272.01
                                        from £272.01
                                        4TH/5TH SPEED ROD Genuine Lamborghini - New (to order)
                                        # 018
                                        MPN: 002425192
                                        FORK
                                        4? AND 5? GEAR
                                        from £306.43
                                        from £306.43
                                        4TH/5TH SPEED FORK Genuine Lamborghini - New (to order)
                                        # 019
                                        MPN: 002425187
                                        SELECTOR
                                        from £119.64
                                        from £119.64
                                        4TH/5TH SPEED ROD PRONG Genuine Lamborghini - New (to order)
                                        # 020
                                        MPN: 008100628
                                        SCREW
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
                                        # 021
                                        MPN: 008900305
                                        PIN
                                        from £0.53
                                        from £0.53
                                        ELASTIC PIN 3X24 DIN1481 Genuine Lamborghini - New In stock
                                        # 022
                                        -
                                        BOOT
                                        NOT FOR THIS MODEL
                                        # 023
                                        -
                                        STRAP
                                        NOT FOR THIS MODEL
                                        # 024
                                        MPN: 008410817
                                        WASHER
                                        Supersession
                                        Supersession
                                        Genuine Lamborghini (no longer available to order)
