615.04.00 - Handbrake

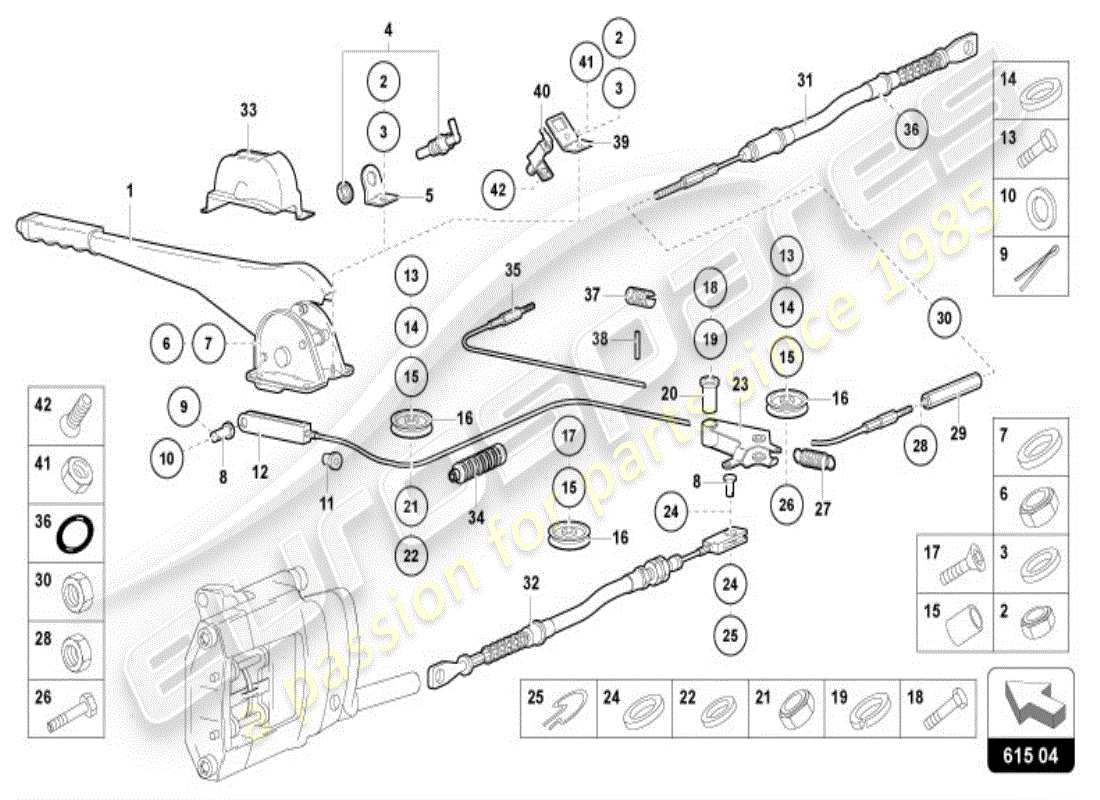

Lamborghini Diablo VT (1995) HANDBRAKE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 001
                                                MPN: 003333334
                                                HAND BRAKE LEVER
                                                from £291.67
                                                from £291.67
                                                Handbrake Lever Genuine Lamborghini - New (to order)
                                                # 002
                                                MPN: 008200503
                                                NUT
                                                from £2.25
                                                from £2.25
                                                M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                                # 003
                                                MPN: 008400502
                                                WASHER
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 004
                                                MPN: 003319356
                                                SWITCH
                                                from £22.63
                                                from £22.63
                                                LEVER BUTTON Genuine Lamborghini - New (to order)
                                                # 005
                                                MPN: 003330814
                                                SUPPORT
                                                from £70.93
                                                from £70.93
                                                WARNING LIGHT BRACKET ON LEVER Genuine Lamborghini - New (to order)
                                                # 006
                                                MPN: 008200606
                                                NUT
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 007
                                                MPN: 008400606
                                                WASHER
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 008
                                                MPN: 003301307
                                                PIN
                                                from £10.25
                                                from £10.25
                                                Genuine Lamborghini (no longer available to order)
                                                PIN Genuine Lamborghini - Used In stock
                                                # 009
                                                MPN: 008820201
                                                SPLIT PIN
                                                from £4.18
                                                from £4.18
                                                SPLIT PIN 1.8X15 UNI 1336A Genuine Lamborghini - New (to order)
                                                # 010
                                                MPN: 008400806
                                                WASHER
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 011
                                                MPN: 003330880
                                                RUBBER BUSHING
                                                RUBBER BUSHING Genuine Lamborghini - New (to order)
                                                # 012
                                                MPN: 003330816
                                                CENTRAL TIE ROAD
                                                (EUROPE, USA spec vehicles)
                                                from £176.13
                                                from £176.13
                                                HANDBRAKE WIRE ASSEMBLY Genuine Lamborghini - New (to order)
                                                # 012
                                                MPN: 003332746
                                                CENTRAL TIE ROAD
                                                (UK spec vehicles)
                                                from £27.77
                                                from £27.77
                                                HANDBRAKE WIRE FROM 1ST ADJUST MENT LEVE Genuine Lamborghini - New (to order)
                                                # 013
                                                MPN: 008700851
                                                SCREW
                                                from £0.58
                                                from £0.58
                                                SCREW M8X35 UNI 5933/8G/ZD Genuine Lamborghini - New (to order)
                                                # 014
                                                -
                                                WASHER
                                                NOT FOR THIS MODEL
                                                # 015
                                                MPN: 003330827
                                                BUSHING
                                                BUSHING Genuine Lamborghini - New (to order)
                                                # 016
                                                MPN: 003332512
                                                PULLEY
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 018
                                                MPN: 008101407
                                                SCREW
                                                from £3.37
                                                from £3.37
                                                SCREW M14X55 UNI 5738/8G/Z Genuine Lamborghini - New (to order)
                                                # 019
                                                MPN: 008411502
                                                WASHER
                                                from £1.70
                                                from £1.70
                                                SNAP RING 24X15X3 UNI 1751 C72 /Z Genuine Lamborghini - New (to order)
                                                SNAP RING 24X15X3 UNI 1751 C72 /Z Genuine Lamborghini - New (other) In stock
                                                ROND. EL. A15 UNI 1751
                                                # 020
                                                MPN: 003330828
                                                SPACER
                                                SPACER Genuine Lamborghini - New (to order)
                                                # 021
                                                -
                                                NUT
                                                NOT FOR THIS MODEL
                                                # 022
                                                -
                                                WASHER
                                                NOT FOR THIS MODEL
                                                # 023
                                                MPN: 003333935
                                                ROCKER
                                                from £126.00
                                                from £126.00
                                                SUPPORT Genuine Lamborghini - New (to order)
                                                SUPPORT Genuine Lamborghini - Used In stock
                                                Complete
                                                # 024
                                                MPN: 008400806
                                                WASHER
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 025
                                                MPN: 004207085
                                                SPLIT PIN
                                                REPLACE 008820104 - FROM 12621
                                                from £49.18
                                                from £49.18
                                                BRAKE CYLINDER PIN STOPPER Genuine Lamborghini - New In stock
                                                # 026
                                                -
                                                SCREW
                                                NOT FOR THIS MODEL
                                                # 027
                                                MPN: 003330829
                                                SPRING
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 028
                                                MPN: 008200607
                                                NUT
                                                LEFT
                                                from £8.19
                                                from £8.19
                                                D 6X1 SIN. 8G NUT Genuine Lamborghini - New (to order)
                                                # 029
                                                MPN: 003304858
                                                ADJUSTING SLEEVE
                                                ADJUSTING SLEEVE Genuine Lamborghini - New (to order)
                                                # 030
                                                MPN: 008200603
                                                NUT
                                                from £0.54
                                                from £0.54
                                                M6 UNI 5588/5S/Z NUT Genuine Lamborghini - New (to order)
                                                # 031
                                                MPN: 003333588
                                                CABLE
                                                RIGHT
                                                from £555.21
                                                from £555.21
                                                BRAKE WIRE & SHEATH ASSEMBLY Genuine Lamborghini - New (to order)
                                                # 033
                                                MPN: 009458315
                                                CASE
                                                Left Hand Drive
                                                from £301.54
                                                from £301.54
                                                HANDBRAKE BASE BOXING Genuine Lamborghini - New (to order)
                                                # 033
                                                MPN: 009458352
                                                CASE
                                                Right Hand Drive
                                                from £148.28
                                                from £148.28
                                                HANDBRAKE BASE BOXING Genuine Lamborghini - New (to order)
                                                # 033
                                                MPN: 009458374
                                                CASE
                                                LEFT HAND DRIVE (EUROPE, USA spec vehicles)
                                                from £69.24
                                                from £69.24
                                                BOX ON HAND BRAKE BASE Genuine Lamborghini - New (to order)
                                                # 033
                                                MPN: 009458388
                                                CASE
                                                RIGHT HAND DRIVE (UK spec vehicles)
                                                from £158.16
                                                from £158.16
                                                HANDBRAKE BASE BOXING Genuine Lamborghini - New (to order)
                                                # 034
                                                MPN: 003332748
                                                SHIELD
                                                (UK spec vehicles)
                                                from £2.06
                                                from £2.06
                                                HANDBRAKE WIRE RUBBER GUARD Genuine Lamborghini - New In stock
                                                # 035
                                                -
                                                CABLE
                                                NOT FOR THIS MODEL
                                                # 036
                                                MPN: 008602302
                                                SEAL
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 037
                                                MPN: 003330824
                                                BUSHING
                                                (UK spec vehicles)
                                                BUSHING Genuine Lamborghini - New (to order)
                                                # 038
                                                MPN: 008900204
                                                PIN
                                                (UK spec vehicles)
                                                from £0.54
                                                from £0.54
                                                ELASTIC PIN 2.5X18 DIN 1481 Genuine Lamborghini - New In stock
                                                # 039
                                                -
                                                SUPPORT
                                                NOT FOR THIS MODEL
                                                # 040
                                                -
                                                button
                                                NOT FOR THIS MODEL
                                                # 041
                                                -
                                                NUT
                                                NOT FOR THIS MODEL
                                                # 042
                                                -
                                                SCREW
                                                NOT FOR THIS MODEL
