905.04.00 - IGNITION SYSTEM

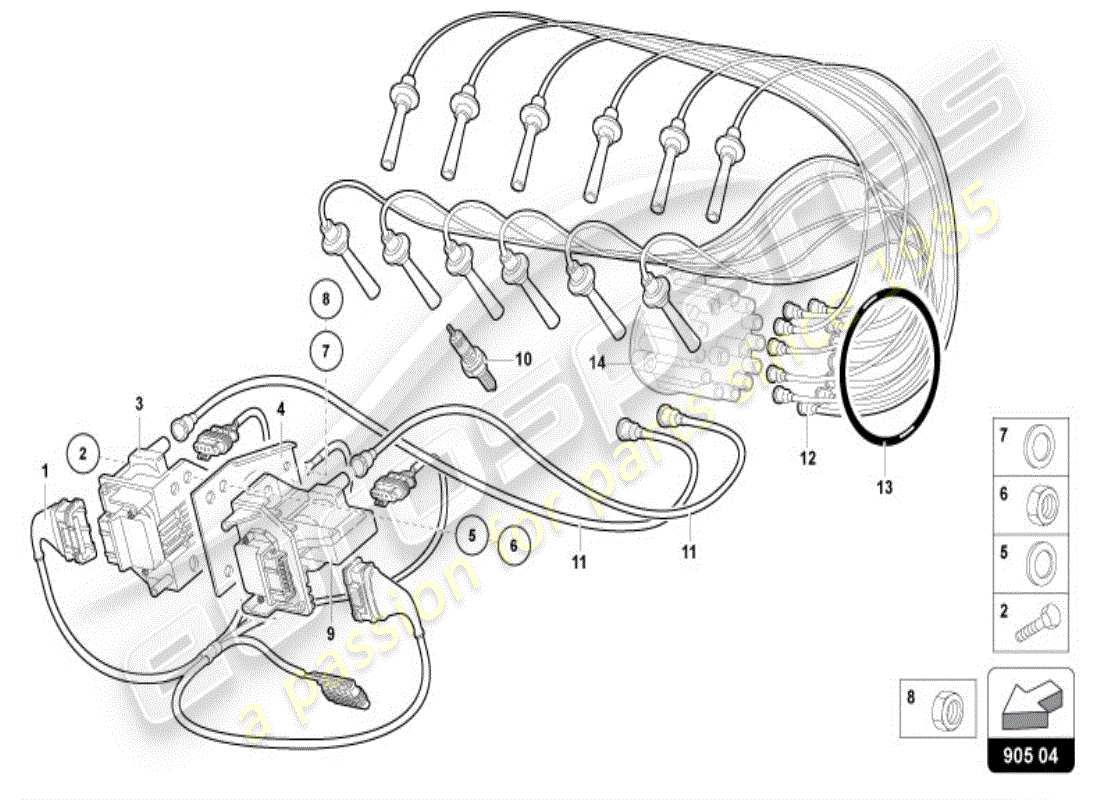

Lamborghini Diablo VT (1995) IGNITION SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 001
                    MPN: 006133731
                    ELECTRIC CABLE
                    from £438.79
                    from £438.79
                    MODULE WIRING Genuine Lamborghini - New (to order)
                    # 002
                    MPN: 008100827
                    QUICKLY
                    Supersession
                    Supersession
                    Genuine Lamborghini (no longer available to order)
                    # 003
                    MPN: 001631625
                    BANK IGNITION MODULE
                    LEFT
                    Supersession
                    Supersession
                    Genuine Lamborghini (no longer available to order)
                    # 004
                    MPN: 001630869
                    SLAB
                    from £23.52
                    from £23.52
                    POWER UNIT PLATE Genuine Lamborghini - New (to order)
                    # 005
                    MPN: 008400806
                    WASHER
                    Supersession
                    Supersession
                    Genuine Lamborghini (no longer available to order)
                    # 006
                    MPN: 008200804
                    DICE
                    from £0.82
                    from £0.82
                    NUT Genuine Lamborghini - New In stock
                    # 007
                    MPN: 008400606
                    WASHER
                    Supersession
                    Supersession
                    Genuine Lamborghini (no longer available to order)
                    # 008
                    MPN: 008200606
                    DICE
                    Supersession
                    Supersession
                    Genuine Lamborghini (no longer available to order)
                    # 009
                    MPN: 001630792
                    BANK IGNITION MODULE
                    RIGHT
                    from £1,571.21
                    from £1,571.21
                    This part replaces part number 001631625
                    POWER UNIT Genuine Lamborghini - New (to order)
                    # 010
                    MPN: 001630289
                    CANDELA CHAMPION A 59 GC
                    from £13.50
                    from £13.50
                    SPARK PLUG Genuine Lamborghini - New (to order)
                    Alternative (#174954) SPARK PLUG (NGK IRIDIUM IX) Uprated Original Equipment - New In stock
                    Uprated Iridium Spark Plug
                    # 011
                    MPN: 006131474
                    DIST. CABLE ASSEMBLY. (UNTIL 12957)
                    UNTIL VIN 12957
                    from £163.75
                    from £163.75
                    MODULE/SPARK DISTRIBUTOR WIRES Genuine Lamborghini - New (to order)
                    # 011
                    MPN: 006134278
                    DIST. CABLE ASSEMBLY.
                    FROM VIN 12958
                    from £265.40
                    from £265.40
                    MODULE WIRES Genuine Lamborghini - New (to order)
                    # 012
                    MPN: 006134023
                    SPARK PLUG CABLE ASSEMBLY (up to 12957)
                    UNTIL VIN 12957
                    Lamborghini PART 006134023 Genuine Lamborghini - New (to order)
                    # 012
                    MPN: 006134279
                    SPARK PLUG CABLE ASSEMBLY
                    FROM VIN 12958
                    from £2,149.21
                    from £2,149.21
                    MODULE WIRES Genuine Lamborghini - New (to order)
                    # 013
                    MPN: 008609907
                    GIRDLE
                    Supersession
                    Supersession
                    Genuine Lamborghini (no longer available to order)
                    # 014
                    -
                    CAP
                    SEE ILLUSTRATION: 905.03
