lamborghini diablo vt (1995) electrical system parts diagram

971.07.00 - electrical system

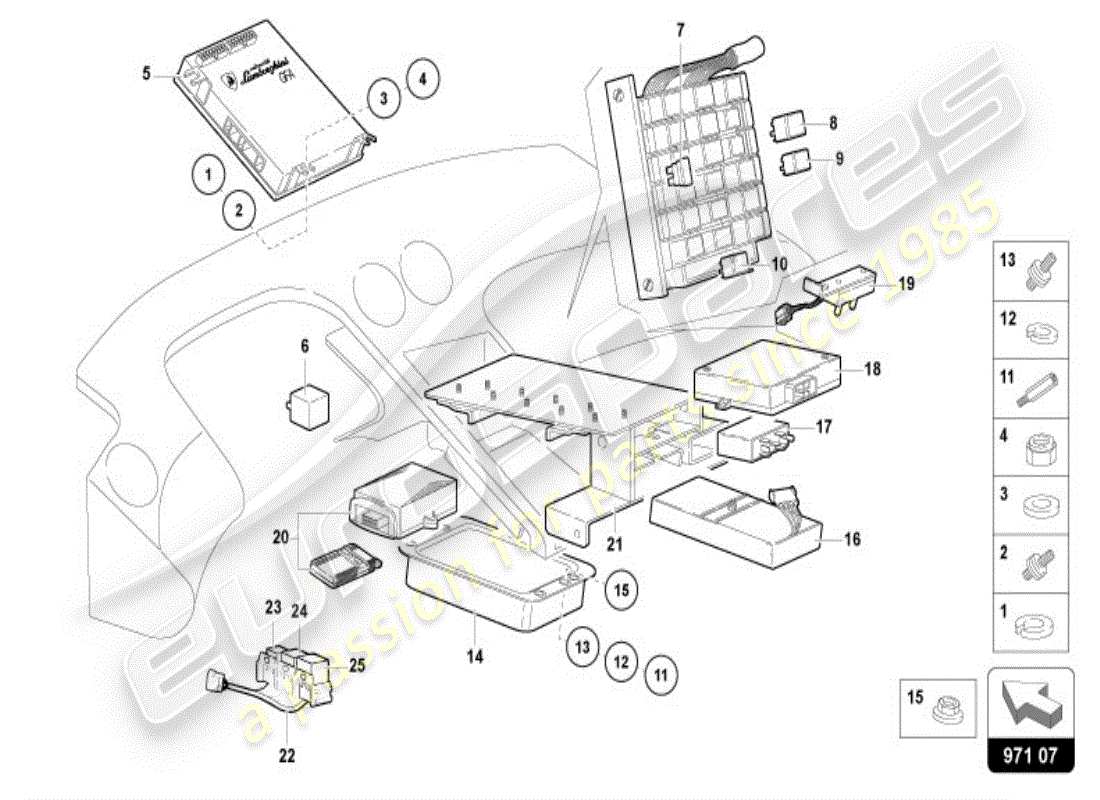

Lamborghini Diablo VT (1995) ELECTRICAL SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008410611
    WASHER
    WITHOUT STATIC IGNITION
    from £0.53
    from £0.53
    SNAP RING D.6 DIN 7980 Genuine Lamborghini - New (to order)
    # 002
    MPN: 008920602
    ELASTIC SUPPORT
    WITHOUT STATIC IGNITION
    from £9.05
    from £9.05
    RUBBER SUPPORT D18X8.5 FIL.M6X 10/16 Genuine Lamborghini - New (to order)
    # 003
    MPN: 008400607
    WASHER
    WITHOUT STATIC IGNITION
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 004
    MPN: 008200606
    NUT
    WITHOUT STATIC IGNITION
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 005
    MPN: 006033362
    E.C.U. GFA
    (EUROPE, UK spec vehicles)
    Lamborghini PART 006033362 Genuine Lamborghini - New (to order)
    # 005
    MPN: 006034072
    E.C.U. GFA
    (EUROPE, UK spec vehicles)
    from £7,386.09
    from £7,386.09
    ECU GFA CANADA EEC AUSTRALIA Genuine Lamborghini - New (to order)
    # 005
    MPN: 006034073
    E.C.U. GFA
    (USA spec vehicles)
    from £1,224.86
    from £1,224.86
    ECU GFA USA Genuine Lamborghini - New (to order)
    # 006
    MPN: 006030676
    RELAY
    WITHOUT STATIC IGNITION
    from £101.19
    from £101.19
    LIGHT RELAY Genuine Lamborghini - New (to order)
    # 007
    MPN: 001626192
    FUSE 5 AMP.
    WITHOUT STATIC IGNITION
    from £0.54
    from £0.54
    BLADE FUSE 5A BEIGE Genuine Lamborghini - New In stock
    # 007
    MPN: 001626193
    FUSE 15 AMP.
    WITHOUT STATIC IGNITION
    from £0.54
    from £0.54
    BLADE FUSE 15A COBALT BLUE Genuine Lamborghini - New In stock
    # 007
    MPN: 001626697
    FUSE 10 AMP.
    WITHOUT STATIC IGNITION
    from £0.54
    from £0.54
    BLADE FUSE 10 A. RED Genuine Lamborghini - New In stock
    # 007
    MPN: 001629257
    FUSE 7,5 AMP.
    WITHOUT STATIC IGNITION
    from £1.09
    from £1.09
    7.5 A FUSE Genuine Lamborghini - New In stock
    # 007
    MPN: 001629258
    FUSE 20 AMP.
    WITHOUT STATIC IGNITION
    from £0.54
    from £0.54
    20 A BLADE FUSE Genuine Lamborghini - New In stock
    # 007
    MPN: 001629259
    FUSE 30 AMP.
    WITHOUT STATIC IGNITION
    from £0.54
    from £0.54
    30 A BLADE FUSE Genuine Lamborghini - New (to order)
    # 007
    MPN: 001633966
    FUSE 25 AMP.
    WITHOUT STATIC IGNITION
    from £0.54
    from £0.54
    25 A BLADE FUSE Genuine Lamborghini - New In stock
    # 008
    MPN: 006311154
    RELAY
    WITHOUT STATIC IGNITION
    from £30.89
    from £30.89
    RELAY Genuine Lamborghini - New (to order)
    # 008
    MPN: 006319913
    RELAY
    WITHOUT STATIC IGNITION
    from £40.52
    from £40.52
    RELAY Genuine Lamborghini - New (to order)
    # 009
    MPN: 006034961
    DIODE
    WITHOUT STATIC IGNITION
    from £14.92
    from £14.92
    RELAY Genuine Lamborghini - New (to order)
    # 009
    MPN: 006311155
    RELAY
    WITHOUT STATIC IGNITION
    from £36.99
    from £36.99
    RELAY Genuine Lamborghini - New In stock
    # 010
    MPN: 006033965
    DIODES ASSEMBLY
    WITHOUT STATIC IGNITION (EUROPE, USA spec vehicles)
    from £48.63
    from £48.63
    DIODE HOLDER Genuine Lamborghini - New (to order)
    # 010
    MPN: 006034540
    DIODES ASSEMBLY
    (UK spec vehicles)
    from £12.52
    from £12.52
    DIODE BOX Genuine Lamborghini - New (to order)
    # 011
    MPN: 001128397
    STUD
    WITHOUT STATIC IGNITION
    from £22.63
    from £22.63
    LH/RH UPPER COVER BOLT Genuine Lamborghini - New (to order)
    # 012
    MPN: 008410611
    WASHER
    WITHOUT STATIC IGNITION
    from £0.53
    from £0.53
    SNAP RING D.6 DIN 7980 Genuine Lamborghini - New (to order)
    # 013
    MPN: 008920602
    ELASTIC SUPPORT
    WITHOUT STATIC IGNITION
    from £9.05
    from £9.05
    RUBBER SUPPORT D18X8.5 FIL.M6X 10/16 Genuine Lamborghini - New (to order)
    # 014
    MPN: 005133176
    KONI E.C.U.
    from £1,028.28
    from £1,028.28
    SHOCK ABSORBER ECU Genuine Lamborghini - New (to order)
    # 015
    MPN: 008200614
    NUT
    WITHOUT STATIC IGNITION
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 016
    MPN: 006030677
    E.C.U.
    UNTIL VIN 12384
    from £433.46
    from £433.46
    TYRE LOW PRESSURE UNIT Genuine Lamborghini - New (to order)
    # 016
    MPN: 006036175
    E.C.U.
    FROM VIN 12385 - WITHOUT STATIC IGNITION
    from £553.89
    from £553.89
    LOW TYRE UNIT Genuine Lamborghini - New (to order)
    # 017
    MPN: 005929915
    LOCKING E.C.U.
    WITHOUT STATIC IGNITION
    from £254.94
    from £254.94
    ECU Genuine Lamborghini - New (to order)
    # 018
    MPN: 006032856
    E.C.U.
    WITHOUT STATIC IGNITION
    from £811.83
    from £811.83
    CONTROL UNIT Genuine Lamborghini - New (to order)
    # 019
    MPN: 006035196
    SWITCH
    WITHOUT STATIC IGNITION
    from £218.74
    from £218.74
    HEADLIGHT ADJUSTMENTSWITCH BOX Genuine Lamborghini - New (to order)
    # 019
    MPN: 006133372
    SWITCH
    from £415.41
    from £415.41
    DIAGNOSTIC CONNECTORCONTAINER Genuine Lamborghini - New (to order)
    # 020
    MPN: 005934376
    REMO. LOCKING E.C.U.
    WITHOUT STATIC IGNITION (EUROPE spec vehicles)
    from £526.14
    from £526.14
    CENTRAL DOOR LOCK & REMOTE CON TROL KIT Genuine Lamborghini - New (to order)
    # 020
    MPN: 005934377
    REMO. LOCKING E.C.U.
    (USA spec vehicles)
    from £1,523.92
    from £1,523.92
    CENTRAL DOOR LOCK & REMOTE CON TROL KIT Genuine Lamborghini - New (to order)
    # 020
    MPN: 005934378
    REMO. LOCKING E.C.U.
    WITHOUT STATIC IGNITION (UK spec vehicles)
    Lamborghini PART 005934378 Genuine Lamborghini - New (to order)
    # 020
    MPN: 005934379
    REMO. LOCKING E.C.U.
    ONLY FOR FRANCE (EUROPE spec vehicles)
    from £262.22
    from £262.22
    CENTRAL DOOR LOCK & REMOTE CON TROL KIT Genuine Lamborghini - New (to order)
    # 021
    MPN: 009414627
    SUPPORT
    WITHOUT STATIC IGNITION (UK spec vehicles)
    from £148.68
    from £148.68
    SOLENOID PLATE Genuine Lamborghini - New (to order)
    # 022
    MPN: 006134626
    SUPPORT
    (UK spec vehicles)
    RELAYS SUPPORT Genuine Lamborghini - New (to order)
    # 023
    MPN: 006311155
    RELAY BOSCH 878 0332.015.006
    (UK spec vehicles)
    from £36.99
    from £36.99
    RELAY Genuine Lamborghini - New In stock
    # 024
    MPN: 006319913
    RELAY 87A BOSCH 0332.204.151
    (UK spec vehicles)
    from £40.52
    from £40.52
    RELAY Genuine Lamborghini - New (to order)
    # 025
    MPN: 006030676
    RELAY ITALAMEC 424.10
    (UK spec vehicles)
    from £101.19
    from £101.19
    LIGHT RELAY Genuine Lamborghini - New (to order)
