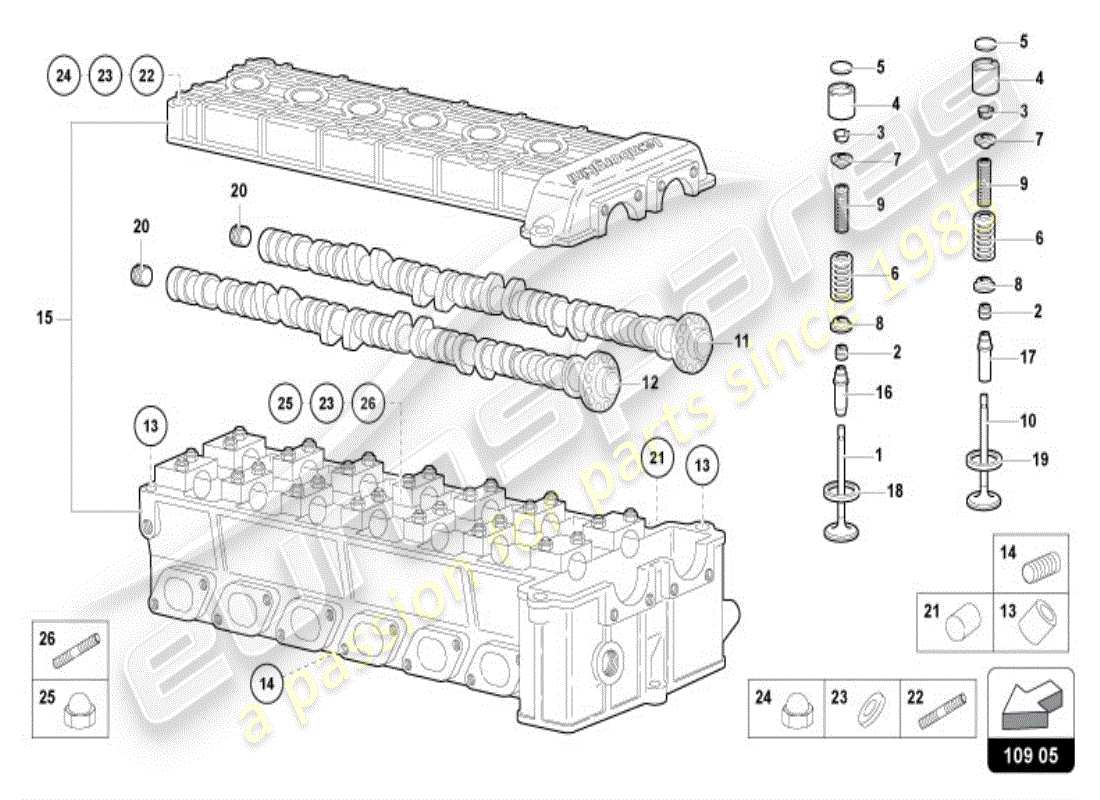

109.05.00 - RIGHT HEAD CAMSHAFT

Lamborghini Diablo VT (1996) RIGHT HEAD CAMSHAFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 001220819
                EXHAUST VALVE
                from £78.75
                from £78.75
                EXHAUST VALVE Genuine Lamborghini - New (to order)
                EXHAUST VALVE Eurospares Approved Part - New In stock
                # 002
                MPN: 001220840
                RING
                UNTIL ENGINE 2219
                VALVE SEAL Genuine Lamborghini - New (to order)
                # 003
                MPN: 001220843
                TAPPET LOCK CONE
                from £4.90
                from £4.90
                VALVE SEAL COTTER ONPLATE Genuine Lamborghini - New (to order)
                # 004
                MPN: 001220844
                TAPPET
                UNTIL ENGINE 2219
                TAPPET Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220877
                SHIM
                3.25 MM
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 005
                MPN: 001220878
                SHIM
                3.30 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220879
                SHIM
                3.35 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220880
                SHIM
                3.40 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220881
                SHIM
                3.45 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220882
                SHIM
                3.50 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220883
                SHIM
                3.55 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220884
                SHIM
                3.60 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220885
                SHIM
                3.65 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220886
                SHIM
                3.70 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220887
                SHIM
                3.75 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220888
                SHIM
                3.80 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220889
                SHIM
                3.85 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220890
                SHIM
                3.90 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220891
                SHIM
                3.95 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220892
                SHIM
                4.00 MM
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 005
                MPN: 001220893
                SHIM
                4.05 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220894
                SHIM
                4.10 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220895
                SHIM
                4.15 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220896
                SHIM
                4.20 MM
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 005
                MPN: 001220897
                SHIM
                4.25 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220898
                SHIM
                4.30 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220899
                SHIM
                4.35 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220900
                SHIM
                4.40 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220901
                SHIM
                4.45 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220902
                SHIM
                4.50 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220903
                SHIM
                4.55 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220904
                SHIM
                4.60 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220905
                SHIM
                4.65 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 005
                MPN: 001220906
                SHIM
                4.70 MM
                SHIMS Genuine Lamborghini - New (to order)
                # 006
                MPN: 001220988
                SPRING
                UNTIL ENGINE 2219
                VALVE SPR Genuine Lamborghini - New (to order)
                # 007
                MPN: 001220992
                TAPPET PLATE
                UNTIL ENGINE 2219
                TOP CAP Genuine Lamborghini - New (to order)
                # 008
                MPN: 001220993
                TAPPET PLATE
                UNTIL ENGINE 2219
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 009
                MPN: 001223097
                SPRING
                UNTIL ENGINE 2219
                SPRING Genuine Lamborghini - New (to order)
                # 010
                MPN: 001229714
                INTAKE VALVE
                from £75.00
                from £75.00
                INTAKE VALVE Genuine Lamborghini - New (to order)
                INLATE VALVE Eurospares Approved Part - New In stock
                # 011
                MPN: 001232708
                camshaft
                RIGHT
                from £1,052.83
                from £1,052.83
                RH INTAKE CAMSHAFT Genuine Lamborghini - New (to order)
                # 012
                MPN: 001232709
                camshaft
                RIGHT - UNTIL ENGINE 2219
                from £10,384.74
                from £10,384.74
                RH EXHAUST CAMSHAFT Genuine Lamborghini - New (to order)
                # 013
                MPN: 008800604
                BUSHING
                UNTIL ENGINE 2219
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 014
                MPN: 008840802
                HELI-COIL
                UNTIL ENGINE 2219
                from £2.10
                from £2.10
                HELI-COIL M8X1.25 L12 Genuine Lamborghini - New (to order)
                # 015
                MPN: 463400150
                head
                RIGHT
                from £14,554.97
                from £14,554.97
                L522VT RH MACHINED HEAD Genuine Lamborghini - New (to order)
                # 016
                MPN: 001229718
                VALVE GUIDE
                from £92.59
                from £92.59
                EXHAUST VALVE GUIDE Genuine Lamborghini - New (to order)
                # 017
                MPN: 001229717
                VALVE GUIDE
                from £92.59
                from £92.59
                INTAKE VALVE GUIDE Genuine Lamborghini - New (to order)
                # 018
                MPN: 001220823
                VALVE SEAT
                from £10.75
                from £10.75
                EXHAUST VALVE SEAT Genuine Lamborghini - New (to order)
                # 019
                MPN: 001229713
                VALVE SEAT
                from £50.63
                from £50.63
                INTAKE VALVE SEAT Genuine Lamborghini - New (to order)
                # 020
                MPN: 008931409
                STOPPER
                UNTIL ENGINE 2219
                from £7.94
                from £7.94
                CASTING PLUG Genuine Lamborghini - New (to order)
                # 021
                MPN: 001122089
                WHEAT
                UNTIL ENGINE 2219
                from £10.75
                from £10.75
                MANIFOLD CENTRING DOWEL Genuine Lamborghini - New (to order)
                # 022
                MPN: 008300650
                PRISONER
                UNTIL ENGINE 2219
                from £7.71
                from £7.71
                SPECIAL STUD M6X51 Genuine Lamborghini - New (to order)
                # 023
                MPN: 008410602
                WASHER
                UNTIL ENGINE 2219
                from £26.88
                from £26.88
                WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                # 024
                MPN: 008200605
                DICE
                UNTIL ENGINE 2219
                from £1.78
                from £1.78
                M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
                # 025
                -
                DICE
                NOT FOR THIS MODEL
                # 025
                MPN: 008200604
                DICE
                UNTIL ENGINE 2219
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 026
                -
                PRISONER
                NOT FOR THIS MODEL
                # 026
                MPN: 008300640
                PRISONER
                from £10.83
                from £10.83
                SPECIAL STUD M6X34 Genuine Lamborghini - New (to order)
