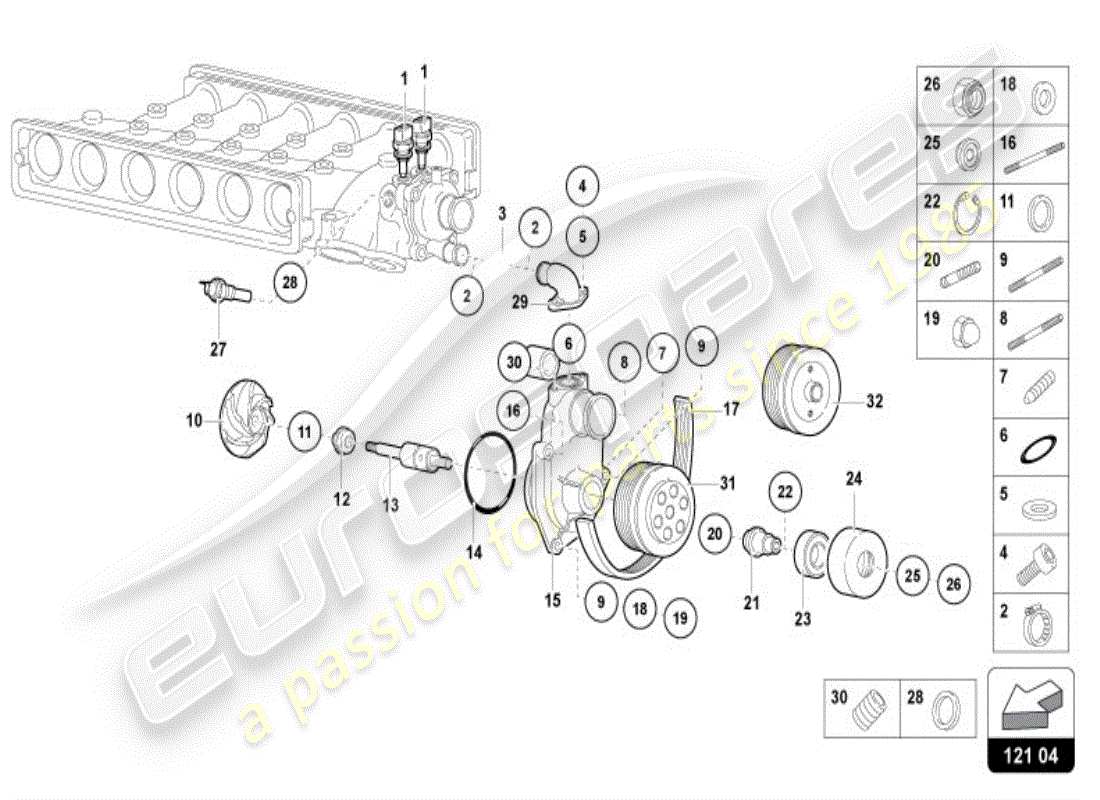

121.04.00 - COOLANT PUMP

Lamborghini Diablo VT (1996) COOLANT PUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 001
                                                      MPN: 002024394
                                                      WATER TEMPERATURE SENSOR
                                                      Supersession
                                                      Supersession
                                                      Genuine Lamborghini (no longer available to order)
                                                      # 002
                                                      MPN: 008832604
                                                      GIRDLE
                                                      from £2.37
                                                      from £2.37
                                                      CLAMP Genuine Lamborghini - New In stock
                                                      # 003
                                                      MPN: 001732811
                                                      TUBE
                                                      from £16.21
                                                      from £16.21
                                                      THERMOSTAT CONNECTING SLEEVE Genuine Lamborghini - New (to order)
                                                      # 004
                                                      MPN: 008700617
                                                      QUICKLY
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 008700670
                                                      SCREW M6X18 UNI 5931/8G/Z Genuine Lamborghini - New In stock
                                                      # 005
                                                      MPN: 008410602
                                                      WASHER
                                                      from £29.19
                                                      from £29.19
                                                      WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
                                                      # 006
                                                      MPN: 008602802
                                                      SEAL RING
                                                      Supersession
                                                      Supersession
                                                      Genuine Lamborghini (no longer available to order)
                                                      # 007
                                                      MPN: 008700650
                                                      QUICKLY
                                                      from £1.70
                                                      from £1.70
                                                      SCREW M6 UNI 5925-67 Genuine Lamborghini - New In stock
                                                      # 008
                                                      MPN: 008301034
                                                      PRISONER
                                                      from £3.78
                                                      from £3.78
                                                      STUD M10X60 UNI 59118G Z Genuine Lamborghini - New (to order)
                                                      # 009
                                                      MPN: 008300809
                                                      PRISONER
                                                      from £4.94
                                                      from £4.94
                                                      STUD M8X25 UNI 5911/8G/ZD Genuine Lamborghini - New (to order)
                                                      # 010
                                                      MPN: 001733982
                                                      IMPELLER
                                                      UNTIL VIN 12283
                                                      Lamborghini PART 001733982 Genuine Lamborghini - New (to order)
                                                      # 010
                                                      MPN: 001734252
                                                      IMPELLER
                                                      FROM VIN 12284
                                                      from £361.79
                                                      from £361.79
                                                      Lamborghini PART 001734252 Genuine Lamborghini - New (to order)
                                                      # 011
                                                      MPN: 001734239
                                                      SHIM
                                                      1.0 MM
                                                      from £23.51
                                                      from £23.51
                                                      WASHER 1 MM Genuine Lamborghini - New (to order)
                                                      # 011
                                                      MPN: 001734240
                                                      SHIM
                                                      1.2 MM
                                                      from £23.51
                                                      from £23.51
                                                      WASHER 1.2 MM Genuine Lamborghini - New (to order)
                                                      # 011
                                                      MPN: 001734241
                                                      SHIM
                                                      1.4 MM
                                                      from £30.92
                                                      from £30.92
                                                      WASHER 1.4 MM Genuine Lamborghini - New (to order)
                                                      # 011
                                                      MPN: 001734242
                                                      SHIM
                                                      1.6 MM
                                                      from £23.51
                                                      from £23.51
                                                      WASHER 1.6 MM Genuine Lamborghini - New (to order)
                                                      # 011
                                                      MPN: 001734243
                                                      SHIM
                                                      1.8 MM
                                                      from £23.51
                                                      from £23.51
                                                      WASHER 1.8 MM Genuine Lamborghini - New (to order)
                                                      # 011
                                                      MPN: 001734244
                                                      SHIM
                                                      2.0 MM
                                                      from £23.51
                                                      from £23.51
                                                      WASHER 2 MM Genuine Lamborghini - New (to order)
                                                      # 011
                                                      MPN: 001734245
                                                      SHIM
                                                      2.2 MM
                                                      from £23.51
                                                      from £23.51
                                                      WASHER 2.2 MM Genuine Lamborghini - New (to order)
                                                      # 011
                                                      MPN: 001734246
                                                      SHIM
                                                      2.4 MM
                                                      from £23.51
                                                      from £23.51
                                                      WASHER.2.4 MM Genuine Lamborghini - New (to order)
                                                      # 011
                                                      MPN: 001734247
                                                      SHIM
                                                      2.6 MM
                                                      from £23.51
                                                      from £23.51
                                                      WASHER 2.6 MM Genuine Lamborghini - New (to order)
                                                      # 011
                                                      MPN: 001734248
                                                      SHIM
                                                      2.8 MM
                                                      from £23.51
                                                      from £23.51
                                                      WASHER 2.8 MM Genuine Lamborghini - New (to order)
                                                      # 012
                                                      MPN: 001726539
                                                      FRONT SEAL
                                                      UNTIL VIN 12283
                                                      from £140.75
                                                      from £140.75
                                                      MECHANICAL SEAL 361 Genuine Lamborghini - New (to order)
                                                      # 012
                                                      MPN: 001734675
                                                      FRONT SEAL
                                                      FROM VIN 12284
                                                      from £29.85
                                                      from £29.85
                                                      COOLANT PUMP FRONT MECHANICAL SEAL Genuine Lamborghini - New (to order)
                                                      # 013
                                                      MPN: 001727739
                                                      POST
                                                      from £269.44
                                                      from £269.44
                                                      BEARING WITH COOLANTPUMP SHAFT & PULLEY Genuine Lamborghini - New (to order)
                                                      # 014
                                                      MPN: 008609907
                                                      SEAL RING
                                                      Supersession
                                                      Supersession
                                                      Genuine Lamborghini (no longer available to order)
                                                      # 015
                                                      MPN: 001732800
                                                      WATER PUMP BODY
                                                      UNTIL VIN 12283
                                                      Lamborghini PART 001732800 Genuine Lamborghini - New (to order)
                                                      # 015
                                                      MPN: 001734676
                                                      WATER PUMP BODY
                                                      FROM VIN 12284
                                                      Lamborghini PART 001734676 Genuine Lamborghini - New (to order)
                                                      # 016
                                                      MPN: 008300833
                                                      PRISONER
                                                      from £3.93
                                                      from £3.93
                                                      STUD M8X45 UNI 5911 8G Z Genuine Lamborghini - New (to order)
                                                      # 017
                                                      MPN: 001734069
                                                      WATER PUMP BELT AND TERNAT.
                                                      Lamborghini PART 001734069 Genuine Lamborghini - New (to order)
                                                      # 017
                                                      MPN: 001736517
                                                      WATER PUMP BELT AND TERNAT.
                                                      from £186.07
                                                      from £186.07
                                                      COOLANT PUMP ALTERNATOR BELT Genuine Lamborghini - New (to order)
                                                      # 018
                                                      MPN: 008400806
                                                      WASHER
                                                      Supersession
                                                      Supersession
                                                      Genuine Lamborghini (no longer available to order)
                                                      # 019
                                                      MPN: 008200809
                                                      DICE
                                                      Supersession
                                                      Supersession
                                                      Genuine Lamborghini (no longer available to order)
                                                      # 020
                                                      MPN: 008301008
                                                      PRISONER
                                                      from £6.82
                                                      from £6.82
                                                      STUD M10X90 UNI 59118GZ Genuine Lamborghini - New (to order)
                                                      # 021
                                                      MPN: 001232211
                                                      COMPASS
                                                      from £69.62
                                                      from £69.62
                                                      GUIDE BRACKET PIN Genuine Lamborghini - New (to order)
                                                      # 022
                                                      MPN: 008575201
                                                      RETAINER RING
                                                      from £0.76
                                                      from £0.76
                                                      O-RING I 52 UNI 3654 Genuine Lamborghini - New In stock
                                                      # 023
                                                      MPN: 008502501
                                                      BEARING
                                                      from £34.99
                                                      from £34.99
                                                      BEARING D.25X52X20.6 Genuine Lamborghini - New In stock
                                                      # 024
                                                      MPN: 001228675
                                                      belt tensioner
                                                      from £240.89
                                                      from £240.89
                                                      TIMING BELT GUIDE Genuine Lamborghini - New (to order)
                                                      # 025
                                                      MPN: 001626949
                                                      WASHER
                                                      from £20.46
                                                      from £20.46
                                                      WASHER Genuine Lamborghini - New (to order)
                                                      # 026
                                                      MPN: 008201008
                                                      DICE
                                                      from £0.54
                                                      from £0.54
                                                      NUT Genuine Lamborghini - New In stock
                                                      # 027
                                                      MPN: 001724221
                                                      THERMOCOUPLE
                                                      from £81.43
                                                      from £81.43
                                                      THERMOCOUPLE Genuine Lamborghini - New (to order)
                                                      # 028
                                                      MPN: 008401408
                                                      WASHER
                                                      from £1.29
                                                      from £1.29
                                                      ANNEALED COPPER WASHER 21X14X1 .5 Genuine Lamborghini - New In stock
                                                      # 029
                                                      MPN: 001732803
                                                      CONNECTION
                                                      from £211.35
                                                      from £211.35
                                                      UNION ON COOLANT PUMP Genuine Lamborghini - New (to order)
                                                      # 030
                                                      MPN: 008840601
                                                      HELI-COIL
                                                      from £1.74
                                                      from £1.74
                                                      HELI-COIL M6X9.6 Genuine Lamborghini - New In stock
                                                      # 031
                                                      -
                                                      PULLEY
                                                      NOT FOR THIS MODEL
                                                      # 031
                                                      MPN: 001733986
                                                      PULLEY
                                                      from £671.84
                                                      from £671.84
                                                      OIL PUMP PULLEY Genuine Lamborghini - New (to order)
                                                      # 032
                                                      -
                                                      PULLEY
                                                      NOT FOR THIS MODEL
                                                      # 032
                                                      MPN: 001736801
                                                      PULLEY
                                                      from £762.76
                                                      from £762.76
                                                      COOLANT PUMP PULLEY Genuine Lamborghini - New (to order)
