311.02.00 - GEARBOX

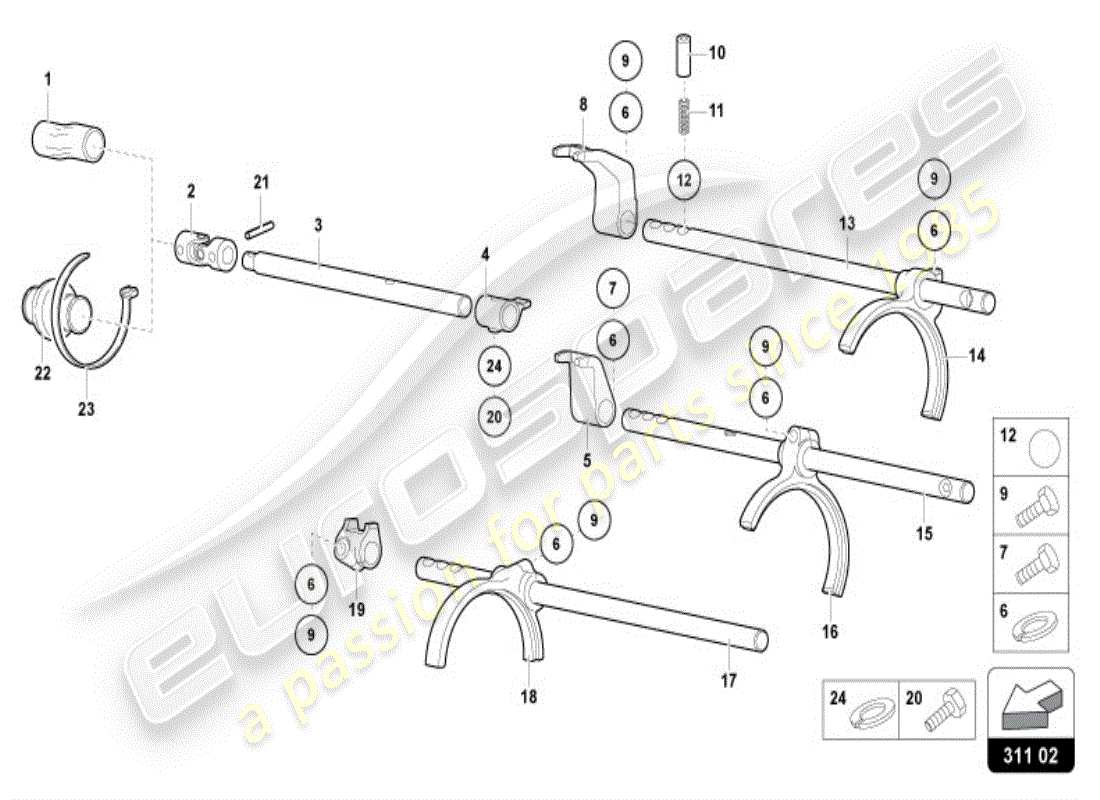

Lamborghini Diablo VT (1996) GEARBOX Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      -
                                      LINER
                                      NOT FOR THIS MODEL
                                      # 001
                                      MPN: 002432117
                                      LINER
                                      from £42.44
                                      from £42.44
                                      CV JOINT SHEATH Genuine Lamborghini - New (to order)
                                      # 002
                                      MPN: 002430983
                                      UNIVERSAL JOINT
                                      from £170.50
                                      from £170.50
                                      UNIVERSAL JOINT Genuine Lamborghini - New In stock
                                      # 003
                                      MPN: 002427211
                                      ROD
                                      from £212.23
                                      from £212.23
                                      GEARBOX ROD Genuine Lamborghini - New (to order)
                                      # 004
                                      MPN: 002425186
                                      SELECTOR
                                      from £110.65
                                      from £110.65
                                      GEARBOX ROD PRONG Genuine Lamborghini - New (to order)
                                      # 005
                                      MPN: 002425188
                                      SELECTOR
                                      from £106.96
                                      from £106.96
                                      2ND/3RD SPEED ROD PRONG Genuine Lamborghini - New (to order)
                                      # 006
                                      MPN: 008410817
                                      WASHER
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 007
                                      MPN: 008100830
                                      SCREW
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 008
                                      MPN: 002425189
                                      SELECTOR
                                      from £133.52
                                      from £133.52
                                      1ST SPEED/REVERSE ROD PRONG Genuine Lamborghini - New (to order)
                                      # 009
                                      MPN: 008100803
                                      SCREW
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 009
                                      MPN: 008100821
                                      SCREW
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 010
                                      MPN: 002401765
                                      BUSHING
                                      from £11.15
                                      from £11.15
                                      GEAR LEVER BALL BUSHING Genuine Lamborghini - New (to order)
                                      # 011
                                      MPN: 002402242
                                      SPRING
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 012
                                      MPN: 008910701
                                      BALL
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 013
                                      MPN: 002425229
                                      ROD
                                      from £120.04
                                      from £120.04
                                      1ST SPEED/REVERSE ROD Genuine Lamborghini - New (to order)
                                      # 014
                                      MPN: 002425190
                                      FORK
                                      1? AND RETRO GEAR
                                      from £130.71
                                      from £130.71
                                      1ST SPEED/REVERSE FORK Genuine Lamborghini - New (to order)
                                      # 015
                                      MPN: 002425230
                                      ROD
                                      from £134.00
                                      from £134.00
                                      2ND/3RD SPEED ROD Genuine Lamborghini - New (to order)
                                      # 016
                                      MPN: 002425191
                                      FORK
                                      2? AND 3? GEAR
                                      from £340.05
                                      from £340.05
                                      2ND/3RD SPEED FORK Genuine Lamborghini - New (to order)
                                      # 017
                                      MPN: 002425231
                                      ROD
                                      from £272.01
                                      from £272.01
                                      4TH/5TH SPEED ROD Genuine Lamborghini - New (to order)
                                      # 018
                                      MPN: 002425192
                                      FORK
                                      4? AND 5? GEAR
                                      from £306.43
                                      from £306.43
                                      4TH/5TH SPEED FORK Genuine Lamborghini - New (to order)
                                      # 019
                                      MPN: 002425187
                                      SELECTOR
                                      from £119.64
                                      from £119.64
                                      4TH/5TH SPEED ROD PRONG Genuine Lamborghini - New (to order)
                                      # 020
                                      MPN: 008100628
                                      SCREW
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 021
                                      MPN: 008900305
                                      PIN
                                      from £0.53
                                      from £0.53
                                      ELASTIC PIN 3X24 DIN1481 Genuine Lamborghini - New In stock
                                      # 022
                                      -
                                      BOOT
                                      NOT FOR THIS MODEL
                                      # 022
                                      MPN: 002434614
                                      BOOT
                                      BOOT Genuine Lamborghini - New (to order)
                                      # 023
                                      -
                                      STRAP
                                      NOT FOR THIS MODEL
                                      # 023
                                      MPN: 008830305
                                      STRAP
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 024
                                      MPN: 008410817
                                      WASHER
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
