615.06.00 - BRAKE DISC REAR

Lamborghini Diablo VT (1996) BRAKE DISC REAR Parts Diagram

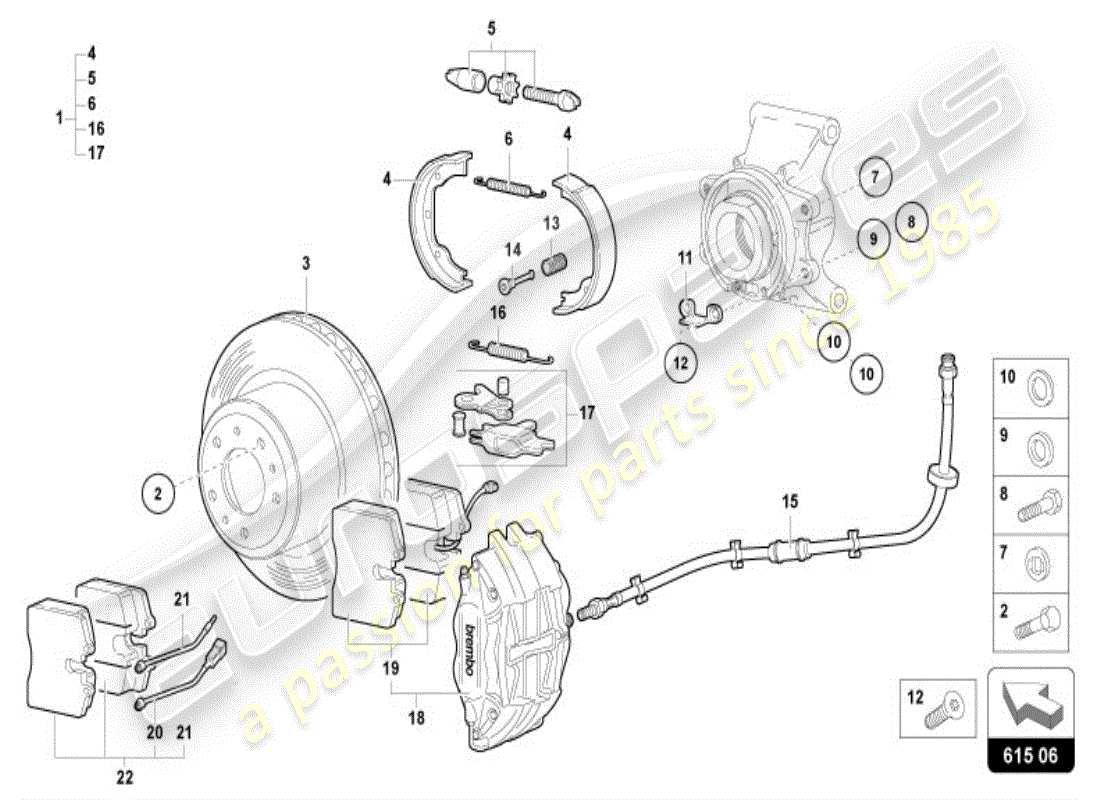

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 003334400
                                      KIT HAND BRAKE SYS.
                                      from £585.11
                                      from £585.11
                                      DRUM BRAKE ASSEMBLY KIT Genuine Lamborghini - New (to order)
                                      # 002
                                      MPN: 008100826
                                      SCREW
                                      from £0.52
                                      from £0.52
                                      SCREW M8X16 UNI 5739/8G/Z Genuine Lamborghini - New (to order)
                                      # 003
                                      MPN: 003233608
                                      REAR BRAKE DISC
                                      from £623.47
                                      from £623.47
                                      RH/LH REAR DISC Genuine Lamborghini - New (to order)
                                      RH/LH REAR DISC Genuine Lamborghini - New (other) In stock
                                      Price per disc
                                      # 004
                                      MPN: 003334931
                                      BRAKE SHOE
                                      from £131.25
                                      from £131.25
                                      BRAKE SHOE Genuine Lamborghini - New (to order)
                                      HANDBRAKE SHOES (SET OF 4) Eurospares Approved Part - New In stock
                                      # 005
                                      MPN: 003334935
                                      ADJ/SCREW
                                      from £85.22
                                      from £85.22
                                      WHEEL ADJUSTMENT Genuine Lamborghini - New (to order)
                                      # 006
                                      MPN: 003334934
                                      SPRING
                                      from £25.68
                                      from £25.68
                                      SPRING Genuine Lamborghini - New (to order)
                                      # 007
                                      MPN: 003332391
                                      CLIP
                                      from £5.85
                                      from £5.85
                                      LOCK PIN WASHER Genuine Lamborghini - New (to order)
                                      # 008
                                      MPN: 003132195
                                      SCREW
                                      from £19.74
                                      from £19.74
                                      SHOE/HUB FASTENING SCREW Genuine Lamborghini - New (to order)
                                      # 009
                                      MPN: 008401306
                                      WASHER
                                      from £1.48
                                      from £1.48
                                      WASHER D.13X24X3 8G Genuine Lamborghini - New (to order)
                                      # 010
                                      MPN: 003230720
                                      SHIM
                                      0,1 MM
                                      from £4.25
                                      from £4.25
                                      WASHER SHIM 0.1 Genuine Lamborghini - New In stock
                                      # 010
                                      MPN: 003230721
                                      SHIM
                                      0,2 MM
                                      from £0.54
                                      from £0.54
                                      WASHER SHIM 0.2 Genuine Lamborghini - New In stock
                                      # 010
                                      MPN: 003230724
                                      SHIM
                                      0,5 MM
                                      from £0.54
                                      from £0.54
                                      WASHER SHIM 0.5 Genuine Lamborghini - New In stock
                                      # 010
                                      MPN: 003230727
                                      SHIM
                                      1 MM
                                      from £2.34
                                      from £2.34
                                      WASHER SHIM 1. Genuine Lamborghini - New In stock
                                      # 011
                                      MPN: 003332388
                                      SUPPORT
                                      from £134.40
                                      from £134.40
                                      SHOE REST BLOCK Genuine Lamborghini - New (to order)
                                      # 012
                                      MPN: 008701023
                                      SCREW
                                      from £0.53
                                      from £0.53
                                      SCREW M10X25 UNI 5933/8G/Z D Genuine Lamborghini - New In stock
                                      # 013
                                      MPN: 003332390
                                      SPRING
                                      from £12.84
                                      from £12.84
                                      SHOE FASTENING PIN SPRING Genuine Lamborghini - New (to order)
                                      SHOE FASTENING PIN SPRING Genuine Lamborghini - Used In stock
                                      # 014
                                      MPN: 003332389
                                      PIN
                                      from £33.14
                                      from £33.14
                                      SHOE HOLDER FASTENING PIN Genuine Lamborghini - New (to order)
                                      SHOE HOLDER FASTENING PIN Genuine Lamborghini - Used In stock
                                      # 015
                                      MPN: 003229882
                                      PIPE
                                      from £106.96
                                      from £106.96
                                      REAR BRAKE SHOE PIPE Genuine Lamborghini - New In stock
                                      # 016
                                      MPN: 003334933
                                      SPRING
                                      from £25.68
                                      from £25.68
                                      SPRING Genuine Lamborghini - New (to order)
                                      # 017
                                      MPN: 003334932
                                      IDLE LEVER
                                      from £86.82
                                      from £86.82
                                      LINKAGE Genuine Lamborghini - New (to order)
                                      # 018
                                      MPN: 003233611
                                      BRAKE CALIPER
                                      LEFT
                                      from £901.27
                                      from £901.27
                                      LH REAR SHOE Genuine Lamborghini - New (to order)

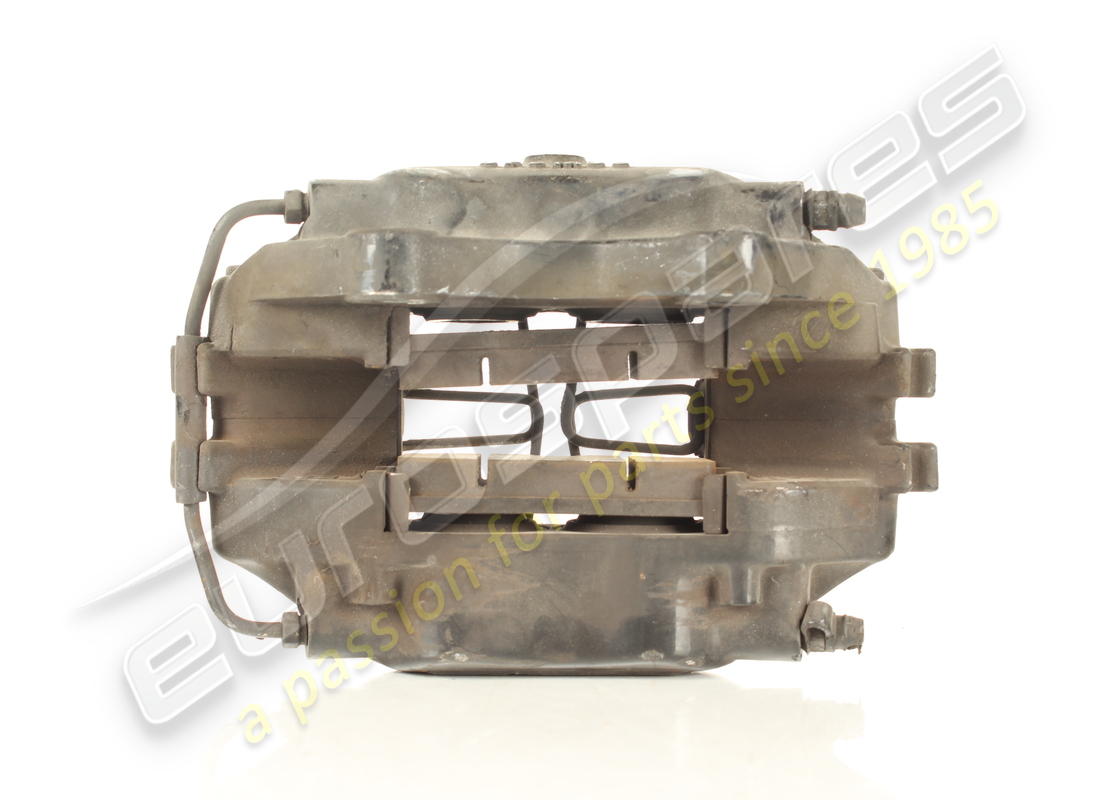

                                      LH REAR SHOE Genuine Lamborghini - Used In stock
                                      # 018
                                      MPN: 003233612
                                      BRAKE CALIPER
                                      RIGHT
                                      from £1,298.60
                                      from £1,298.60
                                      RH REAR SHOE Genuine Lamborghini - New (to order)
                                      # 019
                                      -
                                      KIT PADS BRAKE
                                      NOT FOR THIS MODEL
                                      # 020
                                      MPN: 003135644
                                      ELECT CABLE
                                      from £226.11
                                      from £226.11
                                      WORN PADS SENSOR Genuine Lamborghini - New (to order)
                                      # 021
                                      MPN: 003135643
                                      ELECT CABLE
                                      from £19.74
                                      from £19.74
                                      GALFER SENSOR Genuine Lamborghini - New (to order)
                                      # 022
                                      MPN: 003236088
                                      FRO. BRAK. PADS KIT
                                      GALFER
                                      from £421.74
                                      from £421.74
                                      This part replaces part number 003234508 - and 1 more. Click to view details
                                      PAGID PAD & WIRE KIT Genuine Lamborghini - New (to order)
                                      # 022
                                      MPN: 003236089
                                      FRO. BRAK. PADS KIT
                                      Pagid
                                      Supersession
                                      Supersession
                                      This part replaces part number 003234514
                                      Genuine Lamborghini (no longer available to order)
