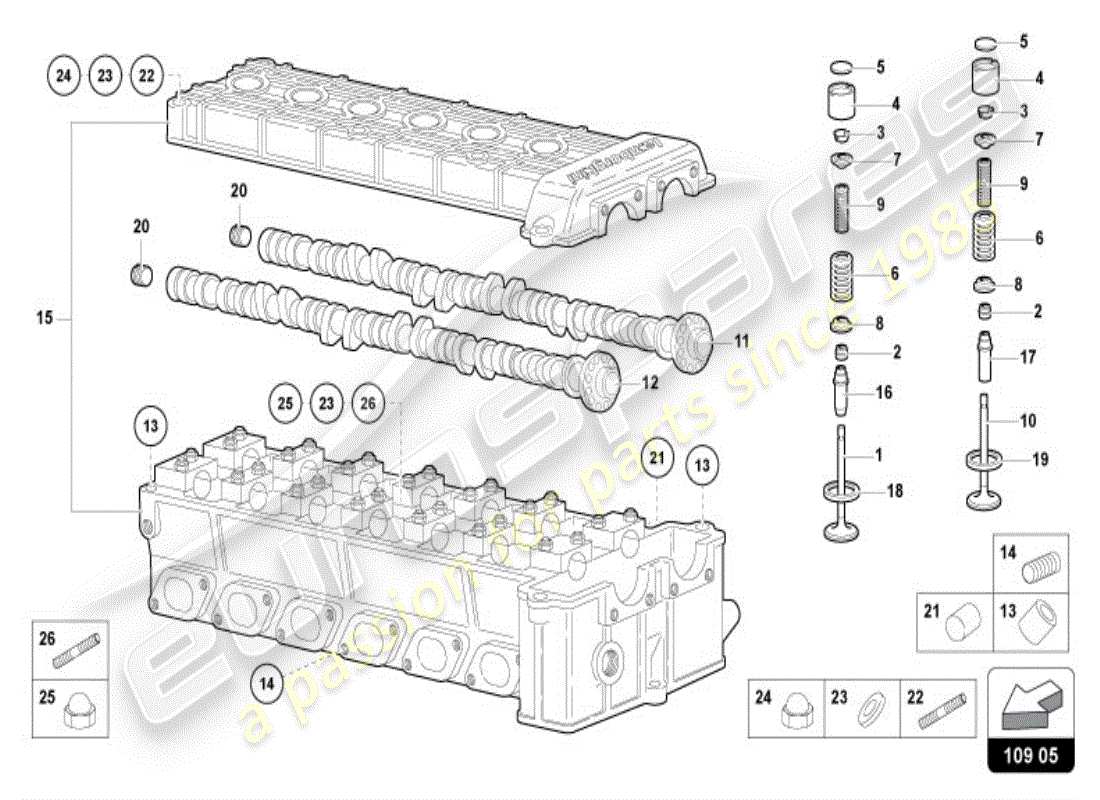

109.05.00 - RIGHT HEAD CAMSHAFT

Lamborghini Diablo VT (1997) RIGHT HEAD CAMSHAFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Price
                  # 001
                  MPN: 001220819
                  EXHAUST VALVE
                  from £78.75
                  from £78.75
                  # 002
                  MPN: 001220840
                  RING
                  UNTIL ENGINE 2219
                  # 003
                  MPN: 001220843
                  TAPPET LOCK CONE
                  from £4.90
                  from £4.90
                  # 004
                  MPN: 001220844
                  TAPPET
                  UNTIL ENGINE 2219
                  # 005
                  MPN: 001220877
                  SHIM
                  3.25 MM
                  Supersession
                  Supersession
                  # 005
                  MPN: 001220878
                  SHIM
                  3.30 MM
                  # 005
                  MPN: 001220879
                  SHIM
                  3.35 MM
                  # 005
                  MPN: 001220880
                  SHIM
                  3.40 MM
                  # 005
                  MPN: 001220881
                  SHIM
                  3.45 MM
                  # 005
                  MPN: 001220882
                  SHIM
                  3.50 MM
                  # 005
                  MPN: 001220883
                  SHIM
                  3.55 MM
                  # 005
                  MPN: 001220884
                  SHIM
                  3.60 MM
                  # 005
                  MPN: 001220885
                  SHIM
                  3.65 MM
                  # 005
                  MPN: 001220886
                  SHIM
                  3.70 MM
                  # 005
                  MPN: 001220887
                  SHIM
                  3.75 MM
                  # 005
                  MPN: 001220888
                  SHIM
                  3.80 MM
                  # 005
                  MPN: 001220889
                  SHIM
                  3.85 MM
                  # 005
                  MPN: 001220890
                  SHIM
                  3.90 MM
                  # 005
                  MPN: 001220891
                  SHIM
                  3.95 MM
                  # 005
                  MPN: 001220892
                  SHIM
                  4.00 MM
                  Supersession
                  Supersession
                  # 005
                  MPN: 001220893
                  SHIM
                  4.05 MM
                  # 005
                  MPN: 001220894
                  SHIM
                  4.10 MM
                  # 005
                  MPN: 001220895
                  SHIM
                  4.15 MM
                  # 005
                  MPN: 001220896
                  SHIM
                  4.20 MM
                  Supersession
                  Supersession
                  # 005
                  MPN: 001220897
                  SHIM
                  4.25 MM
                  # 005
                  MPN: 001220898
                  SHIM
                  4.30 MM
                  # 005
                  MPN: 001220899
                  SHIM
                  4.35 MM
                  # 005
                  MPN: 001220900
                  SHIM
                  4.40 MM
                  # 005
                  MPN: 001220901
                  SHIM
                  4.45 MM
                  # 005
                  MPN: 001220902
                  SHIM
                  4.50 MM
                  # 005
                  MPN: 001220903
                  SHIM
                  4.55 MM
                  # 005
                  MPN: 001220904
                  SHIM
                  4.60 MM
                  # 005
                  MPN: 001220905
                  SHIM
                  4.65 MM
                  # 005
                  MPN: 001220906
                  SHIM
                  4.70 MM
                  # 006
                  MPN: 001220988
                  SPRING
                  UNTIL ENGINE 2219
                  # 007
                  MPN: 001220992
                  TAPPET PLATE
                  UNTIL ENGINE 2219
                  # 008
                  MPN: 001220993
                  TAPPET PLATE
                  UNTIL ENGINE 2219
                  Supersession
                  Supersession
                  # 009
                  MPN: 001223097
                  SPRING
                  UNTIL ENGINE 2219
                  # 010
                  MPN: 001229714
                  INTAKE VALVE
                  from £75.00
                  from £75.00
                  # 011
                  MPN: 001232708
                  camshaft
                  RIGHT
                  from £1,052.83
                  from £1,052.83
                  # 012
                  MPN: 001232709
                  camshaft
                  RIGHT - UNTIL ENGINE 2219
                  from £10,384.74
                  from £10,384.74
                  # 013
                  MPN: 008800604
                  BUSHING
                  UNTIL ENGINE 2219
                  Supersession
                  Supersession
                  # 014
                  MPN: 008840802
                  HELI-COIL
                  UNTIL ENGINE 2219
                  from £2.10
                  from £2.10
                  # 015
                  MPN: 463400150
                  head
                  RIGHT
                  from £14,554.97
                  from £14,554.97
                  # 016
                  MPN: 001229718
                  VALVE GUIDE
                  from £92.59
                  from £92.59
                  # 017
                  MPN: 001229717
                  VALVE GUIDE
                  from £92.59
                  from £92.59
                  # 018
                  MPN: 001220823
                  VALVE SEAT
                  from £10.75
                  from £10.75
                  # 019
                  MPN: 001229713
                  VALVE SEAT
                  from £50.63
                  from £50.63
                  # 020
                  MPN: 008931409
                  STOPPER
                  UNTIL ENGINE 2219
                  from £7.94
                  from £7.94
                  # 021
                  MPN: 001122089
                  WHEAT
                  UNTIL ENGINE 2219
                  from £10.75
                  from £10.75
                  # 022
                  MPN: 008300650
                  PRISONER
                  UNTIL ENGINE 2219
                  from £7.71
                  from £7.71
                  # 023
                  MPN: 008410602
                  WASHER
                  UNTIL ENGINE 2219
                  from £26.88
                  from £26.88
                  # 024
                  MPN: 008200605
                  DICE
                  UNTIL ENGINE 2219
                  from £1.78
                  from £1.78
                  # 025
                  MPN: 008200604
                  DICE
                  UNTIL ENGINE 2219
                  Supersession
                  Supersession
                  # 026
                  MPN: 008300640
                  PRISONER
                  from £10.83
                  from £10.83
